Ortofon Qbert SH4 black headshell on printed
Quantity:
This item is available on a custom order basis only. Please contact us for more details. Contact us

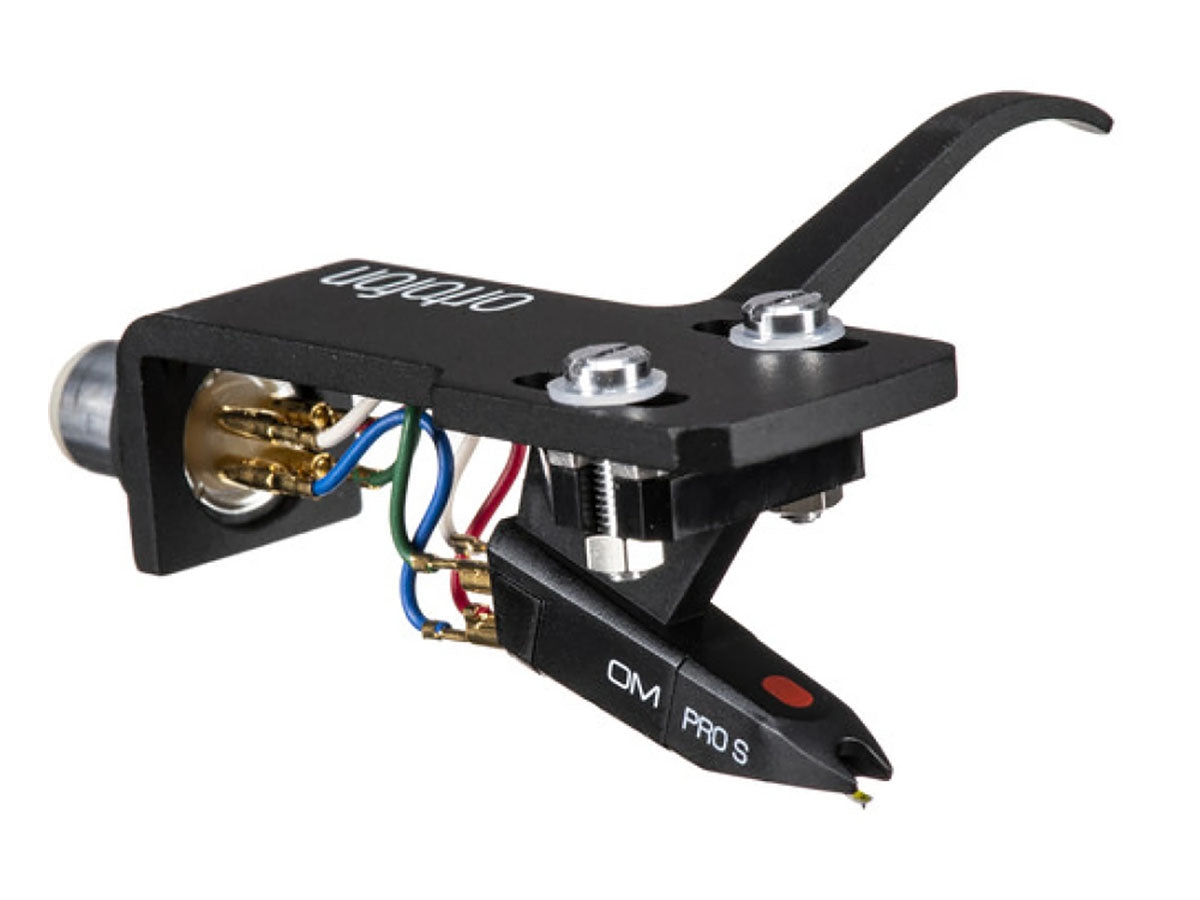

The Ortofon OMPRO S SH4 Black Headshell is an entry-level cartridge for vinyl turntables, which includes an Ortofon Pro S stylus and is mounted on an OM series headshell.
The OM PRO S on SH-4 Black from Ortofon is designed for headshell mounting and comes equipped with one cartridge and a pre-installed wide stylus to reduce wear and increase lifespan. It is suitable for most DJ cartridges and is especially convenient for installation on the OM series. The cartridge features a black finish that perfectly complements models such as the Nightclub, Nightclub II, and Pro S.
OMPRO S SH4 Black Headshell Features
- Universal mount fitting a wide range of S-shaped tonearms
- Correct Baerwald alignment with the major part of tonearms with universal mount
- Spherical stylus minimizes scratching
- Solid cantilever can survive hectic activity at the turntable
OMPRO S SH4 Black Headshell Specifications
- Channel balance at 1 kHz: 2 dB
- Output voltage at 1 kHz, 5cm/sec: 5 mV
- Channel separation at 1 kHz: 20 dB
- Tracking ability at 315Hz: 70 μm
- Compliance, dynamic, lateral: 7 μm/mN
- Stylus type: Spherical
- Stylus tip radius: R 18 μm
- Tracking force range: 3 - 5 g
- Tracking force, recommended: 4 g
- Tracking angle: 20°
- Internal impedance, DC resistance: 750 Ohm
- Cartridge weight: 5.0 g
- Recommended load resistance: 47 kOhm
- Internal inductance: 450 mH
- Recommended load capacitance: 200-600 pF
- Replacement stylus: Stylus PRO S
