Ortofon
Ortofon Concorde Digital Twin MKII
This item is available on a custom order basis only. Please contact us for more details. Contact us

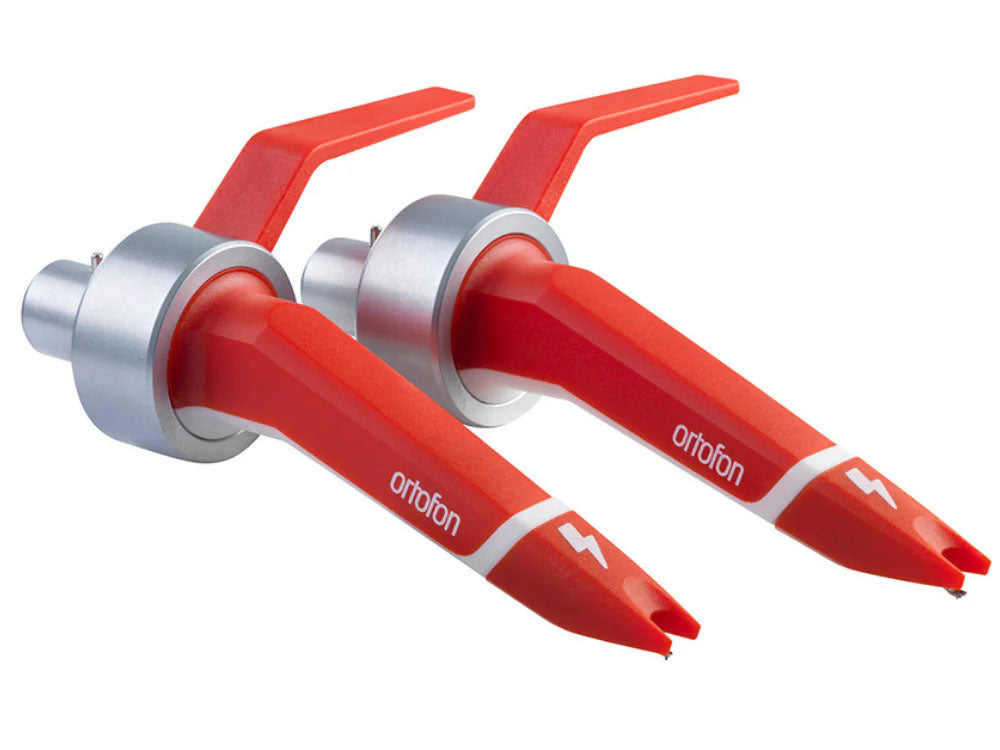

The Ortofon Concorde Digital Twin MKII is a 2 x cartridges featuring a spherical stylus, with a tracking force of 3-5g, an output voltage of 10mV at 5cm/sec, and a frequency response of 20Hz - 18kHz. It's designed for listening to and digitizing analog audio signals.

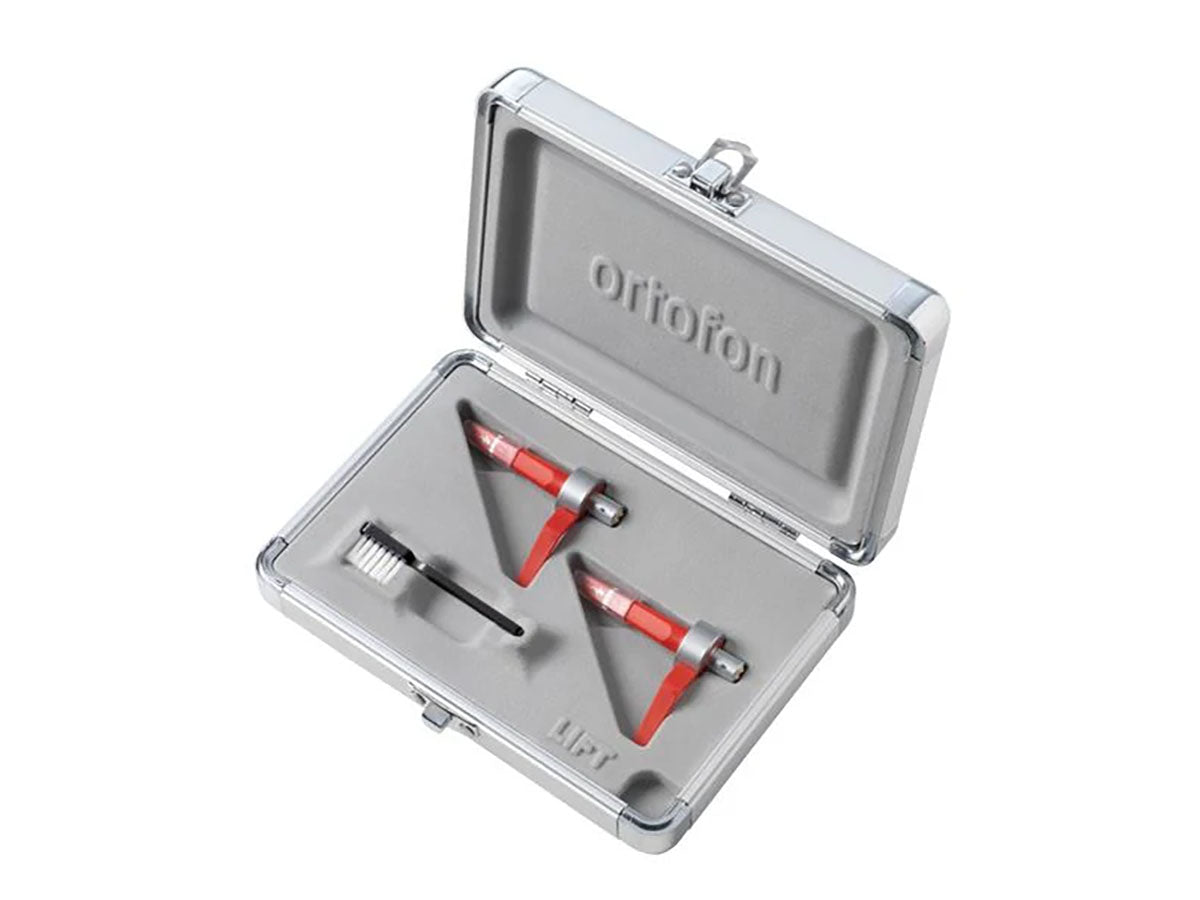

The Concorde Digital Twin MKII package consists of 2 x Concorde Digital MKII cartridges and offers an ideal price-performance ratio.
The Concorde Digital Twin MK2 cartridge from studio and DJ equipment manufacturer Ortofon ensures high-quality sound reproduction and accurate tracking of audio grooves, regardless of musical style. It significantly extends the life of your vinyl records and avoids errors when reading information from the grooves. The 10mV output voltage maximizes the signal-to-noise ratio, resulting in high-quality music enjoyment.
Concorde Digital Twin MKII Features
- Extended Timecode Vinyl Life: Minimizes wear and tear on timecode vinyl, extending its lifespan.
- Optimized for Timecode Vinyl: Designed to improve timecode signal interpretation and reduce decoding errors.
- Exceptional Sound Quality (with conventional vinyl): Provides optimal output and sound quality for both timecode and standard vinyl playback.
- High Output Voltage (10mV): Maximizes signal-to-noise ratio for improved timecode accuracy and better overall audio quality.
- Reduced Noise and Crackle: Minimizes the reproduction of frequencies prone to vinyl wear and crackle, further enhancing timecode accuracy.
Concorde Digital Twin MKII Technical Specifications
- Frequency Range: 20-18,000 Hz
- Channel Balance (1kHz): ±1dB
- Output Voltage (1kHz, 5cm/sec): 10mV
- Channel Separation (1kHz): 22dB
- Tracking Ability (315Hz): 100µm
- Dynamic Lateral Compliance: 14µm/mN
- Cantilever Material: Aluminum
- Stylus Type: Spherical Diamond
- Stylus Tip Radius: R/18µm
- Tracking Force Range: 3-5g
- Recommended Tracking Force: 4g
- Internal Impedance (DC Resistance): 1200Ω
- Cartridge Weight: 18.5g
- Recommended Load Resistance: 47kΩ
- Internal Inductance: 850mH
- Recommended Load Capacitance: 200-400pF.
