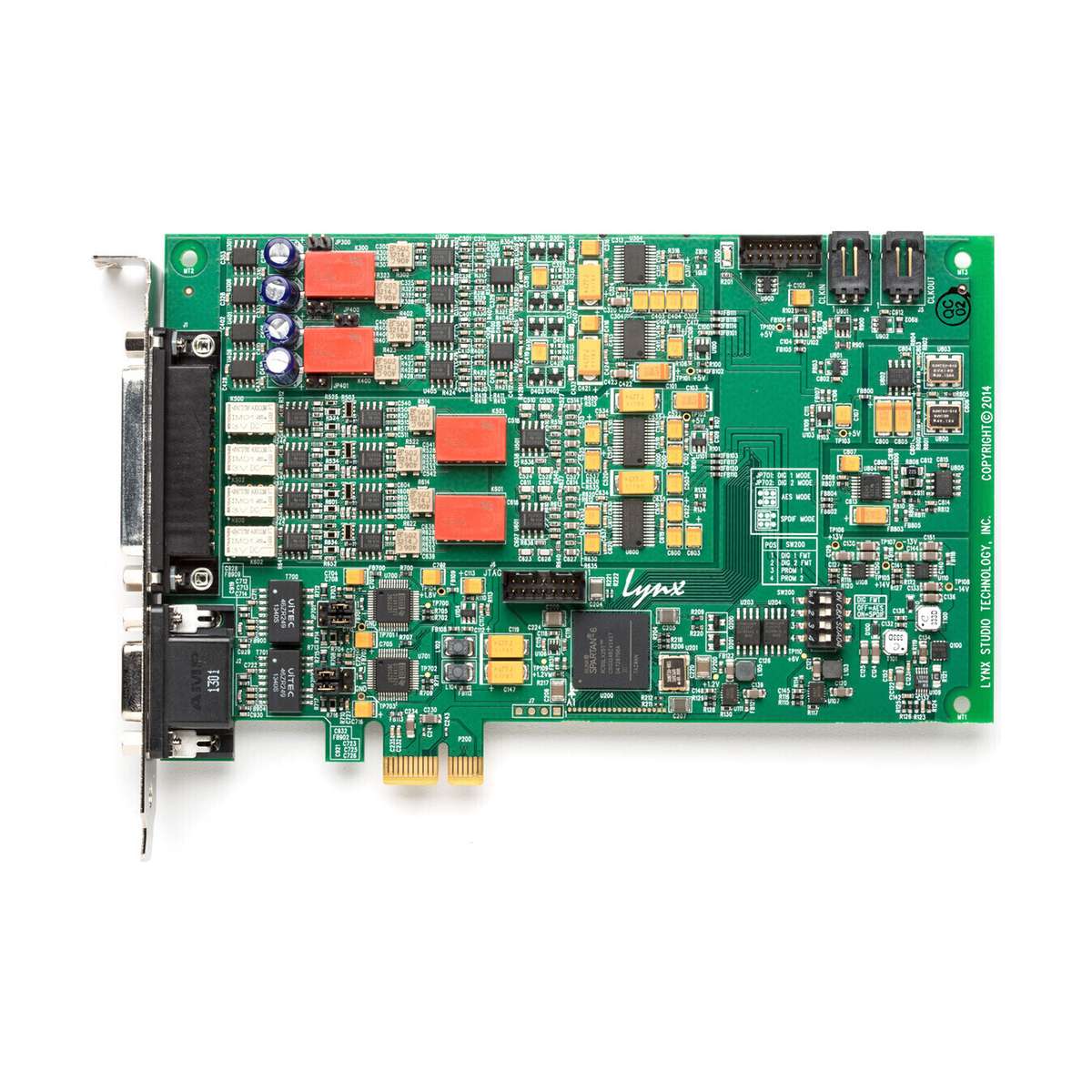

Lynx Studio E44

Lynx Studio E44 is a professional PCI Express audio interface offering four channels of high-resolution 24-bit/192 kHz analog A/D and D/A conversion along with four digital I/O channels via AES3 or S/PDIF. Designed for demanding studio and mastering applications, it features an ultra-low-jitter clock, FPGA-based internal mixing, and configurable trim levels for all analog I/O. Automatic relay switching prevents clicks and pops during transitions, and the card integrates seamlessly with Lynx Mixer Software for precise control.

KEY FEATURES

• Four-channel A/D and D/A conversion at up to 24-bit/192 kHz
• Four channels of AES3 or S/PDIF digital input/output
• Low-jitter sample clock generator for high-precision timing
• Trim level on analog I/Os can be fixed or adjustable
• Relay-switched output muting to prevent pops and clicks (De-Thump)
• FPGA-powered on-board hardware mixer
• Supports Lynx Mixer Software
• Mac OS X, Windows 7 and 8 driver support
• Compatible with existing LynxTWO A analog/digital I/O cables

TECHNICAL SPECIFICATIONS

• Audio resolution: 24-bit/192 kHz
• Analog inputs: 4 line-level
• Analog outputs: 4 line-level
• Digital I/O: 4 channels AES3 or S/PDIF
• Microphone inputs: 0
• Instrument inputs: 0
• Phantom power: No
• MIDI interface: No
• Word Clock / Sync: Yes
• Headphone output: No
• Zero-latency monitoring: Yes
• Interface type: PCI Express
• Compatibility: macOS, Windows 7/8
• Analog and digital cables sold separately
• Release date: April 2015
