Golden Age Project PRE-73 DLX MKII

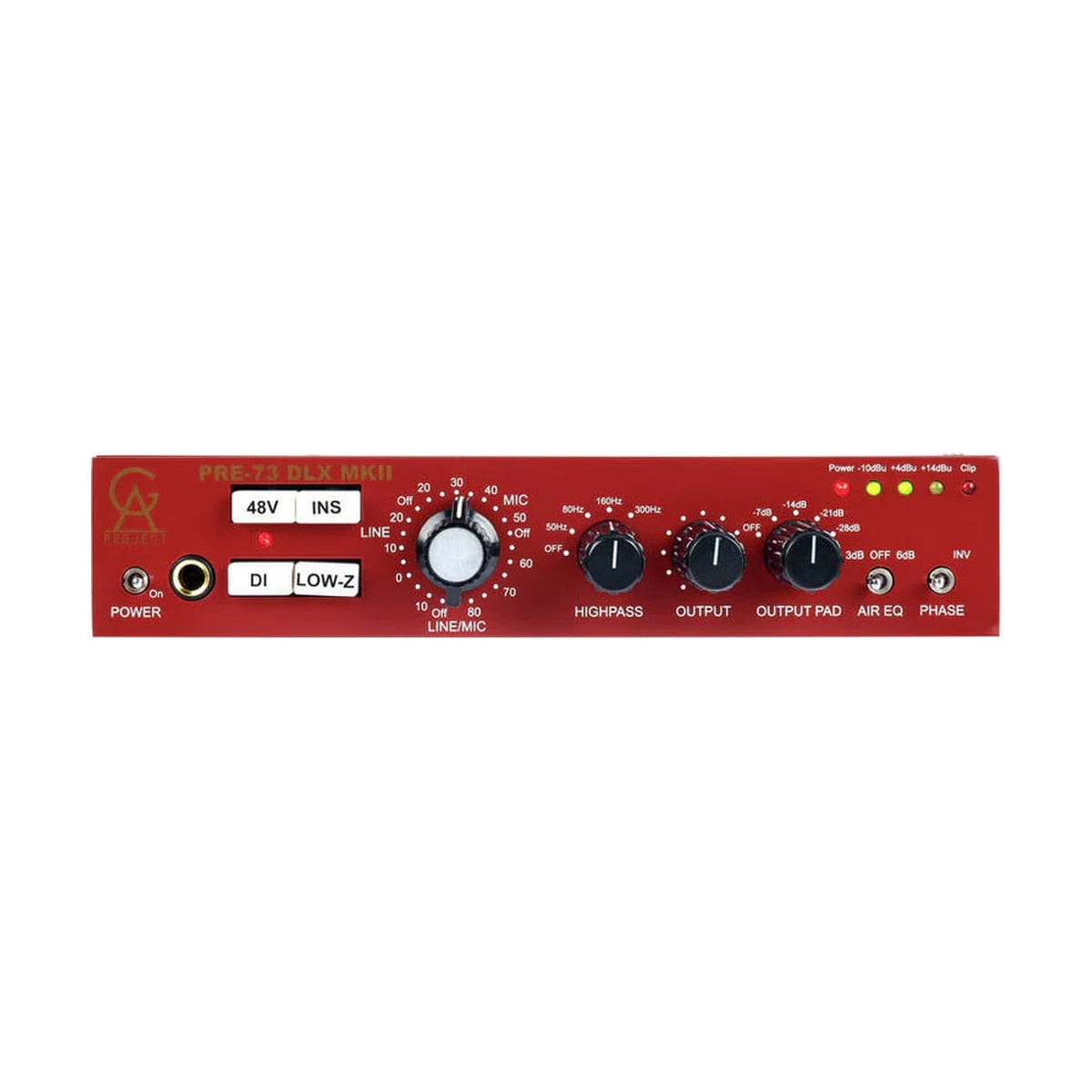

Golden Age Project PRE-73 DLX MKII – one-channel vintage-style microphone, line, and instrument preamplifier with discrete components for warm, punchy sound inspired by Neve 1073. Transformer-balanced I/O using three optimized transformers. 80dB gain for ribbons/quiet sources, switchable mic impedance (1200/300 Ohm), 48V phantom power (up to 10mA), phase reverse, insert jack, output level control, -14dB pad, two-position AIR EQ boost (3/6dB @30kHz), HPF (50/80/160/300Hz).

Active instrument input (hi-Z/100kOhm selectable) passes through mic transformer. Reduced internal boards/connectors, beefed-up PSU for reliability. Compact half-rack design suits project studios.

MAIN FEATURES

• 80dB mic gain
• Switchable impedance: 1200/300 Ohm
• 48V phantom (10mA capable)
• Phase reverse
• Two-position AIR boost @30kHz
• HPF: 50/80/160/300Hz
• Insert jack
• Output pad -14dB
• LED metering
• Transformer-balanced I/O

TECHNICAL SPECIFICATIONS

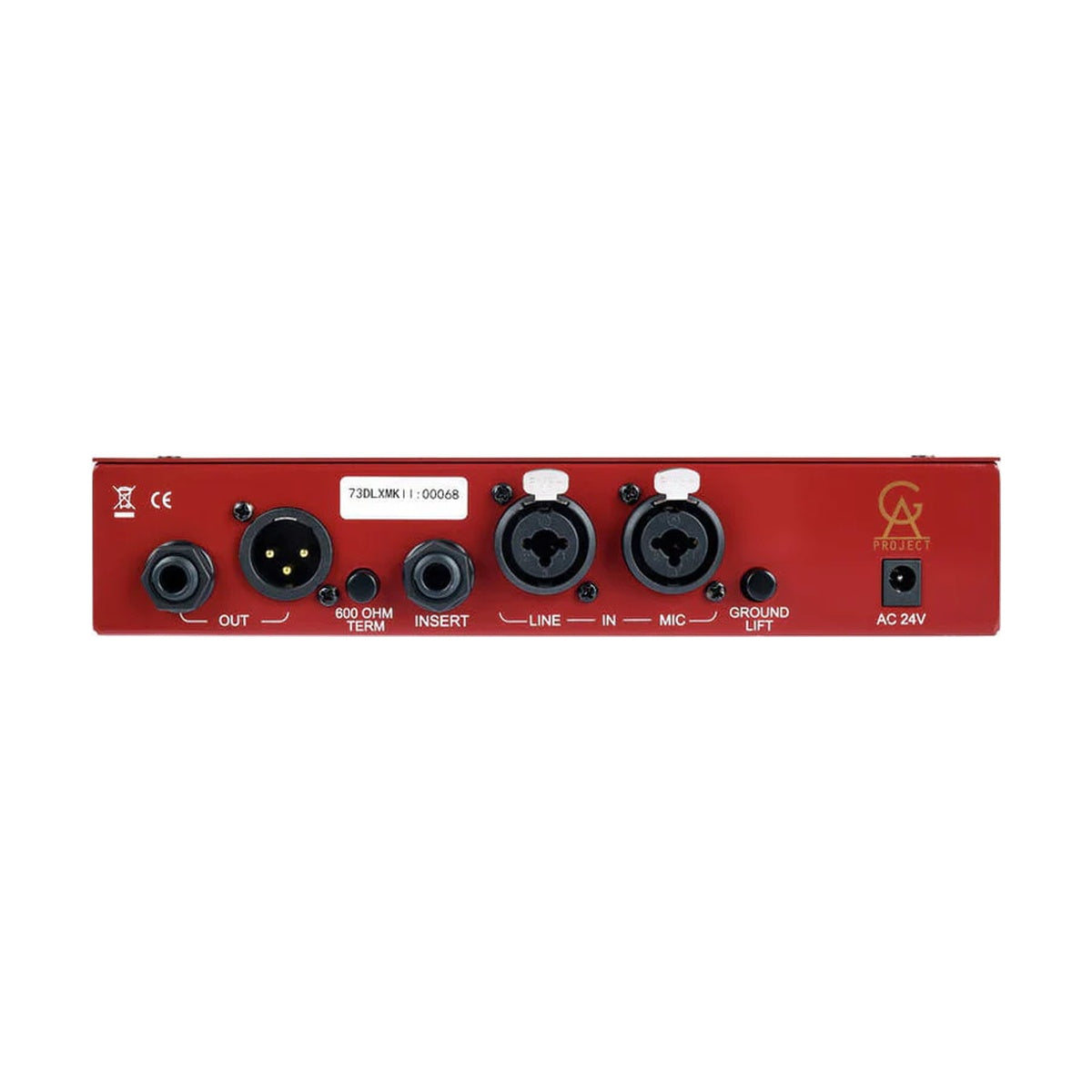

• Inputs: XLR mic/line, 1/4" instrument
• Outputs: XLR/TRS balanced
• Gain: 80dB max (mic)
• Phantom: +48V switchable
• Frequency Response: Vintage-style (20Hz-20kHz)
• THD + Noise: Low (discrete)
• Power Supply: External
• Dimensions: Half-rack
• Weight: Not specified
• Included: PRE-73 DLX MKII, PSU
• Product Code: PRE-73 DLX MKII
