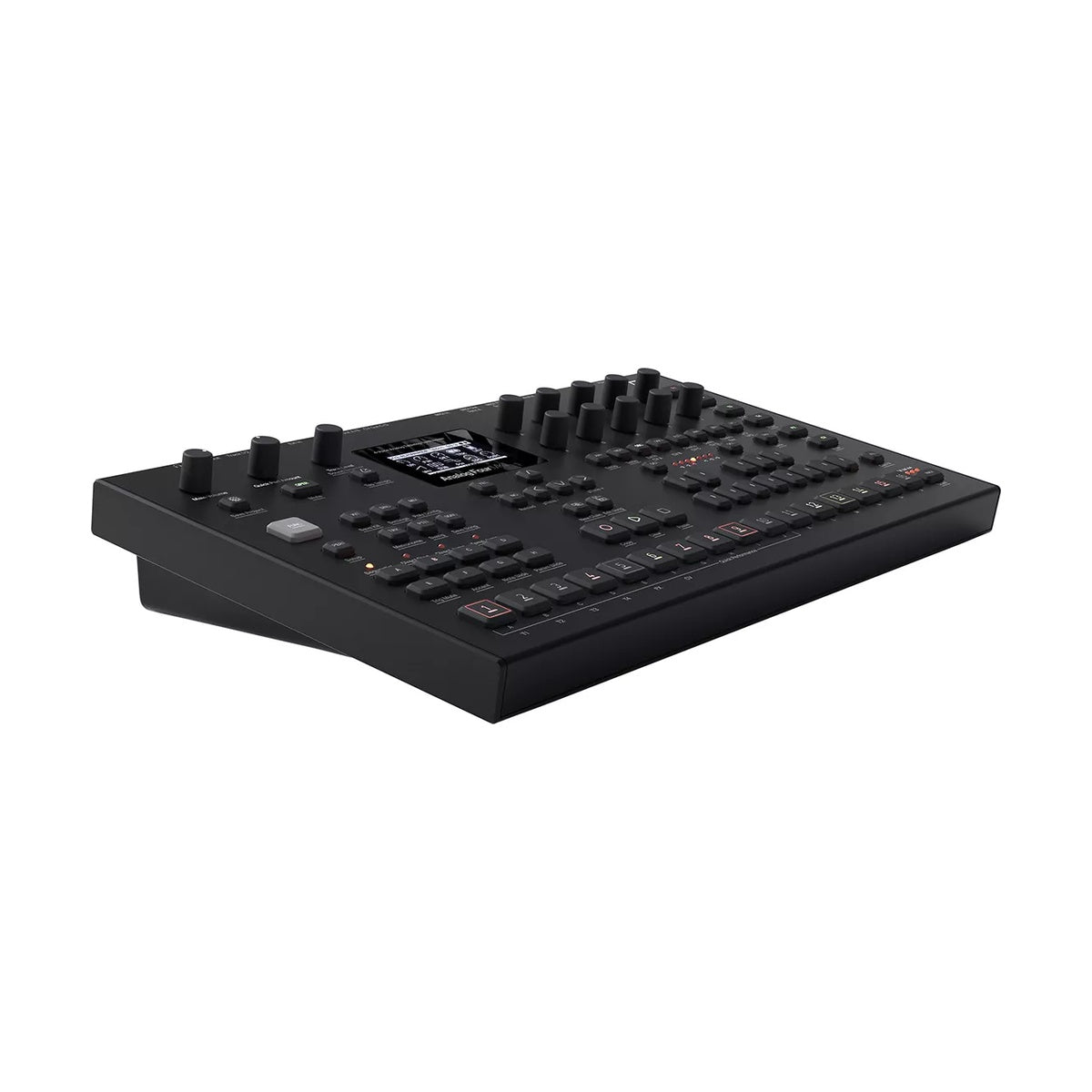

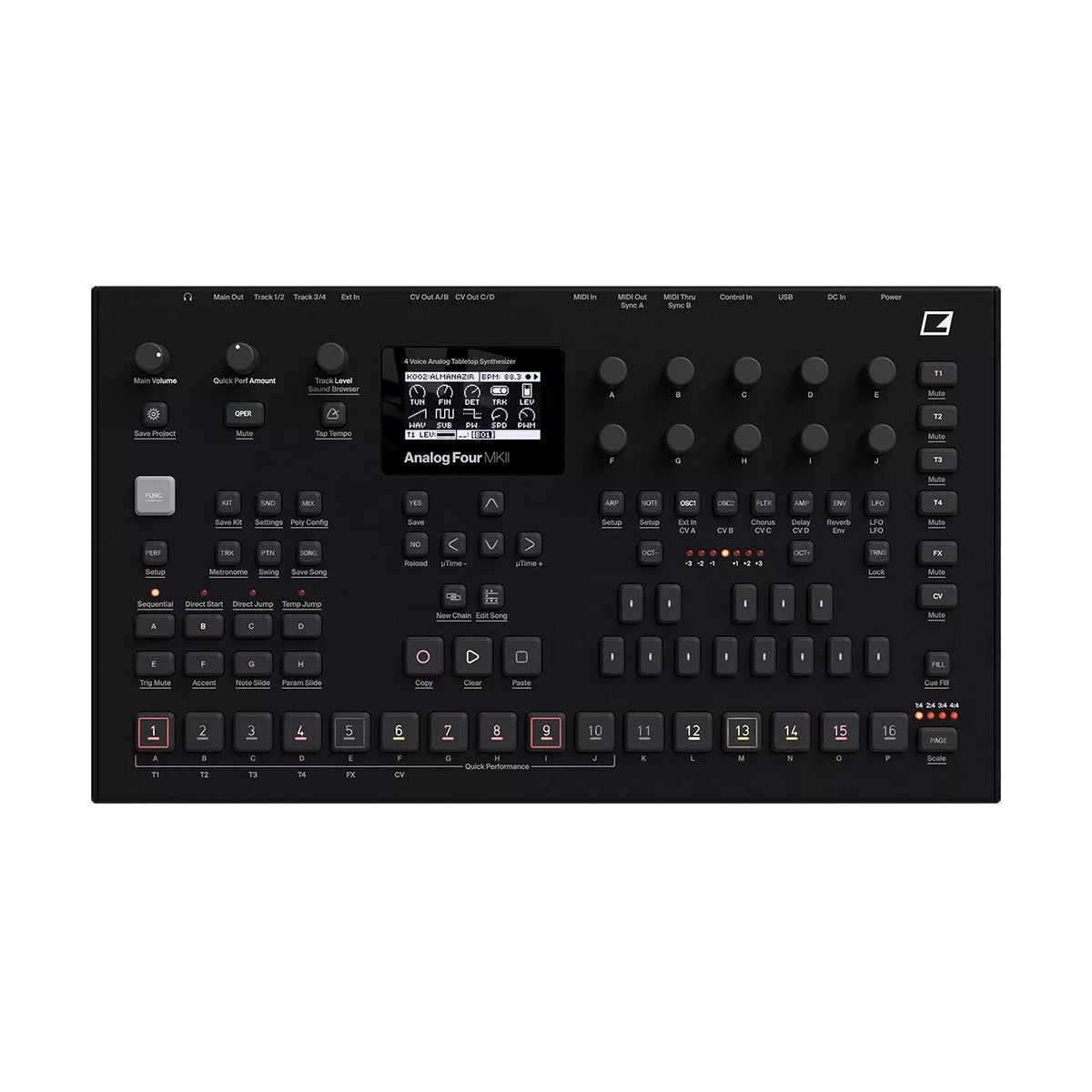

Elektron Analog Four MKII Black
Elektron Analog Four MKII Black
Warsaw Showroom
Nowogrodzka 6
102
00-513 Warszawa
Poland
Elektron Analog Four MKII Black – four-voice analog groovebox with dual oscillators and sub-oscillators per voice, flexible modulation, dual filters, sequencer with parameter locks, and CV/Gate outputs for modular integration.
The Elektron Analog Four MKII Black is a powerful analog synthesizer and groovebox featuring four independent voices, each equipped with two oscillators, sub-oscillators, extensive modulation options, and a versatile dual-filter section. The fully analog signal path ends with high-quality built-in effects — chorus, delay, and reverb — giving each voice depth and dimension. Thanks to Elektron's signature live sequencer, users can control every nuance of sound in real time, including parameter locks and micro-timing.
Its CV/Gate outputs and MIDI capabilities make it a perfect centerpiece for controlling modular systems or external synths. The built-in arpeggiator, polyphonic or unison modes, and flexible pattern chaining ensure excellent performance both in the studio and on stage. Full DAW integration is available via Overbridge, and the unit supports 128 projects, each with 128 sounds, kits, patterns, and up to 16 songs.
KEY FEATURES
- Analog desktop synthesizer with 4 voices
- 2 oscillators and 2 sub-oscillators per voice
- 24 dB lowpass filter with overdrive + 6/12 dB multimode filter
- 3 variable-shape ADSR envelopes
- 2 LFOs per voice with flexible routing
- Chorus, delay, and reverb effects
- Analog-style parameter modulation with micro-timing
- Live step sequencer with parameter locks
- Accent & slide, pattern chaining, song mode
- 4 assignable CV/Gate outputs
- Audio inputs and full MIDI I/O
- USB and DAW integration via Overbridge
TECHNICAL SPECIFICATIONS
- Manufacturer: Elektron
- Construction: Desktop without keyboard
- Velocity sensitive: Yes
- Sound generation: Analog
- Polyphony: 4 voices
- Arpeggiator: Yes
- Integrated effects processor: Yes
- Number of knobs: 13
- Display: Yes
- MIDI interface: IN/OUT/THRU, 5-Pin DIN
- USB Audio interface: Yes
- Line In / Line Out: Yes
- Headphone output: Yes
- Mounting options: MIDI step sequencer
- Power supply: External adapter
- Dimensions (W x H x D): 38.5 x 8.2 x 22.5 cm
- Weight: 2.4 kg
