Arturia AudioFuse Rev 2 – compact USB audio interface with 14 ins/outs, DiscretePRO preamps, ADAT/SPDIF, monitor control, MIDI I/O, USB hub and 24-bit/192kHz converters.
Despite its compact size, the Arturia AudioFuse Rev 2 USB 2 offers an extensive set of features that make it an ideal companion in the studio or on the go. It functions as a high-quality preamp and converter, a USB hub, and a monitor controller for two speaker pairs. Two main combo input channels include individual controls with pad, 48V phantom power, phase invert, and mic/line/instrument selection. With ADAT or SPDIF I/O for expanding up to eight channels, Word Clock, MIDI I/O (with 5-pin adapter), and three USB ports, it is ready for demanding studio applications.

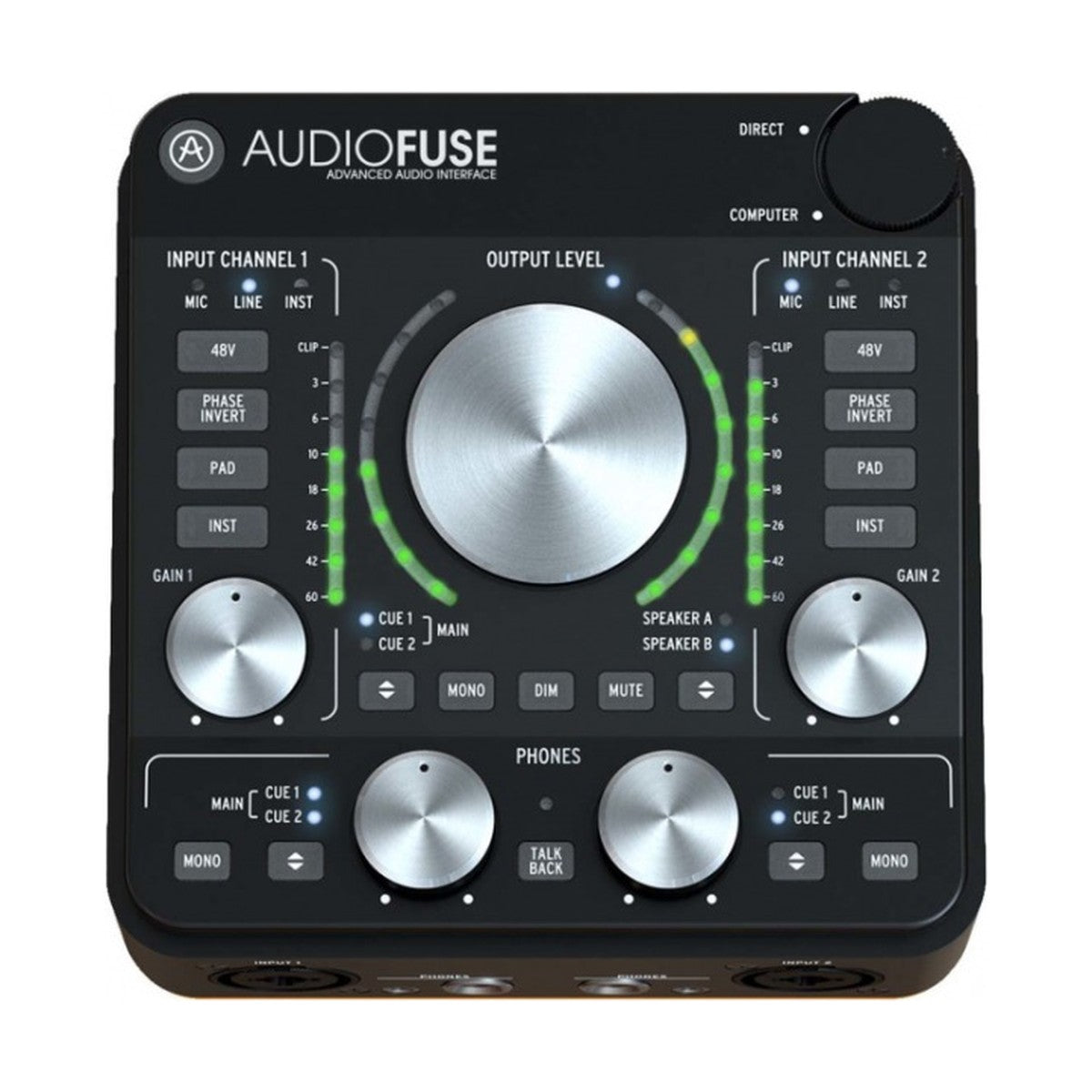

The top panel gives immediate access to essential controls like mono, dim, mute, and monitor switching. Coupled with 24-bit AD/DA converters (up to 192kHz), onboard talkback mic, direct monitoring with zero latency, and an integrated reamping function, AudioFuse Rev 2 delivers versatility and pristine audio. Whether you're a mixing engineer, producer, composer, or musician, this interface covers every base with intuitive operation and top-tier performance.
KEY FEATURES
- 14 total inputs and outputs
- 2 mic/line/instrument preamps with DiscretePRO technology
- 2 line inputs / 2 phono (RIAA) preamps
- ADAT I/O (or SPDIF) for up to 8 additional channels
- Word Clock I/O via Cinch
- MIDI I/O via adapter and USB
- Two stereo monitor outputs with 119 dB dynamic range
- Two headphone outputs with 1/8” and 1/4” jacks
- USB 2.0 hub with three ports
- Talkback mic with 96kHz support
- A/B monitor switching, mono, mute, dim controls
- Class-compliant USB interface for PC, Mac, iOS, Android, Linux
- Aluminum housing with leather-covered lid
TECHNICAL SPECIFICATIONS
- Manufacturer: Arturia
- Operating system: Win / Mac OS
- Application Area: Home sector
- Number of channels: 14x14
- Number of Microphone Inputs: 2
- Line ins: 2
- DI In: 0
- Line outs: 4
- Headphone inputs: 2
- Phantom Power: Yes
- S/PDIF coaxial In: 1
- S/PDIF coaxial Out: 1
- S/PDIF optical In: 1
- S/PDIF optical Out: 1
- ADAT In: 1
- ADAT Out: 1
- MIDI Interface: Yes
- Wordclock In: Yes
- Wordclock Out: Yes
- Maximum sampling rate in kHz: 192
- Maximum sampling rate in bit: 24
- Bus Powered: Optional
- incl. Power Adapter: Yes
- USB Version: 2
- Width (mm): 127
- Depth (mm): 127
- Height (mm): 66
- Weight (kg): 1.9
