Antelope Audio Zen Tour Synergy Core is a compact yet powerful professional-grade audio interface designed for recording, mixing, and mastering. Equipped with 4 DSP chips and 2 FPGA processors in the Synergy Core engine, it provides ultra-low-latency processing of 36 meticulously modeled hardware effects—including vintage preamps, EQs, compressors, and an Auto‑Tune Synergy plugin—all without burdening your host computer. A built-in Talkback mic enhances communication in studio workflows.

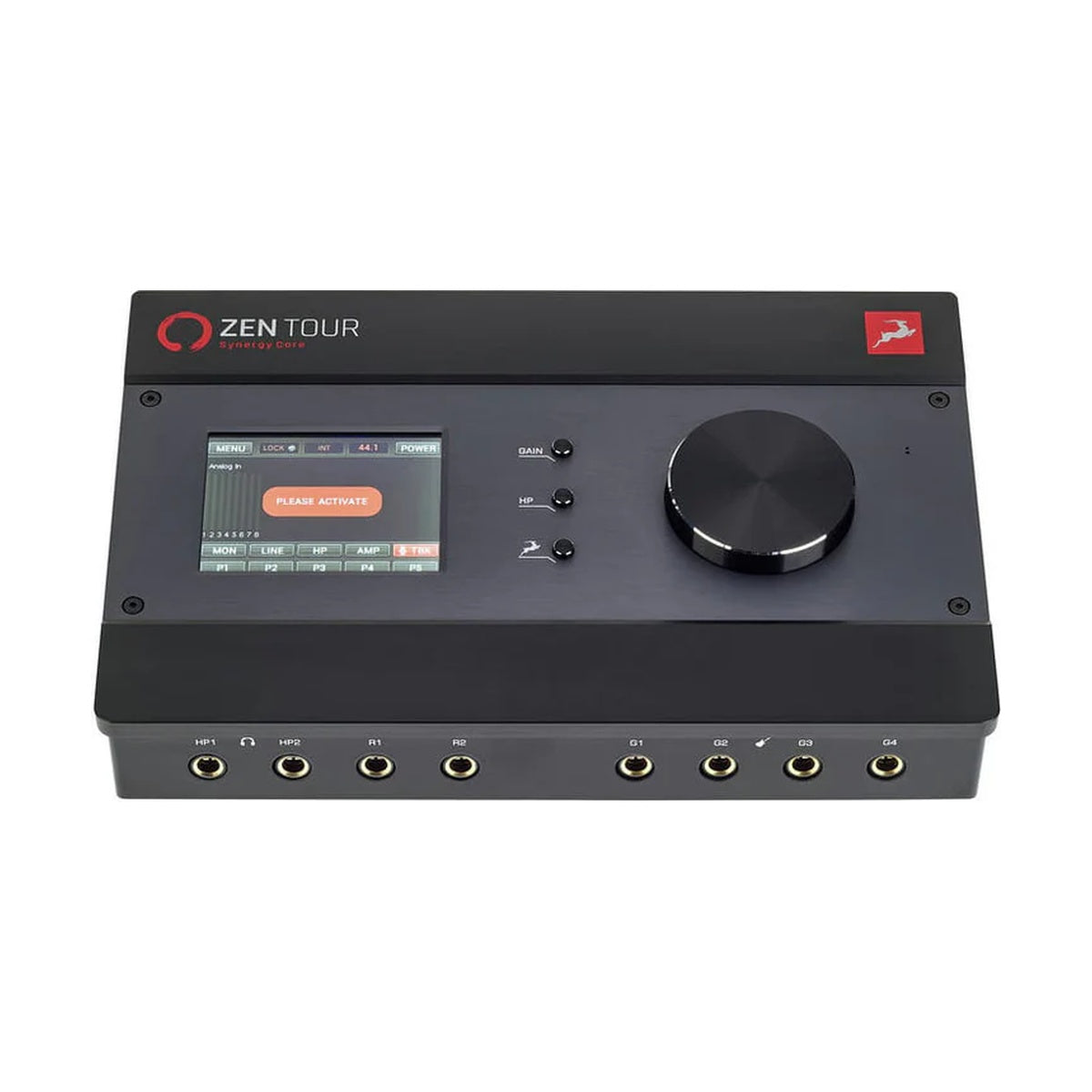

The intuitive front panel features a responsive touchscreen, 3 function buttons, and a master volume encoder. The Zen Tour offers 4 instrument/line inputs, 4 mic/line inputs with premium preamps, 8 line outputs, 2 headphone outputs, 2 Re‑Amp outputs, plus digital ADAT and S/PDIF I/O, all accessible via USB 2.0 and Thunderbolt 3. With expanded channel count (up to 32 channels at 192 kHz) and dual CV‑capable line outputs for modular synth control, it sets new benchmarks in performance and flexibility.
Built with Antelope’s patented 64-bit Acoustically Focused Clocking (AFC), upgraded converters delivering up to 130 dB dynamic range, and cross‑platform connectivity, Zen Tour Synergy Core delivers pristine sound quality for large sessions and resource-heavy virtual instruments. Designed to be a studio centerpiece or a mobile production powerhouse—wherever inspiration strikes.
KEY FEATURES
- Synergy Core engine with 4 DSP + 2 FPGA for low‑latency internal FX
- 36 built‑in studio-quality FX, including Auto-Tune Synergy, Opto‑2A, and more
- Enhanced I/O – up to 32 channels @ 192 kHz
- 8 analog inputs (4 instrument/line, 4 mic/line) with ultra‑transparent preamps
- 8 balanced line outputs + 2 Re‑Amp outputs
- 2 independent headphone outputs
- ADAT & S/PDIF digital I/O
- USB 2.0 and Thunderbolt 3 connectivity
- CV-capable fixed DC line outputs (modular synth control)
- Integrated Talkback microphone
- 128-channel internal mixer with programmable FX inserts
- High-fidelity converters with 130 dB dynamic range
- Low-latency monitoring with 4x 32‑channel stereo mixes
TECHNICAL SPECIFICATIONS
- Form factor: Compact desktop/rackmount interface
- Audio Processing: 4x DSP + 2x FPGA (Synergy Core)
- Analog I/O: 4x instrument/line + 4x mic/line (combo inputs), 8x line outputs (TRS), 2x Re‑Amp outs, 2x headphone outs
- Digital I/O: ADAT In/Out, S/PDIF In/Out
- Computer Interfaces: USB 2.0 (Type-B) and Thunderbolt 3 (Type-C)
- Sample Rate Support: Up to 192 kHz
- Dynamic Range: Up to 130 dB
- Clocking Technology: 64‑bit AFC with jitter management
- Line Outputs: CV‑capable for modular synth control (fixed DC level)
- Built-in Mixer: 4 stereo mixes × 32 inputs with FX insert slots
- Control Interface: Touchscreen + 3 function buttons + volume encoder
- Included FX: 36 Synergy Core effects
- Weight & Dimensions: Compact, lightweight enclosure (approx. 2.5 kg)
