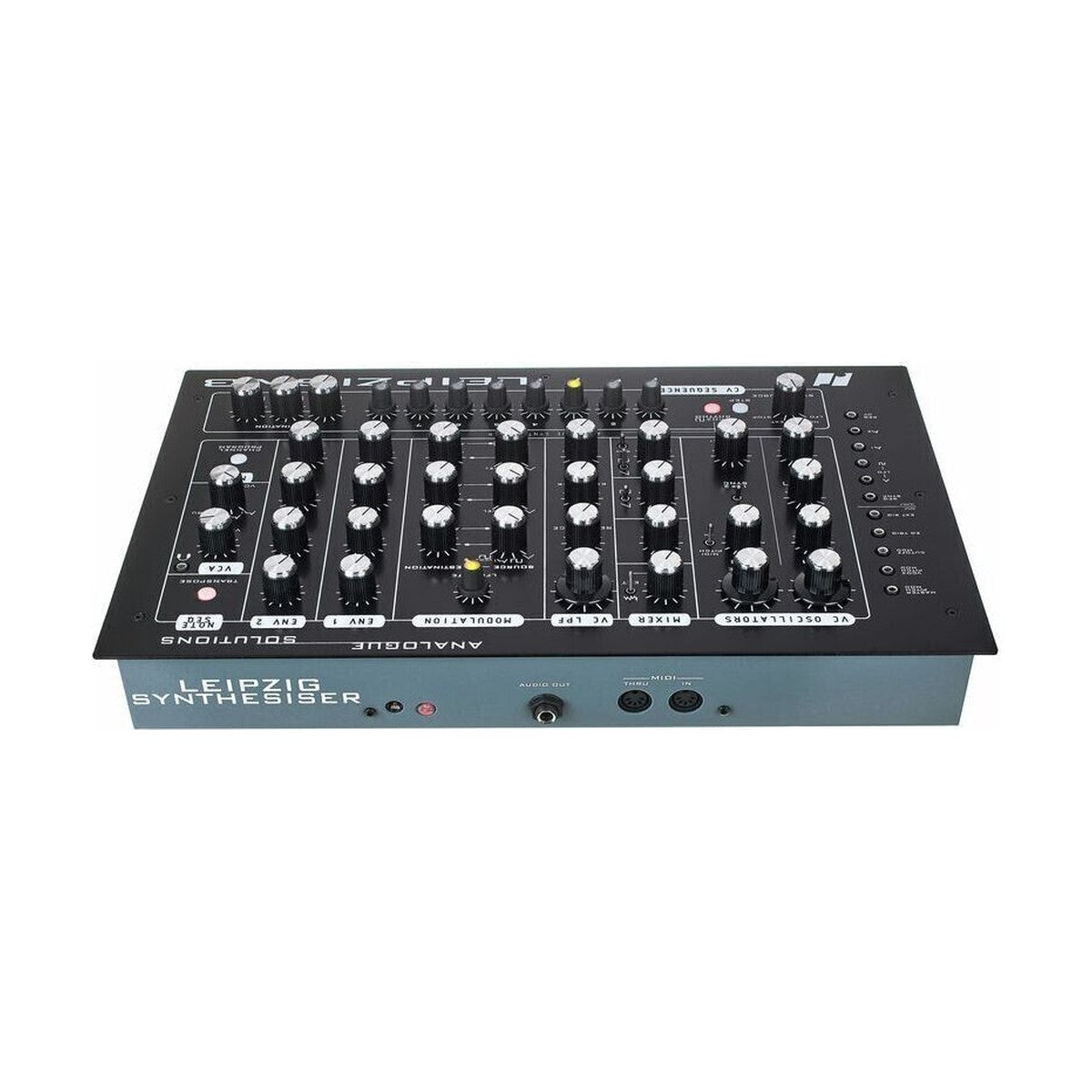

Analogue Solutions Leipzig V3

Analogue Solutions Leipzig V3 is an analog monophonic desktop synthesizer with a step sequencer, dual oscillators, Moog-style low-pass filter, and extensive modulation capabilities. Inspired by the classic synthesizers of the 1970s and 1980s, Leipzig V3 delivers powerful sound and hands-on control via 44 knobs, and offers full integration with Eurorack and semi-modular systems.

Both oscillators offer sawtooth and square waveforms with independent glide and pulse width modulation. A sub-oscillator and noise generator further expand the sound palette. Features like hard sync and cross-modulation enable aggressive lead tones, while the analog 24 dB transistor ladder filter provides vintage character. Two ADSR envelopes and a triangle/square LFO enable deep sound shaping. The VCA section includes four modes: envelope 1, envelope 2, gate, and thru (ideal for filterbox or drone synth usage).

The built-in 8-step sequencer allows independent CV routing to VCO1, VCO2, and the filter, triggering both envelopes per step and syncing via MIDI or CV. Version 3 brings enhancements such as waveform switching for oscillator 2 per step, expanded CV/Gate I/O, and compact desktop housing with headphone output. Leipzig V3 is an ideal analog groovebox and sound design powerhouse for studio and live use.

KEY FEATURES

• Analog monophonic desktop synthesizer
• 2 oscillators with independent glide and pulse width modulation
• Hard sync, cross-modulation, sub-oscillator, noise generator
• 24 dB low-pass ladder filter (Moog-style)
• 2 ADSR envelopes and LFO with triangle/square waveforms
• 4 VCA modes: Envelope 1, Envelope 2, Gate, Thru
• 8-step sequencer with independent CV control per step and MIDI/CV sync
• Waveform switching for VCO2 on individual steps
• Compatible with Eurorack and semi-modular systems
• Sturdy metal enclosure in compact desktop format

TECHNICAL SPECIFICATIONS

• Manufacturer: Analogue Solutions
• Construction / Number of Keys: Desktop without keyboard
• Velocity sensitive: Yes
• Sound Generation: Analog
• Polyphony: 1
• Number of knobs: 44
• Number of buttons: 4
• Mounting Options: MIDI Step Sequencer
• MIDI Interface: Yes
• LINE IN: Yes
• LINE OUT: Yes
• Headphone Output: Yes
• Power Supply: External adapter (included)
• Width: 43.2 cm
• Height: 6.3 cm
• Depth: 26.2 cm
• Weight: 3 kg
