TELEFUNKEN Elektroakustik
TELEFUNKEN Elektroakustik TF51
This item is available on a custom order basis only. Please contact us for more details. Contact us

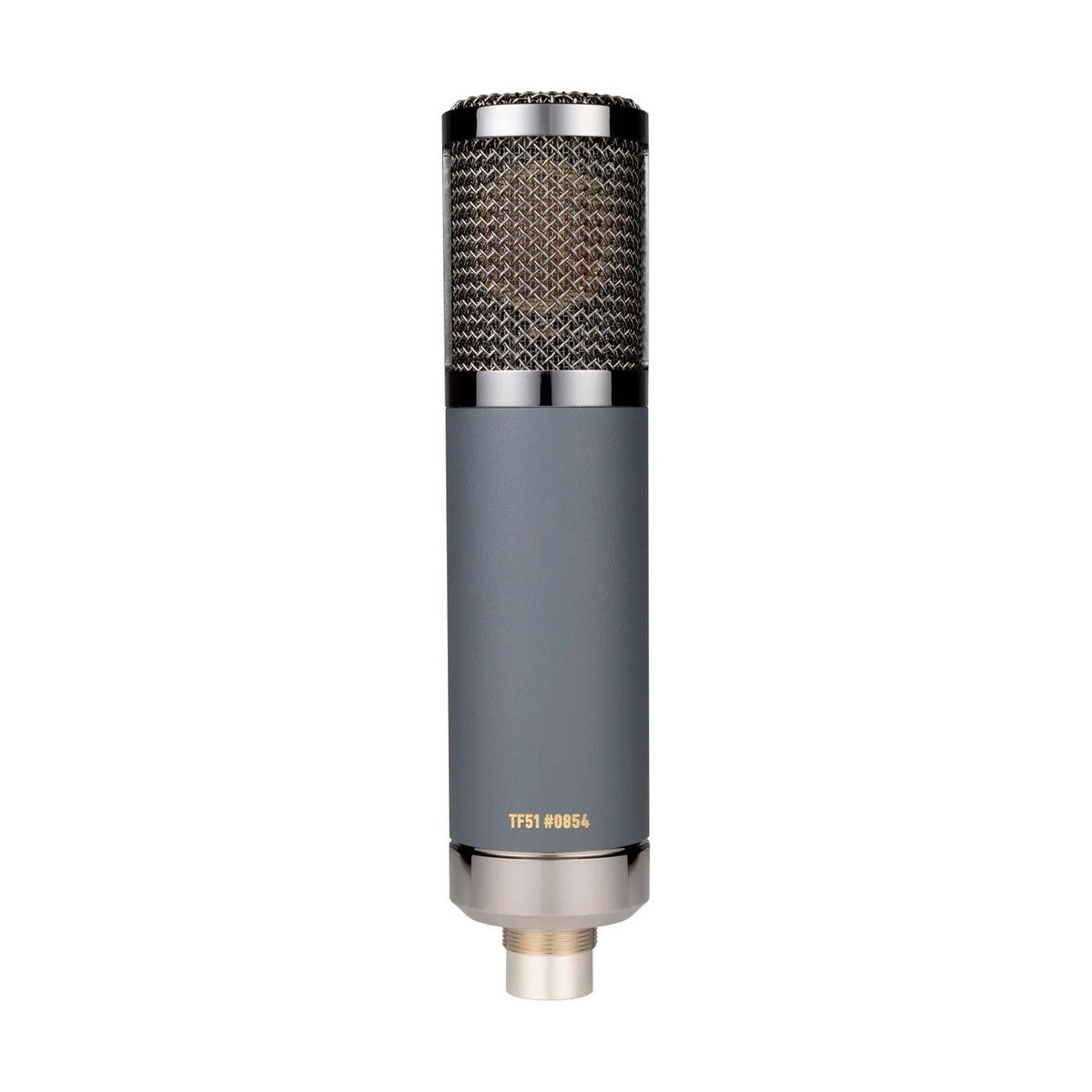

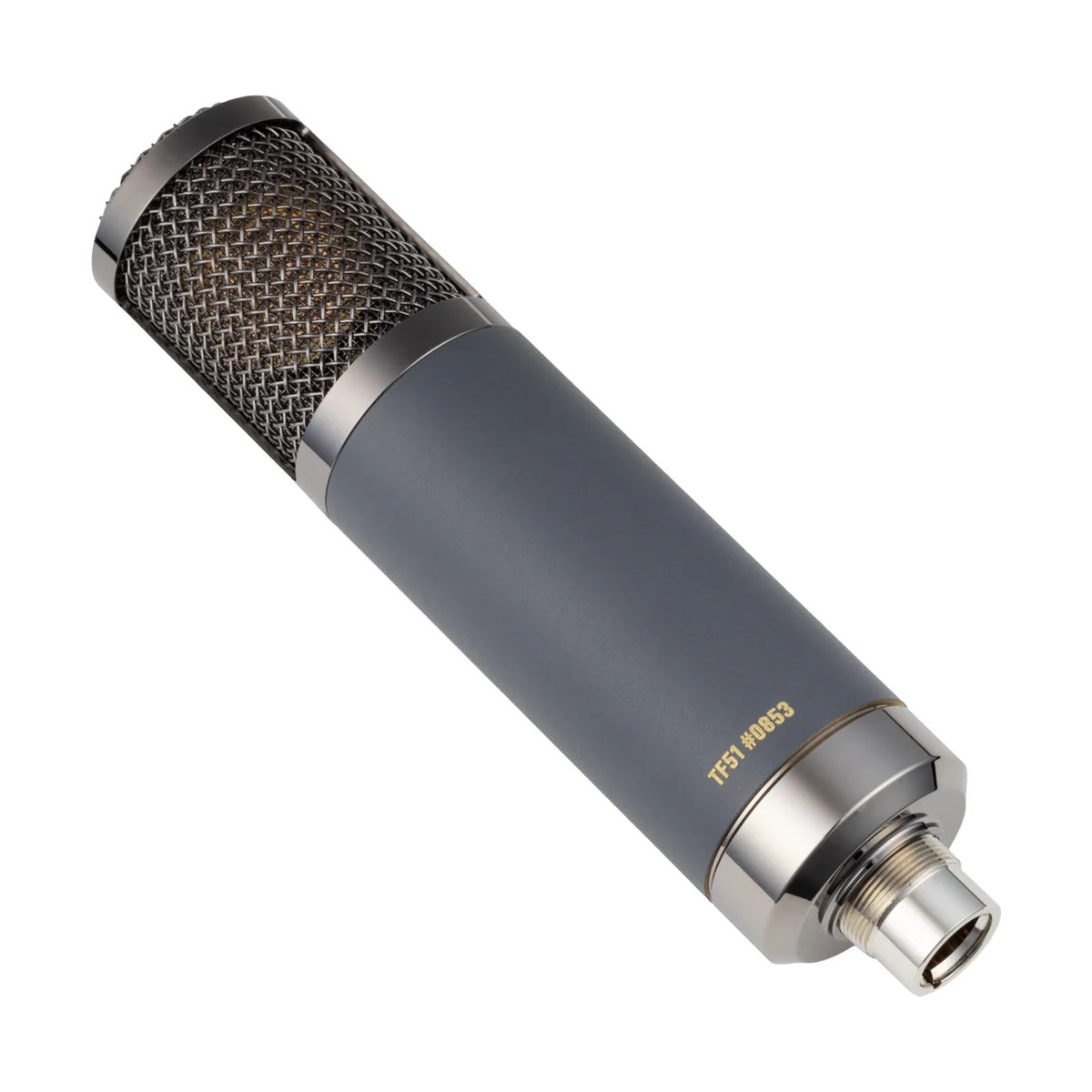

Telefunken Elektroakustik TF51 is a large diaphragm condenser microphone with a tube, a frequency range of 50 Hz - 18000 Hz, powered by an external source and comes with a set of accessories.
The TF51 microphone offers a modern interpretation of the "Austrian" sound, inspired by legendary models TELEFUNKEN ELA M 251E and C12. This microphone continues the brand's excellent heritage, delivering distinct midrange and clear highs, while simultaneously capturing even the smallest nuances of sound. TF51 is the perfect choice for recording vocals, acoustic instruments and drums, thanks to its reliability and quality.
Similar to the 251E and C12 models, the TF51 uses a CK12-style edge-terminated capsule, a 6072A vacuum tube and a specially designed Haufe transformer. This synergy of components creates an open and smooth sound profile with high articulation, which can be described as incredibly realistic. TF51 is a microphone that can capture all the nuances of your sound.
Telefunken Elektroakustik TF51 Features
- Air and open high end
- Balanced low end and natural midrange
- Switch to select polar pattern: cardioid, omnidirectional and figure-eight
- CK12-style capsule design and German Haufe transformer
- TELEFUNKEN Elektroakustik 6072A vacuum tube
- Designed and hand-assembled in the USA
- Works well with vocals, acoustic guitar, violin, drum overheads.
Telefunken Elektroakustik TF51 Specifications
- Type: Tube condenser microphone
- Polar pattern: cardioid, omnidirectional, figure-eight
- Frequency range: 20 Hz – 20 kHz, ±3 dB
- Power source: external power supply
- Capsule: TK51 Edge Terminated Large Diaphragm
- Tube: TELEFUNKEN Elektroakustik 6072A
- Transformer: Haufe T31
- Sensitivity: 19 mV/Pa, ±1 dB
- THD at 1 kHz at 1 Pa (amplifier): < 0.4%
- Output impedance: < 300 Ohm
- Maximum sound pressure level (for 1% THD): 128 dB
- Signal-to-noise ratio: 86 dBA
- Self-noise (amplifier): 8 dBA
- Dimensions: 200 mm x 46 mm D
- Weight: 615 g

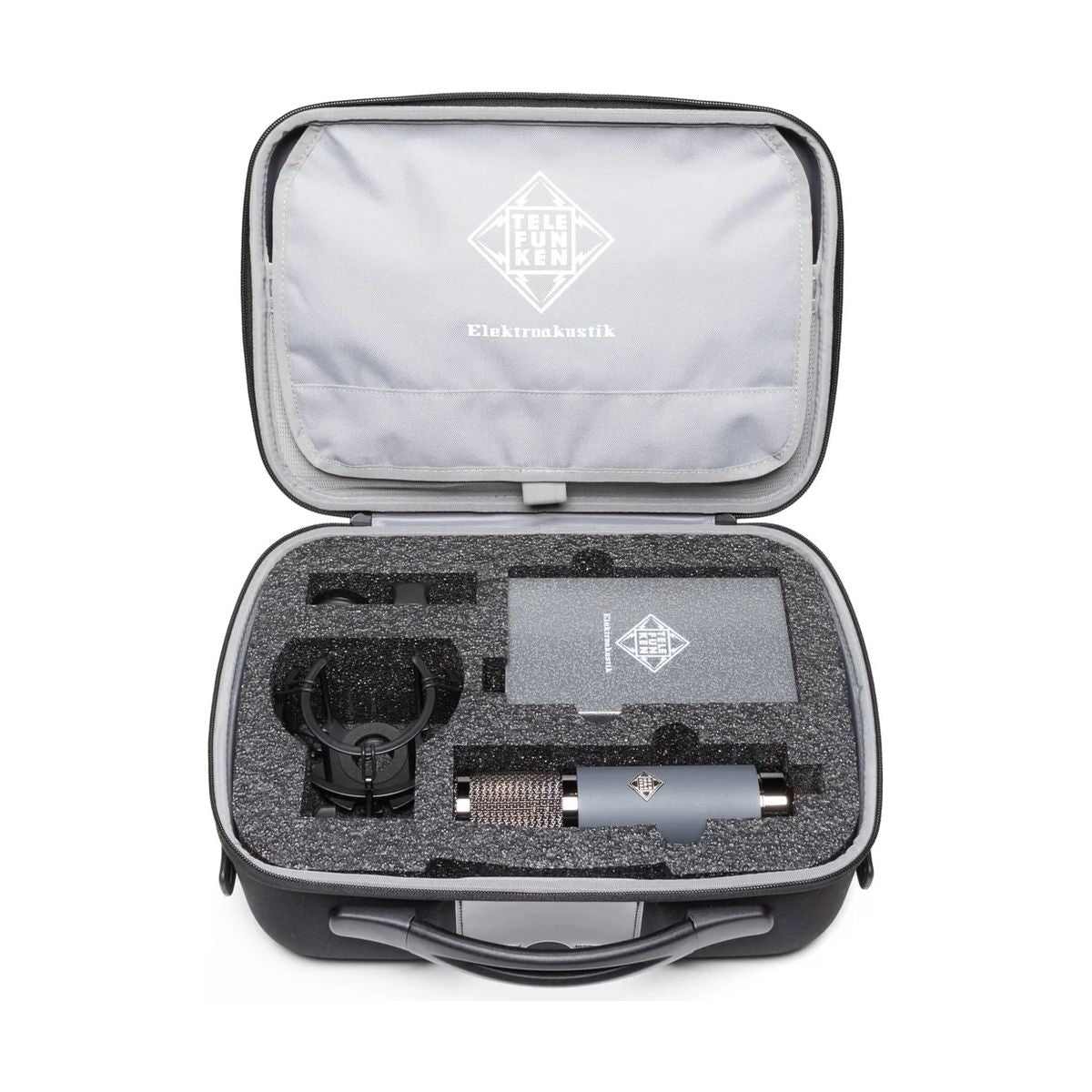

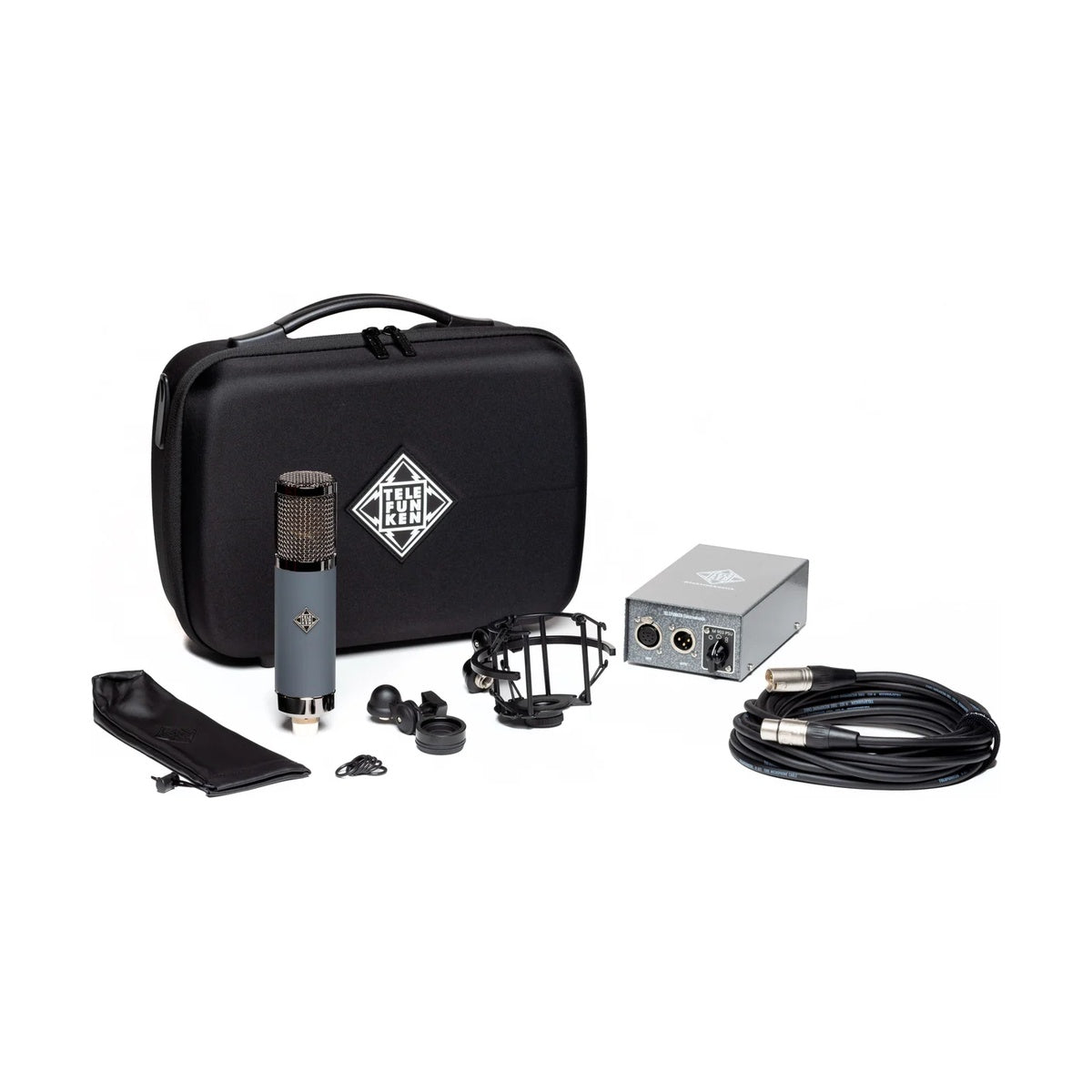

- Included accessories: M 803 cable for TF51 tube microphone, M 903 power supply, M 703 shock mount, M 782 stand mount, MS01 microphone case, ZC03 carrying bag.
