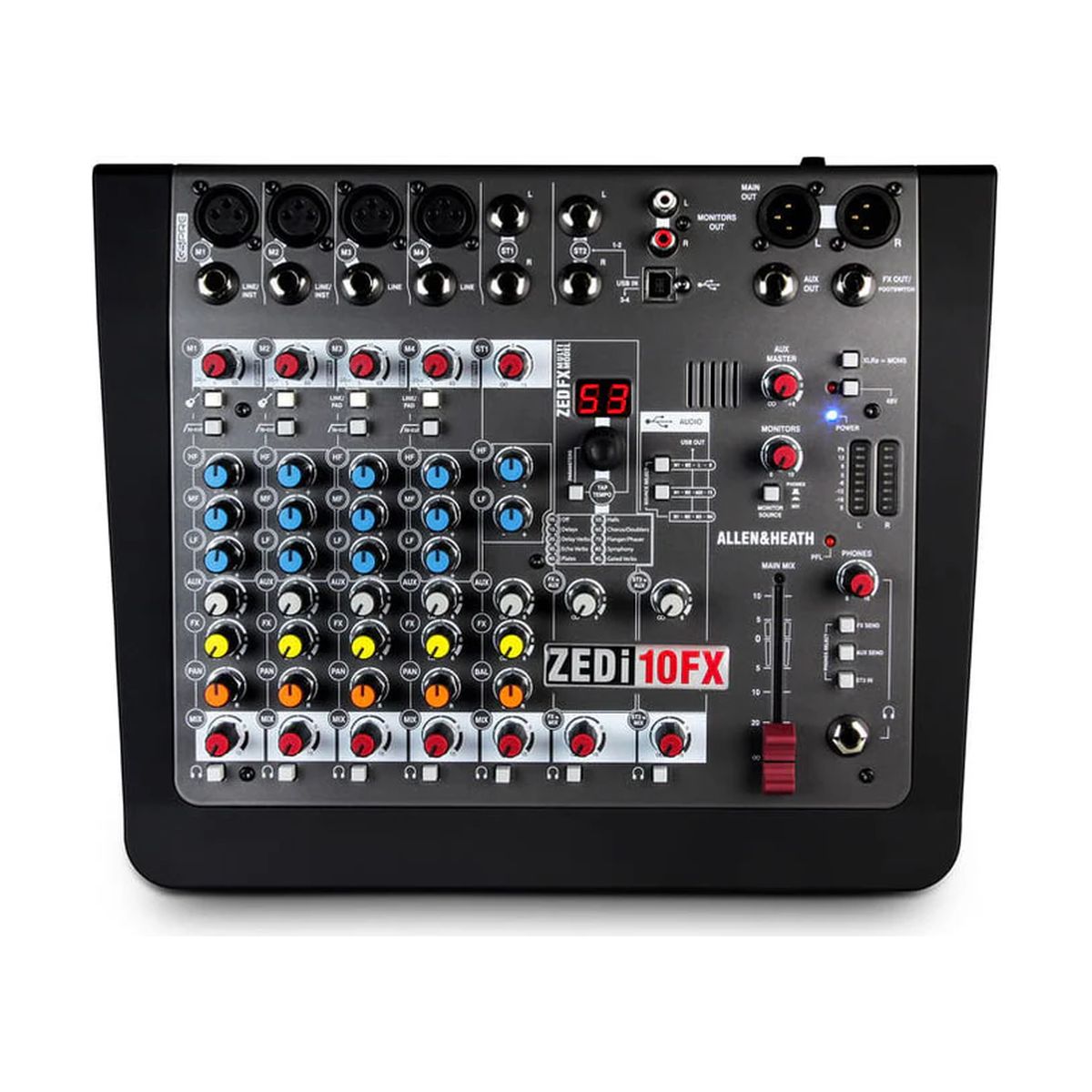

Allen & Heath ZEDi-10FX

Allen & Heath ZEDi-10FX – hybrid compact mixer and USB interface with FX for live and recording. Ideal for podcasters, streamers, and musicians. Combines analogue control with 24-bit/96kHz USB for seamless recording, playback, and streaming on Mac, PC, or iOS. Features low-noise preamps, MusiQ EQ, and onboard digital FX including reverbs and delays. Portable, durable design for gigs and studios.

Four mic/line inputs with individual phantom power, two stereo inputs, and two high-Z instrument inputs for guitars. 3-band EQ with swept mids on mono channels, 2-band on stereo, plus low-cut filter. USB 4x4 interface supports multitrack recording. FX suite enhances performances with dynamic reverb/delay combinations. Includes Cubase LE and Cubasis app for editing.

Balanced XLR main outputs for professional monitoring. Simple rotary controls for easy operation. Zero-latency monitoring via USB. Built tough for portability, perfect for rehearsals, live sets, or home setups.

MAIN FEATURES

• 4 mic/line inputs (XLR/TRS) with +48V phantom power
• 2 stereo inputs (TRS jacks) for line sources
• 2 high-Z instrument inputs (1MΩ) for direct guitar connection
• MusiQ 3-band EQ on mono channels (swept mid 270Hz-22kHz, HF/LF shelving)
• 2-band EQ on stereo channels (HF/LF shelving)
• Low-cut filter (100Hz) on mono channels
• 24-bit/96kHz USB 4x4 audio interface for multitrack recording
• Onboard FX: studio reverbs, delays, and multi-model combinations
• Low-noise preamps with up to 69dB gain and high headroom
• Zero-latency USB monitoring and direct monitoring
• Includes Cubase LE software and Cubasis iOS app
• Compact, rugged metal chassis for portability

TECHNICAL SPECIFICATIONS

• Inputs: 4 x mic/line (XLR/TRS combo, balanced), 2 x stereo line (TRS), 2 x Hi-Z instrument (TRS, 1MΩ)
• Outputs: 2 x XLR main (balanced), 2 x TRS headphone/monitor
• EQ: 3-band MusiQ on mono (±15dB, swept MF), 2-band on stereo, low-cut 100Hz
• USB: 4-in/4-out, 24-bit/96kHz, class-compliant, iOS compatible
• FX: Digital FX processor with reverbs, delays, multi-effects
• Phantom Power: +48V individually switchable on mic channels
• Frequency Response: Mic to main: 20Hz-20kHz ±0.5dB
• THD + Noise: Mic preamp <-100dB @ 1kHz
• Power Supply: External 100-240V AC, 1.8A, 18V DC center positive
• Dimensions (H x W x D): 95 x 336 x 241 mm (3.7" x 13.2" x 9.5")
• Weight: 3.1 kg (6.8 lbs)
• Included: ZEDi-10FX, power supply, USB cable, Cubase LE, Cubasis app
• Product Code: ZEDi-10FX
