Rupert Neve Designs MBC Master Buss Converter
Rupert Neve Designs MBC Master Buss Converter

Rupert Neve Designs

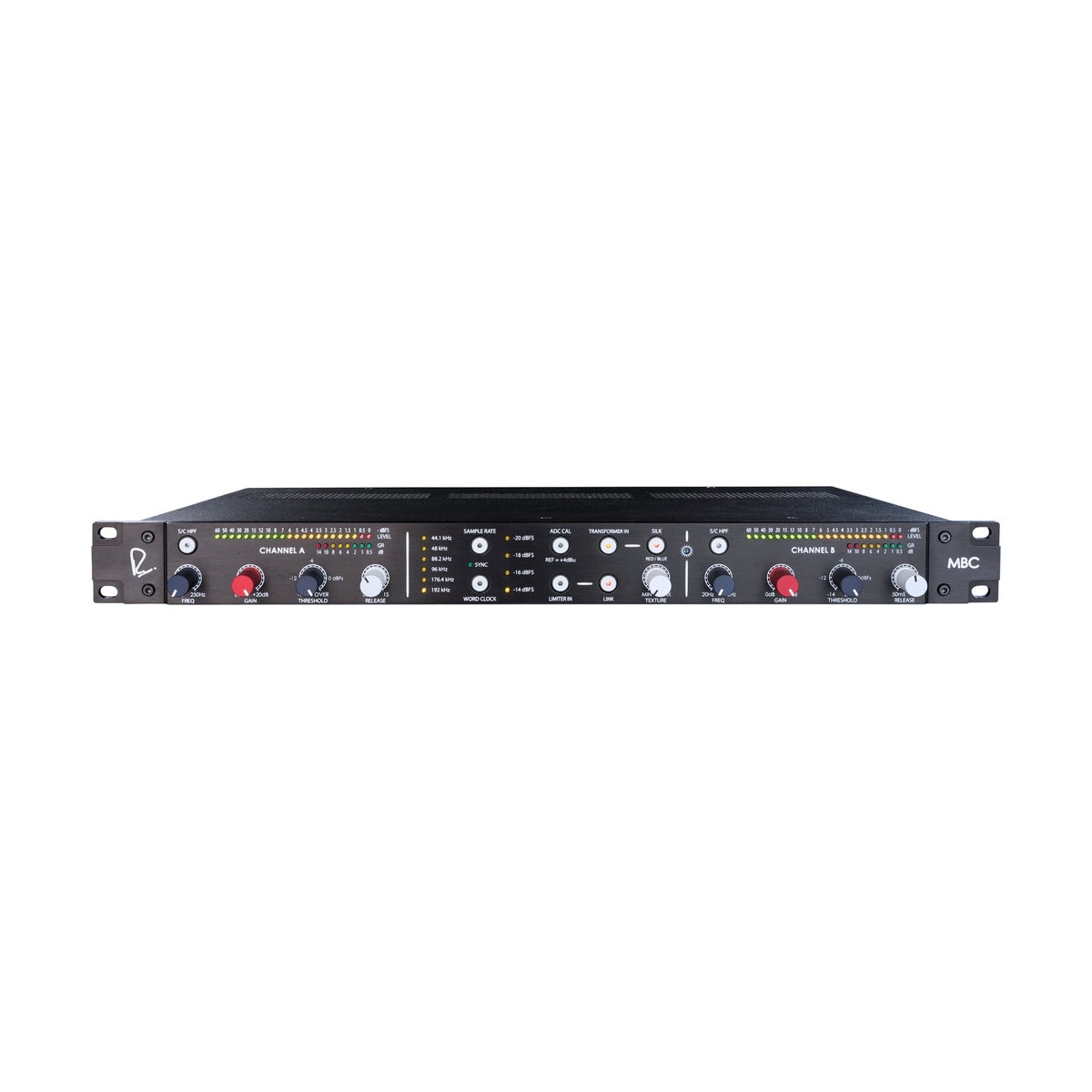

Rupert Neve Designs MBC Master Buss Converter

Sale price€3.958,00

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 42300
Quantity:
Delivery within 4-6 weeks

Contact

Rupert Neve Designs MBC Master Buss Converter – a reference-grade stereo A/D converter and analog limiter with dual signal paths, variable Silk tonal shaping, and world-class 24-bit/192kHz conversion. Designed to capture your final analog mix with pristine clarity or vintage color – all at the touch of a button.

The MBC features both a Class-A transformerless input for transparent capture and a custom transformer-coupled path with Rupert’s acclaimed Silk circuit for harmonic saturation. Add subtle warmth or full-bodied vintage tone using Silk Red or Blue modes. The onboard analog limiter offers musical peak control with a sweepable high-pass filter and dual mono operation for tracking.

Digital outputs include AES3, S/PDIF, and TOSLINK – all simultaneously available. The converter’s precision internal clock ensures exceptional jitter performance, and the MBC can act as your studio’s master word clock or sync to external clock. With adjustable reference levels, ultra-precise LED metering, and stunning build quality, the MBC is your final step before digital with zero compromises.

KEY FEATURES

  • Dual analog paths: Class-A transformerless or transformer-coupled with Silk/Texture
  • Silk Red and Blue modes to enhance high or low harmonics with variable intensity
  • Compound Active Release analog limiter for transparent or musical peak control
  • Sweepable 12 dB/oct HPF side-chain filter (20–250 Hz)
  • 24-bit / 192kHz A-D conversion with ultra-low jitter and phase noise
  • Simultaneous AES3, S/PDIF (RCA), and TOSLINK outputs
  • Word Clock I/O: master or slave operation with precise sync
  • Selectable calibration levels: -14 / -16 / -18 / -20 dBFS
  • High-resolution 22-segment LED input meters + 8-segment gain reduction meters
  • 1U rackmount chassis with internal universal power supply

TECHNICAL SPECIFICATIONS

  • Analog input: XLR, impedance 9.9 kΩ, CMRR 105 dB @ 1 kHz
  • Latency: 0.19 ms @ 192kHz, 0.95 ms @ 44.1kHz
  • Transformerless path: THD+N 0.0009%, 20–70 kHz ±0.025 dB
  • Transformer path: THD+N 0.002%, 20–70 kHz ±0.1 dB
  • Limiter path: THD+N -107 dBFS @ 0 dB gain, ±0.1 dB response
  • Max Output Level: +25 dBu
  • Dimensions: 19” x 9” x 1.65” (48.3 x 22.9 x 4.2 cm)
  • Weight: 10 lbs (4.5 kg)
  • Power: 100–240V AC, 50/60 Hz (IEC)
