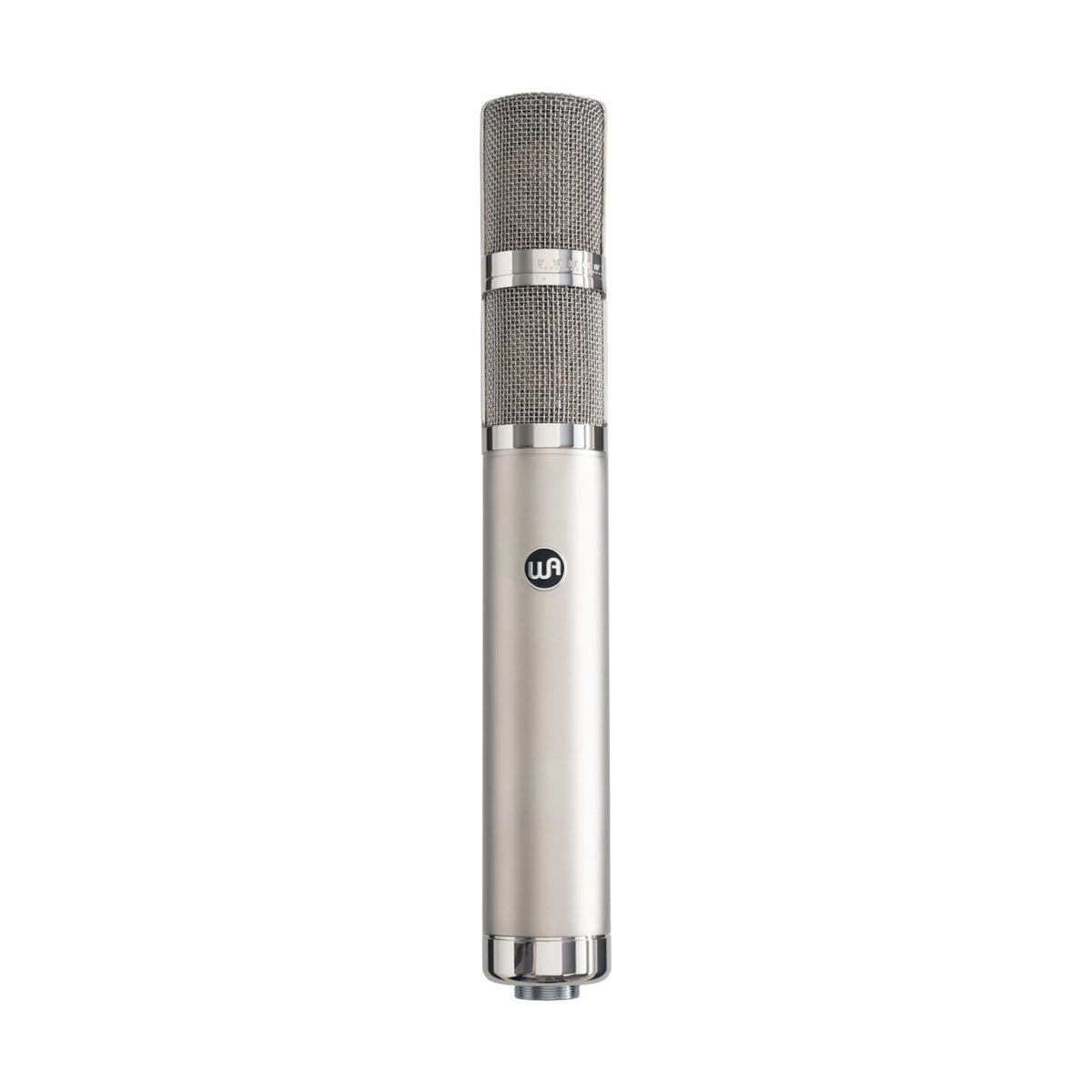

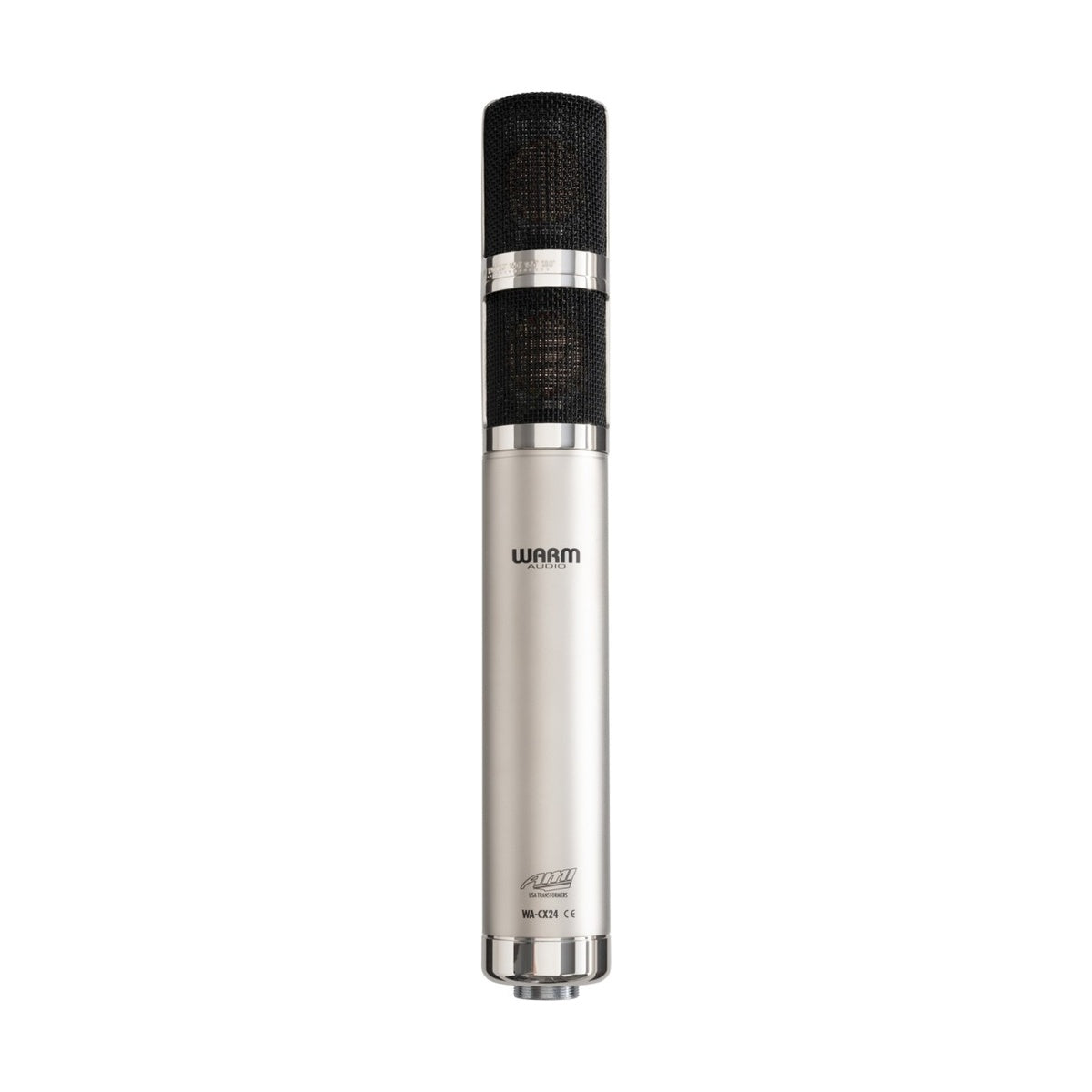

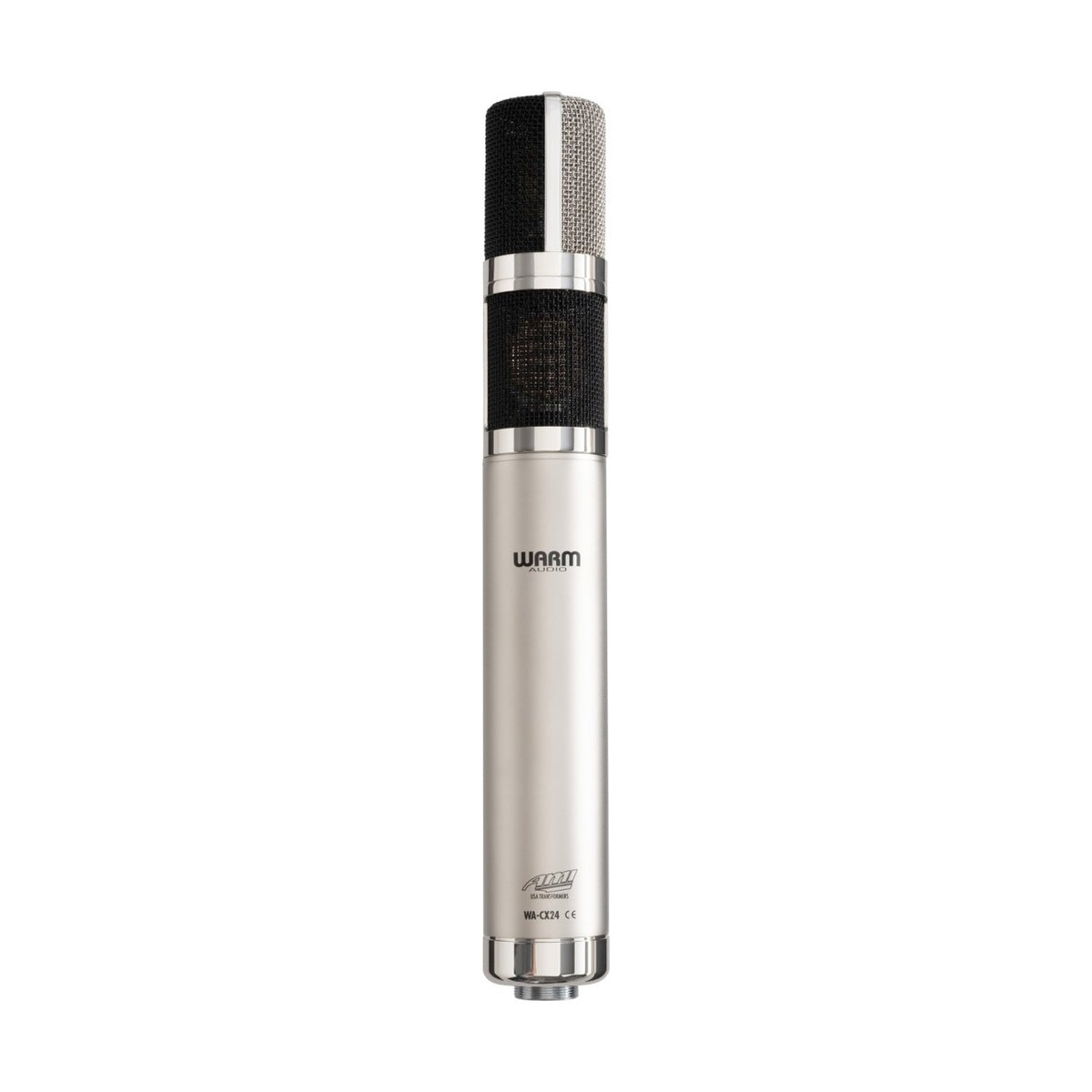

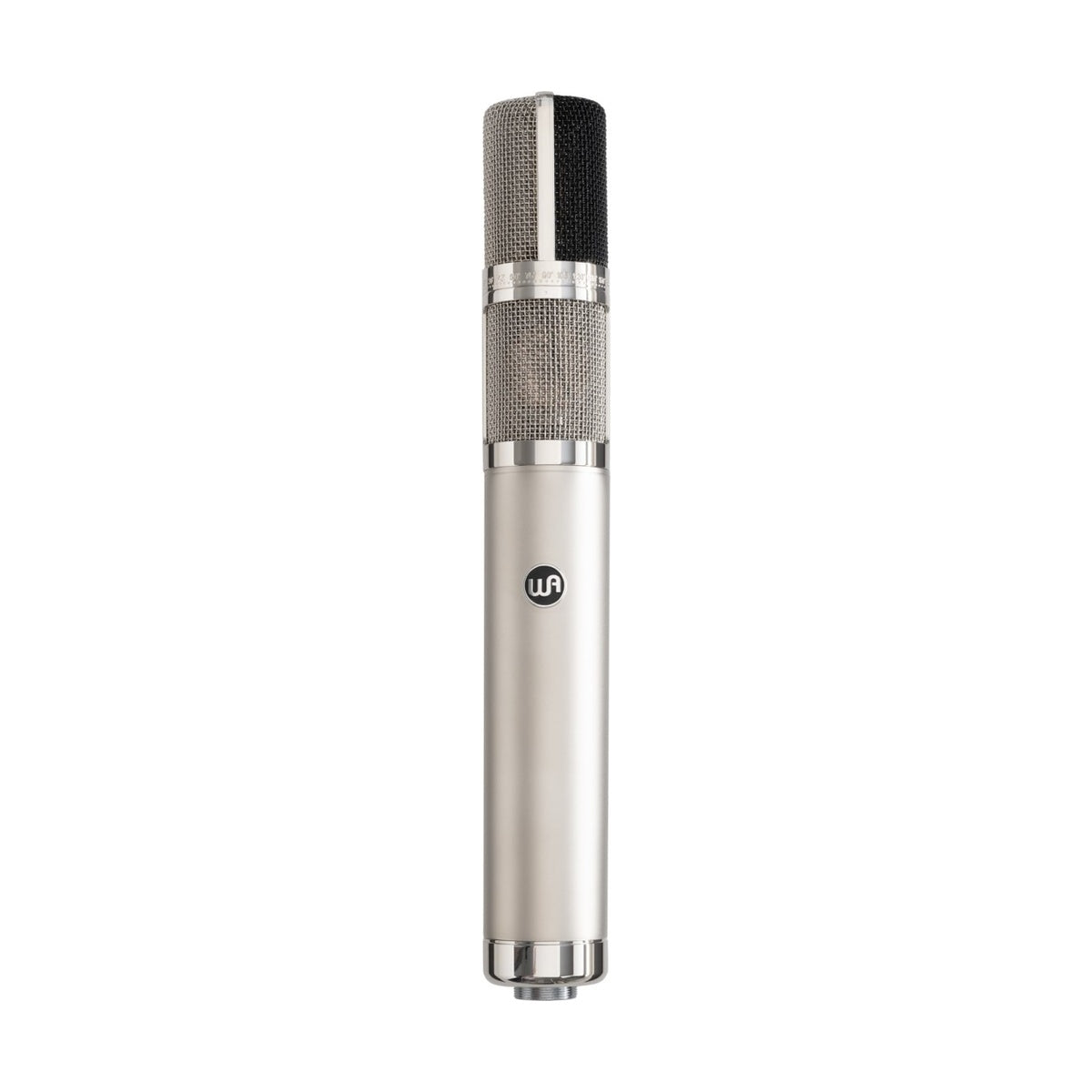

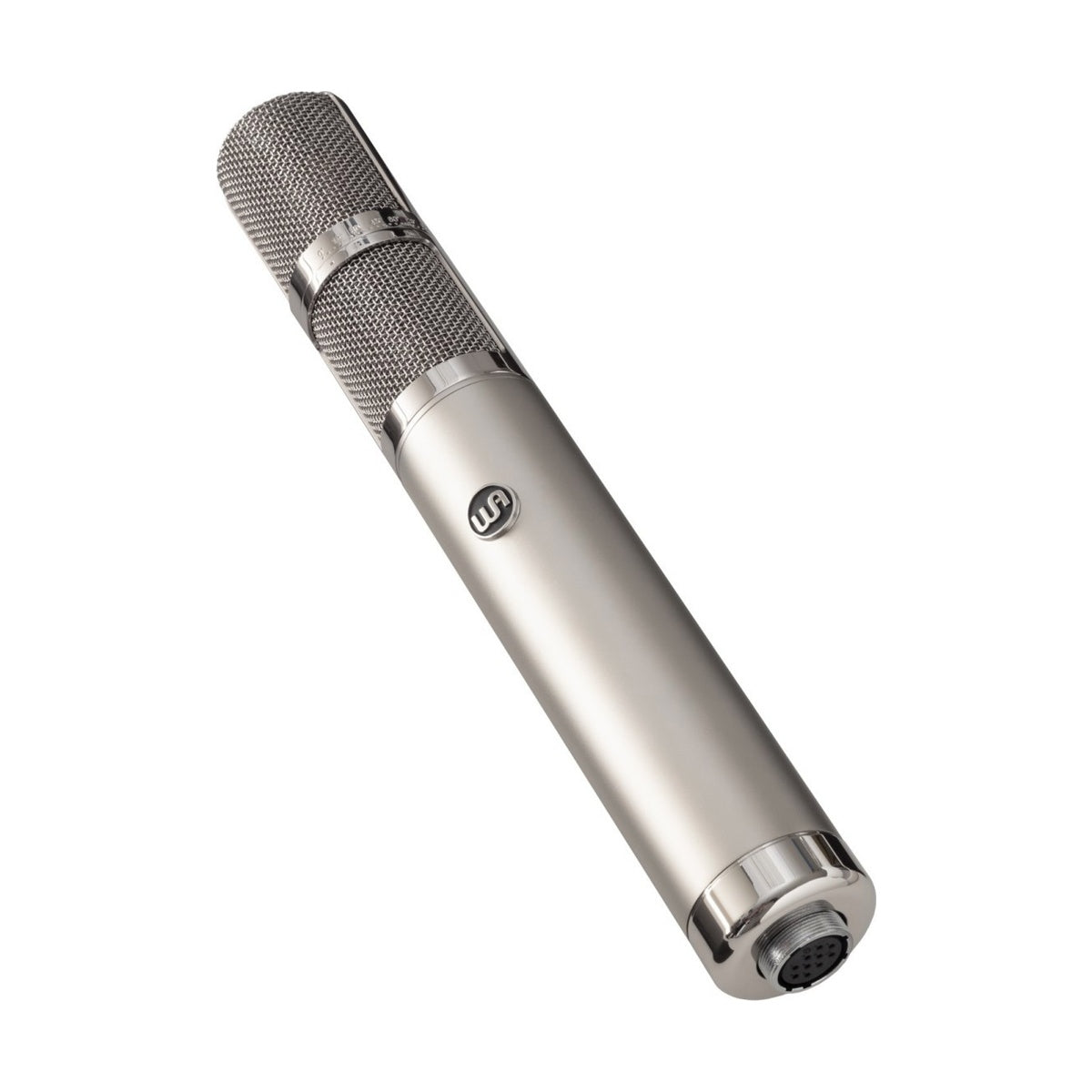

The Warm Audio WA-CX24 is a large-diaphragm stereo tube condenser microphone that faithfully revives the legendary acoustic footprint of the iconic C24. Translating the massive, three-dimensional tone of the most coveted vintage dual-capsule condenser into a modern tracking environment, this meticulously crafted studio centerpiece is engineered for professional recording engineers. Whether capturing expansive grand pianos, lush string sections, resonant drum overheads, or dual-tracked vocals, the WA-CX24 delivers unparalleled harmonic depth and organic tube saturation directly to your master bus.
Flawless Stereo Imaging and Phase Coherence
Attempting to physically align two separate large-diaphragm microphones for a pristine stereo recording frequently introduces frustrating phase cancellation and compromised spatial perspective. The WA-CX24 eliminates this logistical nightmare by housing two independent, all-brass CK12-style capsules in a single, vertically aligned chassis. The top capsule assembly rotates a full 180 degrees, allowing tracking engineers to effortlessly execute any stereo configuration on the fly. Combined with 9 selectable polar patterns per capsule controlled remotely via the power supply, achieving phase-perfect X/Y, Mid-Side (M/S), or Blumlein arrays takes mere seconds rather than hours of micro-adjustments.
Premium Tube Circuitry for Organic Depth
Recording complex acoustic instrumentation with overly clinical modern transducers often yields a brittle or harsh upper-frequency response. To combat transient harshness and inject true vintage weight into your signals, the internal topology of the WA-CX24 relies on a rigorously selected 12AY7 vacuum tube and dual custom US-made TAB-Funkenwerk (AMI) output transformers. This boutique electronic pathway smoothly compresses loud peaks while delivering a soaring, airy top-end and a massive, articulate midrange, ensuring that your source material sounds finished and distinctly musical before any outboard equalization is applied.
KEY FEATURES
- Meticulous component-level recreation of the legendary C24-style stereo tube condenser microphone.
- Dual all-brass, edge-terminated CK12-style capsules with a fully rotatable top assembly (up to 180 degrees).
- Dedicated remote power supply offering 9 independent polar patterns per capsule (Cardioid, Omni, Figure-8, plus 6 intermediate stages).
- Fully discrete, boutique analog signal path driven by a premium 12AY7 tube and dual American-made TAB-Funkenwerk (AMI) transformers.
- Comprehensive professional tracking package including a custom Gotham GAC-9 7-pin cable, wooden mic box, and a robust tweed flight case.
TECHNICAL SPECIFICATIONS
- Microphone Type: Stereo large-diaphragm tube condenser
- Capsules: 2x Custom all-brass CK12-style (edge-terminated)
- Vacuum Tube: 12AY7
- Transformers: 2x Custom US-made TAB-Funkenwerk (AMI)
- Polar Patterns: 9 patterns per capsule (independently selectable via power supply)
- Stereo Positioning: Upper capsule rotates up to 180° relative to the lower capsule
- Included Cable: 5-meter (16.4 ft) premium Gotham GAC-9 7-pin audio cable
- Power Requirement: Dedicated external power supply (included)

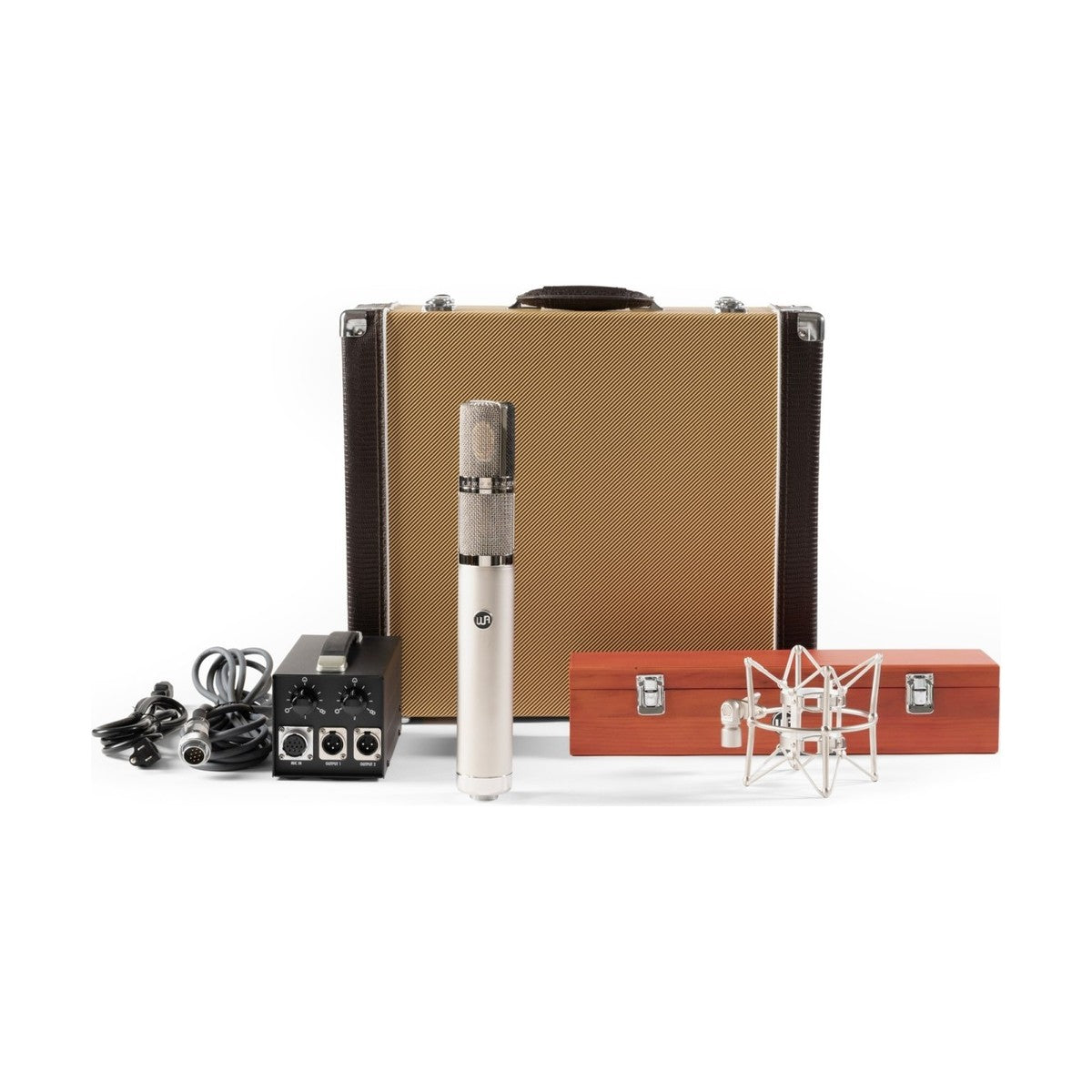

- Included Accessories: Shockmount, 7-pin cable, power supply, wooden microphone storage box, tweed flight case
