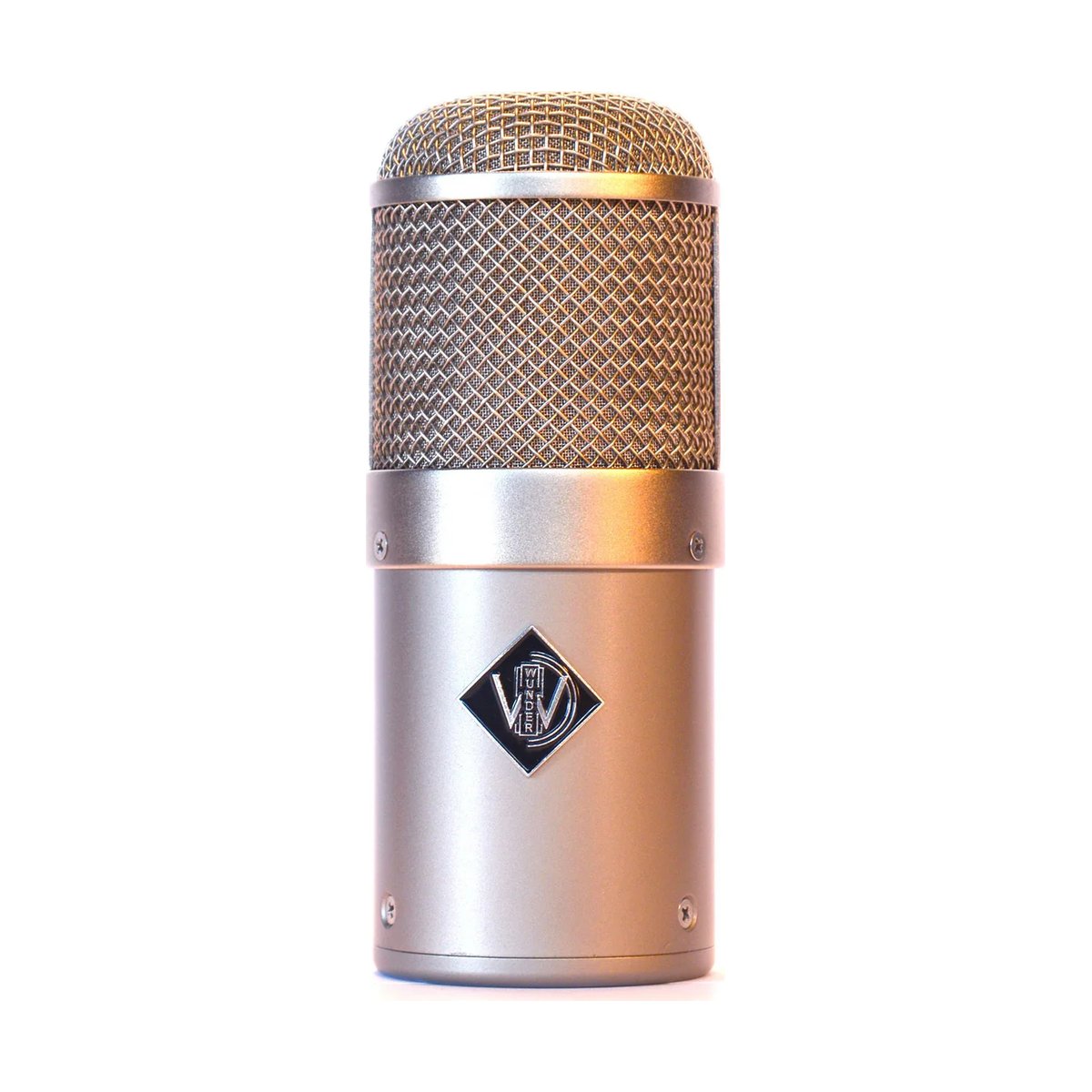

Wunder Audio CM7 FET Suprema – a professional large-diaphragm phantom-powered condenser microphone representing a modern evolution of the classic U47 FET design. Built to bypass the need for a tube power supply while delivering exceptional performance, the CM7 FET Suprema employs an ultra-low noise single n-channel transistor with JFET technology coupled with a Neve 1073 style mic pre-transformer, overcoming the limitations of 1960s FET transistor technology.
The CM7 FET Suprema delivers stunning results that greatly surpass the original U47 FET, yielding superior low-lows and highs with exceptional clarity and warmth reminiscent of a 1970s era U87. This workhorse studio microphone excels across all sources, particularly vocals, instruments, and a wide range of recording applications. The authentic three-layer grille design features outer large mesh, inner medium mesh, and fine mesh sandwiched between, creating crucial acoustic interplay with the capsule and functioning as a Faraday cage—a key aspect of achieving the correct performance and legendary U47 sound.
The CM7 FET Suprema features a one-piece backplate dual-membrane K47 capsule with individually tuned and matched diaphragms for equivalent response. Taking capsule design one step further beyond vintage specifications, Wunder Audio utilizes a white porcelain ring instead of plastic—providing low permeability and elasticity, considerable strength, hardness, resonance, and high resistance to chemical attack and thermal shock. This modern upgrade improves upon the white plastic rings used on the original K47, which were prone to discoloring and becoming soaked with impurities over the years, affecting electrical resistance and creating noise. Wunder Audio has optimized passive components by changing capacitor values to achieve a lower corner frequency, resulting in a modern-vintage sound where the spectrum opens up with enhanced sound staging, air, and transparency. The outcome is less grain, more fluid sound, and tighter, sharper focus.
KEY FEATURES
- Large-diaphragm phantom-powered condenser microphone
- Modern evolution of U47 FET with superior performance
- Ultra-low noise single n-channel transistor with JFET technology
- Neve 1073 style mic pre-transformer for enhanced audio performance
- Greatly surpasses original U47 FET with better low-lows and highs
- Reminiscent of 1970s era U87 character and versatility
- Workhorse studio mic for all sources, especially vocals
- One-piece backplate dual-membrane K47 capsule
- Individually tuned and matched diaphragms for equivalent response
- White porcelain ring (modern upgrade from plastic)
- Superior strength, hardness, resonance, and chemical resistance
- Eliminates issues of discoloration and impurity absorption
- Three-layer grille mesh with Faraday cage properties
- Vintage-authentic mesh gauge for legendary U47 sound
- Optimized passive components and capacitor values
- Lower corner frequency for modern-vintage sound
- Enhanced sound staging, air, and transparency
- Less grainy, more fluid sound with tighter focus
- Improved one-piece yoke mount for durability
- Phantom powered—no tube PSU required
TECHNICAL SPECIFICATIONS
- Type: Large-diaphragm phantom-powered condenser microphone
- Power: Phantom power (no external PSU required)
- Capsule: One-piece backplate dual-membrane K47 capsule
- Diaphragm Ring: White porcelain (modern upgrade)
- Diaphragm Configuration: Individually tuned and matched for equivalent response
- Polar Pattern: Cardioid (fixed)
- Electronics: Ultra-low noise single n-channel JFET transistor
- Transformer: Neve 1073 style mic pre-transformer
- Grille: Three-layer mesh (large, medium, fine) with Faraday cage properties
- Grille Type: Vintage-authentic mesh gauge
- Capacitors: Optimized passive components with modified values
- Frequency Response: Lower corner frequency, enhanced low-lows and highs
- Sound Character: Modern-vintage with enhanced transparency and air
- Mount: Improved one-piece yoke mount
- Case: Foam-lined oak-wooden box, clasped and hinged
- Included: CM7 FET S microphone, dual-membrane capsule, plush oak microphone box, historic shock-mount, 1-year warranty
