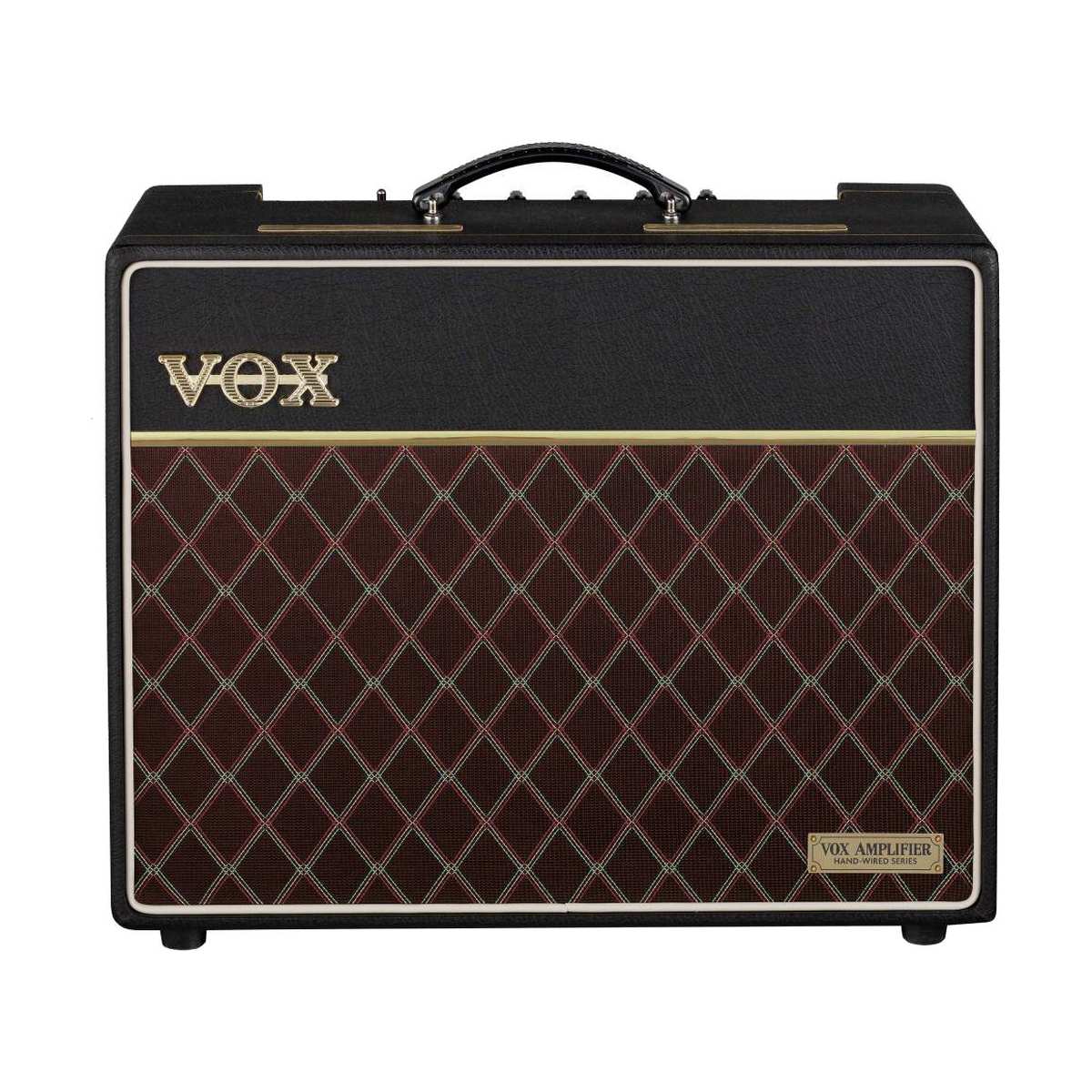

VOX AC10 Hand-Wired – 10W hand-wired tube amplifier, a faithful reconstruction of a 60s legend.
The VOX AC10 Hand-Wired is more than a reissue – it’s a complete reconstruction of a vintage legend, bringing the sound of the '60s back to life with hand-wired circuitry, custom transformers, and vintage-accurate cabinet construction. At its core lies an EL84 power section that, combined with a unique phase inverter stage, generates the same complex harmonics and natural compression as the original 1965 model. The amp features the iconic Top Boost channel, delivering the signature chime and drive that defined the sound of British rock.
Modern refinements make the AC10 Hand-Wired ready for both stage and studio. It includes a transparent effects loop (FET-driven), a custom-voiced spring reverb, and a bypass-able Master Volume. The lightweight 9mm birch ply cabinet and a 12-inch Celestion G12M Greenback speaker ensure an open, three-dimensional tone that sits perfectly between home practice amps and stage powerhouses.
KEY FEATURES
- Hand-Wired Construction: Meticulous recreation of vintage circuits for uncompromising tone.
- Top Boost Channel: Classic VOX sound with Treble, Bass, and Volume controls.
- Tube Complement: 2x ECC83/12AX7 (preamp) and 2x EL84 (power amp).
- 12" Celestion Greenback Speaker: Legendary warmth and sparkle, perfectly matched to the cabinet resonance.
- Vintage Cabinet Specs: 9mm birch plywood for enhanced resonance and an "open" feel.
- Modern Necessities: FET-buffered FX Loop, bypass-able Master Volume, and Spring Reverb.
- 10 Watts Power: The perfect balance for cranked tones at manageable volumes.
TECHNICAL SPECIFICATIONS
- Type: Tube Combo Amplifier (Hand-Wired)
- Power: 10 Watts RMS
- Tubes: 2 x ECC83/12AX7, 2 x EL84
- Speaker: 1 x 12" Celestion G12M Greenback (16 Ohm)
- Effects: Spring Reverb (FET-driven)
- Effects Loop: Yes (buffered, transparent)
- Dimensions (W x D x H): 530 x 243 x 474 mm (20.87" x 9.57" x 18.66")
- Weight: 15 kg (33.16 lbs)
