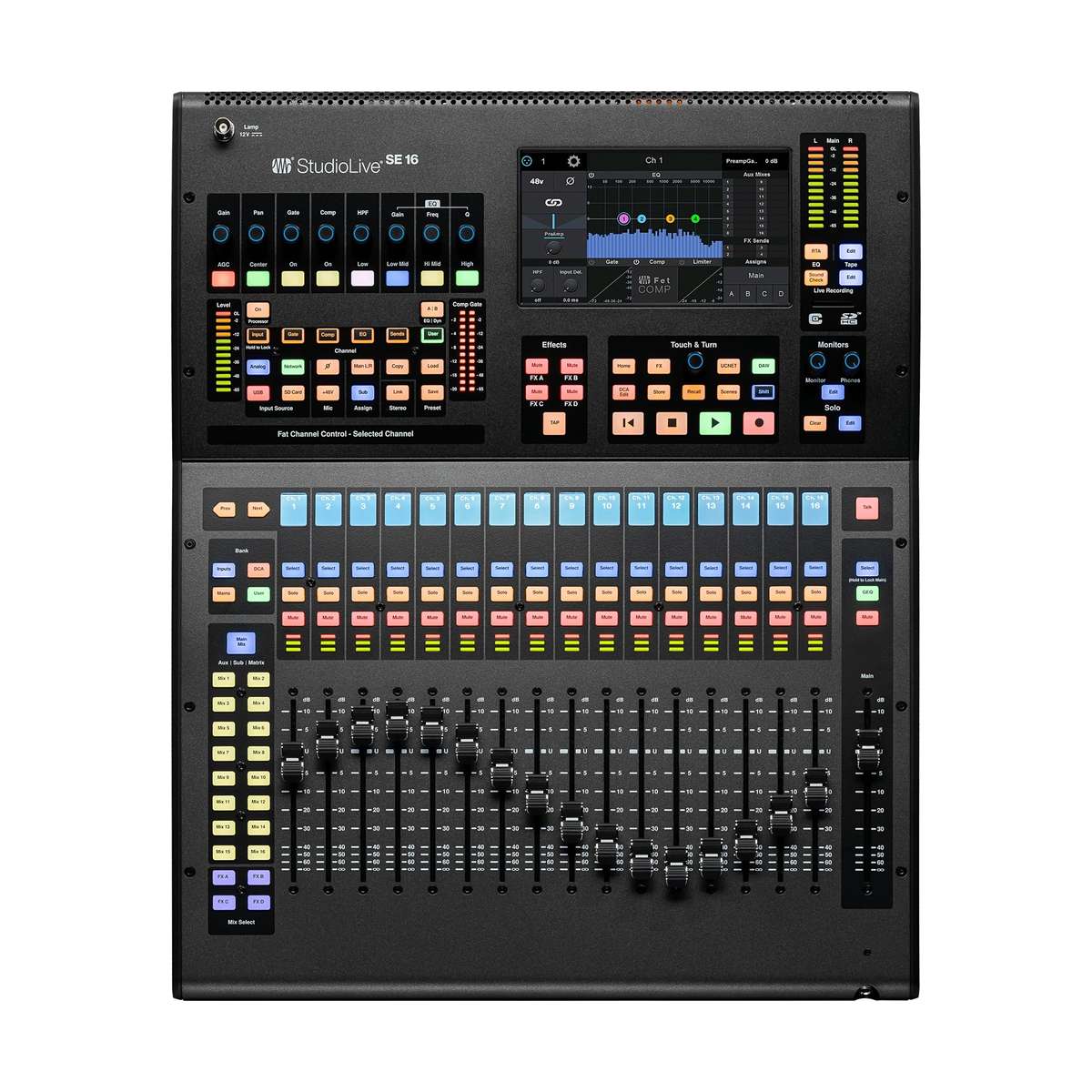

PreSonus StudioLive Series III SE 16 – 40-channel digital mixer with 17 motorized faders, a 64×64 USB audio interface, and AVB networking compatible with the Milan protocol. It features 32-bit DSP processing, XMAX-Remote preamps, full DAW integration with Studio One Pro, and advanced live mixing and recording capabilities.
The StudioLive SE 16 is an advanced yet intuitive tool for both stage and studio, combining studio-grade audio quality with maximum functionality. With 17 XMAX-Remote preamps and a 64-channel USB audio interface, this mixer delivers exceptional recording quality and full routing and control flexibility. Motorized faders, seamless integration with Studio One Pro, remote control via UC Surface and QMix-UC, and multitrack SD card recording make it a powerful hub for any audio workflow, from beginner to professional.
KEY FEATURES
- 40 channels, 26 buses, 17 touch-sensitive motorized faders
- 64×64 USB audio interface and SD recorder (up to 34 tracks)
- XMAX-Remote preamps with digital recall
- Advanced 32-bit DSP processing with Fat Channel collection
- AVB networking compatibility with Milan protocol
- 16 FlexMixes – AUX, subgroups, or matrix mixes
- 4 effects slots with advanced reverb and limiter parameters
- Remote control via UC Surface and QMix-UC
- Integration with Studio One Pro and Capture – recording, playback, streaming
- Ergonomic user interface with high-contrast screen and fader overlays
TECHNICAL SPECIFICATIONS
- 32 mono inputs (analog and AVB), 16 XMAX preamps
- 1 stereo tape input, 2 stereo aux inputs
- 10 mix outputs: 6 × XLR, 4 × TRS jack
- 2 TRS monitor outputs, 1 stereo main, 1 mono sum
- 17 motorized faders (16 channel + 1 main)
- 4 subgroups, 24 DCA groups, 4 effects buses
- Fat Channel with 8 compressors and 7 EQs (vintage and classic models)
- Built-in effects processor – reverb, delay, chorus with advanced control
- 34-track recording to SD card, with mix and individual channel capture
- AVB port for integration with StageBoxes and other Milan devices
- UC/Metro remote access – control via Internet and mobile apps
- Dimensions: 446 × 583 × 165 mm
- Weight: 10.5 kg
