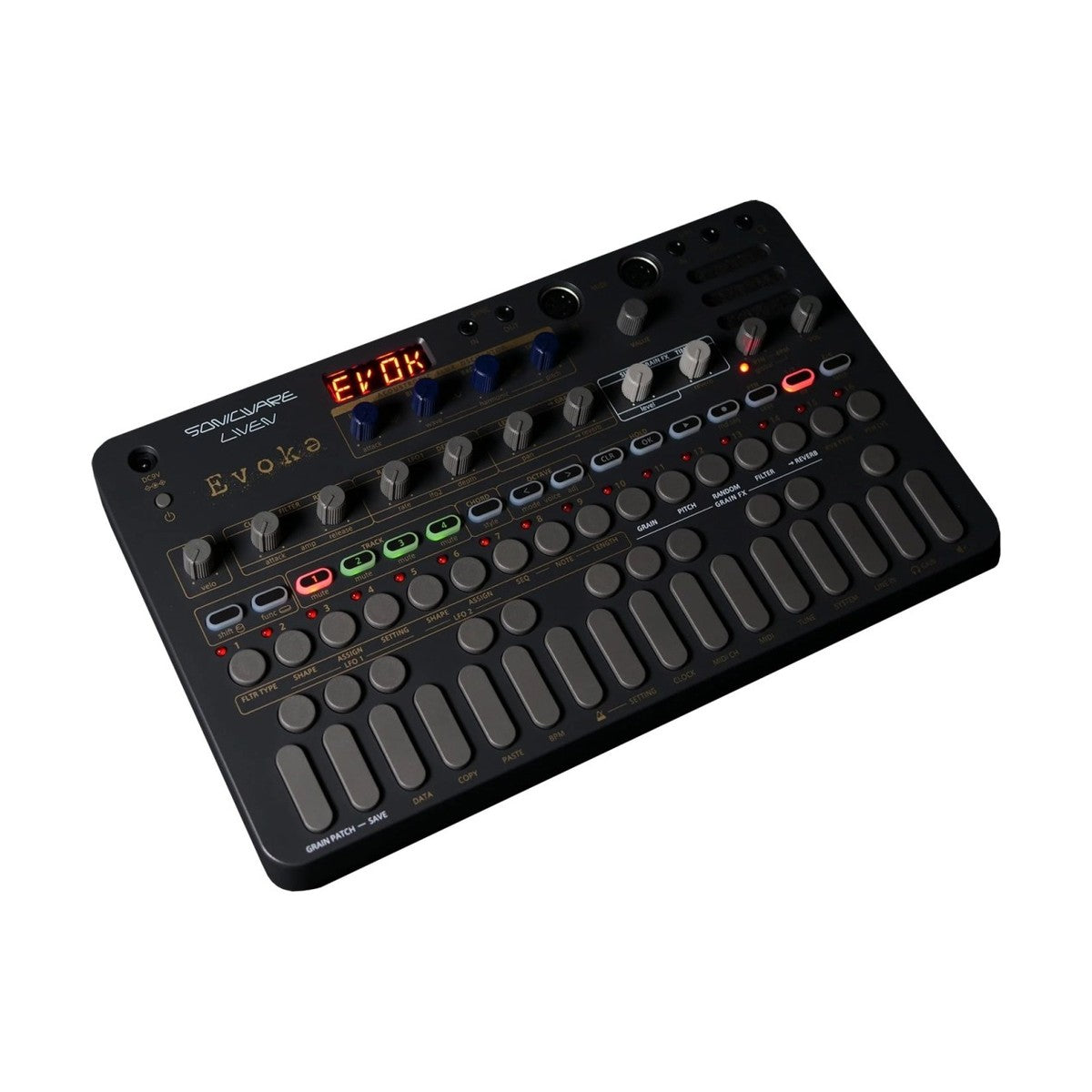

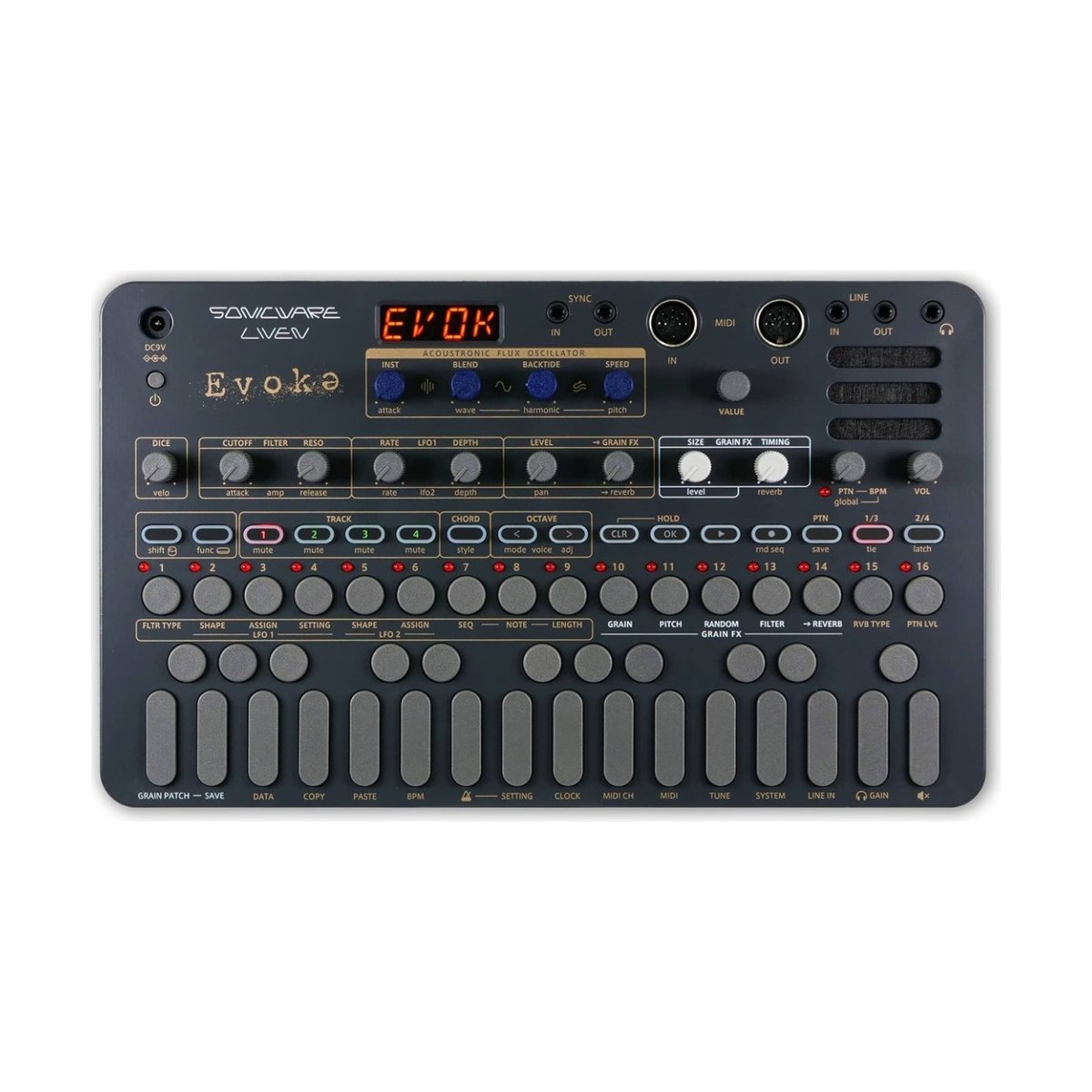

Sonicware LIVEN Evoke

Sonicware LIVEN Evoke- an acoustronic ambient synthesizer with granular effect, 4 tracks (drumless ensemble), engine Acoustronic Flux Oscillator, a 27-key keyboard, 10 types of reverb, built-in speaker, powered by 6×AA/DC 9V, and 3.5 mm LINE IN/OUT, headphone output, MIDI DIN, and SYNC connections.

LIVEN Evoke It combines the essence of acoustic sounds with synthesis and granular processing, creating cinematic, soothing landscapes without a drum section. Four independent tracks with the same sequencer as in Ambient Ø facilitate layering – from simple chords (One-Finger Chord) and Direct Note Input, through Note Hold, to smooth transitions controlled by Grain FX and 10 reverb characters (including "MIRAGE").

The heart of the instrument is Acoustronic Flux Oscillator: a set of 34 "acoustic" instruments (INST), each with 256 sets of characteristics (Acoustic Characteristic Arrays) and modulation. BACKTIDE reverse evolution of color. The WAVE section provides 20 waveforms with 128 harmonic tables and 2 types of filtered noise. The 4-track sequencer records in real-time, saves parameter changes (per-step/param-lock), allows chaining patterns (1-64 measures), and adjusts step probability. Synchronization is possible via MIDI, SYNC, and Audio Sync (Pocket Operator) through 3.5 mm connectors.

KEY FEATURES

• Engine Acoustronic Flux Oscillator to the synthesis of "acousticronic" + granular effectGrain FX
• Drumless ensemble: 4 independent tracks with sequencer and parameter movement recording
• INST: 34 acoustic instruments × 256 feature sets + modulation BACKTIDE
• WAVE: 20 runs (128 harmonic tables) + 2 types of filtered noise
• 10 types of reverb; play modes: POLY/MONO/LEGATO/ARP; One-Finger Chord, Note Hold
• Patterns 1–64 beats, chains, random order of steps, step probability 25–100%
• Audio Sync with Pocket Operator, MIDI DIN (IN/OUT), SYNC IN/OUT, LINE IN/OUT and 3.5 mm headphone jack.
• Built-in speaker, mobile operation on 6×AA; power supply DC 9 V (EIAJ-3)

TECHNICAL SPECIFICATION

• Paths/sequencer: 4 paths; pattern length 1–64 bars; 8 banks × 16 patterns = 128
• Recording: real-time, param-lock per step; transposition; chain; Pattern BPM/Global BPM
• Grain FX: do 12 grains; control including Size/Timing/Level/Feedback/Direction/Buffer/Pitch Range/Align/Spray/Filter (type/frequency/speed/depth) + send to reverb
• Reverb: 10 types (including "MIRAGE"); option to disable reset when changing pattern
• Keyboard: 27 keys (with Hold function); knobs: 15 + precision encoder
• Audio connectors: LINE IN (stereo 3.5 mm), LINE OUT (stereo 3.5 mm), headphone (stereo 3.5 mm), built-in speaker
• MIDI/SYNC: MIDI IN/OUT (5-pin DIN), SYNC IN/OUT (mono 3.5 mm), Audio Sync via LINE
• Dimensions/weight: 297 × 176 × 48 mm; 790 g
• Power supply: DC 9 V 1 A (EIAJ-3, center-positive; compatible with Korg Volca power supplies) or 6×AA; operating time (approximately): alkaline ~6 h, lithium ~10 h
