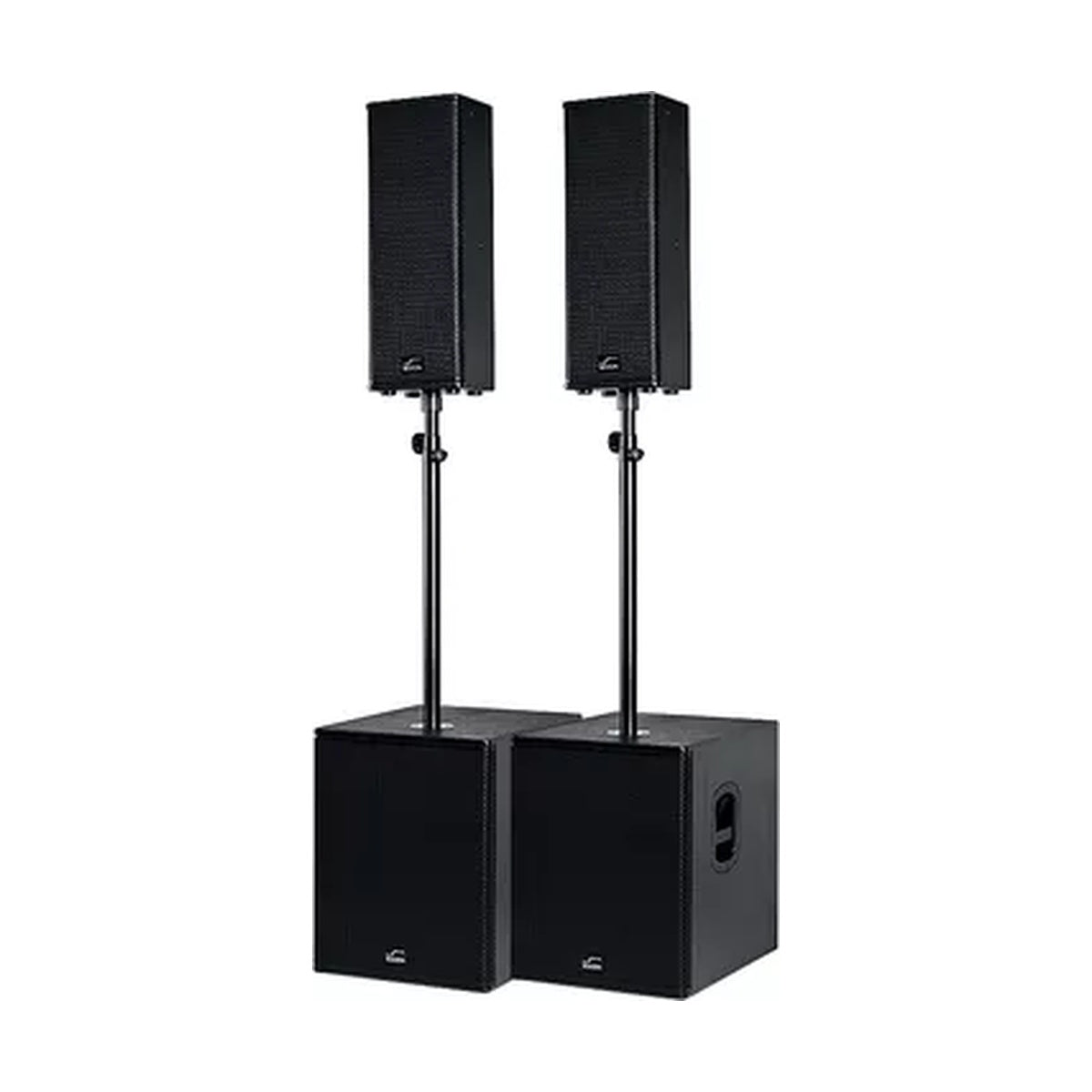

Solton Twin Array Plus is an active PA package combining two aart T 28 A tops with two aart SUB 15 A subwoofers. The distinguishing feature of the top cabinet is a D'Appolito configuration — two 8" aaCRAAFT drivers arranged symmetrically above and below the HF compression driver — which, in a slim 250 x 700 x 250 mm enclosure weighing just 14.6 kg, produces controlled vertical dispersion and coherent off-axis response characteristic of proper line source topology.
aart T 28 A — D'Appolito twin-8" top, 14.6 kg
Two 8" aaCRAAFT drivers on 2" voice coils flank a 1" exit HF compression driver on a 1.75" voice coil in a classic D'Appolito arrangement. Symmetrical driver placement minimises vertical lobing at the crossover transition and keeps the on-axis phase response consistent across the listening zone — which matters for speech intelligibility and stereo imaging in large, reverberant rooms. The dual-channel Class D bi-amp with integrated DSP provides four factory presets covering fullrange, MF/HF, stage monitor and install configurations without cable changes. The 90° x 60° constant-directivity horn rotates by hand, and seven M8 inserts support flying with the TU Frame bracket, pole-mount, U-bracket or floor-monitor use. Mic/Line input with high-resolution preamp and switchable Mix OUT handle zone extension from the cabinet's own back panel. The multi-angle birch plywood enclosure is finished in black polyurethane coating.
aart SUB 15 A — compact 15" mobile subwoofer
The aart SUB 15 A uses a 15" long-excursion driver on a 4" (100 mm) voice coil in a bass-reflex enclosure driven by 800 W continuous and 3200 W peak Class D power. The variable crossover from 80 to 200 Hz combined with a phase switch gives precise integration control with the T 28 A, which rolls off naturally below 60 Hz (-10 dB) — a crossover point around 100–120 Hz typically works best. Two XLR/Jack Combo inputs and two XLR link outputs support stereo sub pairing or daisy-chaining to additional zones. The M20 pole socket accepts the T 28 A satellite directly on top. At 31 kg and 460 x 590 x 580 mm the complete system fits in a standard car, making single-vehicle transport for two-side stereo setups practical.
KEY FEATURES
- Set contents: 2x aart T 28 A + 2x aart SUB 15 A
- Top T 28 A: D'Appolito 2x 8" aaCRAAFT + HF 1.75" coil / 1" exit, Class D bi-amp
- Top weight: only 14.6 kg; dimensions 250 x 700 x 250 mm
- 4 DSP presets in top, Mic/Line input with preamp, Mix OUT
- Coverage pattern: 90° H x 60° V, user-rotatable CD horn
- Multi-angle enclosure, 7x M8 — TU Frame fly, stand, U-bracket, monitor
- Dual-band limiter in top
- Sub SUB 15 A: 15" long-excursion, 4" (100 mm) voice coil, bass-reflex
- Sub power: 800 W continuous / 3200 W peak
- Variable sub crossover: 80–200 Hz + phase switch
- 2x XLR/Jack Combo In, 2x XLR Link Out, M20 pole socket
- Enclosures: 15 mm birch plywood, black polyurethane coating
TECHNICAL SPECIFICATIONS
- Set Art. No.: 13402
- Set contents: 2x aart T 28 A (art. 13103), 2x aart SUB 15 A
- Top — type: 2-way active bi-amp, multifunctional
- Top — LF driver: 2x 8" aaCRAAFT, 2" voice coil, D'Appolito arrangement
- Top — HF driver: 1.75" voice coil, 1" exit, rotatable CD horn
- Top — power: 400 W continuous / 1600 W peak
- Top — frequency range (-10 dB): 60 Hz – 20 kHz
- Top — frequency response (±3 dB): 75 Hz – 18 kHz
- Top — sensitivity: 99 dB (1 W/1 m)
- Top — max. SPL: 125 dB continuous / 131 dB peak
- Top — coverage: 90° H x 60° V (user-rotatable)
- Top — connectors: 2x XLR/6.35 Jack Combo, 1x XLR
- Top — finish: black polyurethane coating
- Top — dimensions (WxHxD): 250 x 700 x 250 mm
- Top — weight: 14.6 kg
- Sub — driver: 15", 4" (100 mm) voice coil
- Sub — power: 800 W continuous / 3200 W peak
- Sub — frequency range (-10 dB): 35 Hz – 250 Hz
- Sub — crossover: variable 80–200 Hz + phase switch
- Sub — connectors: 2x XLR/Jack Combo In, 2x XLR Link Out
- Sub — pole socket: M20
- Sub — dimensions (WxHxD): 460 x 590 x 580 mm
- Sub — weight: 31 kg
- Set EAN: 4262552320586
