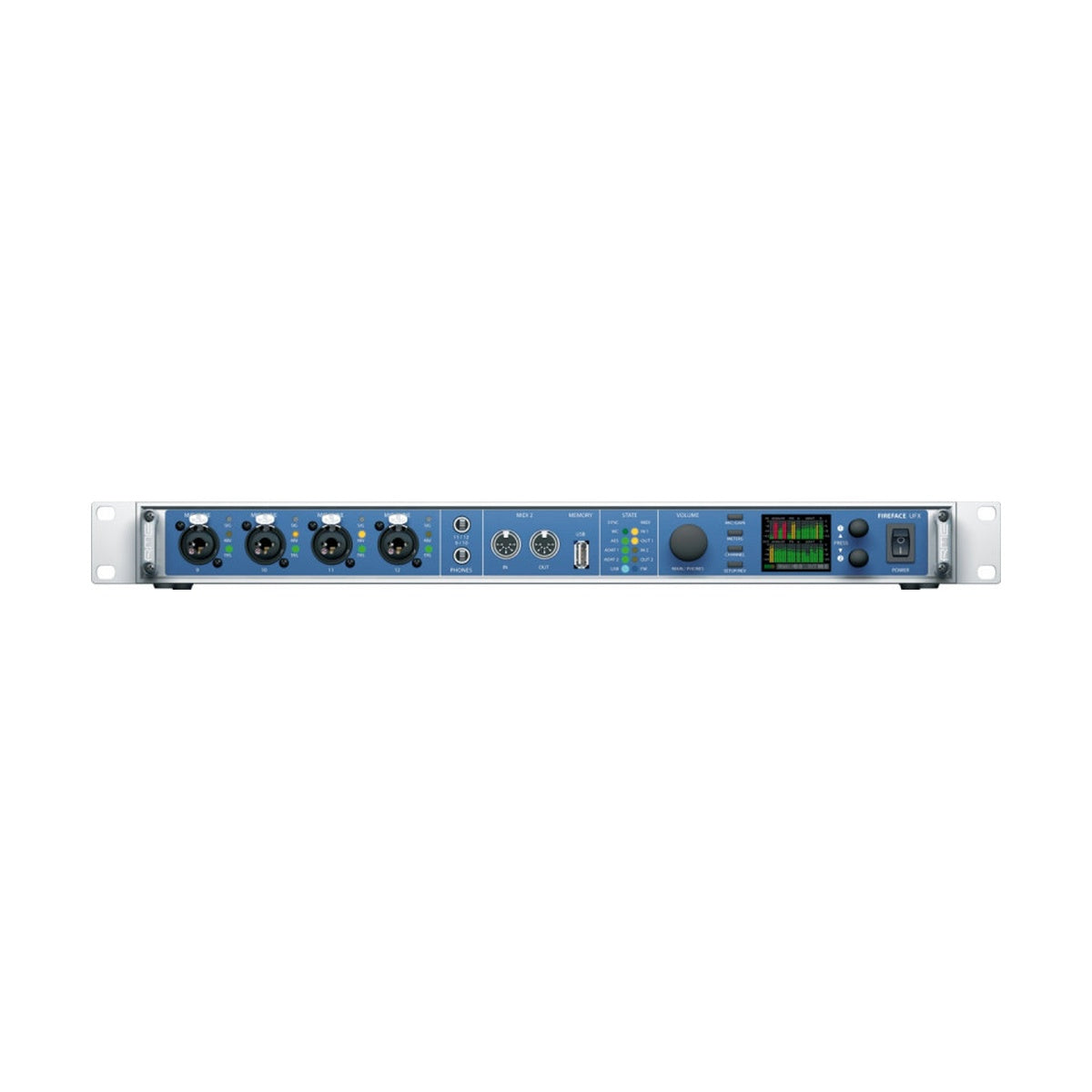

RME Fireface UFX II

RME Fireface UFX II is a professional USB 2.0 audio interface offering 60 channels (30 inputs and 30 outputs), four high-end microphone preamps, DURec for direct-to-USB recording, advanced TotalMix FX mixing with onboard DSP, and pristine AD/DA conversion up to 192 kHz.

Designed for both home and professional studios, the Fireface UFX II delivers uncompromising sound quality and flexibility with analog, ADAT, AES/EBU, and USB connectivity. New-generation converters and optimized analog circuitry ensure transparency and ultra-low distortion. The unit features powerful low-impedance headphone outputs, remote control via the optional ARC USB, and full integration with the TotalMix FX system, including iPad app support.

KEY FEATURES

• 60 audio channels (30 in, 30 out)
• 4 premium microphone preamps with up to 75 dB gain
• DURec – direct recording to USB drives
• TotalMix FX – flexible low-latency DSP mixer with effects
• High-power headphone outputs with 2 Ω impedance
• Sampling rates up to 192 kHz
• Connectivity: analog, ADAT, AES/EBU, USB 2.0
• Remote control support via ARC USB (optional)
• TotalMix FX app for iPad™ included
• Integrated worldwide switching power supply (100–240 V)

TECHNICAL SPECIFICATIONS

• AD/DA conversion: 24-bit / up to 192 kHz
• Analog inputs: 8 line (TRS), 4 mic (XLR), 4 instrument (TS)
• Analog outputs: 6 line (TRS), 2 XLR, 2 headphone (TRS)
• Digital inputs: 2x ADAT (TOSLINK), 1x AES/EBU (XLR), 1x SPDIF optical
• Digital outputs: 2x ADAT, 1x AES/EBU, 1x SPDIF optical
• MIDI: 2x input, 2x output (DIN 5-pin)
• Word Clock I/O: BNC with ultra-low jitter PLL
• Frequency response: up to 92 kHz at 192 kHz sampling
• Maximum output level: up to +24 dBu (XLR), +19 dBu (TRS)
• Headphone output power: 210 mW per channel at 32 Ω
• Dimensions: 483 x 44 x 210 mm (with rack ears), 3 kg
• Power supply: 100–240 V AC, typical power consumption 22–25 W
