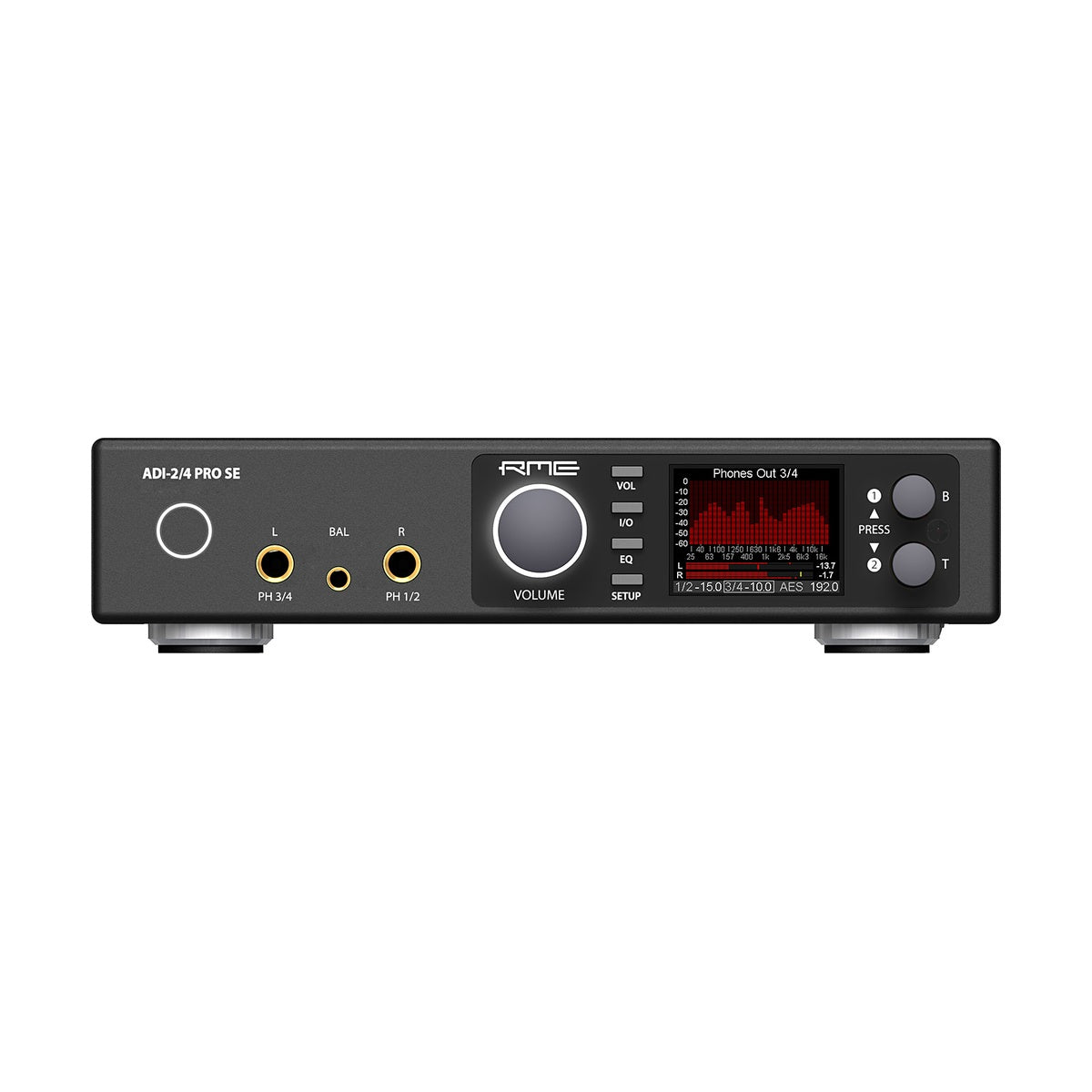

RME ADI-2/4 Pro SE – high-end 2-in/4-out AD/DA converter and headphone amp. 32-bit/768kHz converters with 123 dBA SNR. Extreme Power headphone amps (2.1W unbalanced/3.4W balanced at 32Ω per channel). SteadyClock FS for low jitter. USB 2.0 Class Compliant, supports macOS/iOS/Windows/Linux. RIAA mode for vinyl digitization. DSP effects: 5-band EQ, Bass/Treble, Crossfeed, Loudness. True Balanced mode for independent headphone operation.
MAIN FEATURES

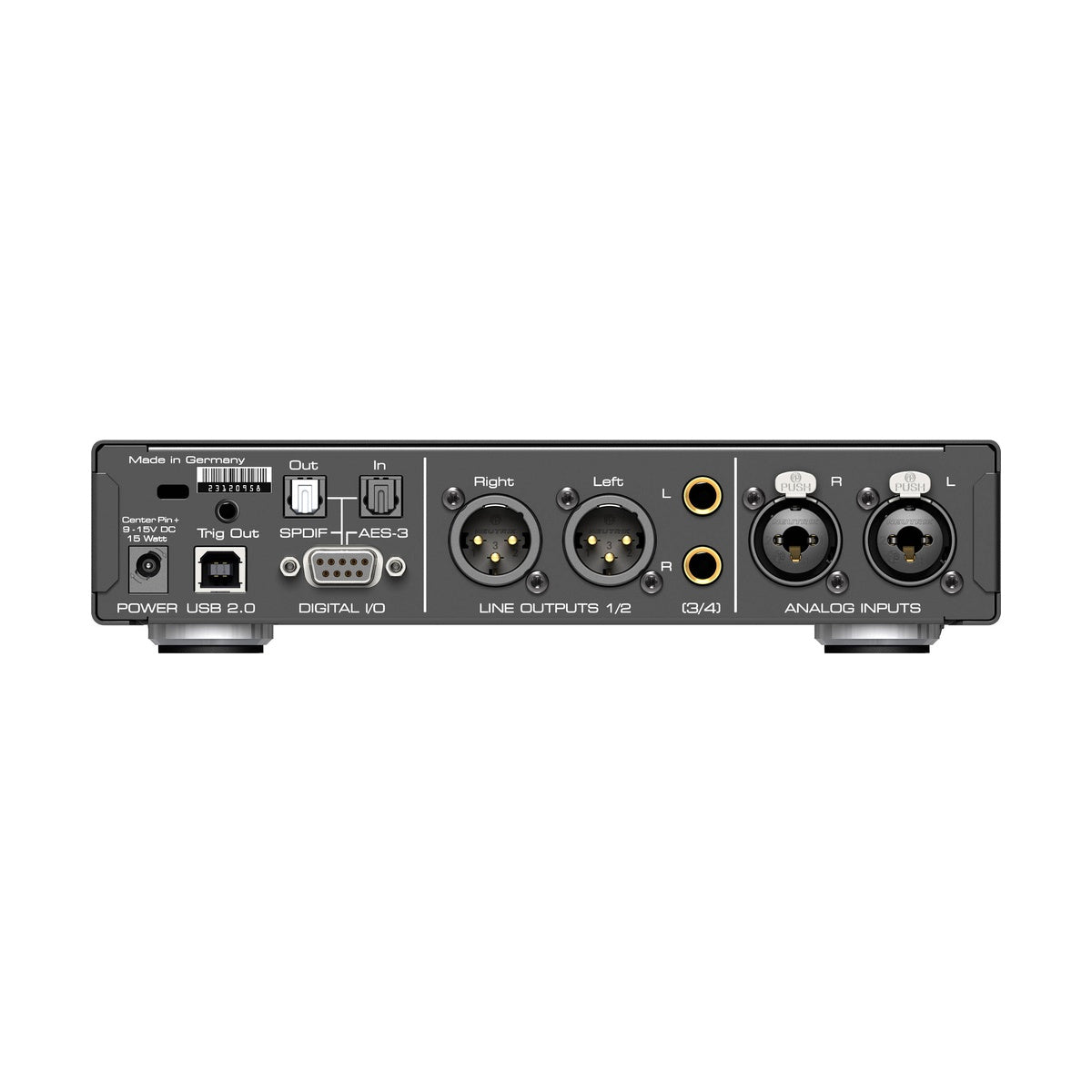

- 2 servo-balanced analog inputs (XLR/TRS combo)
- 4 balanced analog outputs (2 XLR, 2 TRS)
- Optical I/O: ADAT/SPDIF up to 192kHz
- Coaxial SPDIF/AES I/O
- 2 Extreme Power headphone outputs (6.3mm + 4.4mm Pentaconn)
- IPS display, Multi-Remote Control
- Trigger Out for external devices
- Low-noise IEM modes
TECHNICAL SPECIFICATIONS
- Converters: 32-bit/768kHz AD/DA
- SNR: >123 dBA
- Headphone Power: Up to 3.4W balanced (32Ω)
- Frequency Response: 0.15Hz-348kHz (-1dB @768kHz)
- THD+N: <-130dB @ -0.5dBFS
- Power Supply: External SMPS (9.5-15V DC input)
- Dimensions (W x H x D): 215 x 44 x 160 mm
- Weight: 1.2 kg
- Included: ADI-2/4 Pro SE, MRC remote, PSU, breakout cable
- Product Code: ADI-2/4 Pro SE
