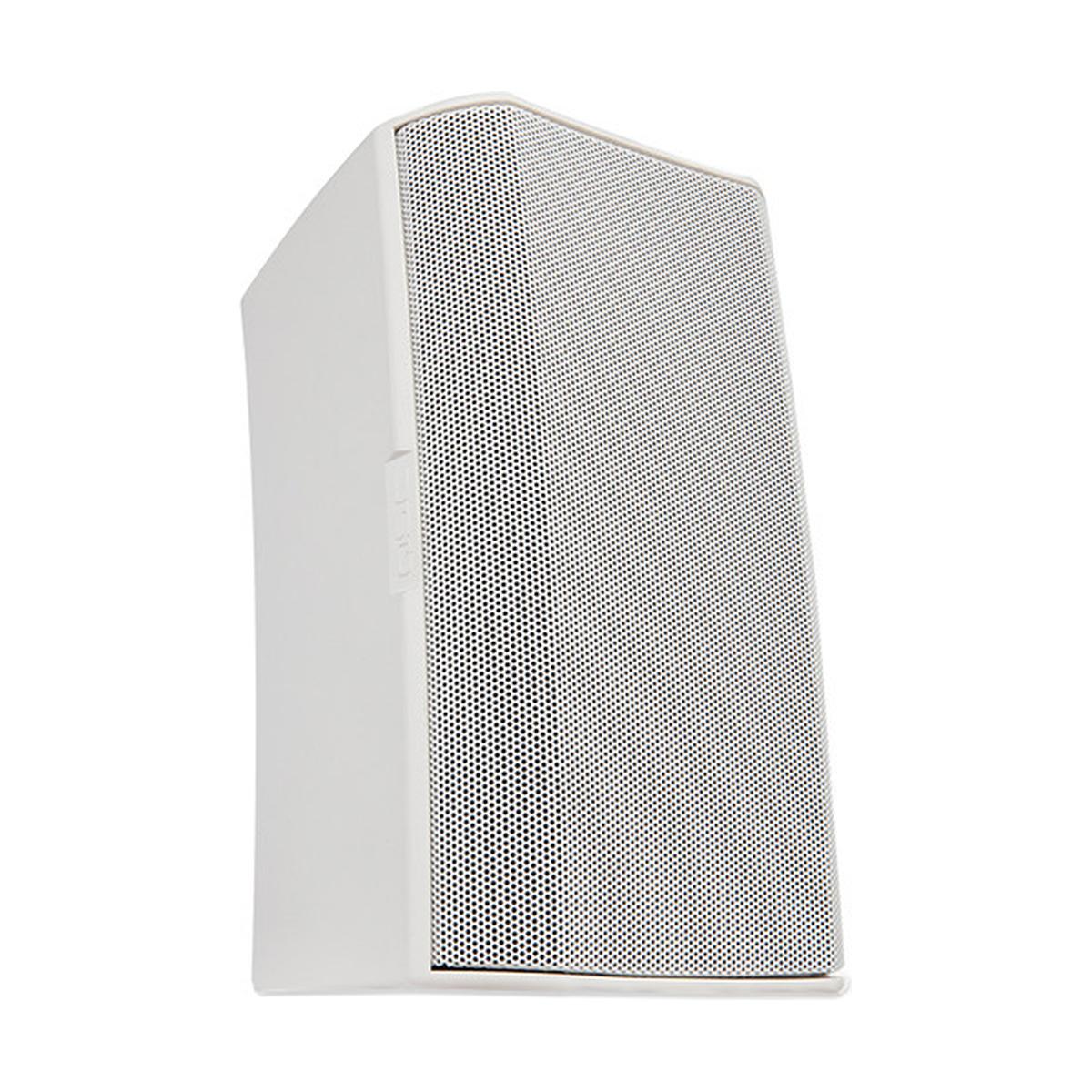

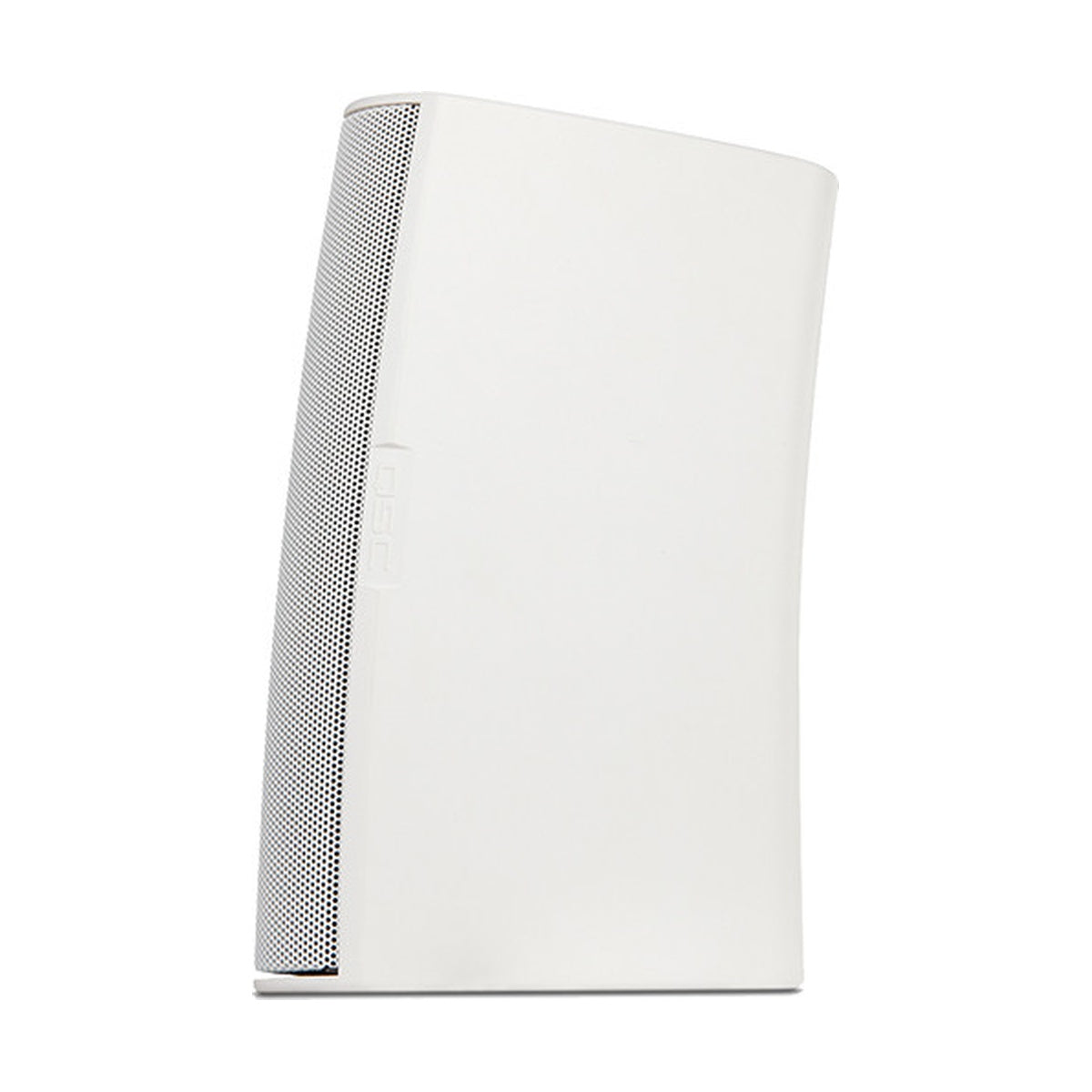

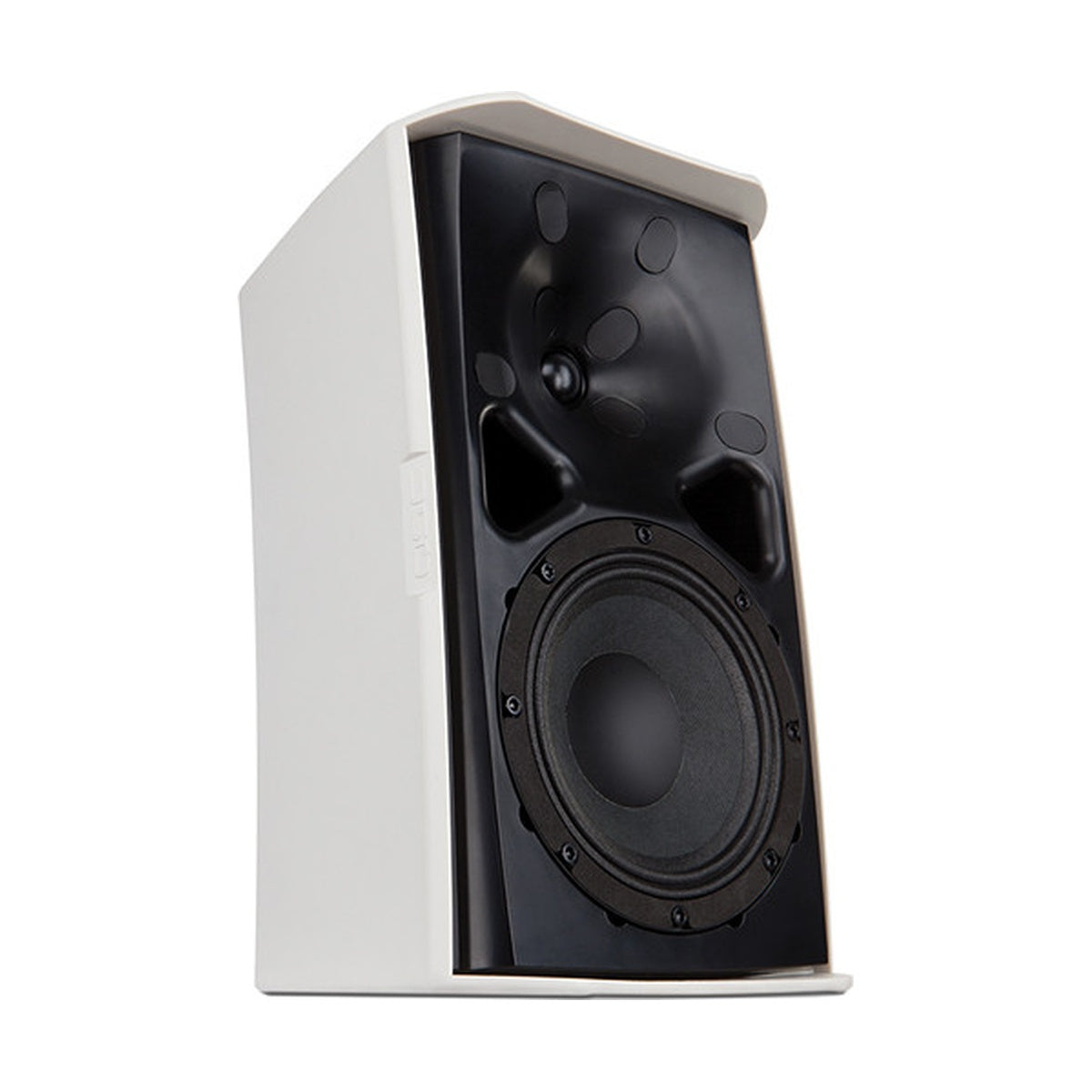

QSC AD-S6T White is a two-way surface-mount installation loudspeaker from the AcousticDesign™ Series — a piece of live sound equipment built for permanent installations in restaurants, retail spaces, education facilities, houses of worship, transportation terminals, and large system ancillary support applications. The 6.5" + 1" two-way configuration with DMT™ technology, a 70/100V transformer, and an IP-54 rated ABS enclosure covers both indoor and outdoor deployments within a single product line.
DMT™ and X-Mount™ — Consistent Coverage and Tool-Free Installation
Off-axis coloration and directivity mismatch at the crossover point are the two most common shortcomings of installation-grade full-range loudspeakers. The AD-S6T addresses both with DMT™ (Directivity Matched Transition), which aligns the coverage pattern of the HF waveguide with the woofer's directivity at the crossover frequency. The result is a consistent, axisymmetric 105° conical coverage pattern with no narrowing or blooming across the listening area.
The included X-Mount™ system supports horizontal, vertical, wall, and ceiling deployments at any angle without requiring special tools. Knurled surfaces at the pivot points prevent drift or sag once the mount is secured. Pre-marked articulation angles let installers configure the bracket on the ground before climbing — a genuine time saver on large multi-point installations.
70/100V Transformer and Intrinsic Correction™ — Ready for Multi-Zone Systems

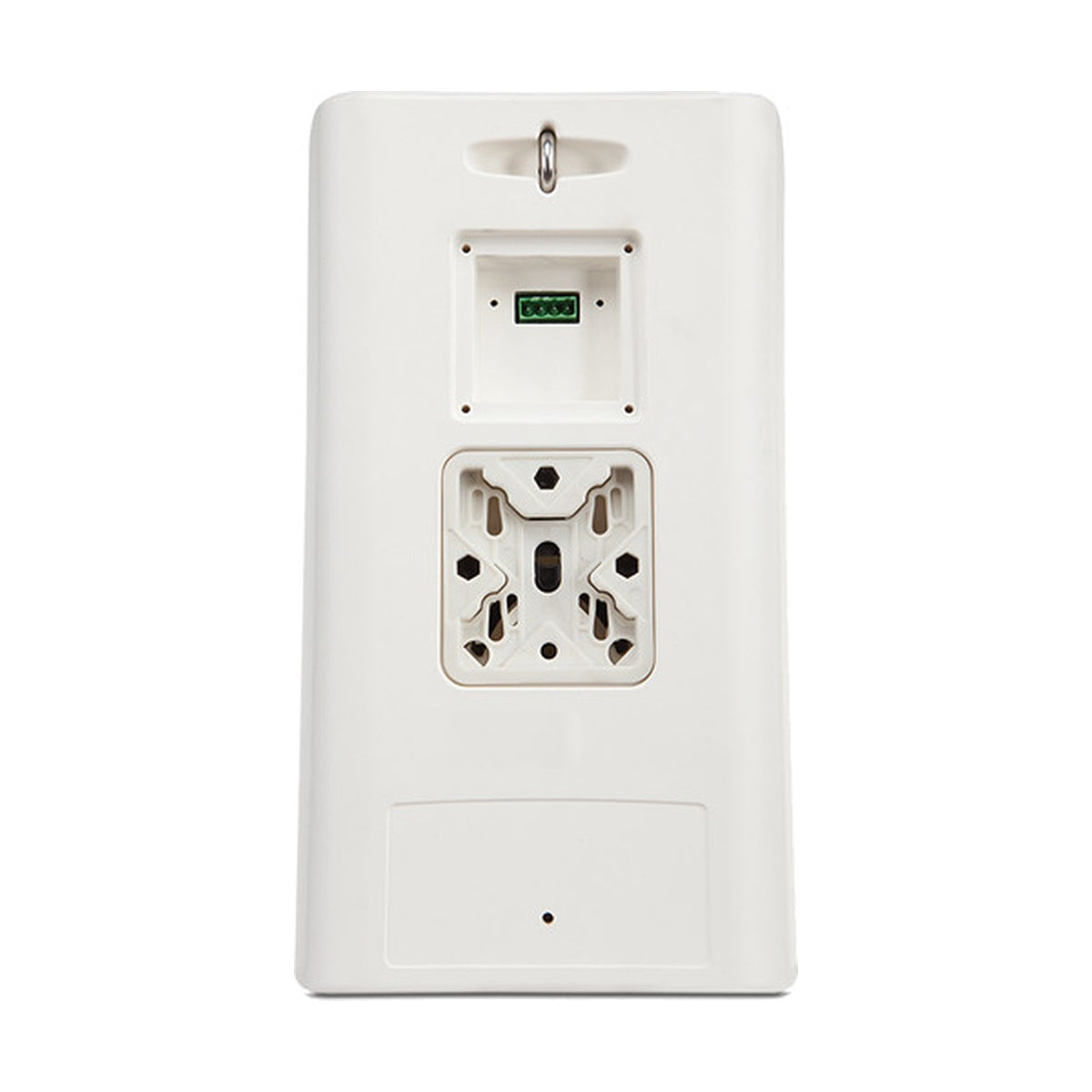

The 60W low-loss, low-saturation transformer with selectable taps (70V: 60/30/15/7.5W; 100V: 60/30/15W) and 8Ω bypass is accessible via a rear rotary selector protected by a weather grommet. Intrinsic Correction™ voicing profiles, deployable through the Q-SYS Platform and CXD Series amplifiers, deliver pre-optimized frequency response correction without manual EQ tuning — cutting commissioning time on installations where speaker count runs high.
The ABS enclosure with powder-coated aluminum grille exceeds IEC60529 IP-54, backed by MIL-STD-810G salt fog testing (100 hours), cyclic humidity exposure, and extreme temperature cycling — qualifying the AD-S6T for outdoor deployment without additional weatherproofing.
KEY FEATURES
- LF transducer: 6.5" weather-treated paper cone woofer, 1.5" (38mm) voice coil

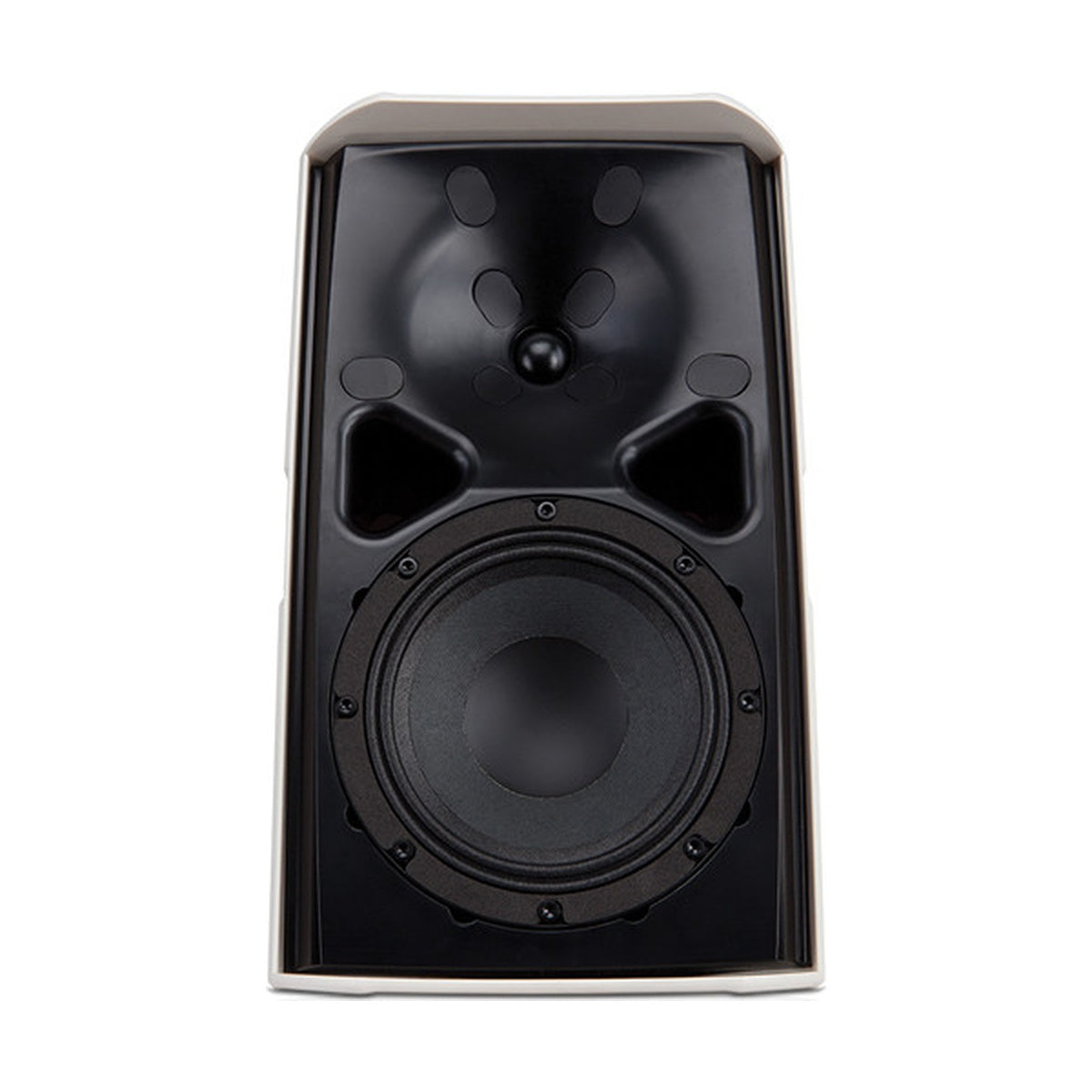

- HF transducer: 1" silk dome tweeter, 1" voice coil, horn-loaded waveguide
- Frequency range: 60 Hz – 20 kHz
- Coverage angle (-6 dB): 105° axisymmetric (conical)
- DMT™ (Directivity Matched Transition) — matched woofer and waveguide directivity at crossover
- 60W 70/100V transformer with selectable taps and 8Ω bypass
- Max SPL: 110 dB continuous / 116 dB peak
- Broadband sensitivity: 89 dB (2.83V / 1m)
- X-Mount™ system included — tool-free multi-angle installation, no sag over time
- Euroblock connector with parallel (thru) output

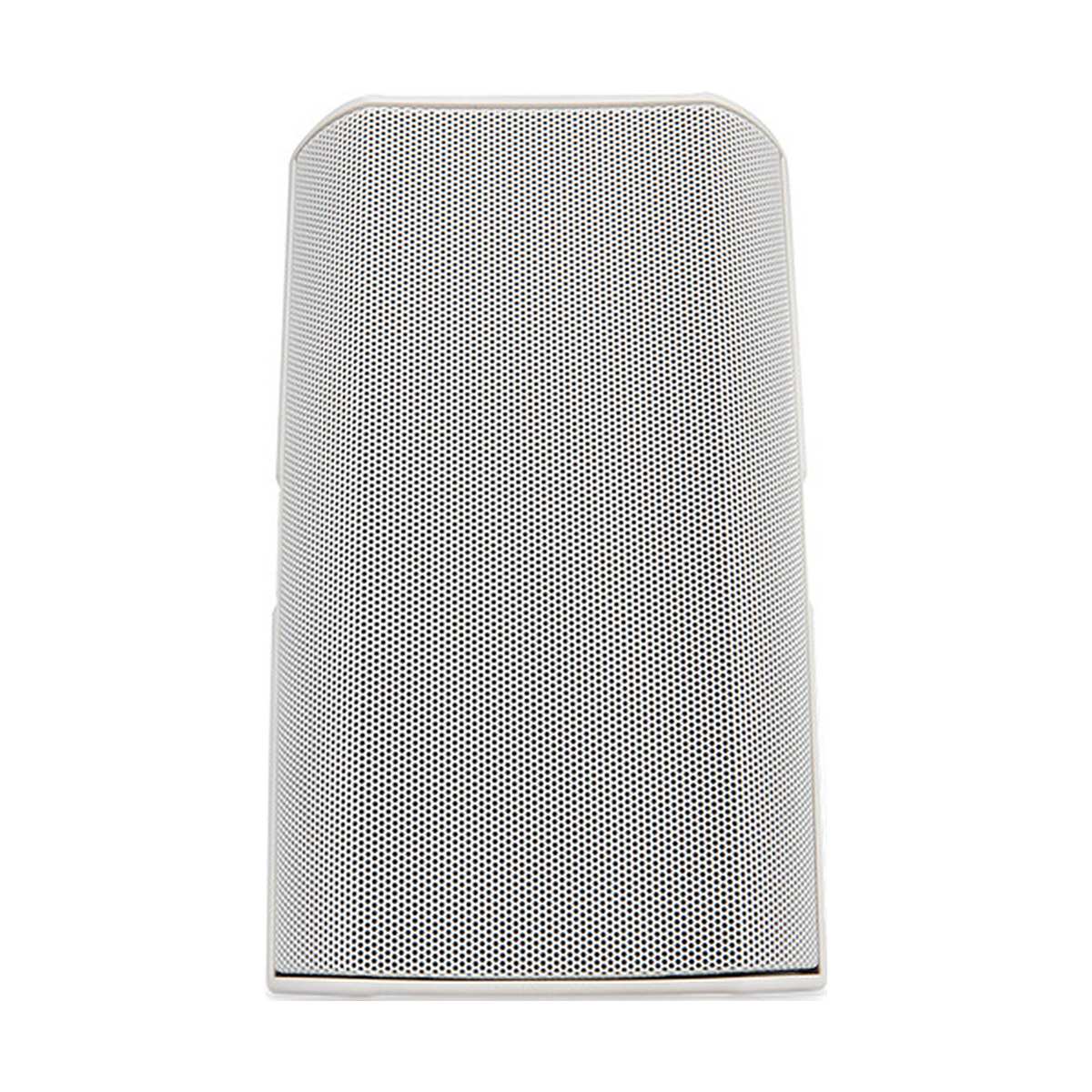

- ABS enclosure with UV inhibitors, powder-coated aluminum grille
- Ingress protection: IP-54 (IEC60529); MIL-STD-810G tested (salt fog, humidity, temperature)
- Operating temperature: -20°C to +50°C
- Intrinsic Correction™ via Q-SYS Platform and CXD Series amplifiers
- Available in white (RAL 9010) and black (RAL 9011); paintable to match any decor
- EASE, CF2, CAD and BIM files available online
TECHNICAL SPECIFICATIONS
- LF transducer: 6.5" weather-treated paper cone, 1.5" / 38mm voice coil
- HF transducer: 1" silk dome tweeter, 1" voice coil, horn-loaded
- Frequency range: 60 Hz – 20 kHz
- Sensitivity: 89 dB SPL (2.83V / 1m, free field)
- Max SPL (continuous / peak): 110 / 116 dB
- Rated impedance: 8 Ω
- Rated noise power: 150W / 35V RMS (IEC)
- Recommended amplifier power: 300W
- Transformer taps: 70V — 60 / 30 / 15 / 7.5W + 8Ω bypass; 100V — 60 / 30 / 15W + 8Ω bypass
- Coverage (-6 dB): 105° axisymmetric
- Directivity factor Q: 5; Directivity Index: 7 dB
- Ingress protection: IP-54
- Operating temperature: -20°C to +50°C (-4°F to +122°F)
- Dimensions (W × D × H): 365 × 215 × 215 mm (14.4 × 8.5 × 8.5 in)
- Net weight: 6.2 kg (13.6 lbs)
- Included accessories: X-Mount™ mounting system, Euroblock connector, input panel cover
