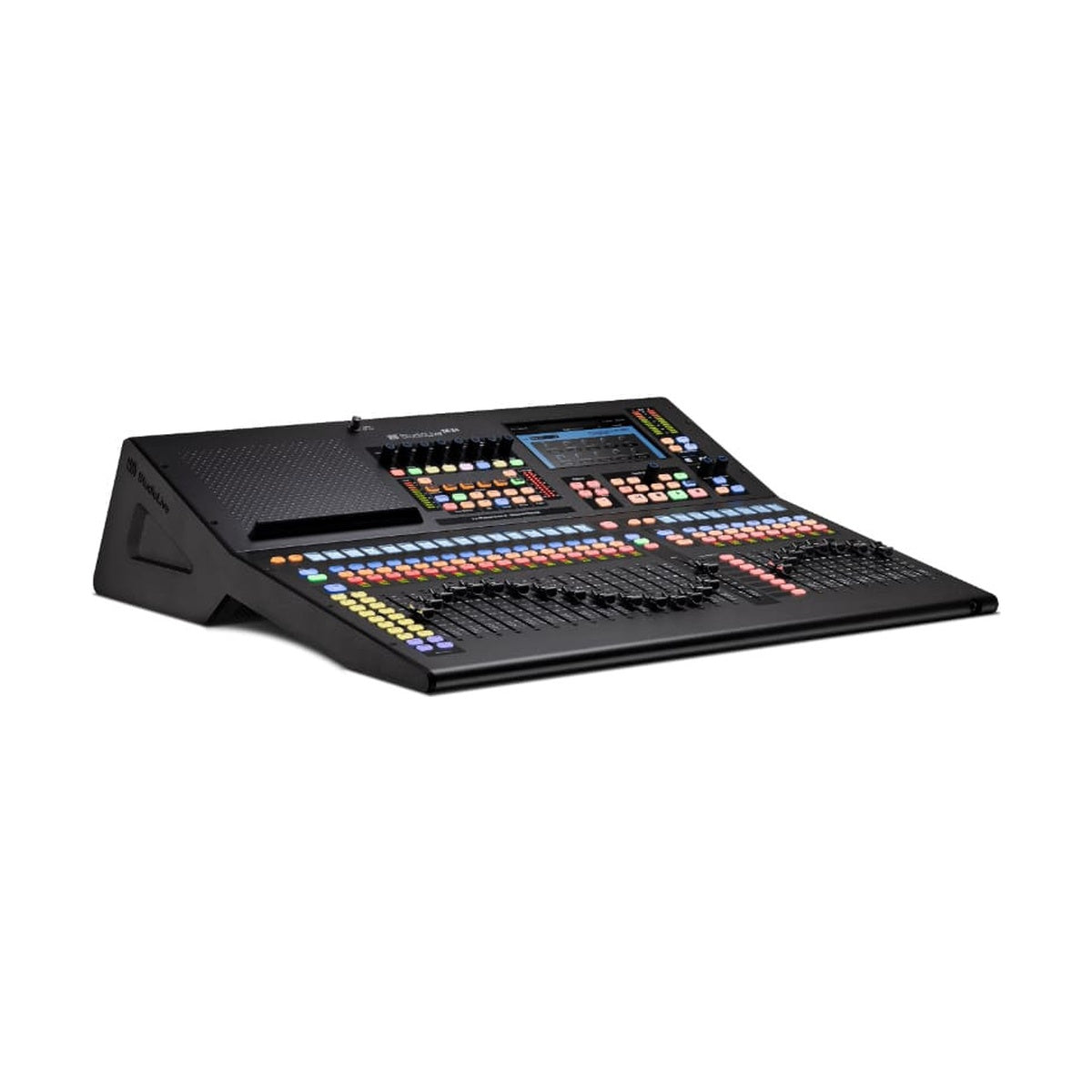

PreSonus StudioLive Series III SE 24 is an advanced 32-channel digital mixer combining a powerful 40-channel mix engine with the intuitive control of 25 touch-sensitive motorized faders. Featuring 24 recallable XMAX Class A microphone preamps and an integrated 64x64 USB audio interface, it enables seamless multitrack recording directly to a computer or the onboard 34-track SD card recorder. Its AVB Milan-ready certification ensures compatibility with the PreSonus network ecosystem, allowing easy expansion with NSB stageboxes and EarMix personal monitor mixers.
At the core of the StudioLive Series III SE 24 lies the dual-core FLEX DSP engine, powering the renowned Fat Channel processing on every input and bus with studio-grade vintage compressor and EQ emulations. With 16 configurable FlexMixes (Aux, Subgroup, Matrix), 4 dedicated subgroups, and 4 effects processors, the console delivers the routing flexibility essential for complex live sound setups and professional recording studios alike. Deep integration with Studio One DAW and Capture software makes it a complete production powerhouse.
KEY FEATURES
- 40-input channel mix engine with dual-core FLEX DSP
- 24 local XMAX Class A microphone preamplifiers
- 25 touch-sensitive motorized 100 mm faders
- 64x64 USB audio interface (24-bit/48 kHz)
- Built-in multitrack SD card recorder (34 tracks)
- 16 FlexMixes (configurable as Aux, Subgroup, or Matrix)
- Fat Channel with vintage EQ and compressor models on every channel
- AVB Networking (Milan-ready) for stageboxes and personal mixers
- 4 dedicated effects slots (FLEX FX) with reverbs and delays
- Seamless Studio One DAW integration and Virtual Soundcheck with Capture
TECHNICAL SPECIFICATIONS
- Channels: 32 (24 Mic/Line + digital returns/AVB)
- Preamps: 24 x XMAX Class A
- Faders: 25 motorized (24 channel + 1 Main)

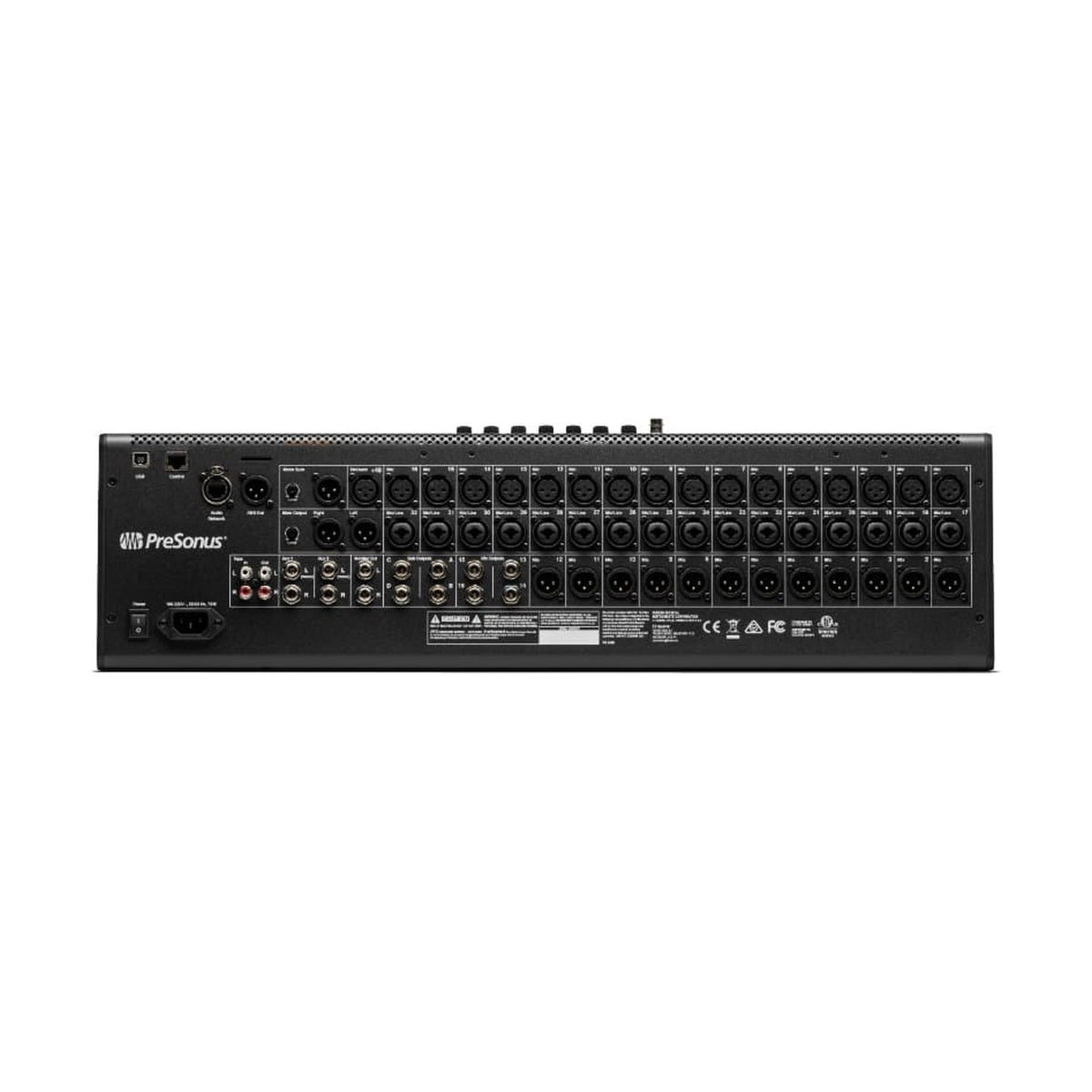

- Analog Inputs: 12 x XLR (Mic), 12 x XLR/TRS Combo (Mic/Line), 2 x RCA (Tape), 1 x XLR (Talkback)
- Analog Outputs: 2 x XLR (Main), 1 x XLR (Mono/Center), 2 x TRS (Monitor), 10 x XLR (Mix Out)
- Digital Interface: USB 2.0 (64x64), AVB (Ethernet)
- SD Recorder: 34 tracks (record/playback)
- Mix Buses: 26 (16 FlexMix, 4 Subgroups, 4 FX)
- Processing: 32-bit floating point, 48 kHz
- Converter Dynamic Range: 115 dB (A-weighted)
- Power: 100-240V AC, 50-60 Hz
- Dimensions: 659 x 583 x 165 mm (25.9" x 22.9" x 6.5")
- Weight: 13.6 kg (30 lbs)
