MOTU

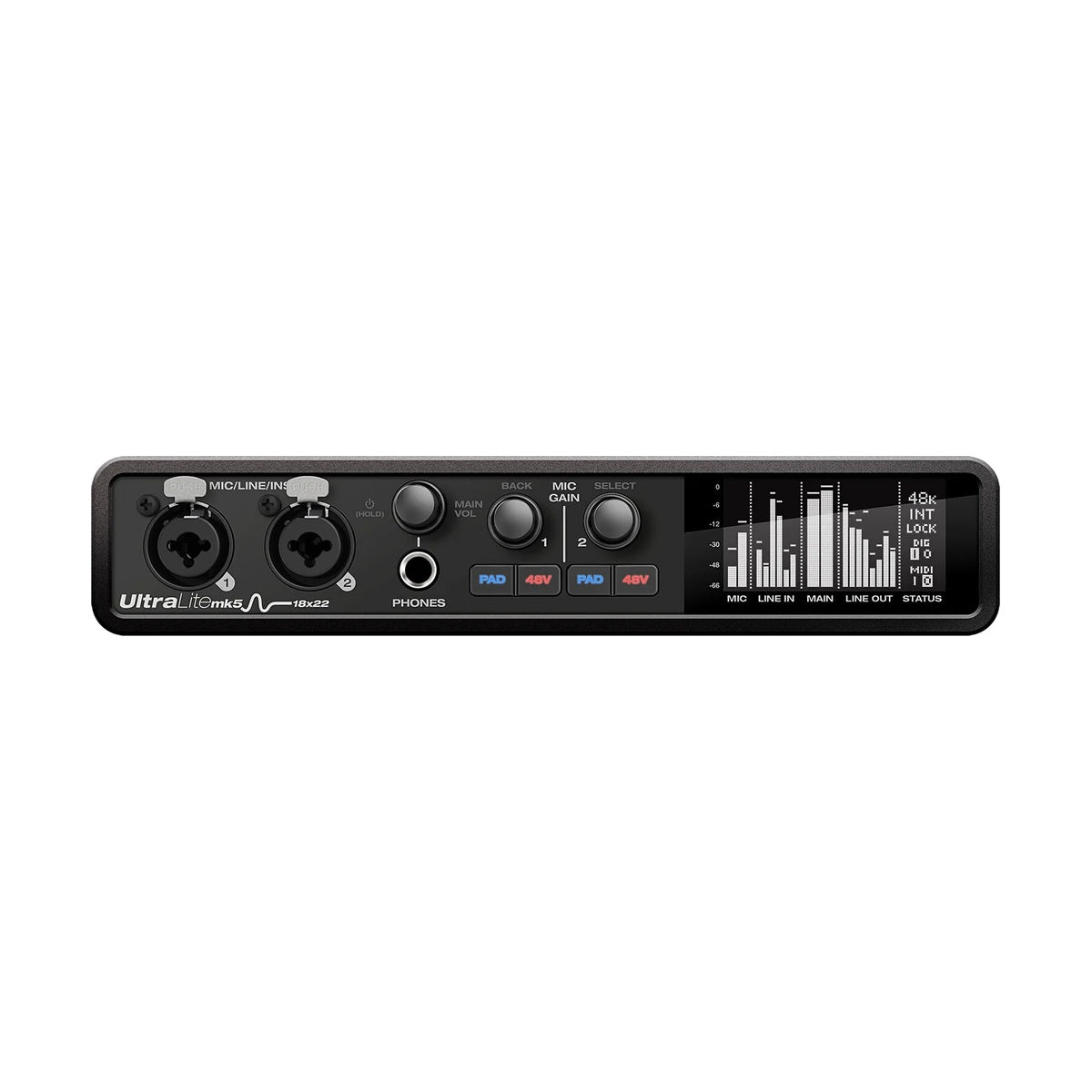

MOTU UltraLite mk5
MOTU UltraLite mk5
Warsaw Showroom
Nowogrodzka 6
102
00-513 Warszawa
Polen
Optionen wählen
MOTU UltraLite mk5 is a fifth-generation audio interface featuring ESS Sabre32™ DAC technology, offering 18 inputs and 22 outputs with ultra-low latency and industry-leading performance. With its independent power supply, durable construction, versatile I/O, and powerful CueMix 5 mixer, the UltraLite mk5 is perfect for both studio and stage use.
Advanced ESS conversion delivers 125 dB dynamic range and -114 dB THD+N. Two front-panel combo inputs feature independent phantom power and gain control for professional vocal and instrument recordings. The unit offers full MIDI support, optical and coaxial digital I/O, and extensive routing and monitoring capabilities.
KEY FEATURES
- 18 inputs and 22 outputs (40 channels total at 1x sample rate)
- Legendary ESS Sabre32™ DAC with 125 dB dynamic range
- Ultra-low latency and rock-solid performance
- 2 combo XLR/TRS inputs with phantom power and gain control
- 6 TRS 1/4″ balanced line inputs, 10 TRS 1/4″ balanced line outputs (DC-coupled)
- Digital I/O: ADAT, SMUX, optical S/PDIF, RCA S/PDIF
- MIDI I/O: 1 x IN, 1 x OUT (16 MIDI channels)
- 1/4″ TRS headphone output with independent volume control
- High-resolution white OLED display with real-time metering and status
- External power supply (12–18V DC), lightweight design (1.31 kg)
- USB Audio Class compliance – plug-and-play on macOS and iOS
TECHNICAL SPECIFICATIONS
- Converter: ESS Sabre32™ ES9026PRO
- Dynamic range: 125 dB
- THD+N: -114 dB
- Sample rates: 44.1 to 192 kHz
- Analog inputs: 2 x XLR/TRS combo (mic/instr), 6 x TRS 1/4" line in
- Analog outputs: 10 x TRS 1/4" line out, 1 x TRS 1/4" headphone out
- Digital I/O: ADAT (8 ch), SMUX (4 ch), optical S/PDIF, RCA S/PDIF
- MIDI I/O: 1 x IN, 1 x OUT (DIN, 16 channels)
- USB: 1 x USB-C (USB-A compatible)
- Phantom power: 2 x +48V (independent)
- Display: high-resolution white OLED
- Power: 12–18V DC, 1A max, tip pos or neg
- Dimensions: 22 x 17.5 x 4.5 cm
- Weight: 1.31 kg
