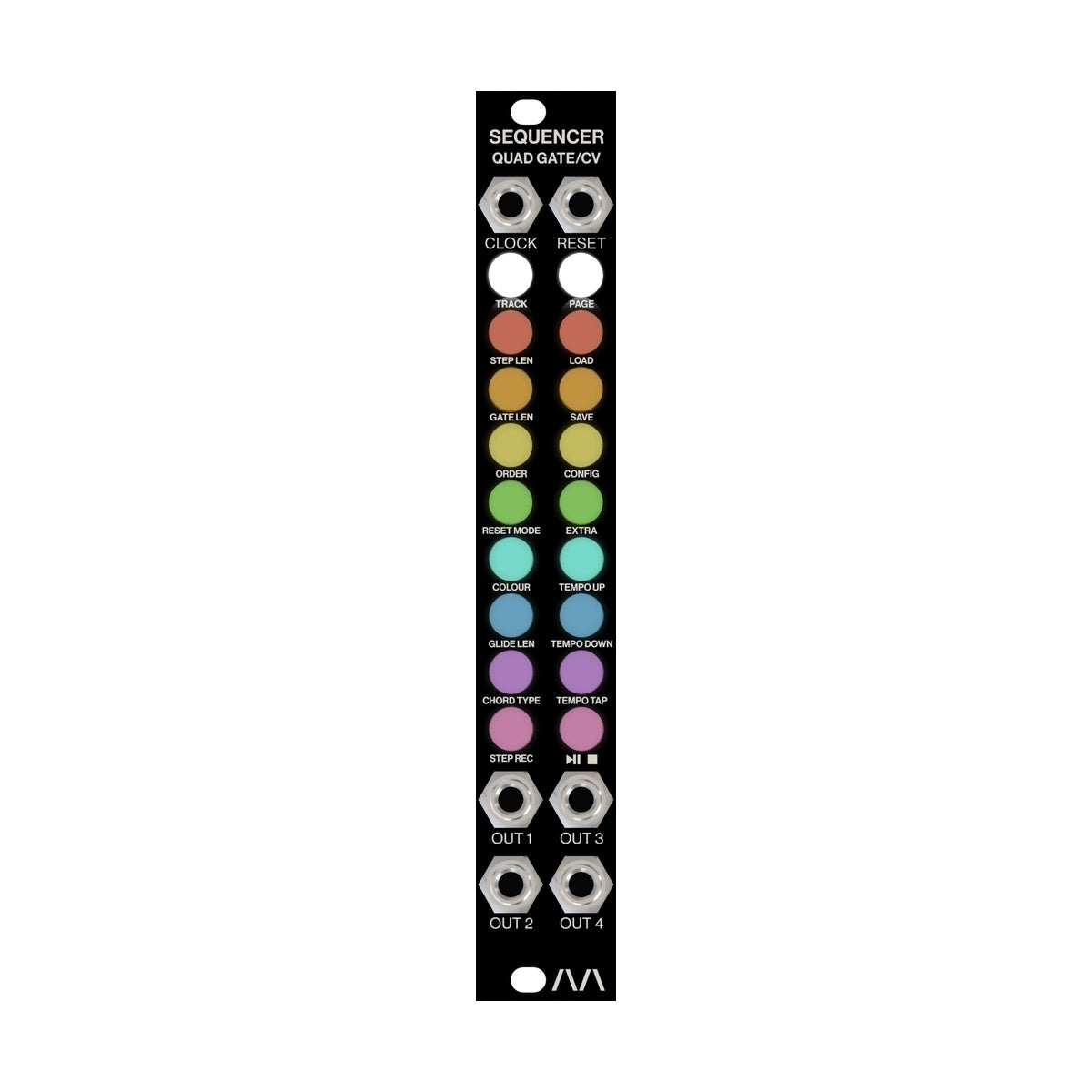

Morphor Sequencer - Quad Gate/CV – four-track gate and CV sequencer for Eurorack systems, in a footprint of just 4 HP.
The module can be set up as a two-, three-, or four-track sequencer depending on the chosen output configuration: four gate tracks, one gate/CV track plus two gate tracks, two gate/CV tracks, a triad chord track, or four CV tracks. Each track holds up to 16 pages of 16 steps, for up to 256 steps per track, with individual control over step length, glide time, and playback order (up, down, pendulum, random). A built-in internal clock lets the module run standalone, and the clock and reset jacks can be configured as either inputs or outputs when integrating with the rest of the system.
Four sequencing tracks in just 4 HP
The compact panel width doesn't limit functionality - the module offers a chord mode with a single gate and a triad voltage, an arpeggiator, per-step trigger probability, and configurable gate output voltage (5V or 8V) along with CV standards (1V/octave, 1.2V/octave for Buchla systems, or Hz/V). That feature set packs an elaborate sequencing section into a small slice of rack space, leaving more room for sound-generating modules.Chaining modules for larger live sequences
Several Sequencer units can be linked together through a bus connector on the rear of the module, so clock and reset signals are shared automatically across every connected unit without extra front-panel cabling. A built-in mini keyboard for entering gates and CV live, along with color RGB buttons, makes editing sequences and tracking the currently playing page easier during a live set, without needing to look away from the rest of the patch.KEY FEATURES
- Configurable 2-, 3-, or 4-track sequencer (gate, CV, gate/CV, triad)
- Up to 16 pages of 16 steps per track (up to 256 steps)
- Chord mode, arpeggiator, and per-step probability
- Internal clock plus configurable clock/reset inputs or outputs
- Daisy-chaining of multiple modules via a rear bus connector
- Firmware updates over USB-C
TECHNICAL SPECIFICATIONS
- Module type: four-track gate/CV sequencer
- Panel width: 4 HP
- Panel height: 3 U
- Module depth: 33 mm
- Dimensions: 128.5 x 20 x 33 mm
- Mass: 56 g
- Power connector: 16-pin
- Current draw +12V: 95 mA
- Current draw -12V: 11 mA
- Current draw +5V: 123 mA
