IsoAcoustics V120 Truss Clamp 1.5" – an aluminium clamp that mounts the V120 isolation mount to 1.5" (38mm) truss, for flying studio monitors outside a fixed room.
Mounting a reference monitor directly on truss – in a mobile studio, on set, in a rehearsal room, or for a temporary install – risks structure-borne vibration feeding back into the cabinet and coloring the low end, the same way a poorly placed monitor on a desk does. The V120 Truss Clamp 1.5" handles this differently from a plain metal bracket: instead of a rigid connection, the clamp couples the monitor to the truss through the V120 isolation system rather than metal-on-metal contact.
Mounting without transferring structural vibration

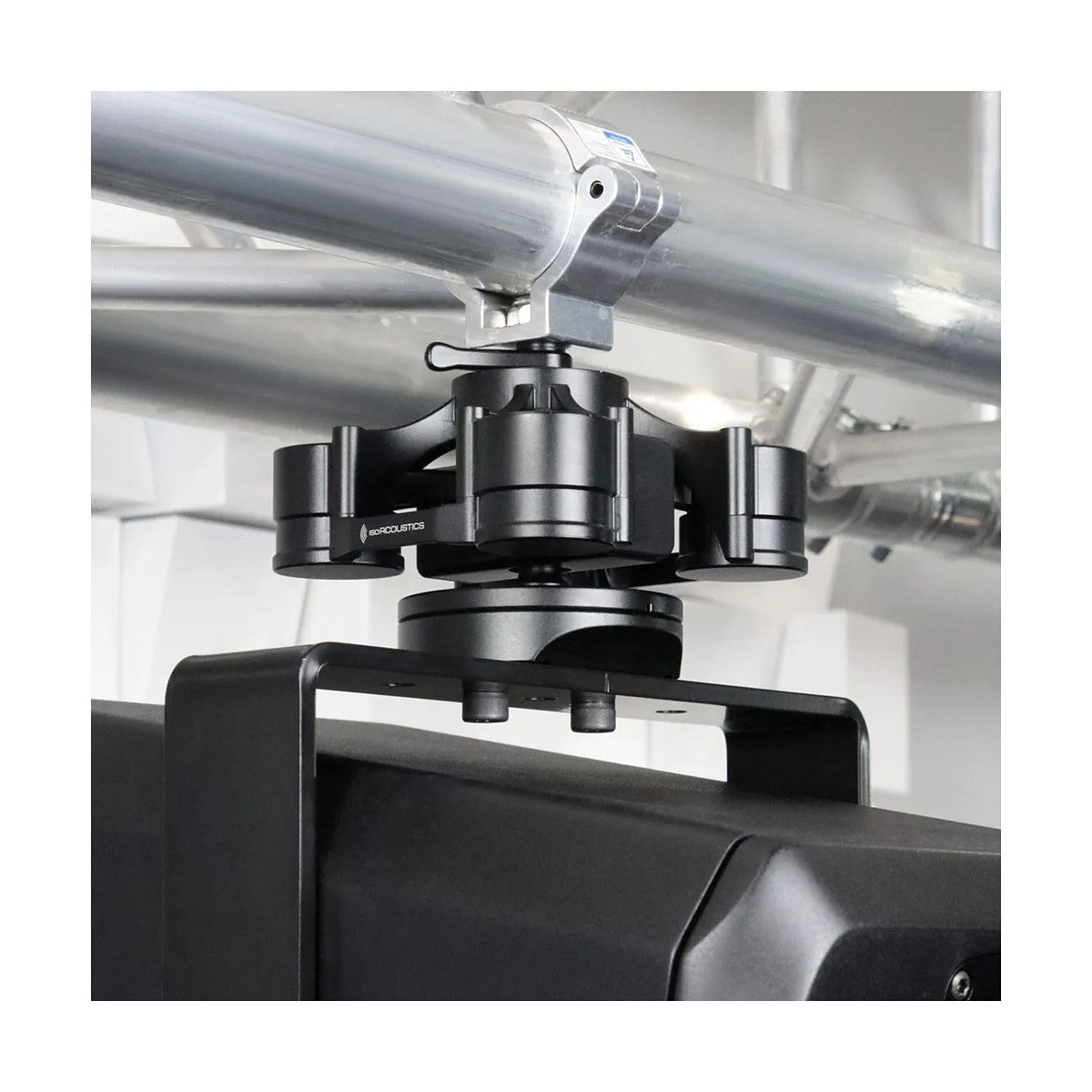

The clamp attaches to the M10 thread on top of the V120 mount, once the standard ceiling plate is removed – the same mechanism that fixes V120 permanently to a ceiling here wraps around the truss and tightens with an adjustable knob. The result matches a ceiling install: structural vibration from the truss doesn't feed back into the monitor's cone, so the listening reference stays consistent whether the speaker sits on a stand or hangs above the mix position.Fast reconfiguration on the road
The clamp wraps the truss and locks with a single adjustable knob, no additional tools needed – a real factor on frequent load-ins, where the crew mounts or pulls a monitor off the truss in seconds instead of turning hex screws or hunting for a wrench in the case. Position can also be adjusted quickly mid-session as the mix position shifts relative to the truss.KEY FEATURES

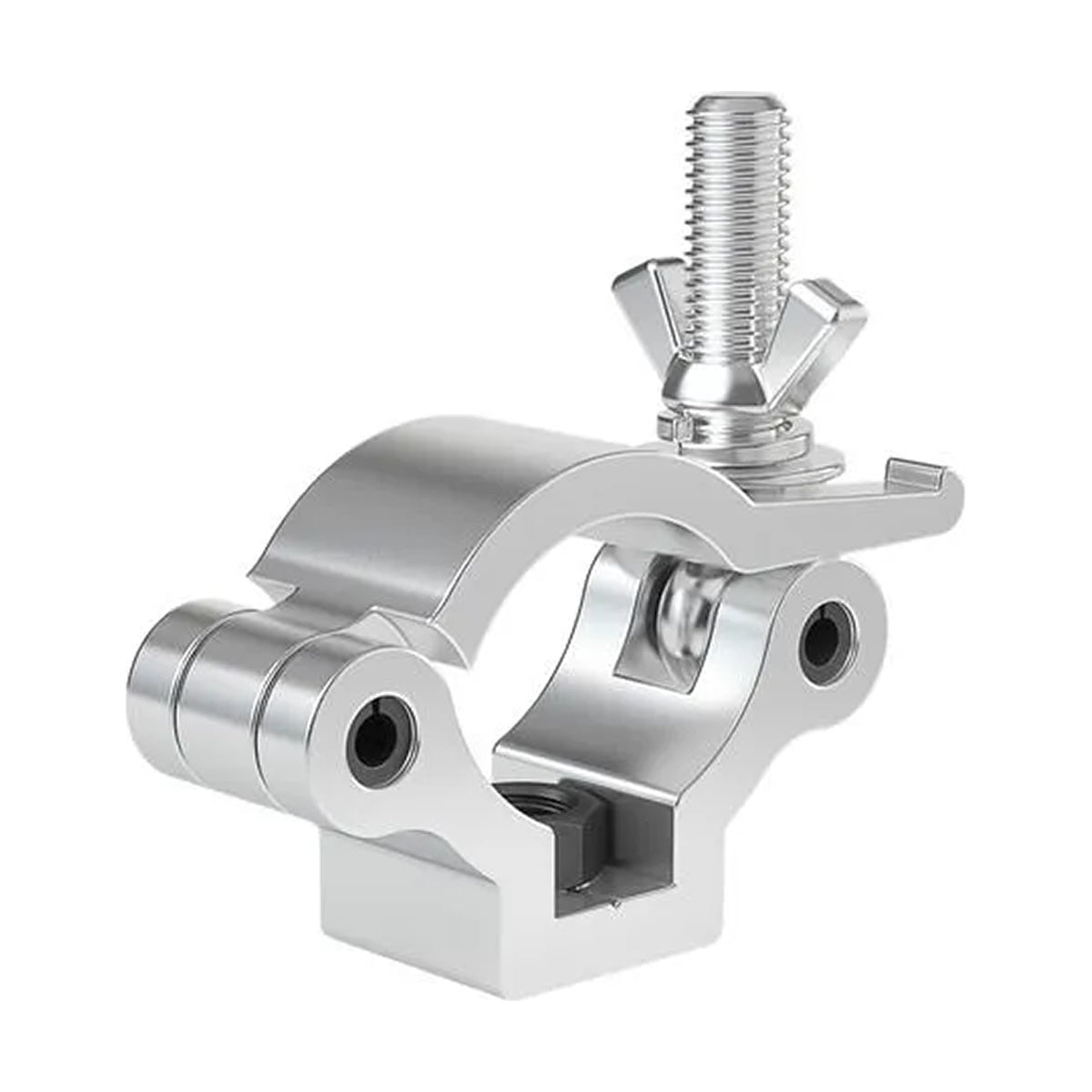

- Aluminium clamp for 1.5" (38mm) truss
- Attaches to the V120 isolation mount via M10 thread
- Adjustable knob tightening, no extra tools required
- Fast mounting, removal, and repositioning
- Clamping diameter range: 48–52mm
- Part of the IsoAcoustics V120 Mount system
TECHNICAL SPECIFICATIONS
- Material: aluminium
- Truss diameter: 1.5" (38mm)
- Clamp diameter range: 1.9"–2.05" (48–52mm)
- Mounting: M10 thread (to V120 isolation mount)
- Dimensions: 95 x 38 x 64mm (LxWxH)
- Weight: 0.25kg
- Compatibility: IsoAcoustics V120 Mount system
