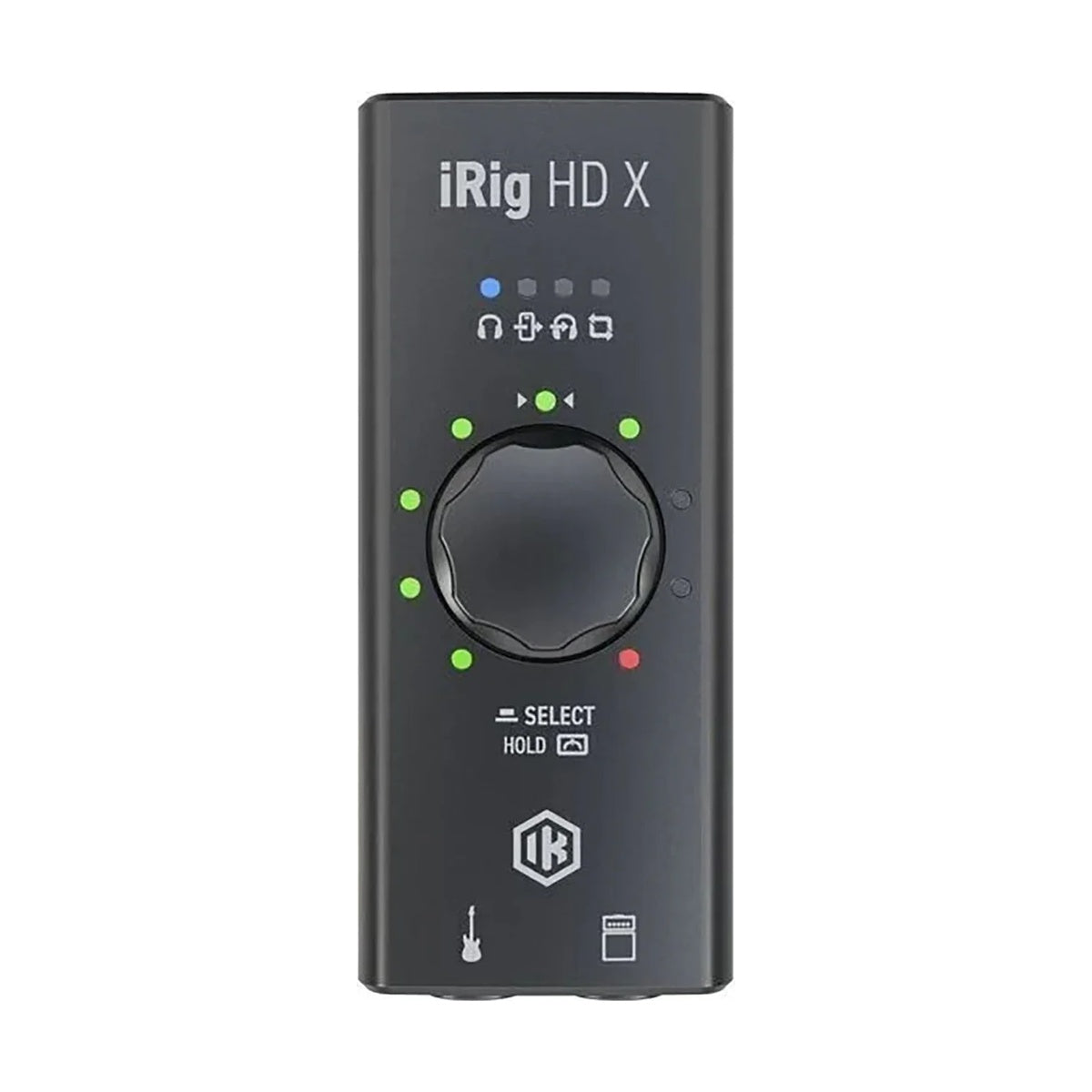

IK iRig HD X

IK Multimedia iRig HD X is a compact 24-bit/96 kHz audio interface with an instrument input, amplifier and headphone outputs, built-in tuner, virtual FX loop, and USB-C power, designed for guitar and bass players.

The iRig HD X is a precision pocket-sized interface developed by IK Multimedia for connecting electric guitars and basses to mobile devices or computers. It delivers transparent signal conversion, flexible routing, and full integration with modeling software—ideal for studio use, live performances, or streaming. The 1/4" AMP OUT lets you connect directly to amplifiers, pedalboards, or FRFR systems, while the 1/8" headphone output allows for direct monitoring.

An integrated LED ring functions as both a signal level meter and an accurate tuner. The unique Loopback+ feature creates a virtual effects loop, enabling signal processing with apps like TONEX or AmpliTube before routing to your DAW or live stream. The package includes licenses for AmpliTube 5 SE and TONEX SE, plus access to ToneNET for community-based presets. With USB-C power and compatibility with iOS, macOS, and Windows, the iRig HD X is a powerful solution for mobile recording, practice, and performance.

KEY FEATURES

• USB-C audio interface for guitar and bass
• 24-bit/96 kHz resolution
• 1 MΩ high-impedance instrument input
• 1/4" AMP OUT for amplifier, pedalboard, or FRFR systems
• 1/8" headphone output with low impedance
• Built-in LED tuner and signal level meter
• Loopback+ for routing through effects apps
• Compatible with iOS, macOS, and Windows
• Powered via USB-C
• Includes AmpliTube 5 SE, TONEX SE, and access to ToneNET

TECHNICAL SPECIFICATIONS

• Audio resolution: 24-bit
• Sampling rates: 44.1, 48, 88.2, 96 kHz
• Input: Instrument, 1 MΩ, max +9 dBu
• Input frequency response: 20 Hz – 20 kHz (±3 dB at 96 kHz)
• Input dynamic range: 115 dB(A)
• AMP OUT: 1/4" unbalanced, -2 dBu at 0 dBFS
• AMP OUT frequency response: 15 Hz – 40 kHz (±1 dB)
• AMP OUT dynamic range: 97 dB(A)
• Headphone output: 1/8", 22 Ω, ~8 mW at 32 Ω
• Headphone frequency response: 15 Hz – 40 kHz (±1 dB)
• Headphone dynamic range: 95 dB(A)
• Loopback+: Yes
• Power: USB-C powered
