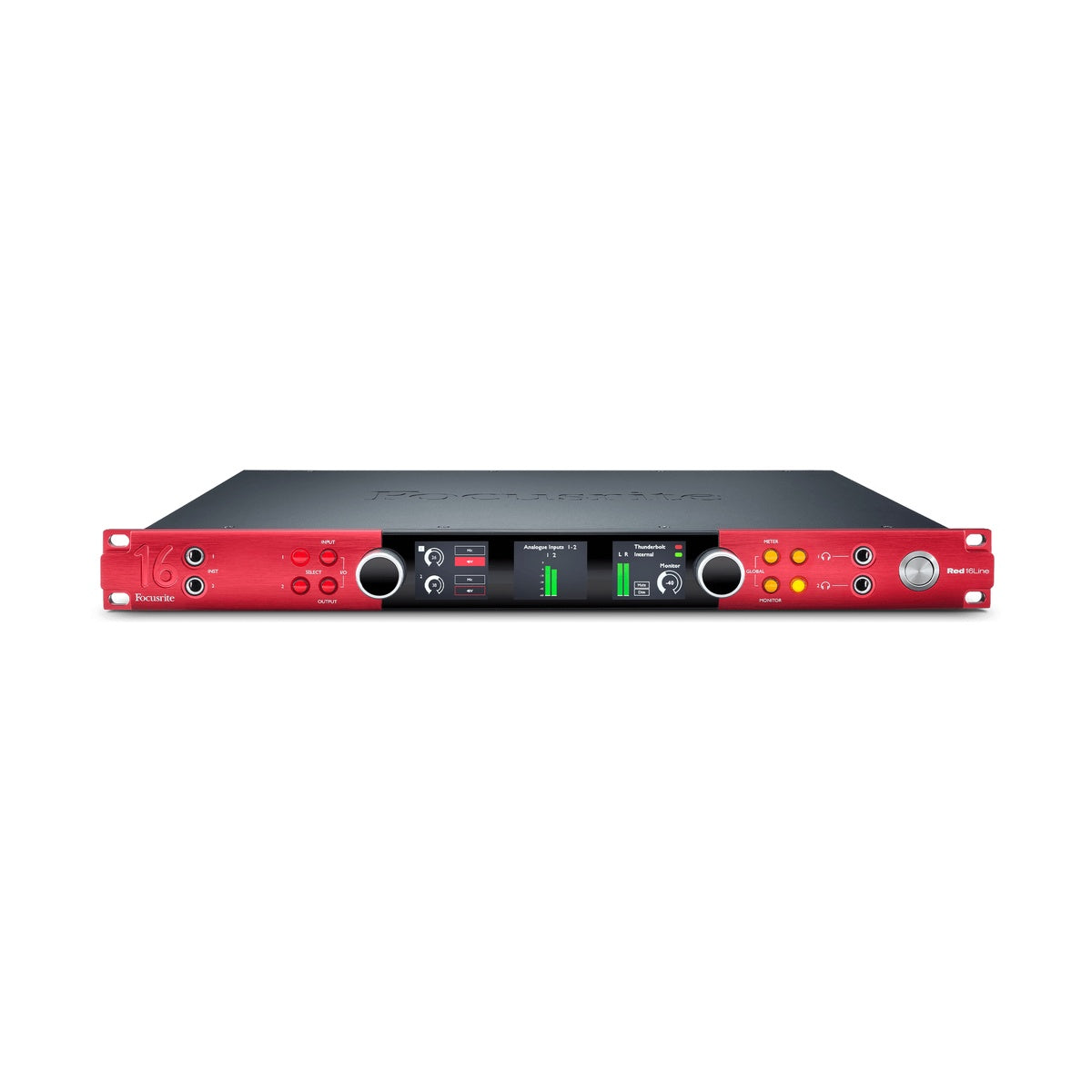

Focusrite Red 16Line — a 64-input/64-output interface combining Pro Tools|HD, dual Thunderbolt 3 ports and a dual-port 32x32 Dante card in one rack unit, with two Red Evolution preamps and an extensive line-level I/O complement.

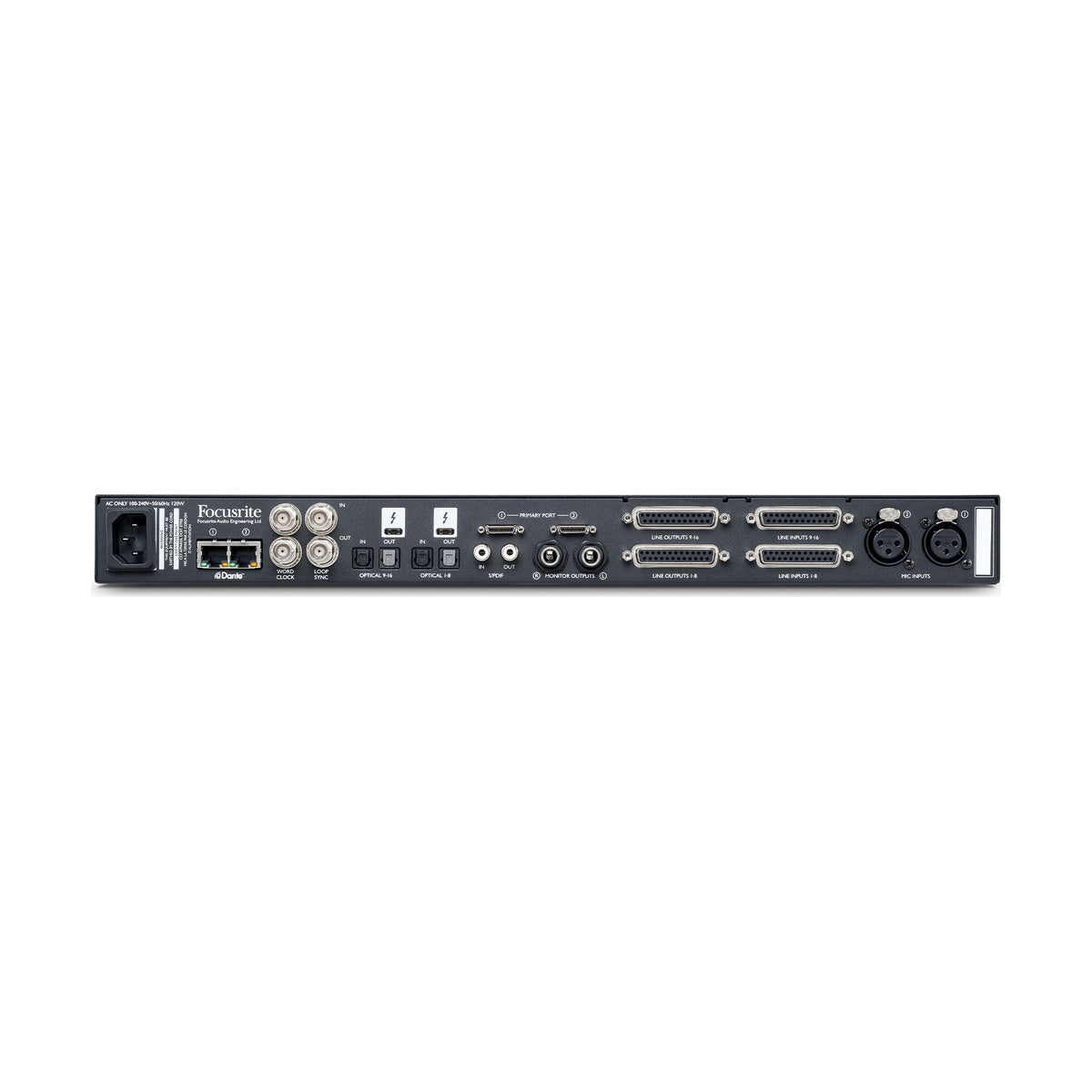

16 line inputs on D-sub connectors, 16 line outputs and two main monitor outputs give real channel count for working with an analogue console or patchbay, while A-D/D-A conversion with over 118 dB (A-D) and 121 dB (D-A) dynamic range holds signal quality at mastering-grade levels. Three LCD displays provide precise metering for any input or output block.
Switching between Pro Tools|HD and a second DAW without swapping cards
Red 16Line carries both DigiLink connectors and Thunderbolt 3 ports at the same time, so moving from Pro Tools|HD to a second DAW is a host mode change in RedNet Control or directly on the front panel — no pulling option cards, no interruption longer than a few seconds. Ultra-low round-trip latency makes it possible to build one mix on the DAW for both input-monitored overdubbing and plug-in playback, removing the need to run two separate mixes for the same session.
32x32 Dante for studio expansion without extra cabling
The dual-port Dante card provides 32 input and 32 output channels at higher sample rates, so an additional room, workstation or RedNet device connects with a standard Ethernet cable instead of running analogue multicore through the building. The Red Evolution preamps deliver 63 dB of gain with stereo linking, individual phantom power, a high-pass filter and Air mode — a 2 dB boost at 10 kHz and a 2 dB dip at 20 Hz relative to 1 kHz, with input impedance dropping to 2.2 kOhms, recreating the character of a transformer-based ISA preamp on vocal or guitar sources.
KEY FEATURES
- 64 inputs/64 outputs total
- 16 line inputs and 16 line outputs on D-sub, 2 monitor outputs
- 2 Red Evolution preamps with Air mode, 63 dB gain
- Dual-port Dante card, 32x32 channels at higher sample rates
- Dual Thunderbolt 3 ports, dual DigiLink connectors for Pro Tools|HD
- Host switching without reconfiguring option cards
- Conversion with over 118 dB (A-D) and 121 dB (D-A) dynamic range
- ADAT with SMUX I/II support, S/PDIF 2 in/2 out (RCA and TOSLINK)
- Three LCD displays with precise metering
- Includes RedNet Control, Focusrite Control, bx_console Focusrite SC, Red 2/3
TECHNICAL SPECIFICATIONS
- Channels: 64 inputs/64 outputs total
- Preamps: 2x Red Evolution, 63 dB gain, phantom power, HPF, phase reverse
- Line inputs: 20 Hz-35 kHz ±0.2 dB, THD+N -102 dB, SNR 119 dB (A-weighted)
- 0 dBFS reference level: +18 or +24 dBu, switchable
- Computer connectivity: 2x Thunderbolt 3, 2x DigiLink (Pro Tools|HD)
- Network: dual-port Dante card, 32x32 channels
- Digital I/O: ADAT (SMUX I/II), S/PDIF 2 in/2 out (RCA, TOSLINK up to 96 kHz)
- Clock sources: internal, ADAT 1/2, S/PDIF, Word Clock, Loop Sync, Dante Network Master
- Displays: 3x LCD
- Software: RedNet Control, Focusrite Control
