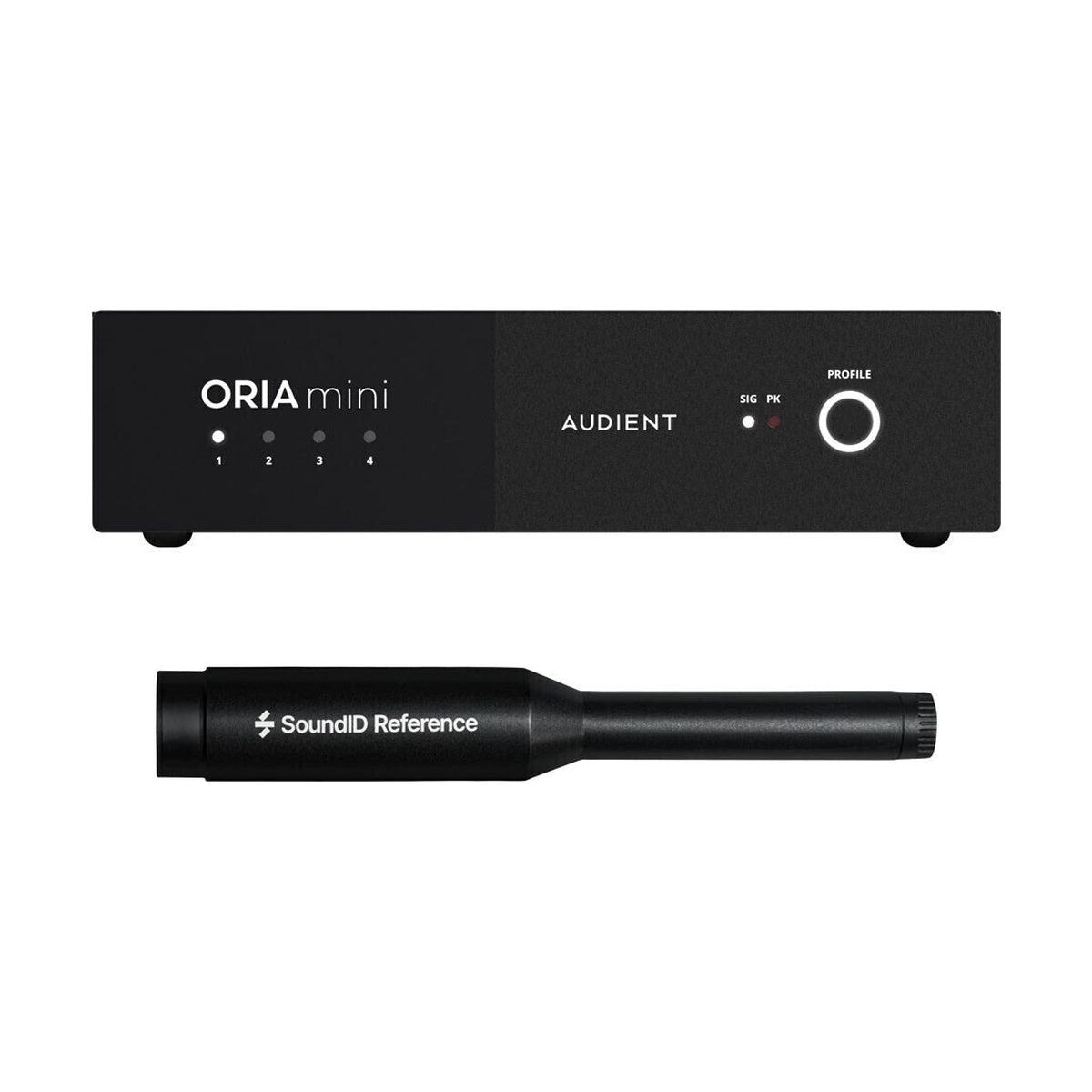

Audient ORIA Mini & SoundID Reference
Audient ORIA Mini & SoundID Reference
Warsaw Showroom
Nowogrodzka 6
102
00-513 Warszawa
Polen
Optionen wählen

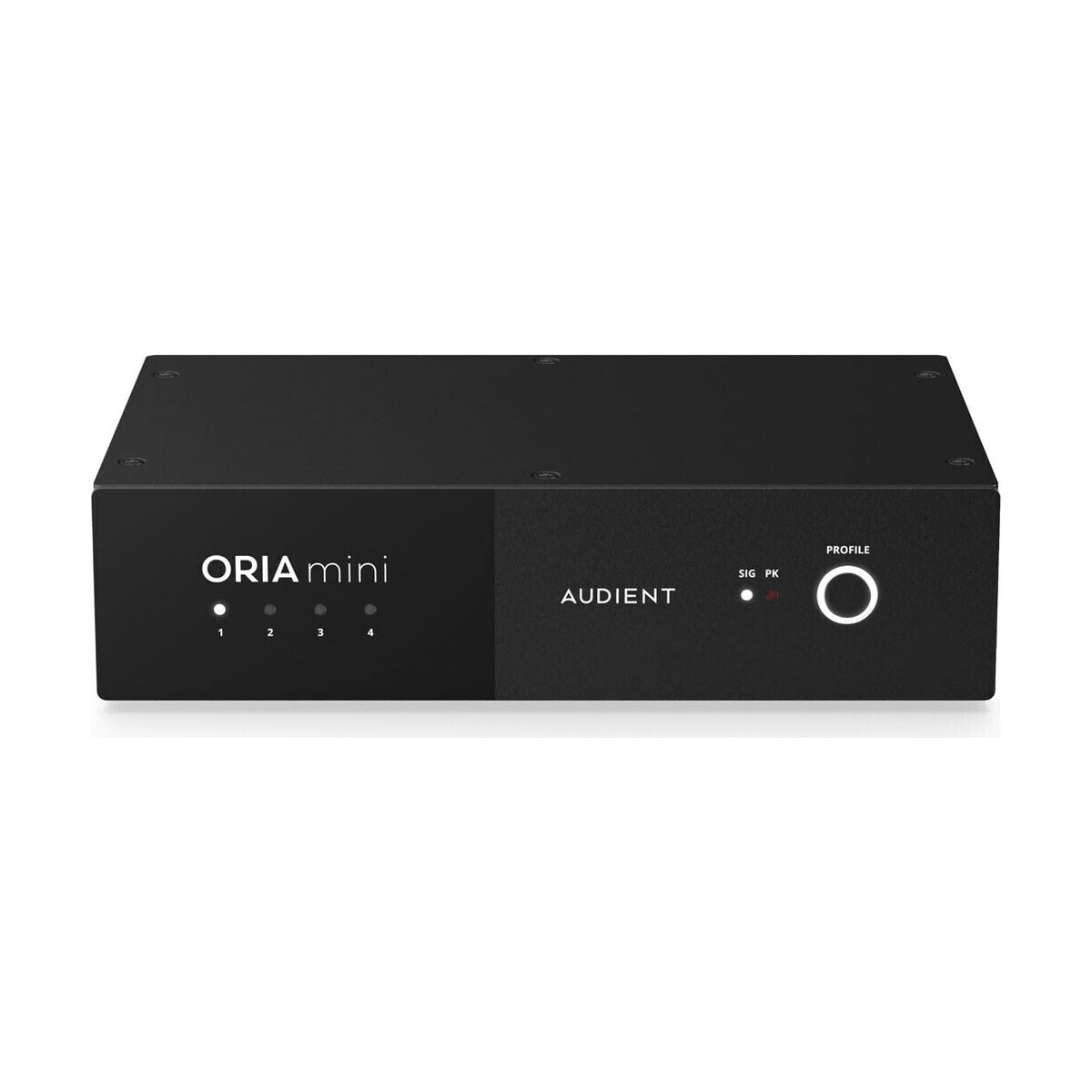

Audient ORIA Mini – hardware monitor controller and room correction processor, designed for seamless Sonarworks integration.
Audient ORIA Mini is an advanced DSP processor and monitor controller that serves as the centerpiece of a precision monitoring system. The device enables hardware-based room and monitor calibration, eliminating the need for software plugins on your master bus. This offloads your computer's CPU and ensures stable, ultra-low latency monitoring (just 0.38 ms for analog inputs), regardless of the DAW or audio source you use.
ORIA Mini integrates with any audio interface via analog or digital connections. Once measurements are taken (separate measurement microphone and SoundID Reference software required, sold separately), calibration profiles are loaded directly into the device's onboard memory. ORIA Mini supports stereo and 2.1 configurations with a dedicated subwoofer output and advanced bass management. High-end 32-bit converters with 127 dB dynamic range ensure your signal remains crystal clear and true to the source.
KEY FEATURES
- Hardware Room Correction processor
- Dedicated DSP for running SoundID Reference profiles without CPU load
- Store up to 4 calibration profiles directly on the device
- Support for Stereo and 2.1 configurations with dedicated Subwoofer Out
- Premium 32-bit AD/DA converters with 127 dB dynamic range
- Ultra-low processing latency: less than 1 ms for analog inputs
- Monitor Controller functionality: volume control, mute, profile switching
- Universal compatibility: works with any audio interface as an insert device
- Advanced Bass Management for subwoofer setups
- Compact, rugged chassis perfect for home and professional studios
TECHNICAL SPECIFICATIONS
- Audio Processing: 24-bit / 96 kHz
- Converter Dynamic Range: 127 dB (A-weighted)

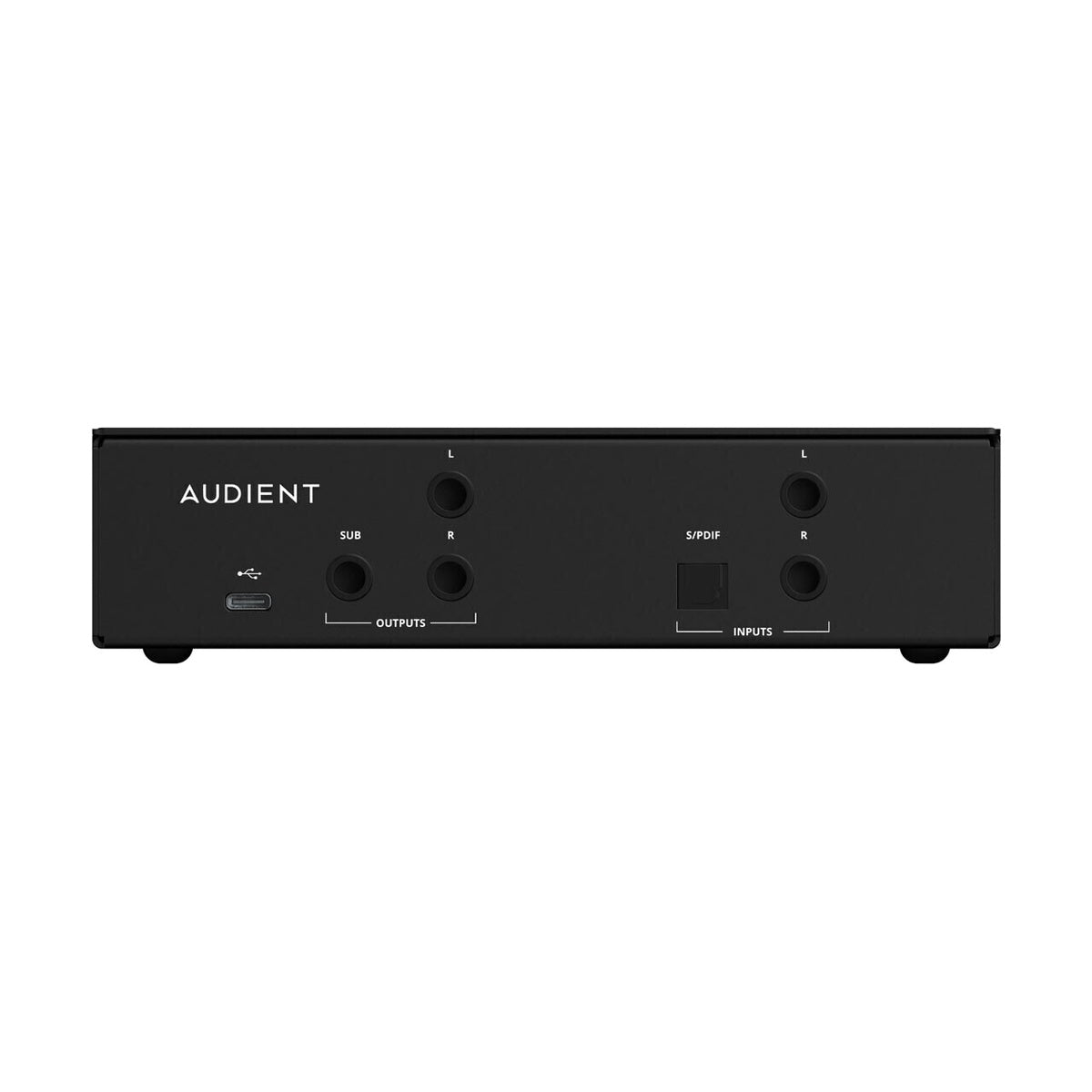

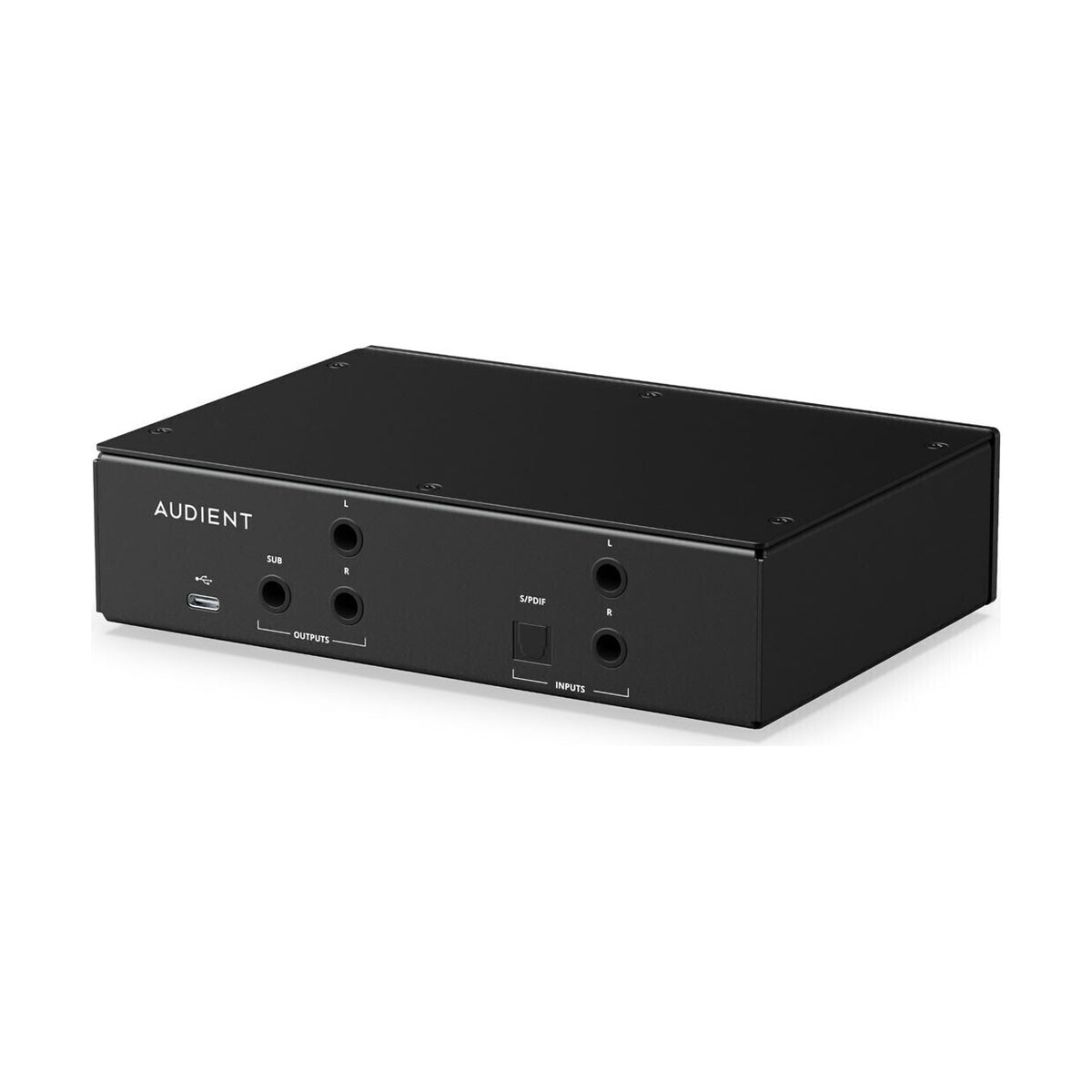

- Analog Inputs: 2 × Line In (TRS 6.3 mm, balanced), max level +18 dBu
- Digital Inputs: 1 × S/PDIF (Optical Toslink)
- Monitor Outputs: 2 × Speaker Out (TRS 6.3 mm), max level +18 dBu
- Subwoofer Output: 1 × Sub Out (TRS 6.3 mm)
- USB Connection: USB-C (power and configuration data transfer)
- Latency: Analog In > Analog Out: approx. 0.38 ms
- DSP Filters: 16-band IIR EQ, High/Low Shelf filters, subwoofer crossover
- Power: via USB-C (5V / 1.5A), standalone operation possible with external USB power supply
- Dimensions: Compact desktop design
- Weight: approx. 0.8 kg
- In the Box: Audient ORIA Mini, USB-C cable
