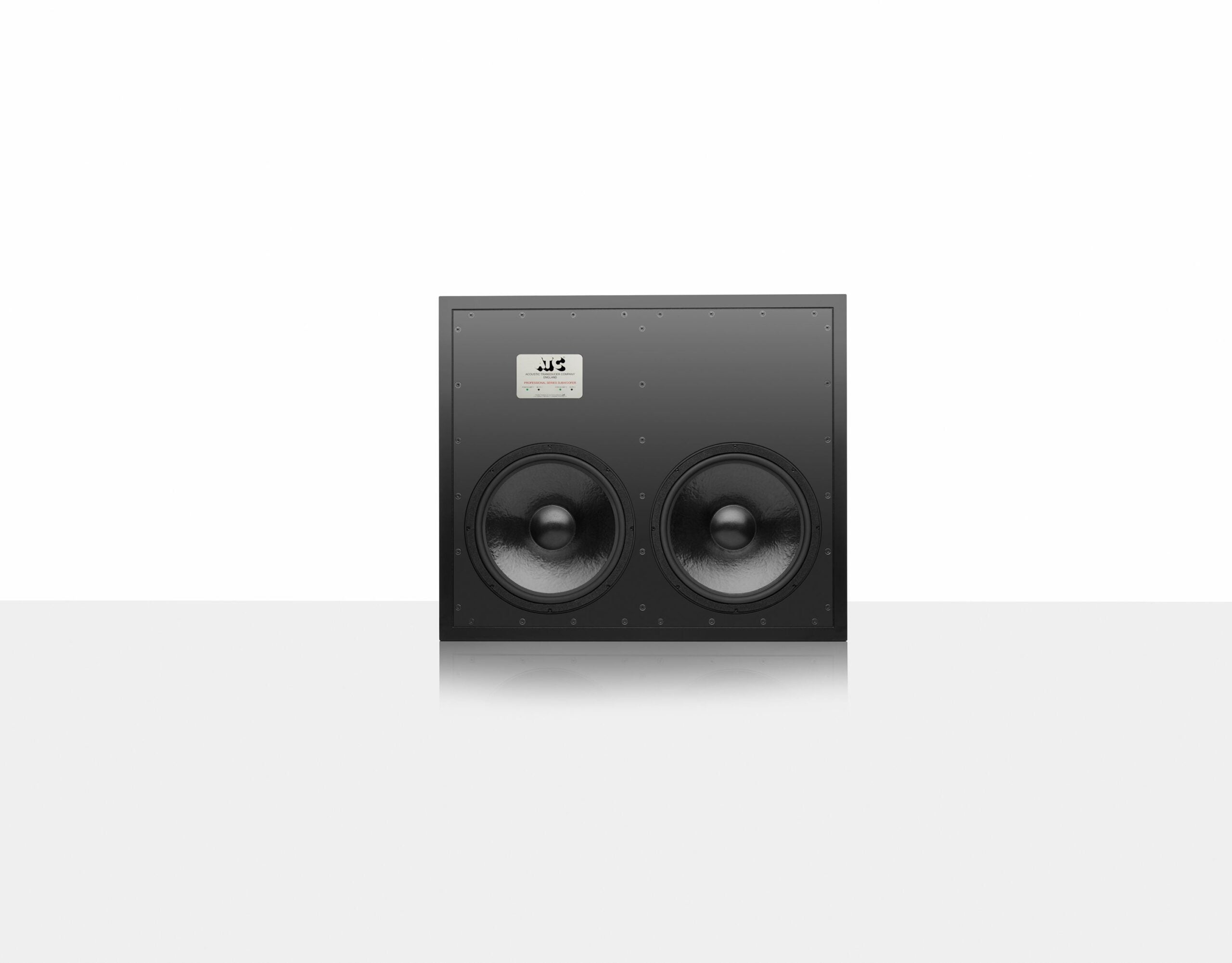

ATC SCS240iW Pro is a massive dual 15-inch active installation subwoofer designed for professional recording studios that demand uncompromising low-frequency performance. Engineered specifically for flush-mount (in-wall) applications, it saves valuable floor space while maintaining a clean studio aesthetic. Compared to single-driver models, the dual-driver configuration delivers a 6 dB increase in maximum sound pressure level, achieving an impressive 119 dB continuous and 126 dB peak output.
The system is driven by dedicated, remotely mounted R1-300 Pro amplifiers (configured to match the dual-driver load), combining Class A/B precision with modern protection circuitry. The subwoofer utilizes proprietary ATC bass drivers optimized for ultra-low distortion and fast transient response. With comprehensive phase control, adjustable low-pass filters (which can be bypassed for external processing), and a footswitch input for instant muting, the SCS240iW Pro is the perfect companion for main monitors in stereo, surround, and Dolby Atmos immersive audio systems.
KEY FEATURES
- Dual 15-inch active in-wall subwoofer system
- Designed for flush-mount installation
- Maximum SPL: 119 dB continuous / 126 dB peak
- Dedicated remote R1-300 Pro amplifiers (Class A/B)
- Proprietary ATC high-excursion bass drivers
- Adjustable Low Pass Filters (50Hz, 65Hz, 80Hz, 320Hz)
- Continuously variable Phase (0-180°) and Polarity switch
- Remote Mute function via latching footswitch
TECHNICAL SPECIFICATIONS
- Drivers: 2x 15" (375mm) ATC High-Excursion Woofer
- Frequency Response: 22 Hz - 320 Hz (-6dB)
- Amplification: Remote R1-300 Pro units
- Max SPL: 119 dB (continuous), 126 dB (peak)
- Connectivity: XLR In/Out (on amp), NL4 Speaker connection
- Filters: 4th Order Linkwitz-Riley
- Mounting: Dedicated enclosure for wall integration
