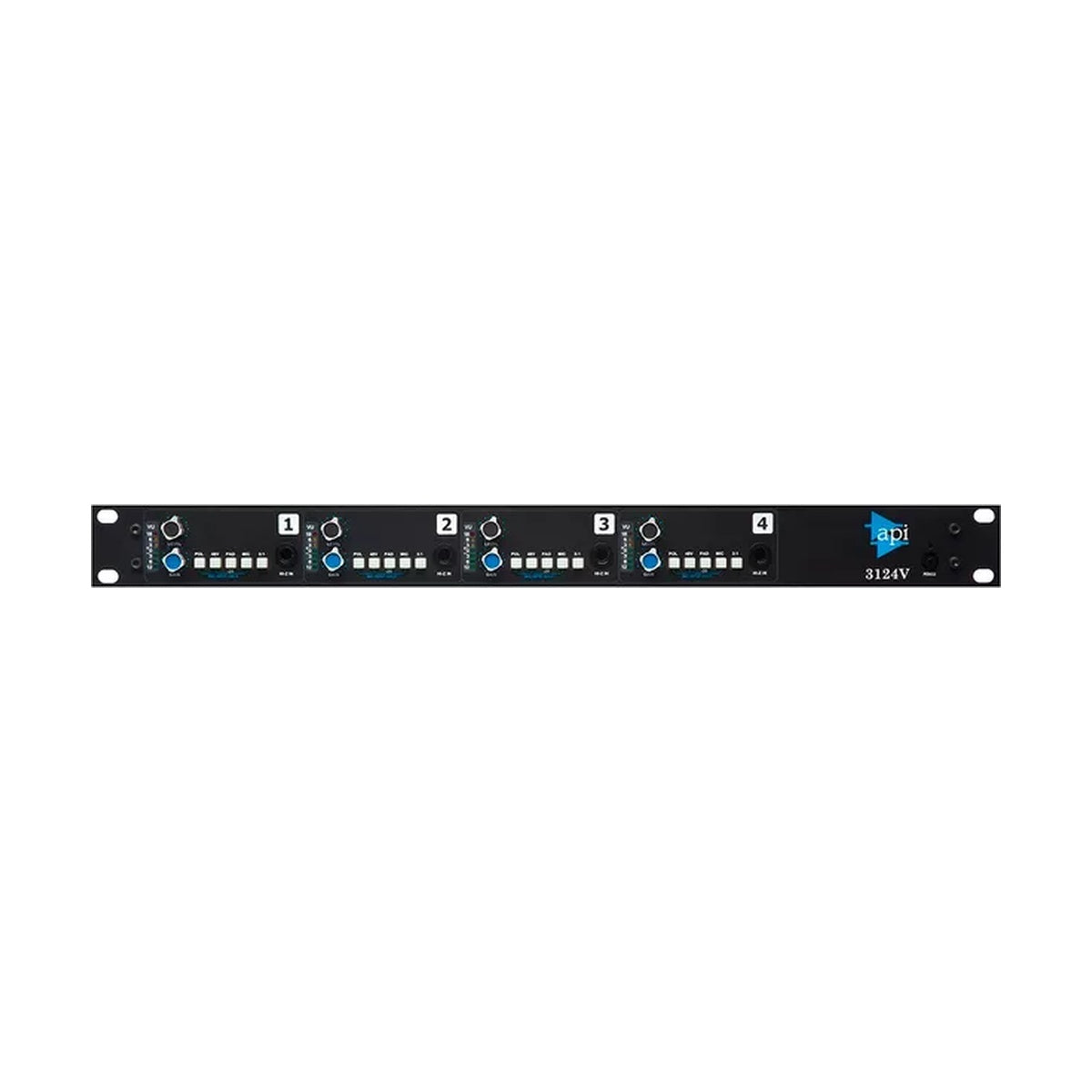

API Audio 3124V – high-quality, compact 4-channel mic preamp with AP2516 input transformer and proprietary output transformer for classic API sound.
Variable output level control and switchable 3:1 transformer tap for harmonic saturation. Up to 65dB gain, Hi-Z front inputs for instruments.
48V phantom, -20dB pad, polarity reverse per channel. XLR outputs, LED metering.
MAIN FEATURES
- API 2520 op-amps
- Variable output control
- 3:1 transformer tap
- Hi-Z instrument inputs
- 48V phantom per channel
- -20dB pad, polarity switches
- Mic/line switching
- LED meters
TECHNICAL SPECIFICATIONS
- Inputs: 4 x XLR mic (1500Ω), 4 x 1/4" Hi-Z unbalanced (470kΩ)
- Outputs: 4 x XLR balanced (+4dBu)
- Gain: 10-65dB mic, 14-50dB unbalanced
- Frequency Response: +0/-5dB 10Hz-20kHz
- THD + Noise: 0.03% @ +4dBu
- EIN: -129dBu mic
- Power: Internal, 19.2W
- Dimensions (W x H x D): 19 x 1.75 x 11 in (1U)
- Weight: 10.38 lbs
- Included: 3124V, power cord
- Product Code: 3124V
