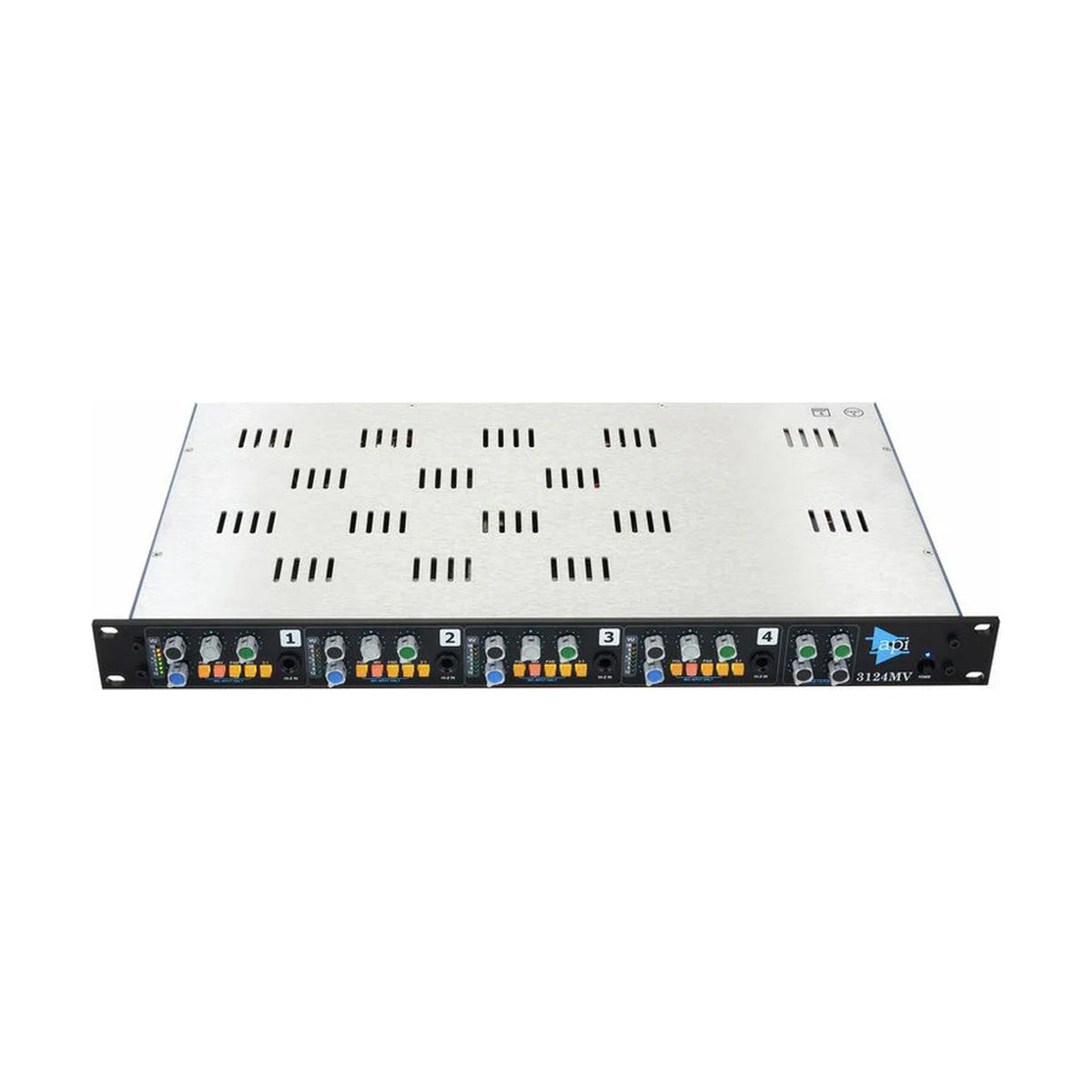

API Audio 3124MV – 4-channel mic/line preamp with integrated audio mixer for professional studios. Classic API 2520 op-amps and transformers deliver punchy, high-headroom sound. Variable output, 3:1 transformer tap, Hi-Z inputs for instruments.
Per-channel switches: polarity, 20dB pad, mic/line, 48V phantom. Stereo panner, post-fader aux send, stereo aux return for mixing flexibility. VU meter calibrated for outputs.
1U rackmount suits control rooms, stages, trucks. Up to 65dB gain, balanced XLR outputs.
MAIN FEATURES
- 4 API 2520 mic pres with Hi-Z inputs
- Integrated stereo mixer with panner/aux
- 3:1 output transformer tap
- Per-channel: pad, phantom, polarity, inserts
- VU metering
- Transformer-balanced mixer output
TECHNICAL SPECIFICATIONS
- Inputs: 4 x XLR mic (1500Ω), 4 x 1/4" unbalanced (470kΩ)
- Outputs: 4 x XLR channel (+4dBu), stereo balanced (+4dBu)/unbalanced (-2dBu)
- Gain: Mic 10-65dB, Unbalanced 14-50dB
- Frequency Response: +0/-5dB 10Hz-20kHz
- THD: 0.03% @ +4dBu
- Power: 19.2W
- Dimensions (W x H x D): 19 x 1.75 x 10.5 in (1U)
- Weight: 11.54 lbs
- Included: 3124MV, power cord
- Product Code: 3124MV
