1010Music bluebox Eurorack edition
1010Music bluebox Eurorack edition
Warsaw Showroom
Nowogrodzka 6
102
00-513 Warszawa
Polen
Optionen wählen

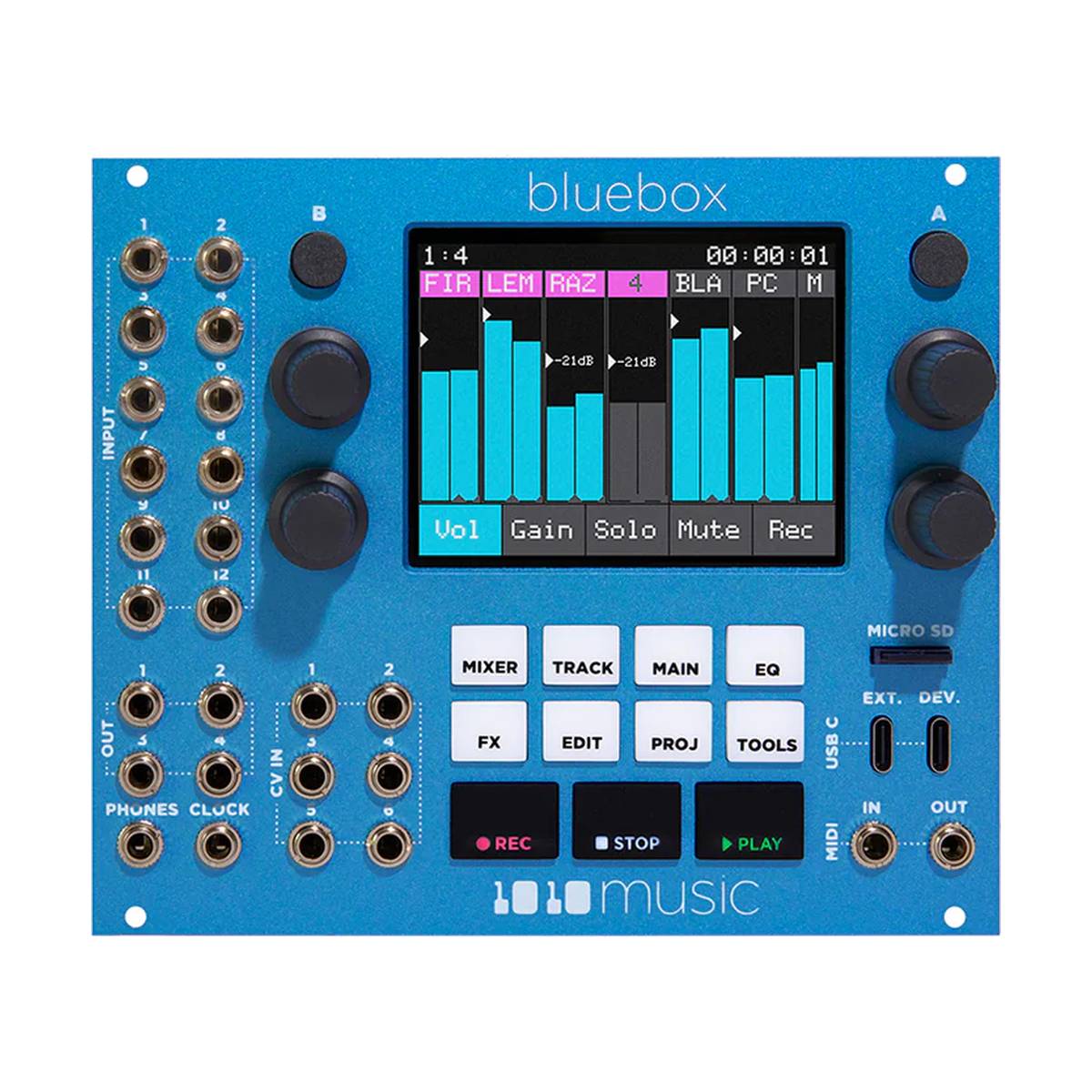

The 1010Music bluebox Eurorack edition is a compact digital mixer that combines high-quality mixing, effects, and integrated recording/playback in a 30 HP module. Featuring an intuitive touchscreen and knobs, it allows precise control over parameters like volume, gain, 4-band parametric EQ, pan, reverb and delay effects, as well as mute/solo and record/play functions for each track.
The 1010Music bluebox Eurorack edition is a versatile solution for electronic music enthusiasts. It enables mixing of up to 12 mono or 6 stereo tracks while offering the ability to record and play multitrack WAV files at 48 kHz/24-bit quality. Its USB-C port makes it easy to transfer audio between the mixer and a computer, making it perfect for both studio work and live performances.
Key Features
- Versatile Mixing: Mix up to 12 mono or 6 stereo tracks with independent control.
- Expanded Output Options: 4 mono/2 stereo outputs and a headphone output.
- Advanced Control: 6 CV inputs, clock output, TRS MIDI input/output, and USB-C port.
- Recording and Playback: Supports WAV files (48 kHz, 24-bit) with simultaneous playback of existing tracks and recording of new ones.
- Intuitive Operation: Touchscreen, knobs, and navigation buttons for fast and precise adjustments.
- Effects and EQ: Reverb, delay, and a 4-band parametric EQ on each track.
- Global Compressor: Enhances loudness and creates a cohesive mix.
- Project Saving: Save and recall project settings, including track parameters, EQ, and effects.
- Durable Build: Aluminum faceplate with a compact design.
Specifications
Module Dimensions (with knobs): 6” x 5” x 1.6” (152.4 mm x 127 mm x 40.6 mm).
Depth Behind Front Panel: 1.0” (25.4 mm).
Weight: Approximately 700 g.
Power Requirements: +5V (500-850 mA), +12V (320 mA), -12V (82 mA).
Audio Inputs/Outputs:
- 12 mono 3.5 mm TS inputs.
- 2 independently controlled 3.5 mm TS output pairs (or 4 mono outputs).
- 1 stereo headphone output.
Control and Synchronization:
- 6 CV inputs, TRS MIDI (input and output), USB-C port.
- MIDI support for synchronization and control.
Touchscreen: 3.5 inches.
Effects: Reverb, delay, and compressor.
Recording/Playback: Record and play WAV files via a microSD card.
