SPL of Studio Monitors - What It Is and Why It Matters
Table of Contents
What Is SPL
SPL stands for Sound Pressure Level. It is a physical measurement of how strongly a sound wave pushes against the air - and consequently against your eardrum. It is measured in decibels (dB).
The key thing to understand from the start: decibels are logarithmic, not linear. Doubling the perceived loudness requires approximately +10 dB, while doubling the amplifier's power output delivers only +3 dB. The human threshold of pain sits around 130 dB, and a normal conversation registers around 60-65 dB. Understanding this scale is the starting point for reading monitor specifications intelligently.
How SPL Appears in Specifications
This is where the first problem begins: there is no universal standard. Manufacturers report SPL in different ways, and the same number from two different brands can mean completely different things. There are two key figures to look for:
- Continuous SPL - the level the monitor sustains stably, without distortion, over a prolonged period. This is the real, working characteristic of the monitor.
- Peak SPL - the maximum short-term burst the monitor can produce. The difference from Continuous is typically 6-12 dB.

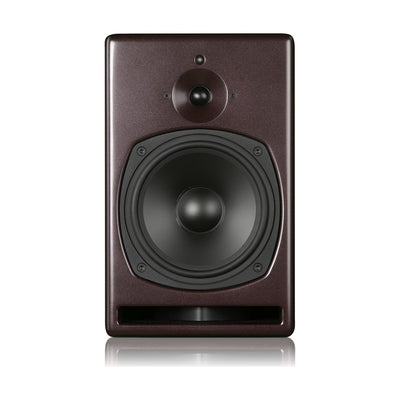

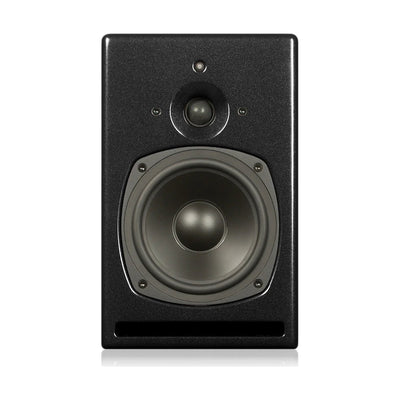

When a spec sheet simply reads "Max SPL: 116 dB" with no further detail - you genuinely cannot tell what is being measured. PSI Audio, for example, honestly publishes all three values at once: continuous, short-term and peak for every model. ATC in the SCM series explicitly states "continuous / peak, IEC Pink Noise, 1m, anechoic". That is engineering transparency, worth treating as a signal about the seriousness of the manufacturer. Most brands settle for a single number - usually the most impressive one available.
Why Wattage Does Not Equal Loudness
The most common misconception: more watts means more volume. It does - but in an extremely non-linear way. To gain +3 dB you need to double the power. To gain +10 dB - multiply it by 10. In practice, a 50 W difference between two monitors translates to roughly 2-3 dB of SPL difference, which is barely perceptible.

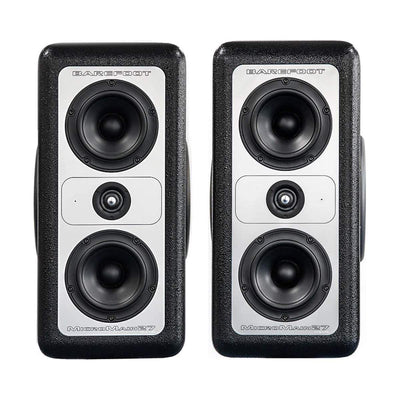

In studio monitors, higher power solves a different problem - it provides headroom: the distance between your working level and the point where distortion starts. This is why Barefoot Sound uses multi-band amplifier sections with high total wattage in their monitors - not to chase record SPL figures, but to ensure each frequency band operates within its optimal range without being pushed into stress.
SPL and Distance - The Inverse Square Law
Every number in a spec sheet is measured at a distance of 1 metre from the monitor. But physics is non-negotiable: every doubling of distance reduces SPL by 6 dB. This is not a flaw in any particular model - it is a law of nature.
If your actual listening distance is 1.5 metres - the loss is around 3.5 dB. At 2 metres - minus 6 dB. A monitor with a stated max SPL of 112 dB at 1 metre, used at a real-world distance of 1.5 metres, delivers around 108 dB. This is worth factoring in whenever you are assessing the actual headroom of a model you are considering.
What SPL Level to Work at in the Studio
Ear physiology plays a central role here. At around 85 dB, the equal-loudness contours (ISO 226) produce the most even frequency sensitivity across the audible range. This is why 83-85 dB SPL historically became the reference standard in professional control rooms and cinema. In smaller rooms, however, that level is excessive and will fatigue your ears within one to two hours of work.
More practical reference points by room size:
| Room Volume | Recommended SPL (C-weighted) |
|---|---|
| Under 36 m³ (home studio) | 73-76 dB |
| 36-85 m³ | 76-79 dB |
| Professional control room | 83-85 dB |
Quick test without an SPL meter: at your working level, a normal conversation nearby should be audible without effort. If you need to raise your voice - the level is already above 80 dB.
How to Apply This When Choosing a Monitor
Four practical conclusions follow from the analysis above:
- Calculate real headroom, not the peak number on paper. A working level of 76-79 dB plus 20 dB of headroom means you need around 100 dB peak at your actual listening distance. Most quality nearfield monitors - such as PSI Audio A14-M or ATC SCM20ASL PRO MK2 - comfortably exceed this threshold.
- Ask for the SPL type to be specified. If the spec sheet shows only one number with no explanation - ask the manufacturer or dealer. Separate continuous and peak figures are the minimum for an honest specification.
- Do not compare SPL figures directly across brands. Numbers derived from different measurement methodologies are not comparable.
- Calibrate your monitoring level. This affects the quality of your mixes more than a 3 dB difference between monitor models. A smartphone app with C-weighting and pink noise is a sufficient tool for home studio calibration.
