Wolff Audio Freq

Wolff Audio FREQ – a 4-band, sweepable Proportional Q parametric equalizer in the 500 Series format, designed by industry legend Paul Wolff for precise and flexible audio shaping.

FREQ is an incredibly versatile tool that blends the classic characteristics of Proportional Q equalizers with modern enhancements. Its design ensures that gentle boosts or cuts are broad and musical, while more extreme adjustments automatically narrow the Q, allowing for precise notching of problem frequencies. Paul Wolff's design takes this a step further by adding specialized modes for each band, making FREQ both a surgical repair tool and a creative sound-shaping device in a single module.

The equalizer features special modes: WIDE for the high and low bands, which transforms them into broad, 3-octave wide fixed filters, and a 1/3 Octave lock for the mid bands, perfect for surgically removing resonances. A custom Cinemag output transformer provides transparency and a subtle character, while a true hard-wire relay bypass ensures the circuit is completely removed from the signal path. With high headroom (+28 dBu) and ultra-low distortion, FREQ excels in any demanding studio environment.

KEY FEATURES

• 4-Band Parametric EQ: Featuring classic Proportional Q characteristics.
• Design by Paul Wolff: Four decades of experience in designing legendary EQs.

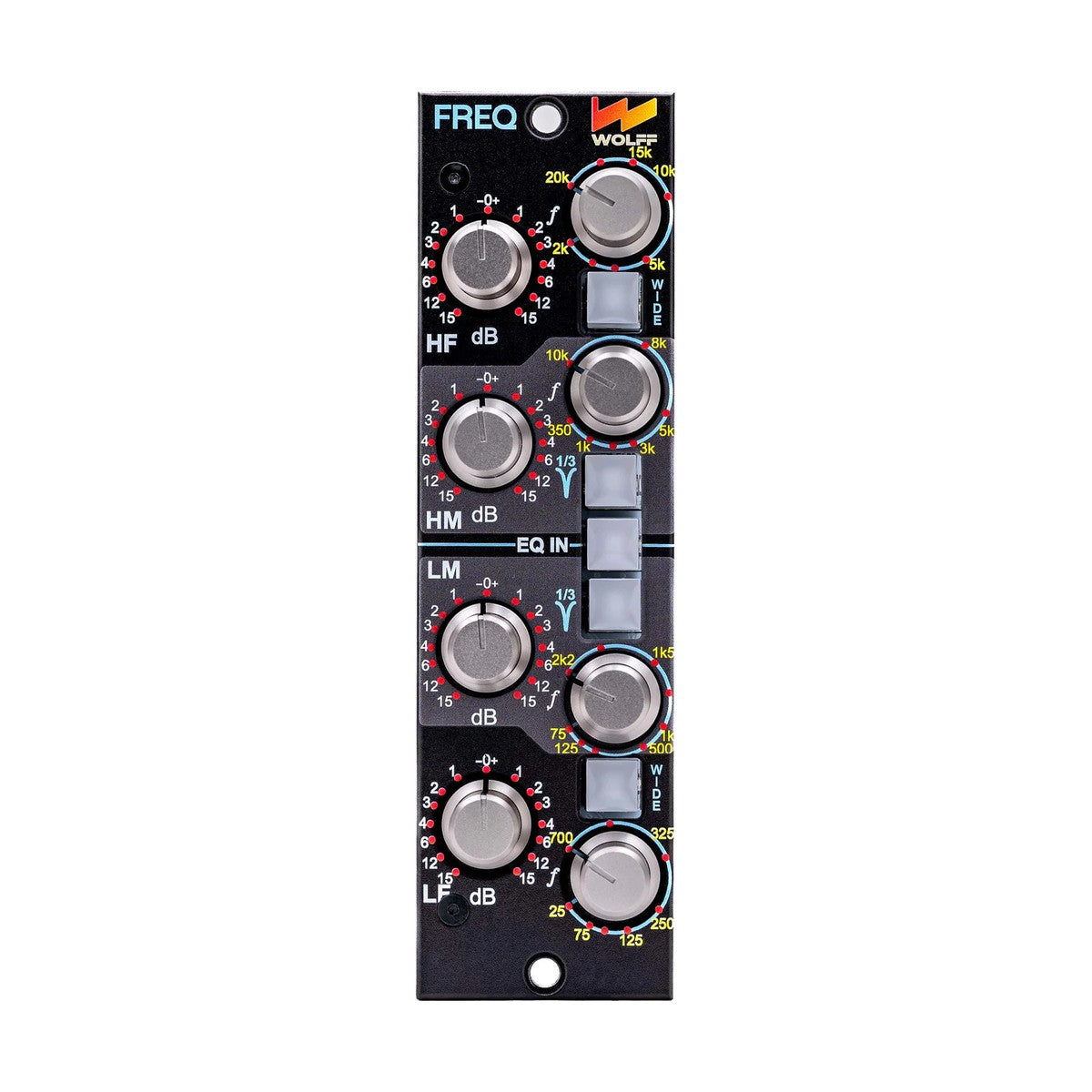

• Specialized Modes: WIDE mode for outer bands and a 1/3 Octave lock for mid bands.

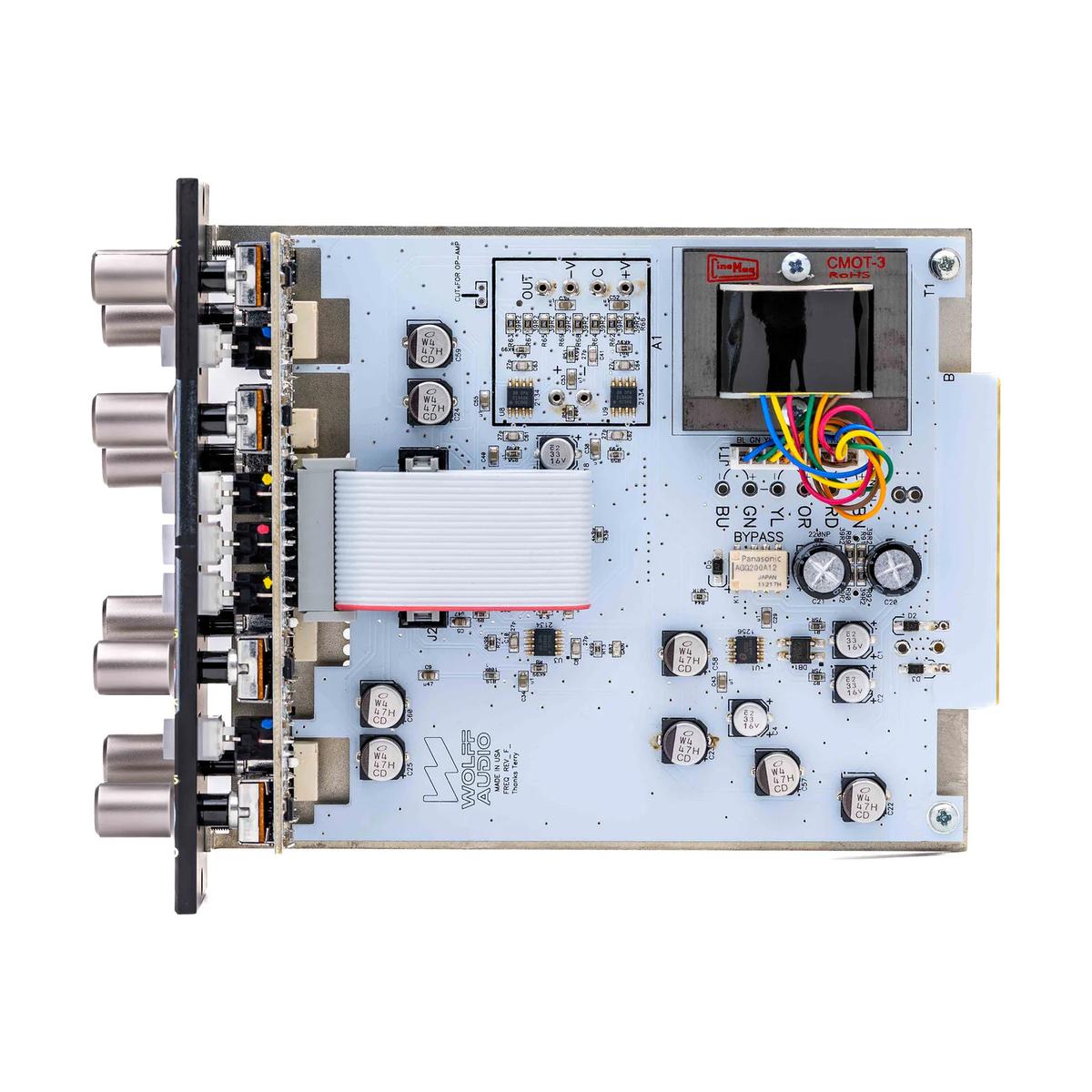

• Cinemag Transformer: Custom nickel and steel blend output transformer for transparency.
• True Bypass: A true hard-wire relay bypass switch.
• High-Quality Audio: Low distortion (<0.03%) and high headroom (+28 dBu).
• 500 Series Format: Compact, single-slot module.

TECHNICAL SPECIFICATIONS

• Format: 500 Series (1 slot)
• EQ Type: 4-band Parametric
• Q Type: Proportional with WIDE & 1/3 Octave modes
• Transformer: Cinemag (Output)
• Bypass: Hard-wire relay
• Clipping Level: +28 dBu
• Current Draw: < 100 mA per rail
• Distortion (THD): < 0.03% (100 Hz and higher)
