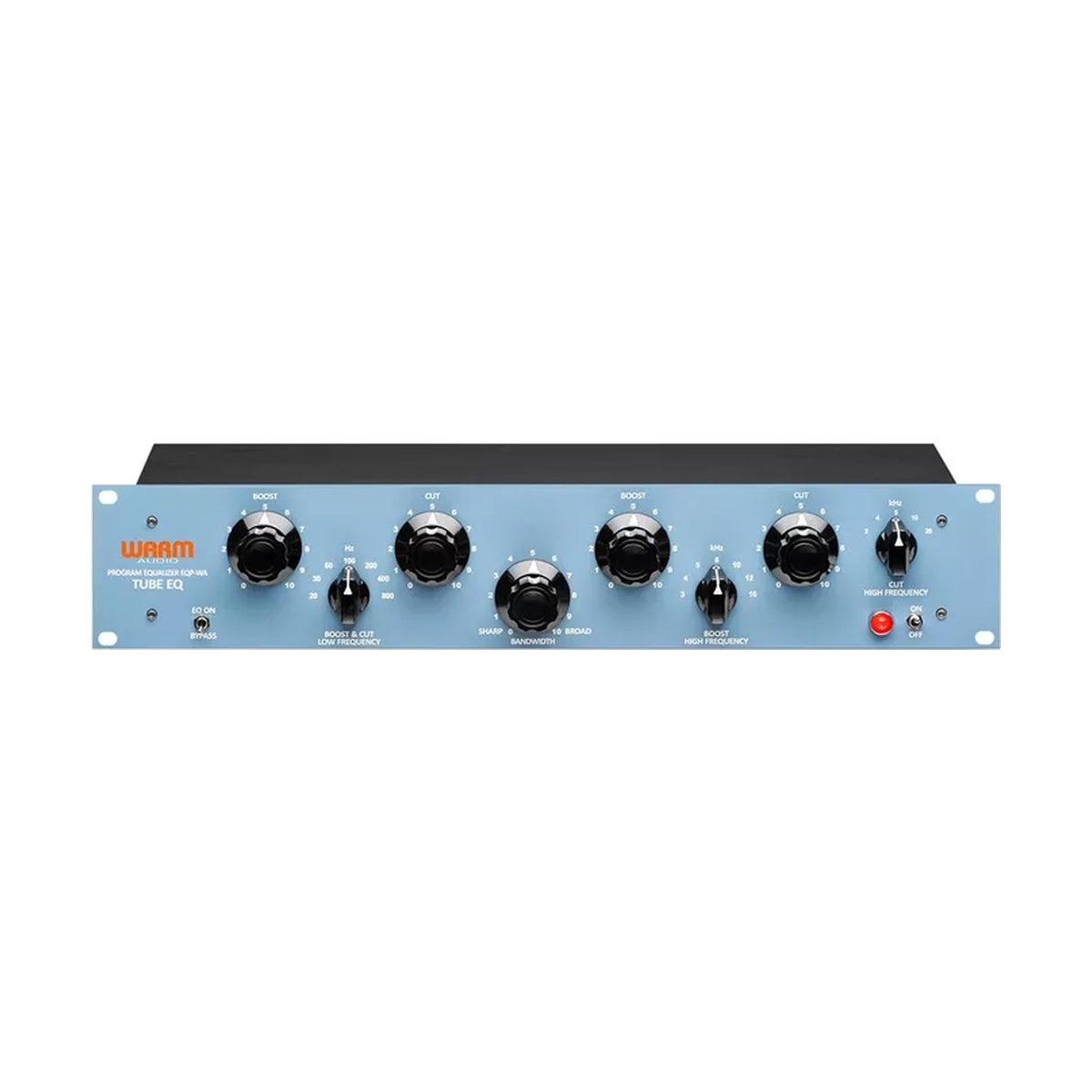

Warm Audio EQP-WA – tube program equalizer, faithful recreation of vintage Pultec-Style “EQP-1A,” industry standard used in legendary recordings. 100% analog discrete circuit delivers full, harmonically rich tone with simultaneous add/subtract frequency capabilities for unique phase effects and midrange cleanup. Ideal for mixing vocals, drums, guitars, and bass in studios. Uses premium 12AX7 & 12AU7 tubes and CineMag transformers for enhanced width, depth, and signal separation.
EQP-WA features fully bypassable EQ section (signal still passes through tubes and transformers for warmth), with low boost/cut (20/30/60/100 Hz) and high (3/4/5/8/10/12/16 kHz). Robust enclosure with wood end caps (482 x 44 x 229 mm, 4.5 kg) for rackmount, hand-soldered point-to-point for top quality.
As Pultec tribute, EQP-WA blends vintage character with pro precision, ready for immediate use without compromises.
MAIN FEATURES
- Faithful Pultec-Style “EQP-1A” emulation with 100% analog circuit
- 12AX7 & 12AU7 tubes and CineMag transformers for rich warmth
- Full EQ bypass retaining tube warmth
- Simultaneous boost/cut for phase effects
- Versatile for vocals, drums, guitars, bass, final mixes
- Enhanced width, depth, signal separation
- Hand-soldered point-to-point
- 1U rackmount
TECHNICAL SPECIFICATIONS
- Tubes: 12AX7 and 12AU7
- Transformers: CineMag input/output
- Low Boost: 20/30/60/100 Hz, 0-12 dB
- Low Cut: 20/30/60/100 Hz, 0-18 dB
- High Boost: 3/4/5/8/10/12/16 kHz, 0-18 dB (broad Q)
- High Atten: 5/10/20 kHz, 0-14 dB (shelf)
- Frequency Response: 20 Hz–50 kHz
- THD + N: < 0.1% @ 1 kHz
- Connectors: XLR input/output (balanced)
- Power Supply: 115/230V AC, 30 W
- Dimensions (W × H × D): 482 x 44 x 229 mm
- Weight: 4.5 kg
- Included: EQP-WA, power cable
- Product Code: WA-EQP-WA
