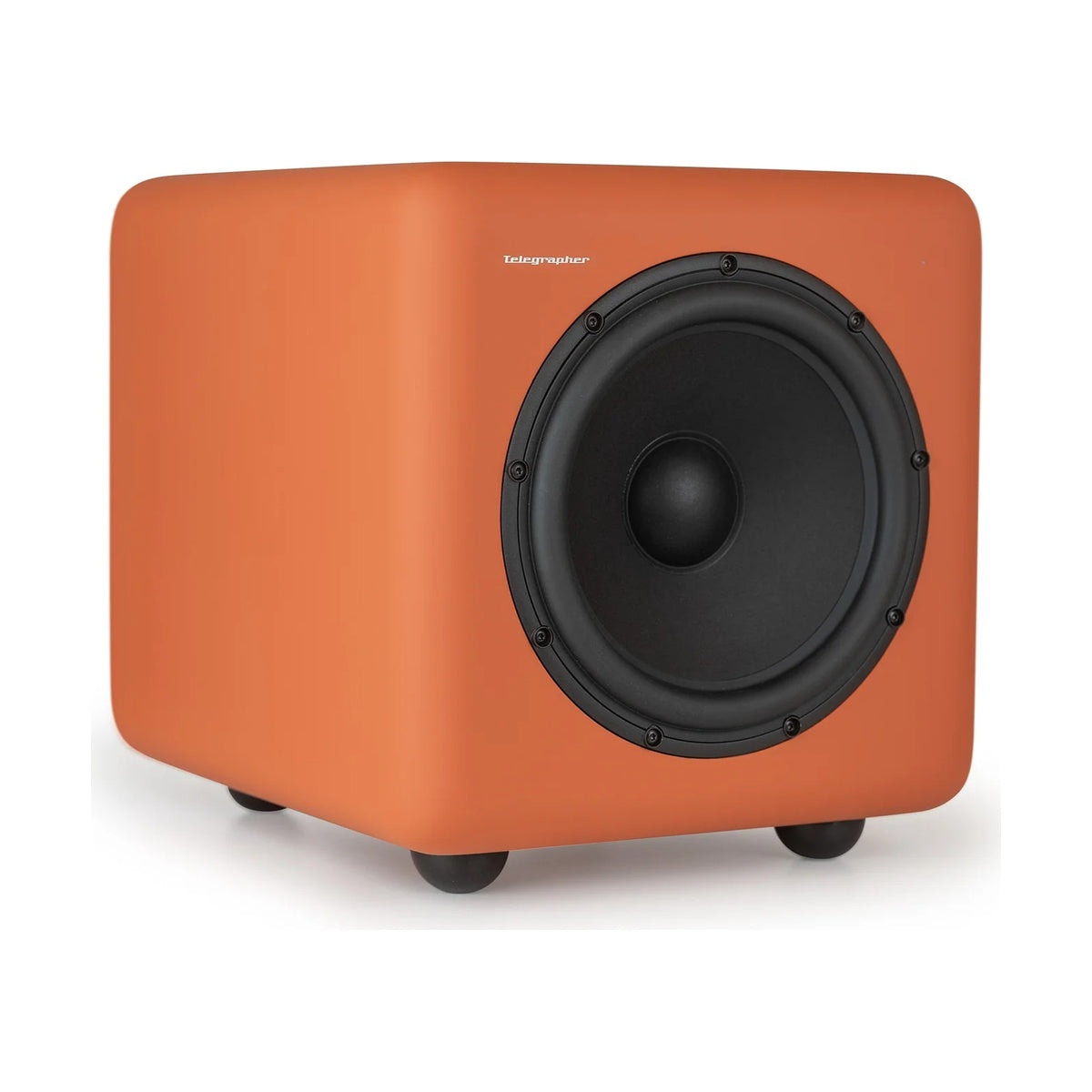

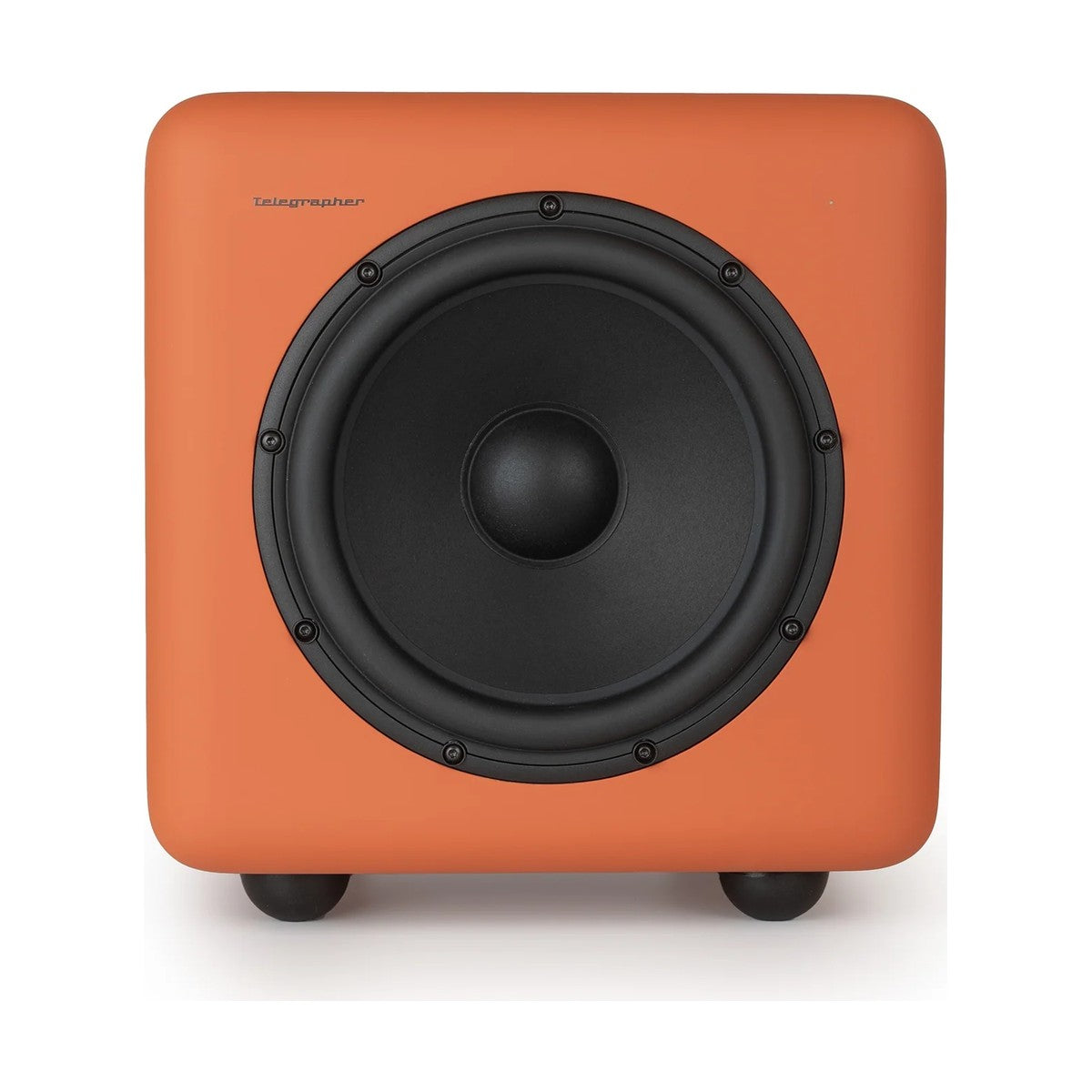

Telegrapher Elephant

Telegrapher ELEPHANT – a powerful active analog subwoofer with a sealed enclosure, delivering deep, controlled bass from 20 to 300 Hz and peak SPL of 110.5 dB. With a Class D amplifier (2 × 500 W), all-analog signal path, and user-controllable crossover, ELEPHANT is tailored for critical listening environments and high-end studio setups.

Its sealed design ensures tight transients and eliminates port noise, resulting in an exceptionally clean low-end. The patented 12.5” paper sandwich woofer delivers precise, musical bass, while LED indicators and auto-shutdown protections offer reliable operation. Featuring XLR/RCA I/O and phase control (0–360°), ELEPHANT adapts seamlessly to any monitor system.

Available in five elegant colors with a soft-touch matte finish, ELEPHANT blends power, precision, and aesthetics for an immersive sonic experience.

KEY FEATURES

• Sealed active analog subwoofer for professional audio environments
• Frequency response: 20 – 300 Hz, f3: 41.7 Hz, f6: 31.7 Hz
• Class D amplification: 2 × 500 W (Bridged)
• Patented 12.5" paper sandwich cone woofer with foam filling
• User-controllable crossover (30–300 Hz, 2nd order LPF), phase control (0–360°)
• Balanced XLR and unbalanced RCA inputs and passthrough outputs
• Peak SPL: 110.5 dB @ 1 meter
• LED indicators: white (normal), red (fault), flashing red (clipping)
• Protective shutdown in case of overheating, clipping, or signal faults
• All-analog signal path for warm, immersive bass
• Built-in standby mode with 120-minute timeout (user controllable)
• Premium finish in five color options

TECHNICAL SPECIFICATIONS

• Enclosure type: Sealed
• Number of drivers: 1-way
• Woofer: 32 cm / 12.5" paper sandwich cone with foam filling
• Amplifier type: Class D, 2 × 500 W
• Amplifier THD+N: 0.0018%
• Inputs: 2 × XLR (balanced), 2 × RCA (unbalanced)
• Outputs: 2 × XLR (thru), 2 × RCA (thru)
• Max SPL: 110.5 dB @ 1 m
• Power rating: Max 1200 W, RMS 480 W
• Voltage: 110–120 V AC ±10% / 200–240 V AC ±10%, 47–63 Hz
• Connector: 3-pin IEC, 250 V AC, 10 A
• Standby: Auto on/off (user selectable, 120 min)
• Dimensions: 43 × 44 × 52.5 cm (HxWxD)
• Weight: 38 kg
• Cooling: External heatsink (3 cm)
• Shipping: One box per speaker
