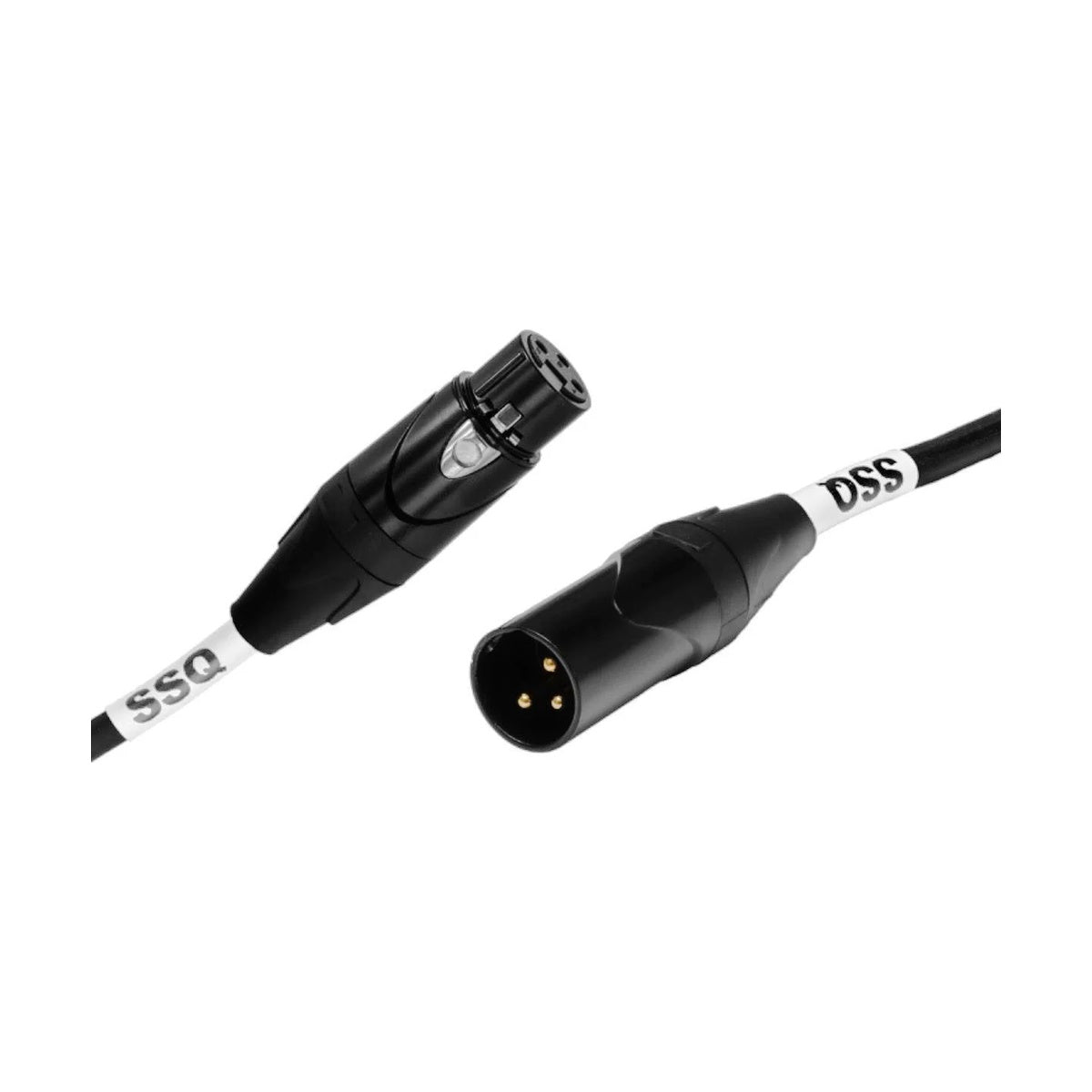

SSQ XX3 Event is a three-metre balanced XLR–XLR cable from Polish manufacturer Sound Station Quality, built for stage and studio use. One end terminates in a 3-pin male XLR with gold-plated pins, the other in a 3-pin female XLR with a metal locking latch — the standard microphone cable configuration, ready to use without any adapters.
Critical failure points addressed from the factory
The junction between connector and cable body is the first place that fails in practice — especially on the road, where cables are coiled and uncoiled dozens of times per tour. The SSQ XX3 Event applies heat-shrink sleeves to both ends, stiffening the cable precisely at that stress point and reducing the risk of conductor fracture under repeated bending. The female XLR carries a metal locking latch that secures the connector in the socket, eliminating accidental disconnections during a performance where a tug on the cable would otherwise pull the mic or interface plug free. The cross-braided copper shield achieves a minimum 90% coverage density: at three metres of cable length in an environment with lighting rigs and mains cabling running nearby, the difference between 30% and 90% shield coverage is audible in the noise floor. A blue Velcro strap is supplied with each cable for fast, organised coiling after a show.Application and operating range
An XLR–XLR balanced cable covers every path requiring balanced transmission: dynamic or condenser microphone (including phantom power +48V) to mixer, audio interface to studio monitors, mixer outputs to active PA speakers. Three metres is the standard reach for vocal and instrument positions on stage or in a recording session without generating an excess of cable on the floor. The SSQ XX3 Event carries a lifetime manufacturer warranty.KEY FEATURES
- Type: balanced XLR M — XLR F (3-pin)
- Length: 3 m
- High-purity OFC copper conductors
- Multi-strand copper conductors, 30×0.1 strand construction, cross-section 2×0.23 mm²
- Cross-braided copper shield, minimum 90% coverage density
- Heat-shrink sleeves on both ends — strain relief at the connector-to-cable junction
- Female XLR with metal locking latch
- Male XLR with gold-plated pins
- Connectors soldered with lead-free solder with silver additive
- Cable strain relief on connectors

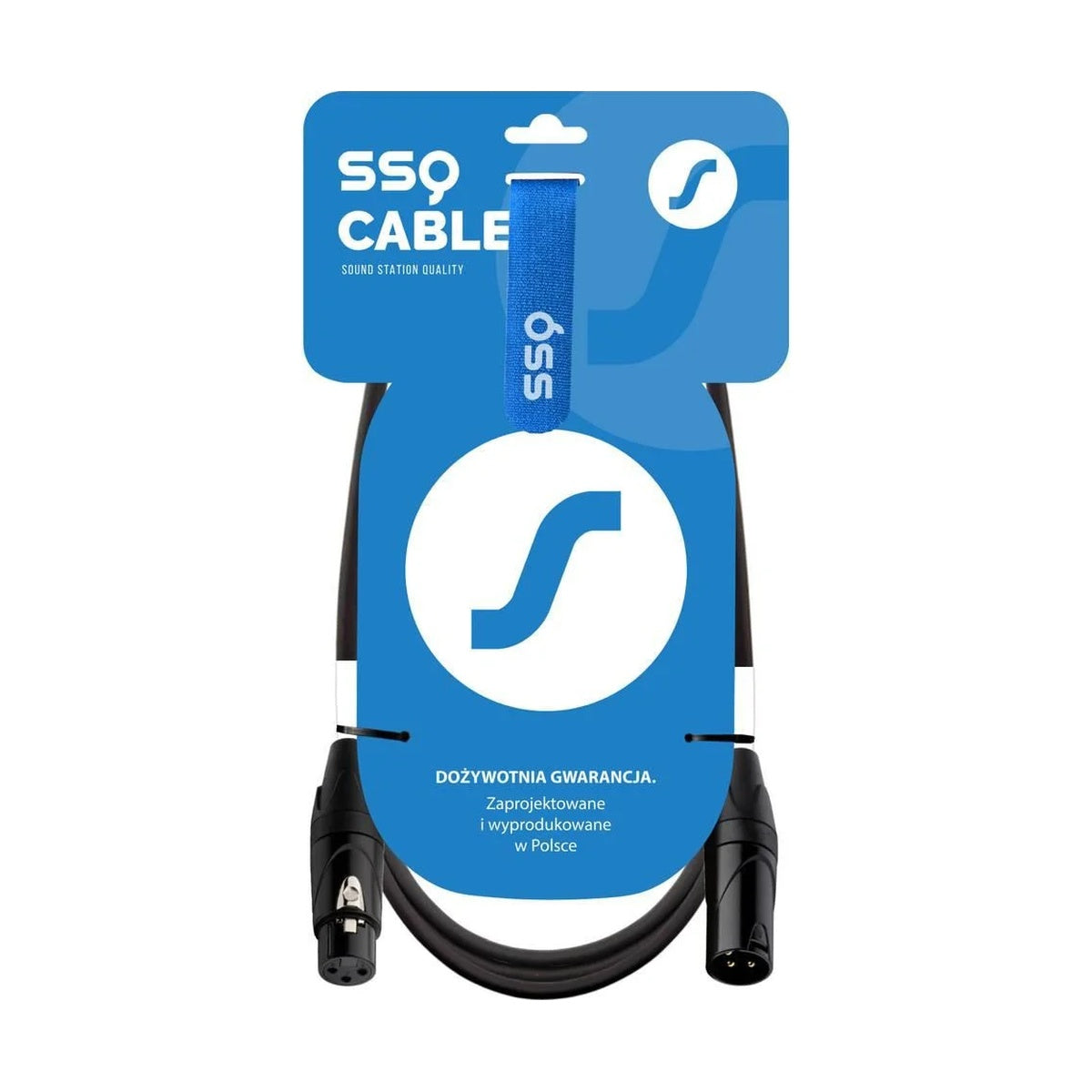

- Blue Velcro cable strap included
- PE conductor insulation, self-extinguishing PVC outer jacket (EN 60332-1)
- Lifetime manufacturer warranty
- Manufactured in Poland
TECHNICAL SPECIFICATIONS
- Connectors: 3-pin XLR male — 3-pin XLR female
- Length: 3 m
- Conductor cross-section: 2×0.23 mm²
- Outer cable diameter: 6 mm
- Impedance: 85 Ω ±5
- Capacitance (1 kHz): conductor/conductor ≤ 65 nF/km; conductor/shield ≤ 130 nF/km
- Minimum insulation resistance: 1.0 GΩ×km
- Minimum bending radius: 5×Ø (Ø = cable diameter)
- Operating temperature (fixed installation): -30°C to +70°C
- Operating temperature (mobile installation): -5°C to +70°C
