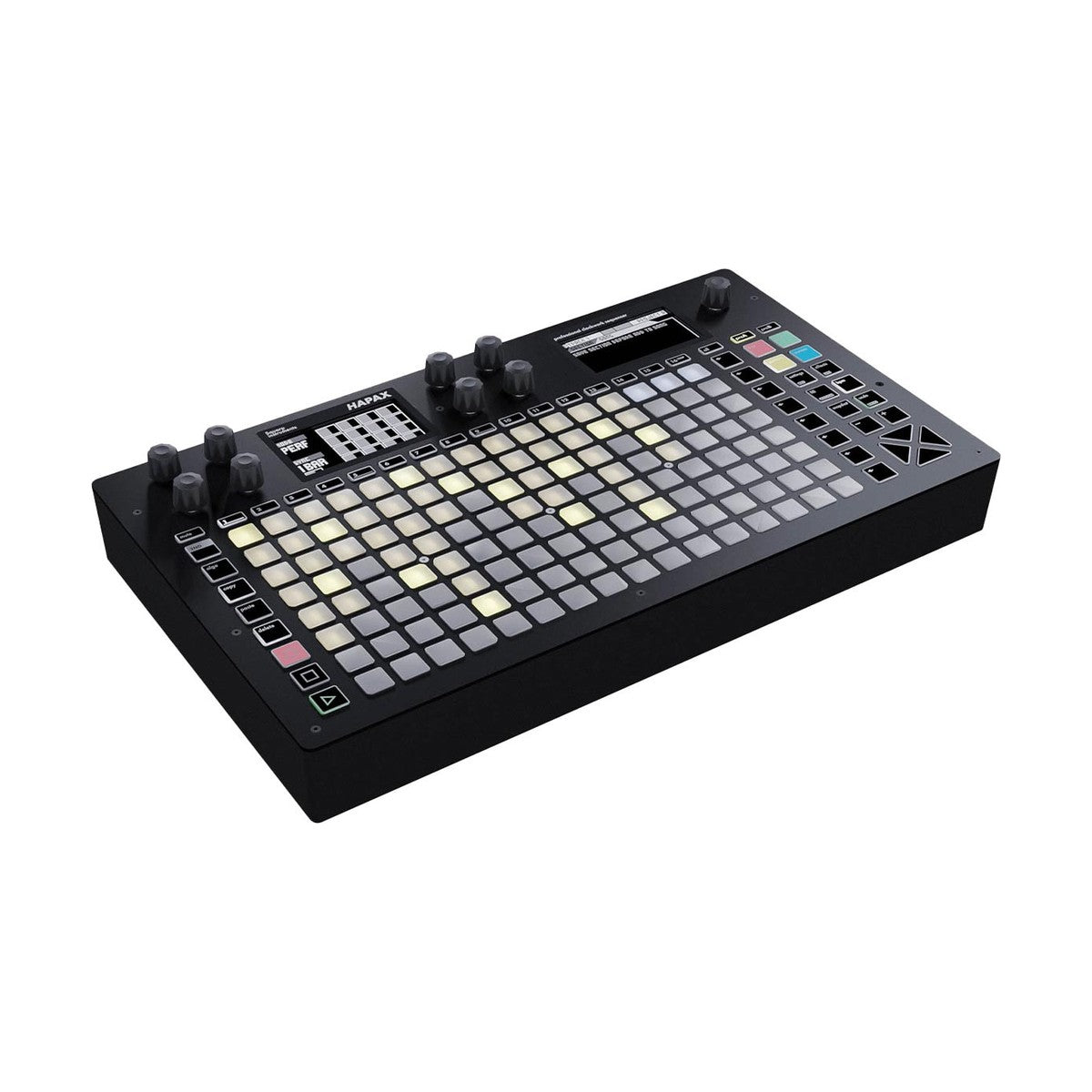

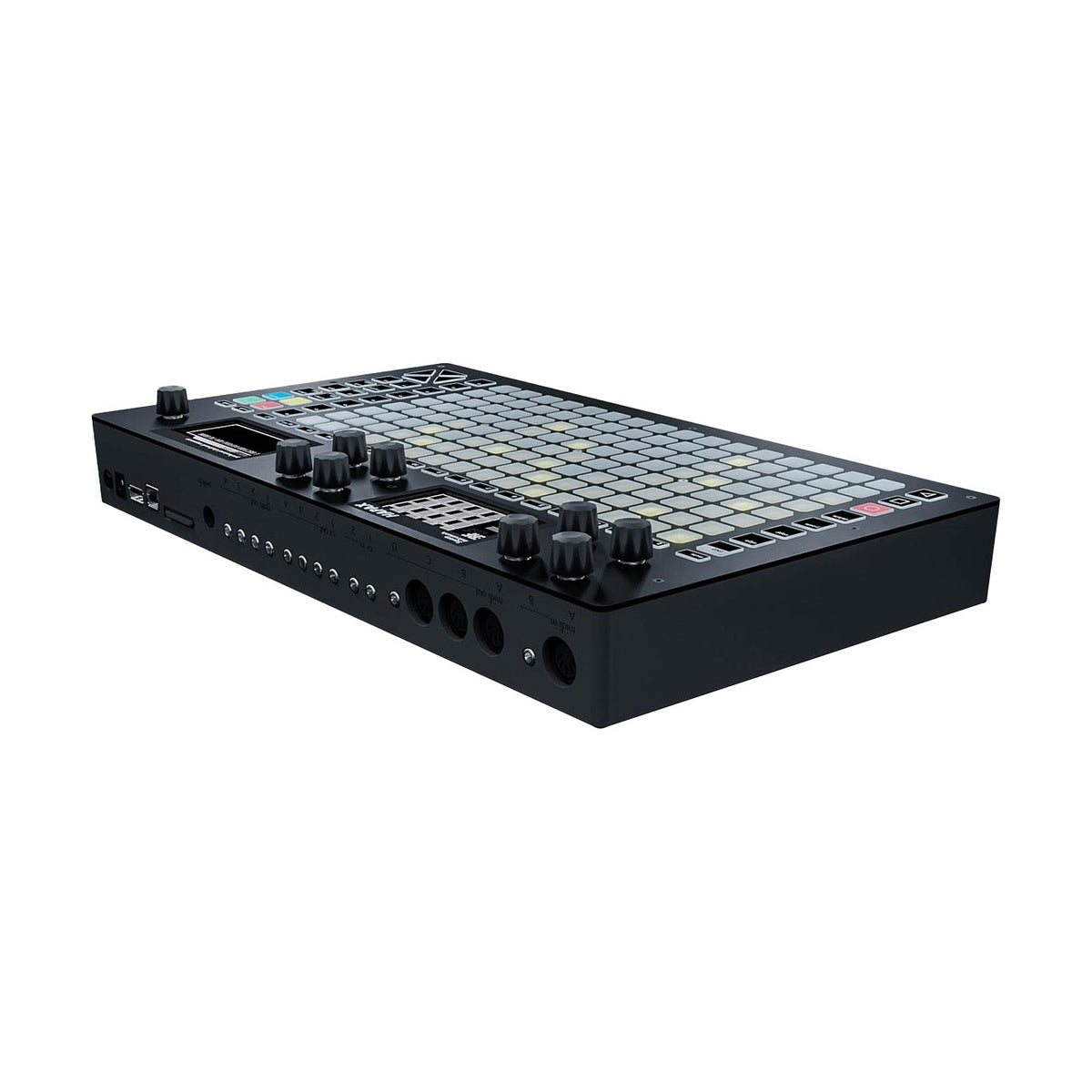

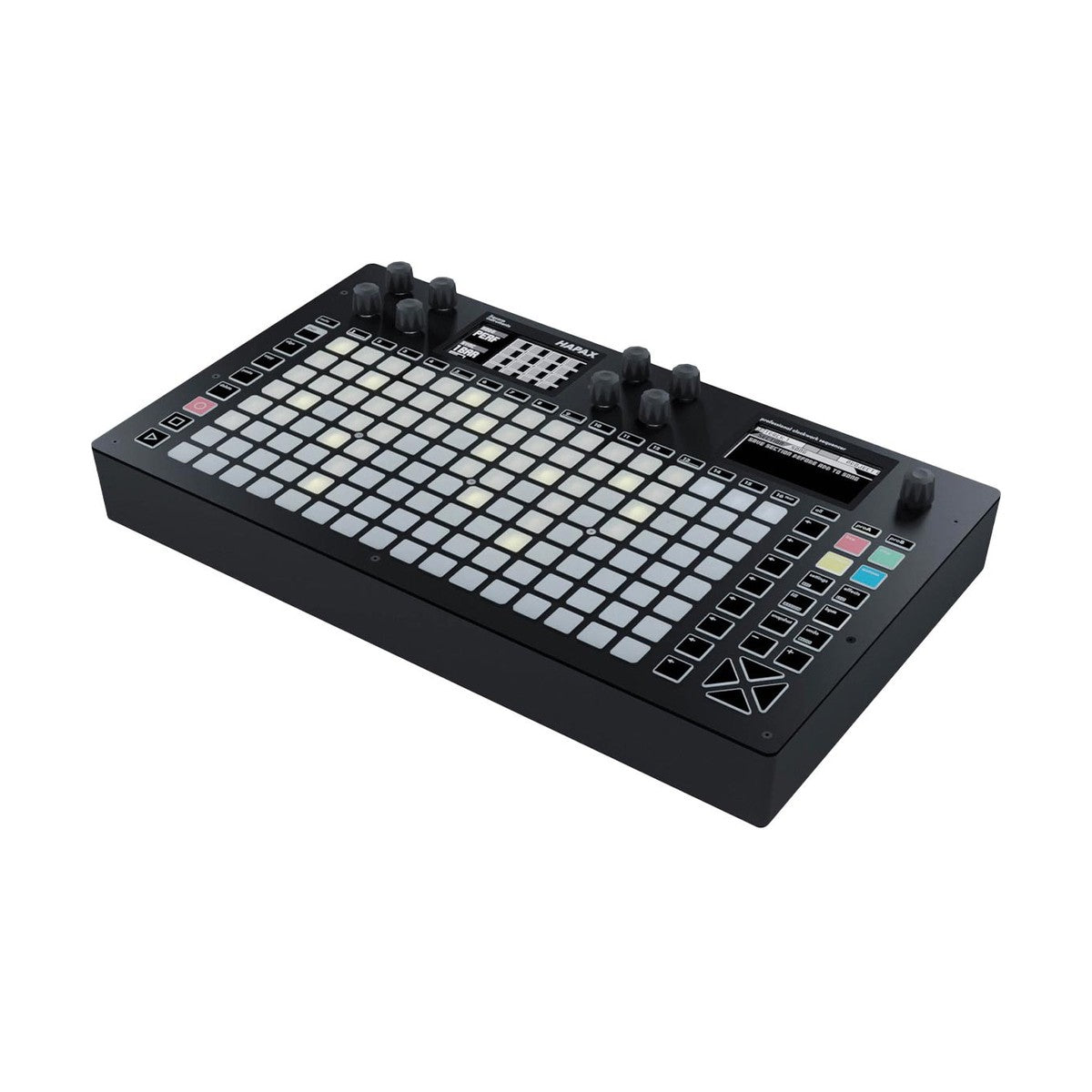

Squarp Instruments Hapax - Polychronic Sequencer

Squarp Instruments Hapax is the flagship polychronic performance sequencer that redefines hardware MIDI and CV sequencing. As the first device in its class to fully support MIDI Polyphonic Expression (MPE), Hapax combines a powerful sequencer, looper, rhythm generator, real-time effects processor, MIDI controller, and complete CV interface in one instrument. At its core lies a dual ARM processor architecture that enables two independent projects to run simultaneously (dual-project), allowing for seamless live set transitions without interruption. A 2mm CNC aluminum panel, 128 RGB pads, and dual OLED displays create an unparalleled combination of aesthetics and functionality.

Each of Hapax's 16 tracks features 16 independent patterns and up to 7 real-time effects (arpeggiator, harmonizer, euclidean, randomizer, swing, chance, scales), while live performance modes—including an isomorphic scale layout, chord generator, and drum view—deliver expressive performance capabilities at the highest level. The 128-pad RGB matrix and dual OLED screens enable intuitive operation during music creation. A recording resolution of 192ppqn guarantees microtonal precision for both MIDI data (including MPE) and CV signals. The Hapax is fully compatible with the Squarp Hermod+ module for further system integration.

KEY FEATURES

• Polychronic Dual-Project architecture: 2 x (16 tracks x 16 patterns)
• Full MPE (MIDI Polyphonic Expression) support
• 128 RGB color-backlit pads, 52 buttons + 9 encoders
• Dual OLED greyscale displays
• Recording resolution: 192ppqn
• Up to 7 effects per track (arpeggiator, chance, euclid, harmonizer, randomizer, scale, swing)
• Automation: CC, Pitchbend, Aftertouch, Program Change, NRPN, CV with interpolator
• Live modes: isomorphic scales, chord generator, drum velocity view
• Polyrhythm and polymeter support, per-track BPM Elasticity (phase drift)
• Song Mode: multi-pattern sections, follow actions, MIDI import/export
• 4x 16-bit CV outputs and 4x Gate outputs (Eurorack-level)
• SD card slot for seamless project storage

TECHNICAL SPECIFICATIONS

• Sequencer: 2 x (16 tracks + 16 patterns) Dual-Project
• Resolution: 192ppqn
• Track Length: 1 step to 32 bars
• MIDI Inputs: 2x (DIN 5-pin + TRS Type A)
• MIDI Outputs: 4x (3x DIN 5-pin + 1x TRS)
• CV Inputs: 2x [-5V to +5V], 16-bit resolution
• CV Outputs: 4x [-5V to +5V], 16-bit resolution
• Gate Outputs: 4x [0V / +5V]
• USB: 1x Type-B (device), 1x Type-A (host)
• Pedal Input: TRS (footswitch)
• CPU: Dual ARM architecture
• RAM: 32 MiB
• Panel: 2mm CNC Aluminum
• Dimensions: 358 x 206 x 58 mm (14.1 x 8.1 x 2.3 in)
• Weight: 1.855 kg (4.1 lbs)
• Power: 15V / 1.2A (PSU included)
