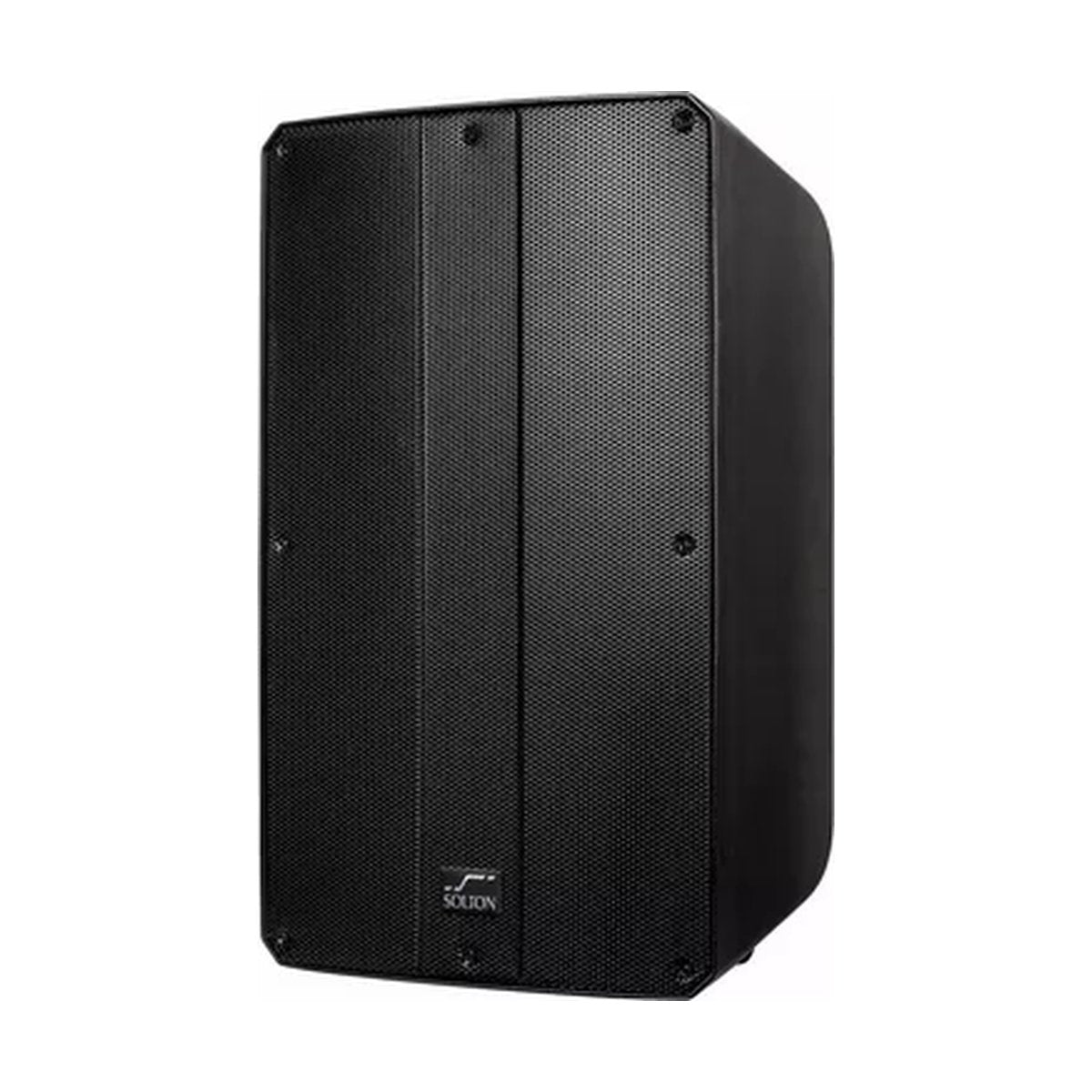

Solton aart P-12 A

Solton aart P-12 A is a self-powered bi-amped two-way loudspeaker built around a 12" Neodymium aaCRAAFT driver on a 3" voice coil and a HF compression driver with a 1.75" voice coil and 1" exit, driven by a dual-channel Class D amplifier with FIR DSP. Like the aart P-15 A, the cabinet uses a PP composite (polypropylene) enclosure — lighter and more moisture-resistant than plywood — and at 16 kg with dimensions of 365 x 605 x 360 mm it is one of the most transport-friendly active 12" cabinets in the Solton range with a full DSP and PowerCon feature set.

12" Neodymium aaCRAAFT and FIR DSP — compact dimensions, full DSP flexibility

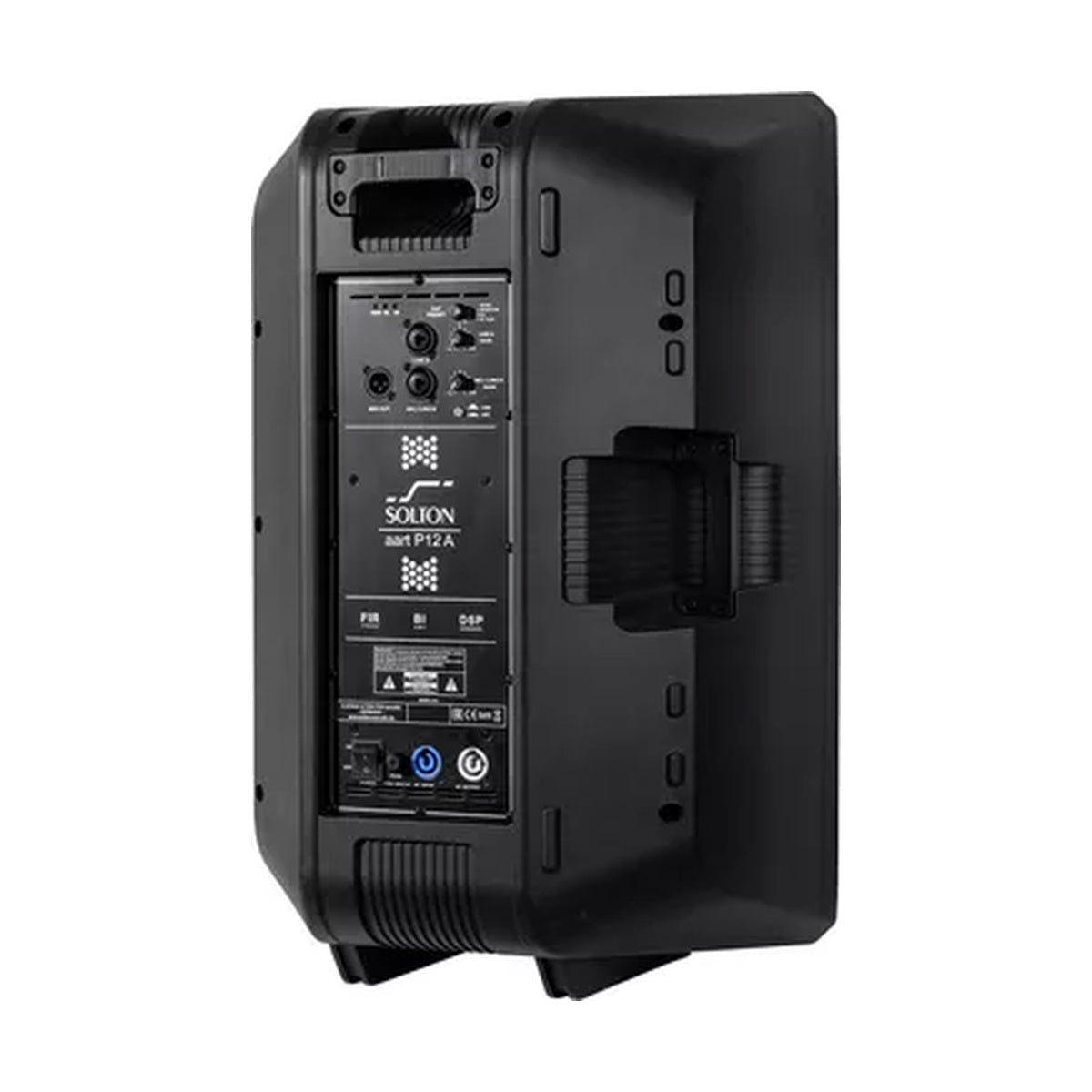

The 12" aaCRAAFT Neodymium driver on a 3" (75 mm) voice coil delivers 500 W continuous and 2000 W peak power with a bass extension to 50 Hz (-10 dB) at 98 dB sensitivity (1 W/1 m). The HF compression driver on a 1.75" voice coil with a 1" exit handles the top end with low moving mass and reliable dynamic response under extended drive. Dual-channel DSP with FIR filtering corrects phase at the crossover transition — the result is consistent phase across the full 90° x 60° coverage angle and linear impulse response when running cabinets in pairs. Four factory DSP presets cover fullrange, MF/HF, stage monitor and installation scenarios without cable changes. Switchable Line/Mix OUT and two XLR/6.35 Jack Combo inputs with Mic/Line preamps handle zone chaining and signal monitoring from the rear panel. PowerCon In/Out supports mains daisy-chaining between multiple P-12 A cabinets without external power splitters. Dual-band limiters protect LF and HF drivers independently.

PP composite enclosure, stage monitor and PA top — 16 kg for every role

The multi-angle PP composite enclosure resists moisture and deformation, does not swell after rain and needs no refinishing after surface scratches — making the P-12 A practical for mixed indoor-outdoor deployments without covers on every trip. At 16 kg one person handles a full stereo setup without a trolley. The pole-mount socket, two side handles and the RM10 ring screw accessory (art. 12516) cover stand, sub-stack and suspension mounting. Recommended subwoofers: aart SUB 15 A and aart SUB 18 A.

KEY FEATURES

• Type: self-powered, 2-way bi-amp, multifunctional
• LF driver: 12" Neodymium aaCRAAFT, 3" (75 mm) voice coil
• HF driver: 1.75" voice coil, 1" exit, compression driver
• Power: 500 W continuous / 2000 W peak, Class D bi-amp
• DSP with FIR filtering + 4 factory presets
• Sensitivity: 98 dB (1 W/1 m); max. SPL: 124 dB continuous / 130 dB peak
• Coverage: 90° H x 60° V nominal
• Dual-band limiter (LF and HF independently)
• 2x Mic/Line input with preamp, switchable Line/Mix OUT
• PowerCon In/Out — daisy-chain mains
• PP composite enclosure — lightweight, moisture-resistant
• Weight: 16 kg; dimensions: 365 x 605 x 360 mm
• Recommended subs: aart SUB 15 A, aart SUB 18 A

TECHNICAL SPECIFICATIONS

• Art. No.: 13107
• Type: self-powered, two-way bi-amped, multifunctional
• LF driver: 12" Neodymium aaCRAAFT, 3" (75 mm) voice coil
• HF driver: 1.75" voice coil, 1" exit, compression driver
• Crossover: active DSP with FIR filtering
• Power: 500 W continuous / 2000 W peak
• Frequency range (-10 dB): 50 Hz – 20 kHz
• Frequency response (±3 dB): 60 Hz – 18 kHz
• Coverage pattern: 90° H x 60° V nominal
• Sensitivity: 98 dB (1 W/1 m)
• Max. SPL: 124 dB continuous / 130 dB peak
• Protection: dual-band limiter
• Active features: 4 DSP presets, FIR, 2x Line/Mic IN with level & switch, switchable Line/Mix OUT
• Connectors: 2x XLR/6.35 Jack Combo, 1x XLR, PowerCon In/Out
• Enclosure: multi-angle, PP composite
• Finish: black
• Fittings: 2x handle, M20 pole socket
• Grille: black perforated steel with acoustically transparent foam backing
• Dimensions (WxHxD): 365 x 605 x 360 mm
• Weight: 16 kg
• Accessories: RM10 ring screw (art. 12516)
• EAN: 4262552320098
