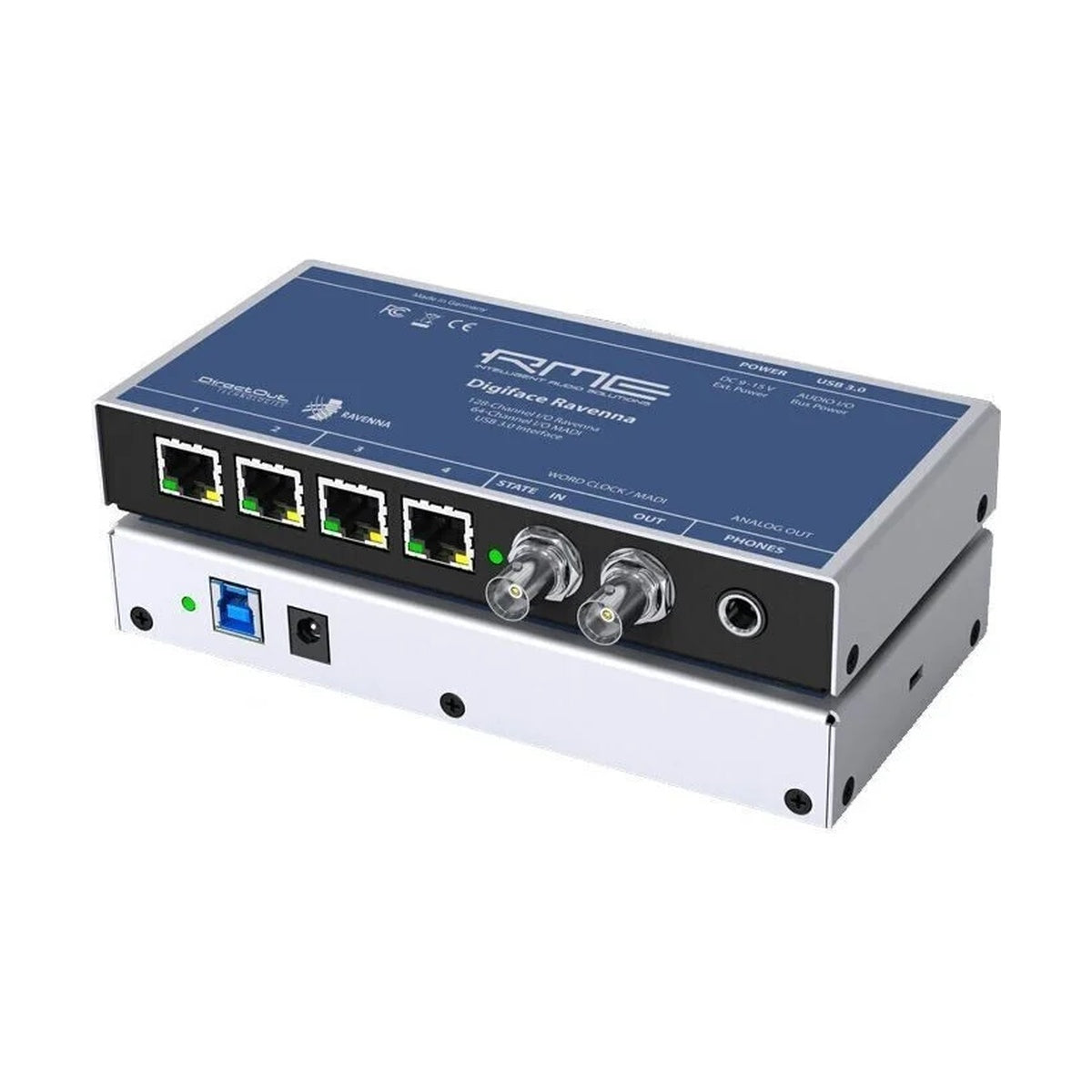

RME Digiface Ravenna – portable USB 3.0 audio interface with 128-channel RAVENNA/AES67/ST 2110-30/31 and 64-channel MADI, up to 192 kHz. Features 4x RJ45 ports for redundant AoIP (ST 2022-7), 2x BNC MADI/Word Clock, TotalMix FX for mixing/routing. Operates standalone as 64-channel RAVENNA/MADI converter without USB. Supports SteadyClock FS, MIDI I/O, compatible with ARC USB and TotalMix Remote (iOS/PC/Mac). Bus-powered or via adapter. Ideal for broadcast, studio, and live AoIP networks.
The device excels in reliability, low jitter, and flexibility, developed with DirectOut Technologies.
MAIN FEATURES
- 128 channels RAVENNA via 4x RJ45 (redundant ST 2022-7 streaming)
- 64 channels MADI via 2x BNC (or Word Clock I/O)
- TotalMix FX for mixing, routing, and monitoring
- Standalone RAVENNA/MADI converter without computer
- SteadyClock FS for reference clocking
- MIDI I/O, ARC USB and TotalMix Remote compatible
- USB 3.0 bus-powered or external, compact design
- AES67/ST 2110-30/31 support for broadcast
TECHNICAL SPECIFICATIONS
- Channels: 128 RAVENNA + 64 MADI (up to 192 kHz)
- Connections: 4x RJ45 (RAVENNA/AES67), 2x BNC (MADI/Word Clock), USB 3.0, MIDI I/O
- Resolution: 24-bit/44.1–192 kHz
- Clocking: SteadyClock FS, jitter suppression >50 dB
- Power: USB bus-powered or external 12V DC
- Dimensions (WxHxD): 215 x 44 x 130 mm
- Weight: 880 g
- Operating Temperature: +5°C to +50°C
- Included: USB cable, DC adapter, MIDI breakout
