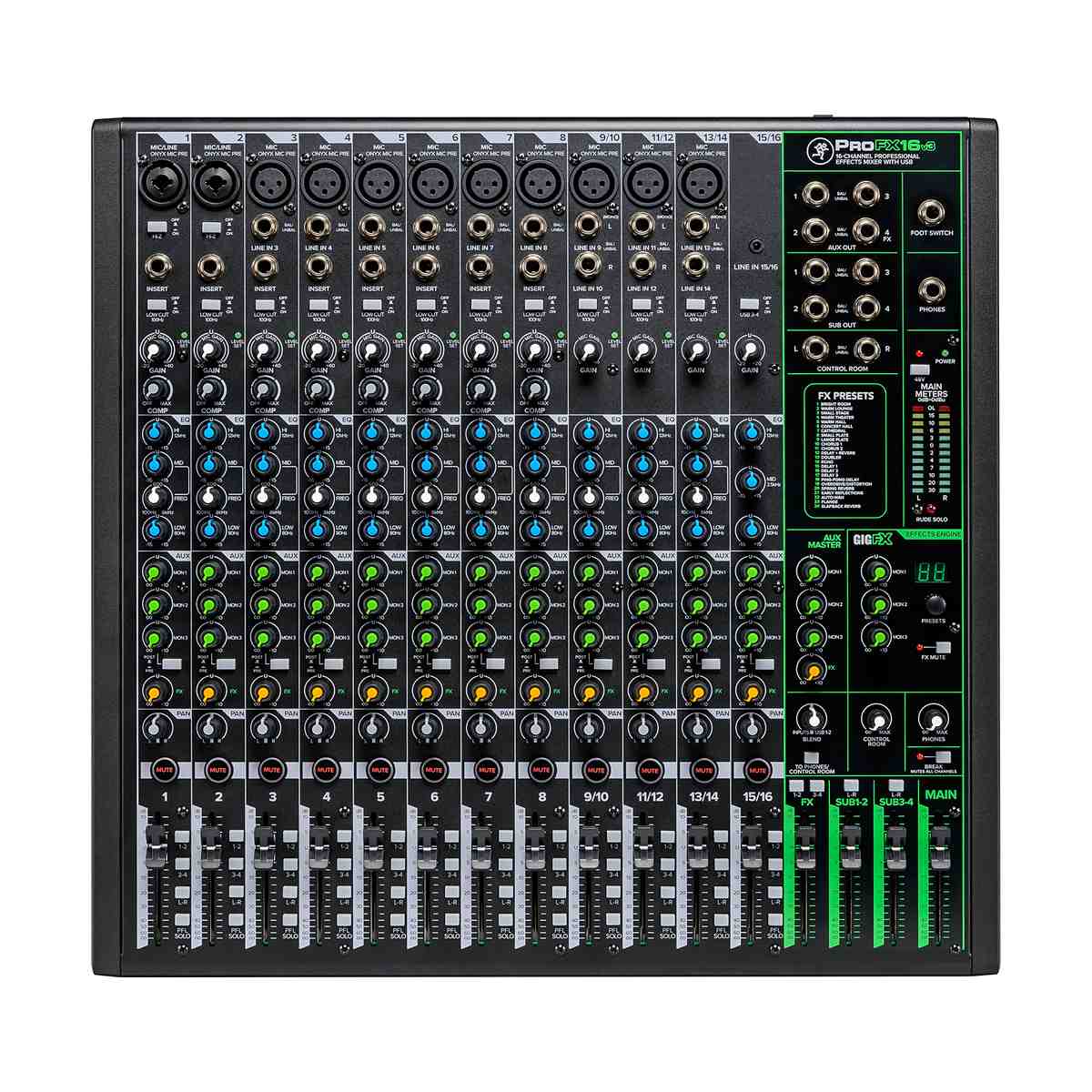

Mackie ProFX16v3 – 16-channel professional analog mixer with USB, 11 Onyx mic preamps, GigFX effects engine, and single-knob compression. It offers high-headroom audio, 24-bit/192kHz recording, and versatile control for live sound and studio use. On board, there is a rich effects section with 24 FX presets, parameter locks, and extensive performance functions.
Mackie ProFX16v3 is an environment for sound creation designed for portability. It features 16 channels from simple mono to stereo pairs, with ultra-low noise preamps and multi-track USB recording. Flexible aux buses and Fat Channel dynamics allow applying a wide range of processing – including classics from the Mackie ecosystem.
Processing is deeply integrated: compression, EQ, gating on every channel, MIDI I/O support, and wireless apps for iOS/Android. Recording integrates seamlessly with DAWs – for direct multi-track capture. The mixer offers scene storage, individual settings recall, and advanced routing options.
KEY FEATURES
- 11 Onyx mic preamps with up to 60 dB gain
- 16 channels (8 mono, 4 stereo)
- 2x4 USB 2.0 interface (24-bit/192 kHz)
- 24 GigFX effects presets (reverb, delay, chorus)
- Single-knob compression on channels 1-8
- 3-band EQ on all channels
- 4 aux sends (2 FX, 2 monitor)
- Built-in USB recording with zero-latency monitoring
- Includes ProTools First and Waveform OEM software
- Per-channel inserts and high-pass filters
- Main L/R, monitor, and control room outputs
- Rack-mountable with optional ears
TECHNICAL SPECIFICATIONS
- Type: Analog Mixer
- Channels: 16
- Inputs - Mic Preamps: 11 x XLR
- Phantom Power: 48V on all preamps
- Inputs - Line: 16 x 1/4" TRS

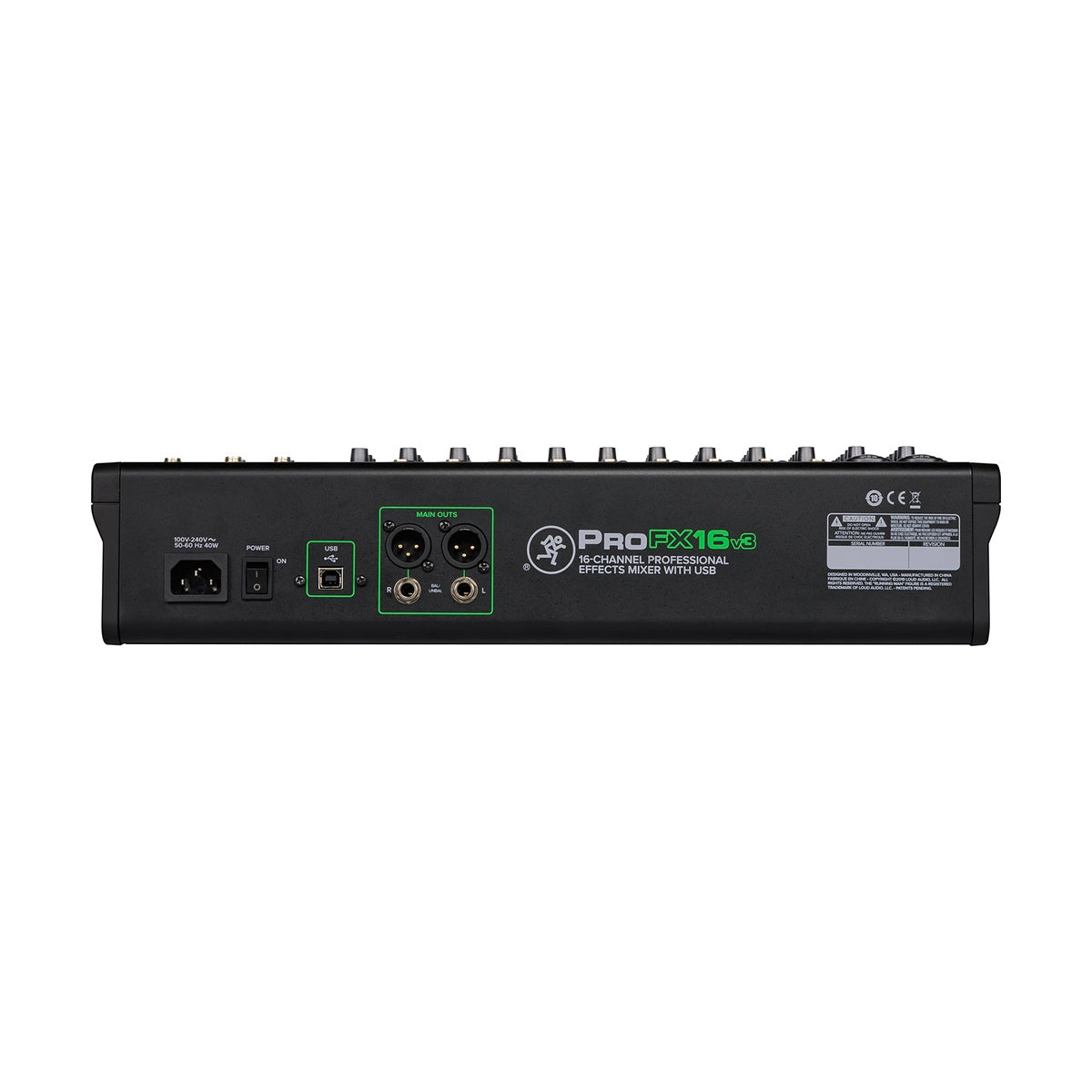

- Outputs - Main: 2 x XLR (L/R), 2 x 1/4" TRS (control room)
- Aux Outputs: 4 x 1/4" TRS
- Buses/Groups: 4 aux, stereo main
- Headphone Output: 1 x 1/4" TRS
- USB: 1 x Type B (2x4 interface)
- Computer Connectivity: USB 2.0
- MIDI: No
- Faders: 16 x 60 mm
- EQ Bands: 3-band on all channels
- Effects: 24 GigFX presets
- Signal Processing: Onyx preamps, compression
- Software: ProTools First, Waveform OEM
- Rackmountable: Yes (optional ears)
- Dimensions: 14.6" W x 12" D x 3.5" H
- Weight: 8.4 lbs
