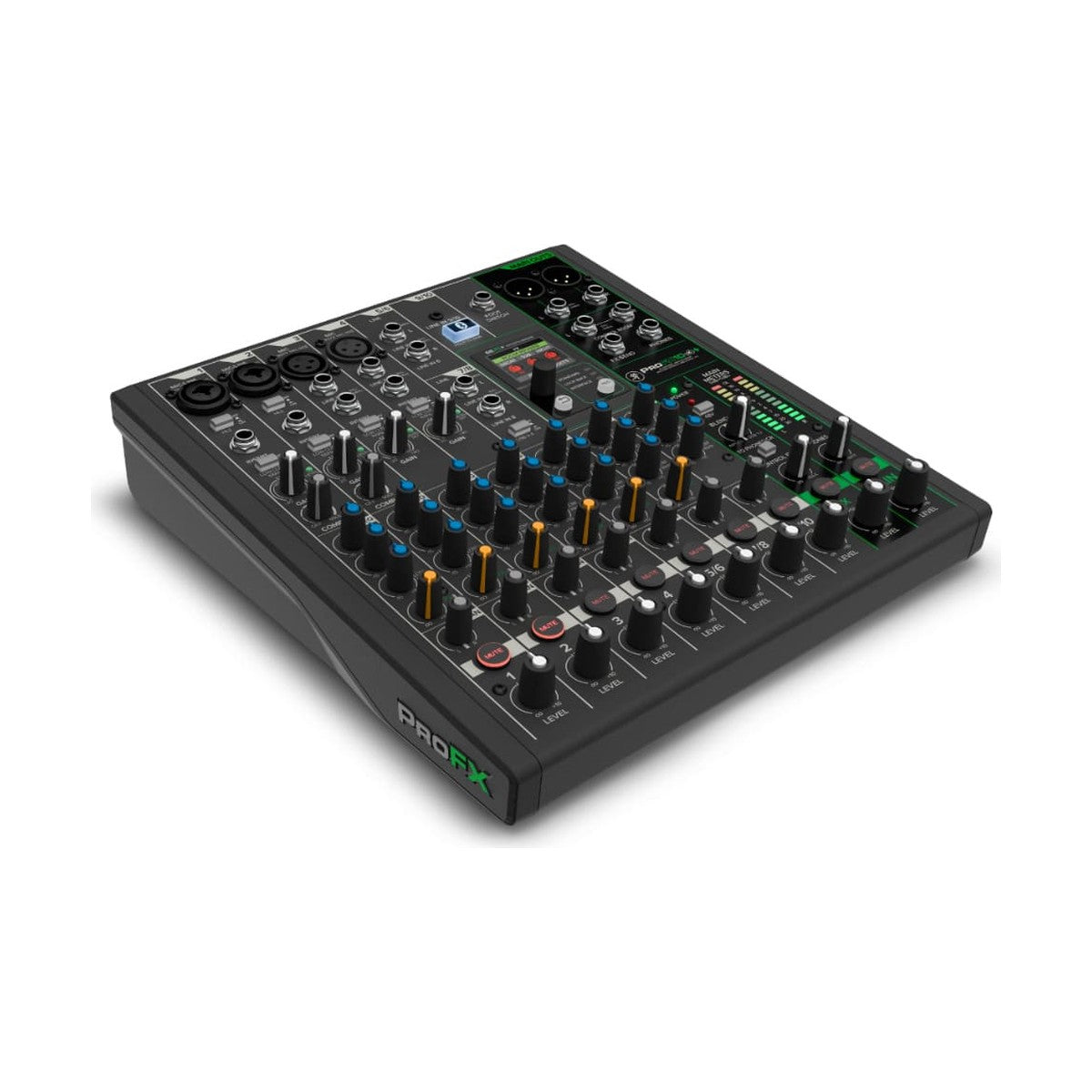

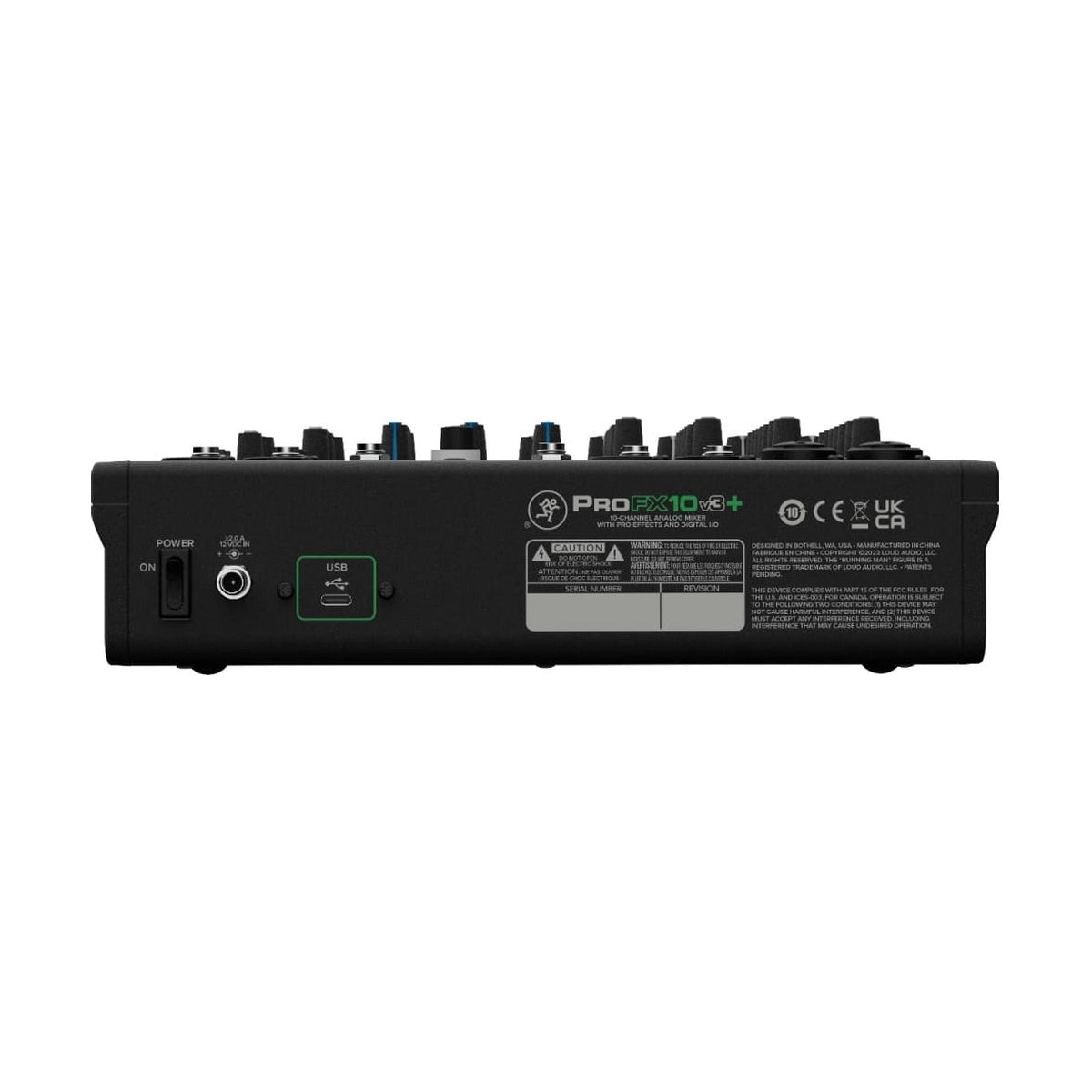

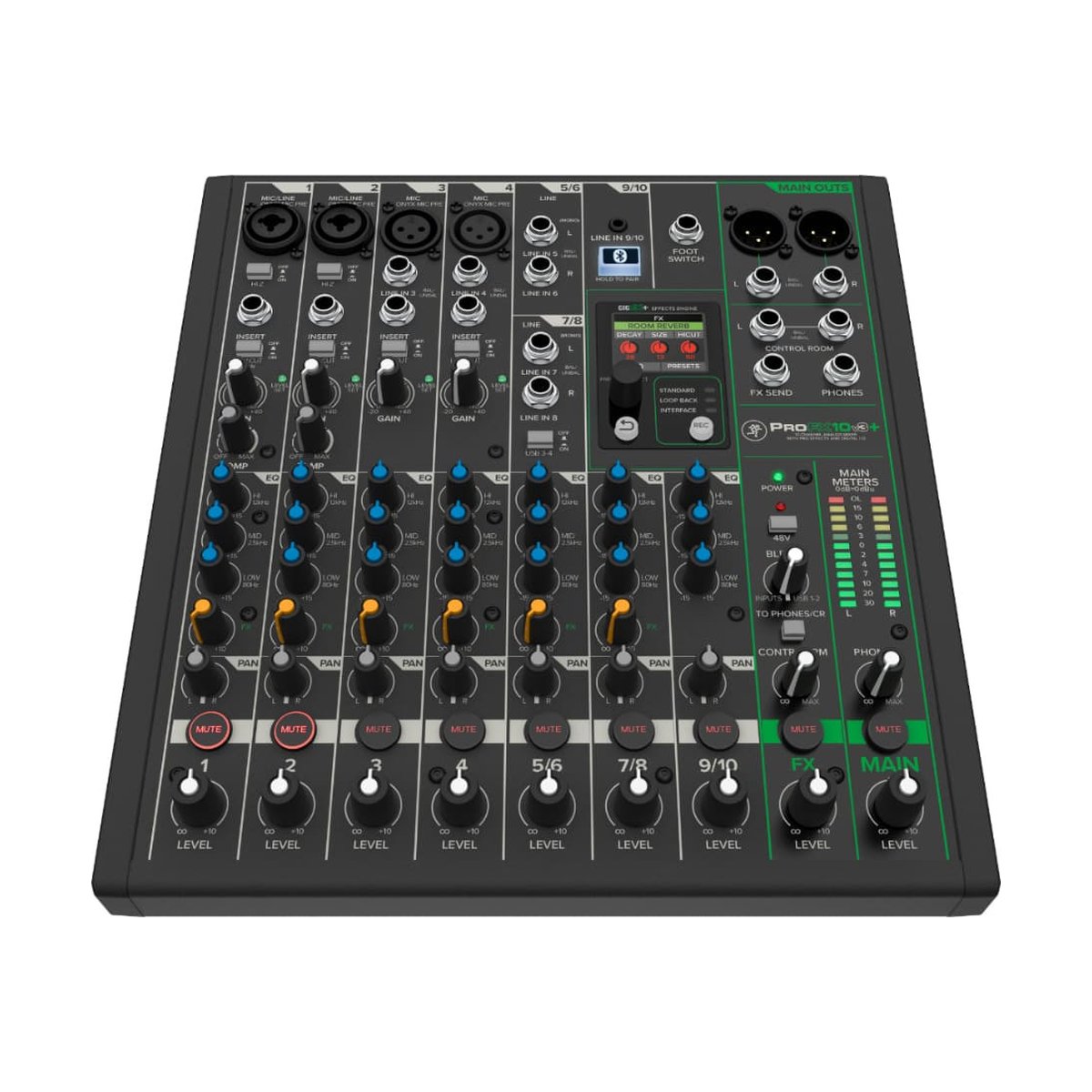

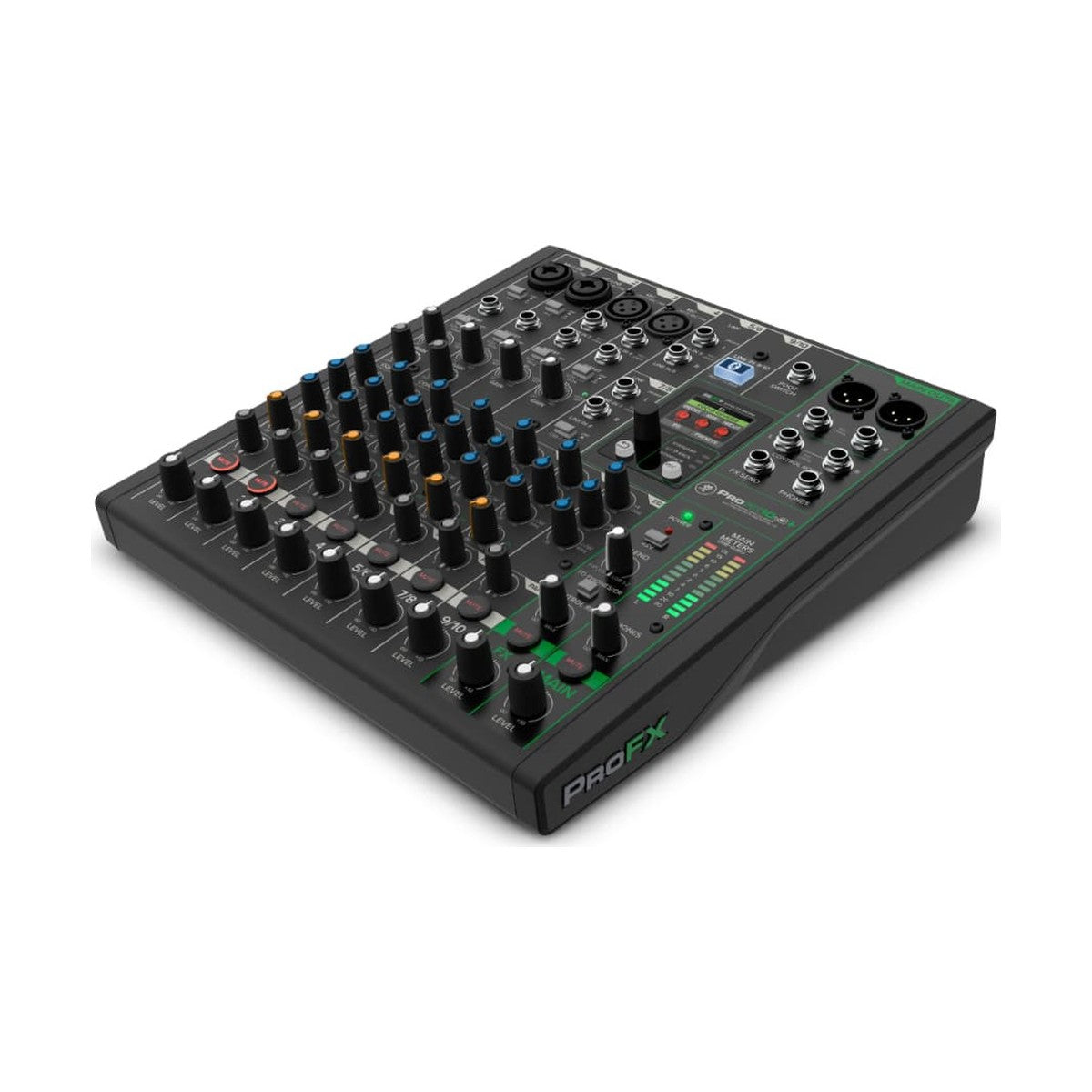

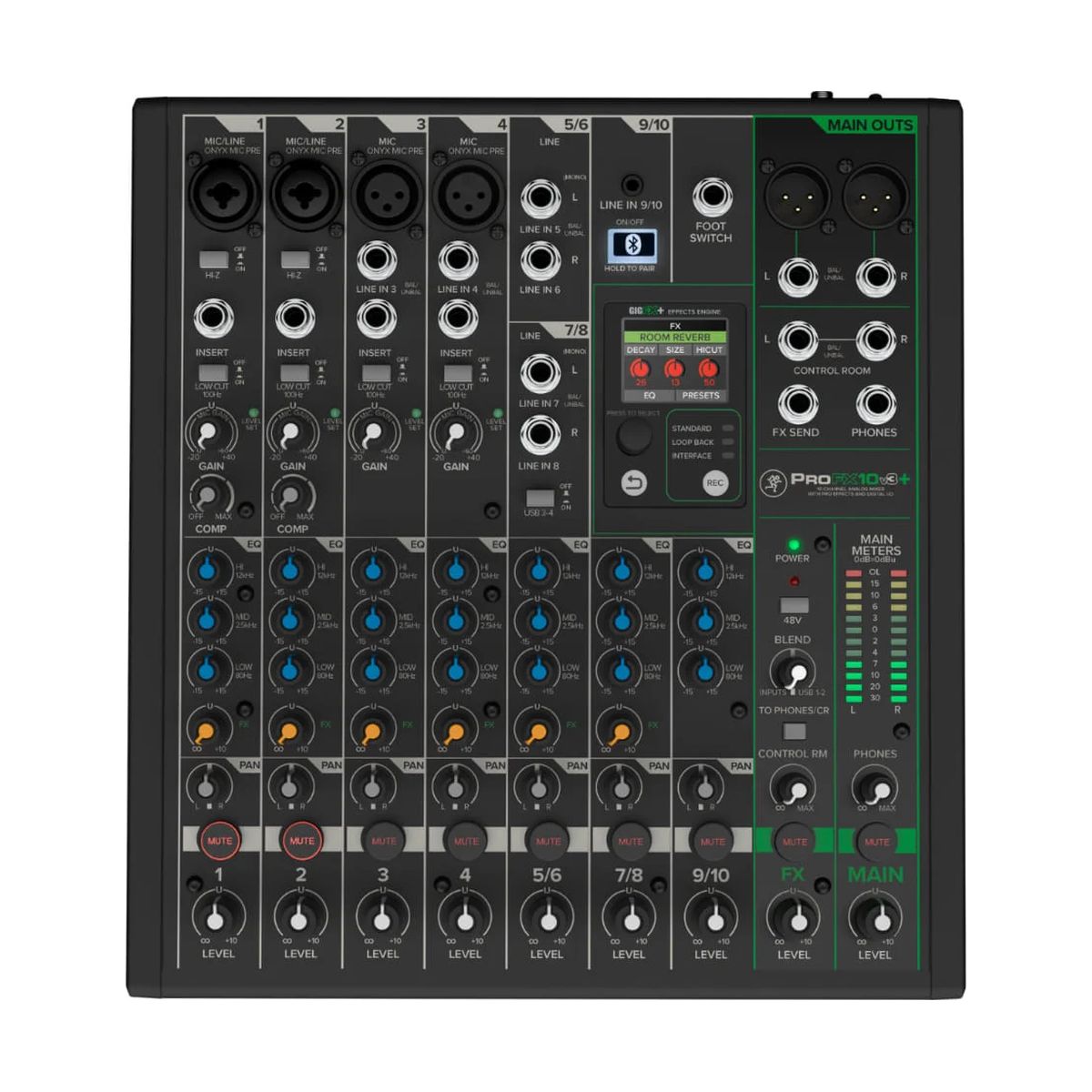

Mackie ProFX10v3+ is a 10-channel analog studio and recording mixer with a USB-C 2x4 audio interface, bidirectional Bluetooth with Mix Minus, and the GigFX+ effects engine on a full-colour LCD – the mid-range entry in the ProFXv3+ series, sitting between the compact ProFX6v3+ and the expanded ProFX12v3+ for musicians, streamers, and podcasters who need four mic preamps and modern digital workflow features in a compact form factor.
Four Onyx mic preamps deliver up to 60 dB of gain with an EIN of –126 dBu across channels 1–4. Channels 1–2 carry XLR/TRS combo inputs with Hi-Z switching and single-knob compression; channels 3–4 accept XLR or 1/4" mic/line signals. Channels 5/6 and 7/8 are stereo line pairs via 1/4" L/R jacks, and channel 9/10 uses a 3.5 mm stereo mini-jack, switchable to the USB 3/4 DAW return. A 3-band EQ (±15 dB at 80 Hz, 2.5 kHz, and 12 kHz) with a 100 Hz low-cut filter (18 dB/oct.) is available on all channels, with +48V phantom power globally switched. TRS insert points are present on channels 1–4.
Bluetooth with Mix Minus and three recording modes
The dedicated Bluetooth channel with its own volume control and EQ handles both music streaming from a phone or tablet and call-in audio for podcast guests. Mix Minus returns the mix to the caller without their own voice, removing echo from remote interviews without additional hardware. The USB-C 2x4 interface records and plays back at up to 24-bit/192 kHz with three switchable modes: Standard captures the full main mix with GigFX+ effects; Interface sends the dry signal from channels 1–2 to the DAW with no processing; Loopback blends the mixer signal with computer audio in a single stream, eliminating feedback during live streams or backing-track performances. Latency-free direct monitoring with a blend control allows comfortable overdub sessions without buffer delay.
GigFX+ with on-screen preset editing
The GigFX+ engine provides 12 user-editable effect presets covering reverbs, delays, choruses, flangers, phasers, and more. Preset parameters can be adjusted and saved directly on the full-colour LCD display without a computer – useful for quick sound changes between sets or during rehearsal. A dedicated headphone output with separate level and blend control rounds out the monitoring section. Included software: Waveform OEM (unlimited track count) and the 16-plugin DAW Essentials Collection.
KEY FEATURES
- 10 input channels, 4 Onyx mic preamps (up to 60 dB gain, EIN –126 dBu)
- 3-band EQ (±15 dB @ 80 Hz / 2.5 kHz / 12 kHz) on all channels
- Single-knob compression on channels 1–2
- TRS insert points on channels 1–4
- Hi-Z switches on channels 1–2 for direct guitar/bass connection
- 100 Hz low-cut filter (18 dB/oct.) and +48V phantom power on all mic channels
- Dedicated Bluetooth channel with Mix Minus (podcast guests, live phone-ins)
- GigFX+ – 12 editable effect presets on full-colour LCD display
- USB-C 2x4, 24-bit/192 kHz, three modes: Standard, Loopback, Interface
- Latency-free monitoring with adjustable DAW/analog blend control
- Stereo 1/8" input on ch. 9/10 (switchable to USB return 3/4)
- Headphone output with separate level and blend control
- Solid steel chassis with ABS side panels – Built-Like-A-Tank
- Includes: Waveform OEM + 16-plugin DAW Essentials Collection
- Weight: approx. 2.9 kg
TECHNICAL SPECIFICATIONS
- Channels: 10 (2x mono mic/line/Hi-Z, 2x mono mic/line, 2x stereo line 1/4", 1x stereo 1/8", 1x Bluetooth)
- Preamps: 4x Onyx, up to 60 dB gain, EIN –126 dBu (150 Ω)
- EQ: 3-band ±15 dB @ 80 Hz / 2.5 kHz / 12 kHz + LC 100 Hz (18 dB/oct.)
- Compression: single-knob on channels 1–2
- Inserts: channels 1–4 (TRS, pre-fader)
- Frequency response: 20 Hz – 30 kHz (+0 / –1 dB)
- Max input level: +22 dBu | XLR Main Out: +28 dBu
- Crosstalk (adjacent inputs @ 1 kHz): –90 dB
- Phantom power: +48V DC, global switch
- Effects: GigFX+ – 12 editable presets, full-colour LCD display
- USB: USB-C 2.0, 2-in/4-out, 24-bit, 44.1/48/96/192 kHz
- Bluetooth: bidirectional with Mix Minus
- Main outputs: XLR L/R (balanced) + 1/4" L/R (balanced)
- Power: 12V DC @ 2A wall adapter (included), universal 100–240V AC
- Weight: approx. 2.9 kg
