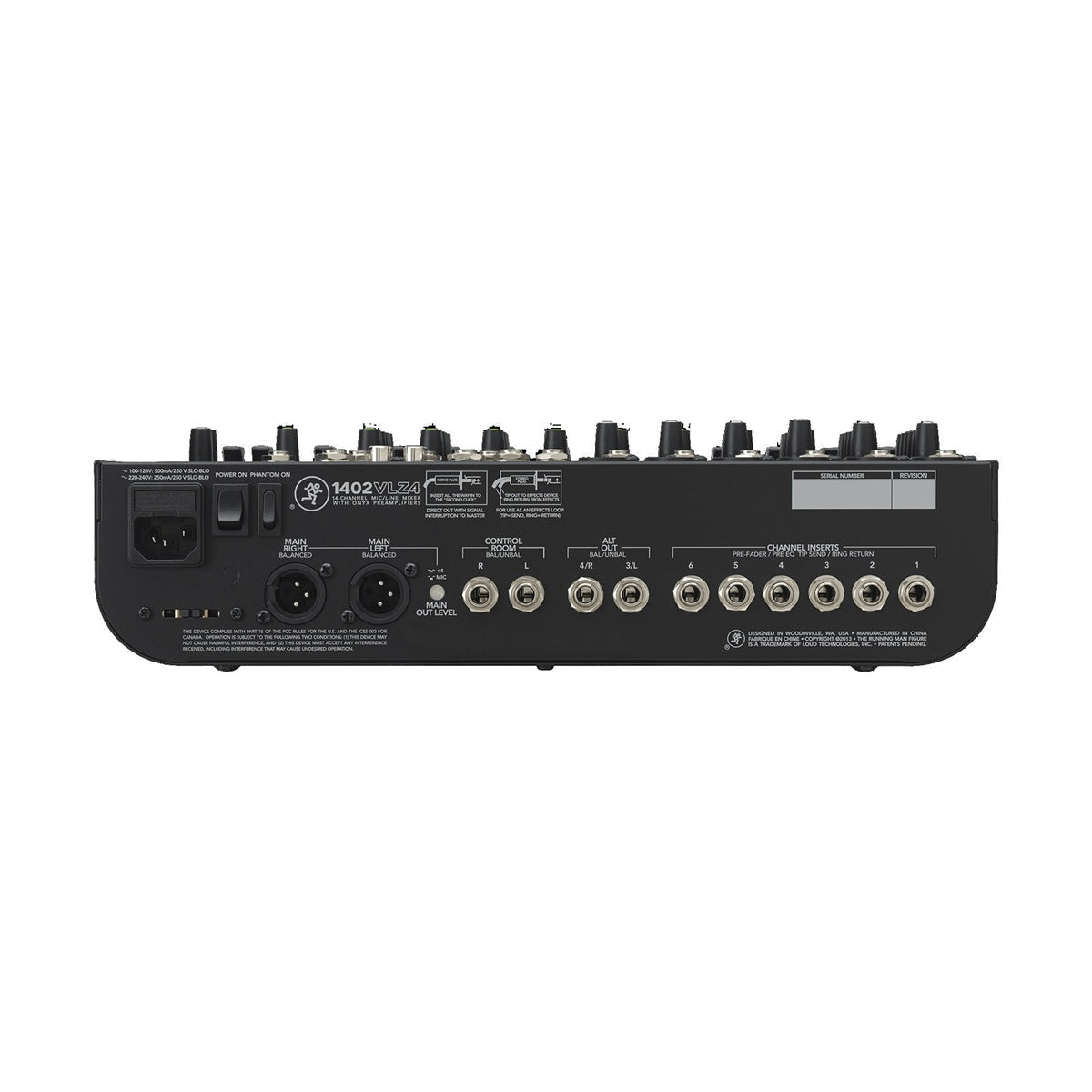

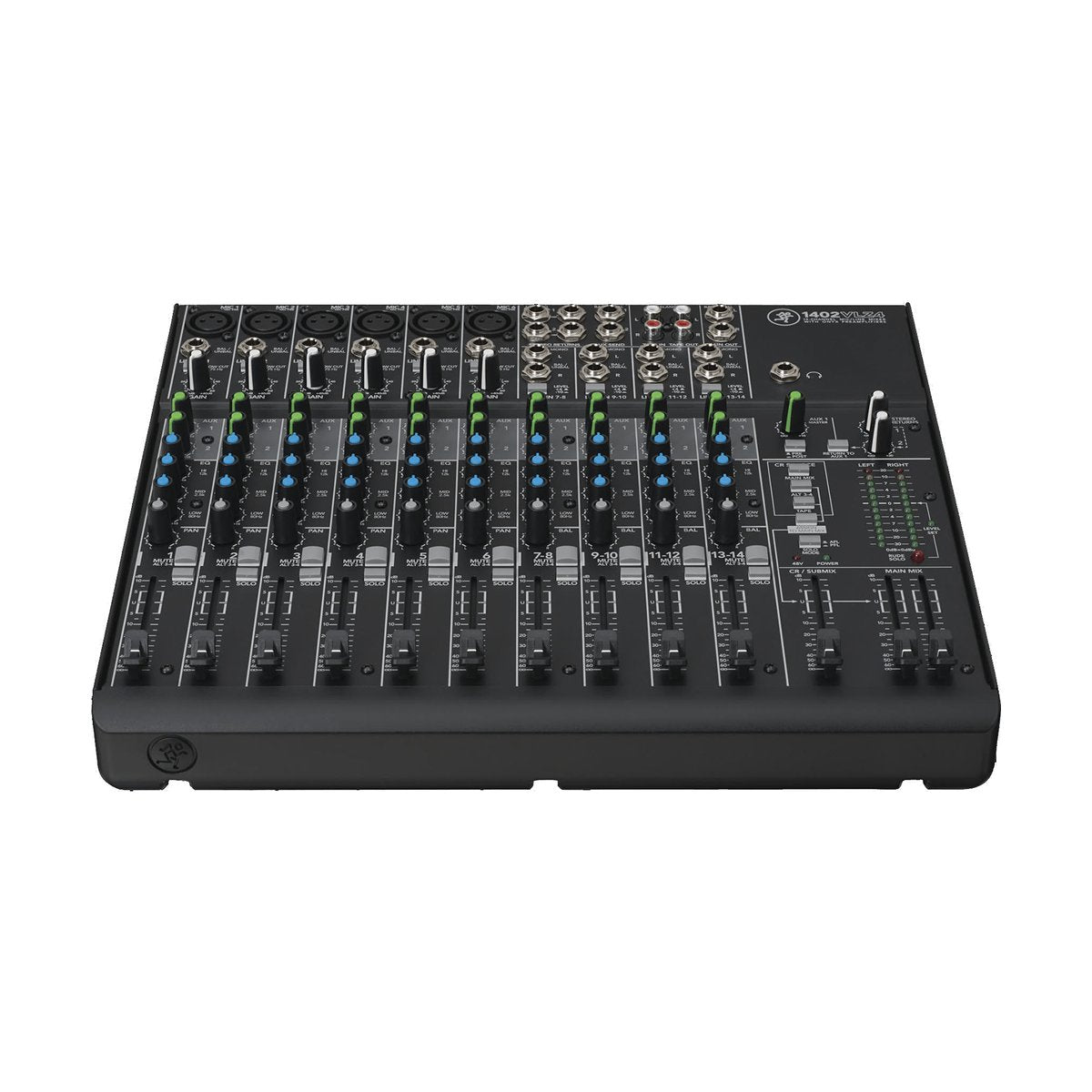

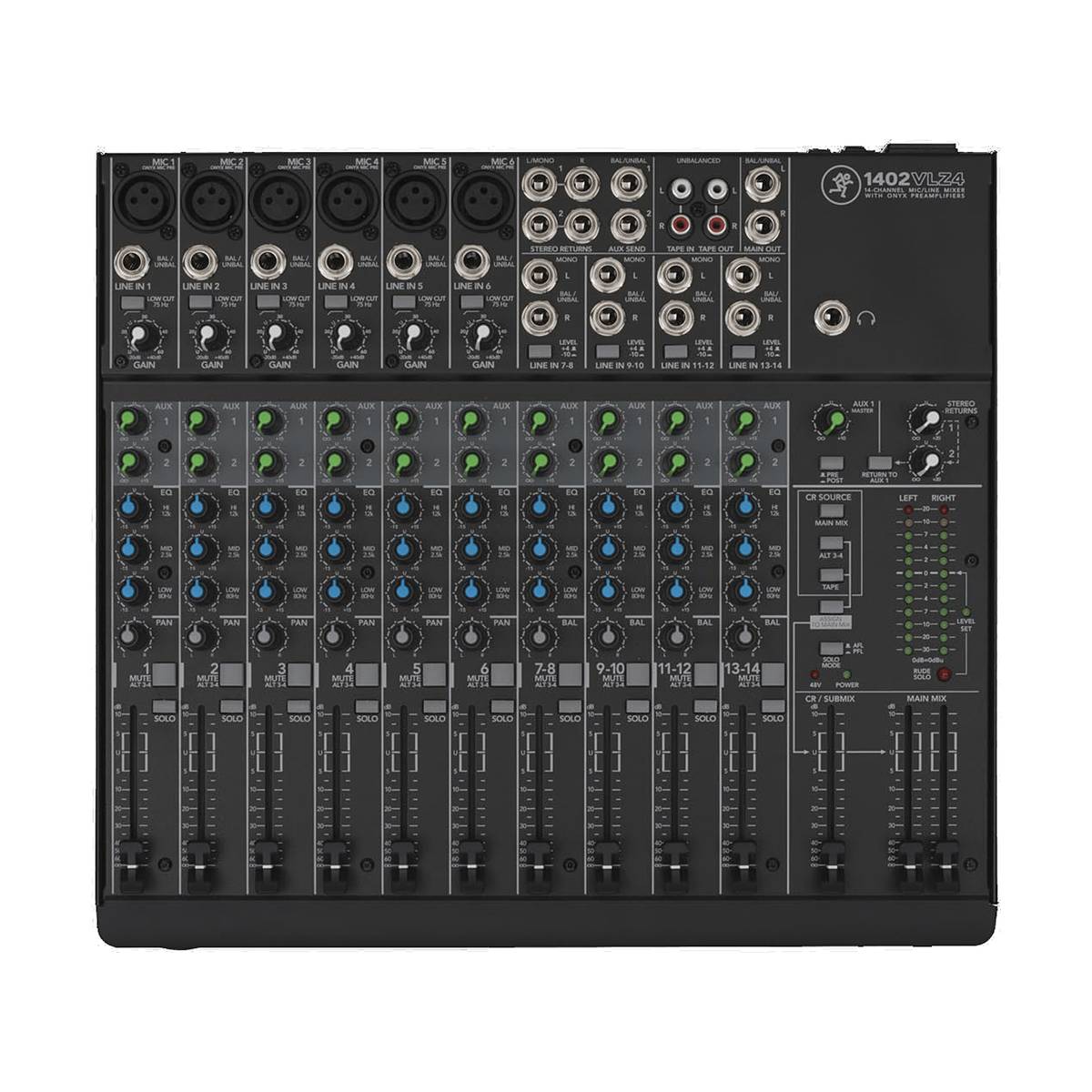

Mackie 1402 VLZ4 – a compact analog mixer with 14 channels, designed for low-noise performance, high headroom and reliable operation in both live and studio environments.
Compact format with flexible routing
The mixer features 6 mono channels with Onyx mic preamps and 4 stereo channels, delivering 14 total inputs. Mono channels include inserts, 3-band EQ and low-cut filters. The ALT 3/4 bus enables fast signal rerouting, solving typical workflow limitations in small-format mixers. Two AUX sends (pre/post) and two stereo returns provide integration with outboard gear and monitor mixes.
VLZ4 headroom and reliability
Six Onyx preamps provide up to 60 dB of gain with a wide 128.5 dB dynamic range and +22 dBu line handling. The low-noise design with improved RF rejection ensures stable performance in broadcast and live setups. Fully analog architecture without built-in FX or USB keeps signal flow predictable and robust.
KEY FEATURES
- 14-channel analog mixer (6 mono + 4 stereo)
- 6 Onyx microphone preamps
- Up to 60 dB gain range
- 3-band EQ on mono channels
- 75 Hz high-pass filter (18 dB/oct)
- 2 AUX sends (1 pre/post, 1 post)
- 2 stereo AUX returns
- ALT 3/4 routing bus
- Channel inserts on inputs 1–6
- No FX or USB – pure analog signal path
TECHNICAL SPECIFICATIONS
- Channels: 14
- Mic inputs: 6 x XLR (Onyx preamps)
- Line inputs: 6 x mono TRS + 4 x stereo
- EQ: 3-band (80 Hz / 2.5 kHz / 12 kHz)
- Low-cut filter: 75 Hz, 18 dB/oct
- AUX sends: 2, with 2 stereo returns
- Inserts: channels 1–6
- Outputs: XLR, TRS, RCA (Main, Control Room, ALT)
- Dynamic range: 128.5 dB
- Max input level: +22 dBu
- Phantom power: 48 V
- Dimensions: 356 x 81 x 317 mm
- Weight: approx. 4.5 kg
