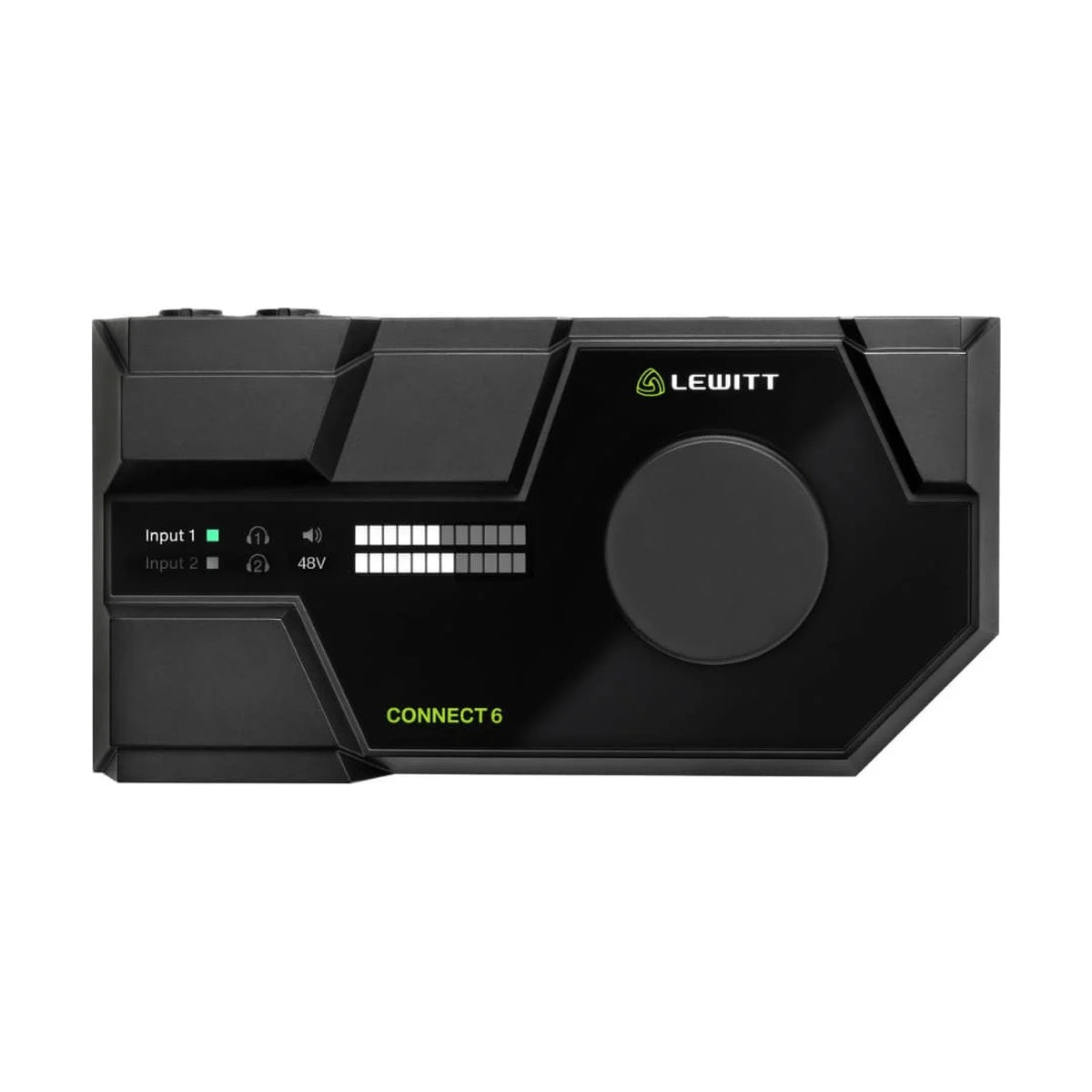

LEWITT CONNECT 6 is a USB-C audio interface with two studio-grade preamps, dual USB-C ports for simultaneous computer and mobile device connectivity, hardware DSP processing, and two independent software mixers. Designed for music recording, podcasting, live streaming, and mobile platform integration – iPhone/iPad (Apple MFi certified) and Android (USB Audio Class 1). Control Center software for macOS and Windows. Includes Cubase LE and Cubasis LE licenses.
Dual USB-C and Mobile Device Integration

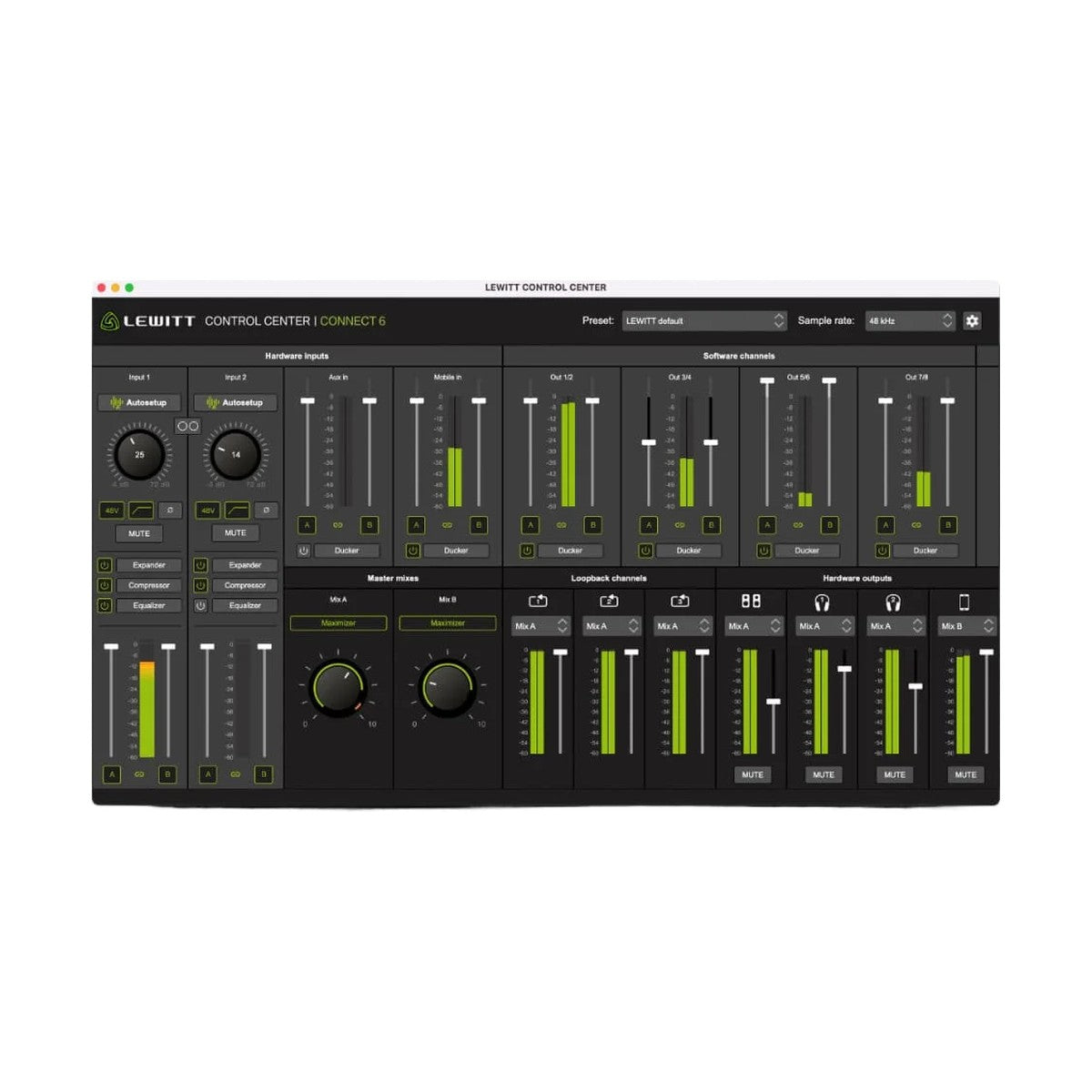

CONNECT 6 has two USB-C ports: one for the computer (USB Audio Class 2, up to 96 kHz/24-bit) and one for a smartphone or tablet (USB Audio Class 1, up to 48 kHz/24-bit). The mobile port transfers digital audio and simultaneously charges the connected device. In practice this enables parallel computer recording and live mobile streaming to Instagram or TikTok, Zoom calls alongside DAW recording, or using the phone as an additional audio source in the mix. Routing and mixing is handled by Control Center: two independent mixes (A and B) with loopback and DSP virtual channels. A one-knob Maximizer sets optimal loudness for each mix output.
Preamps, DSP, and Auto Setup

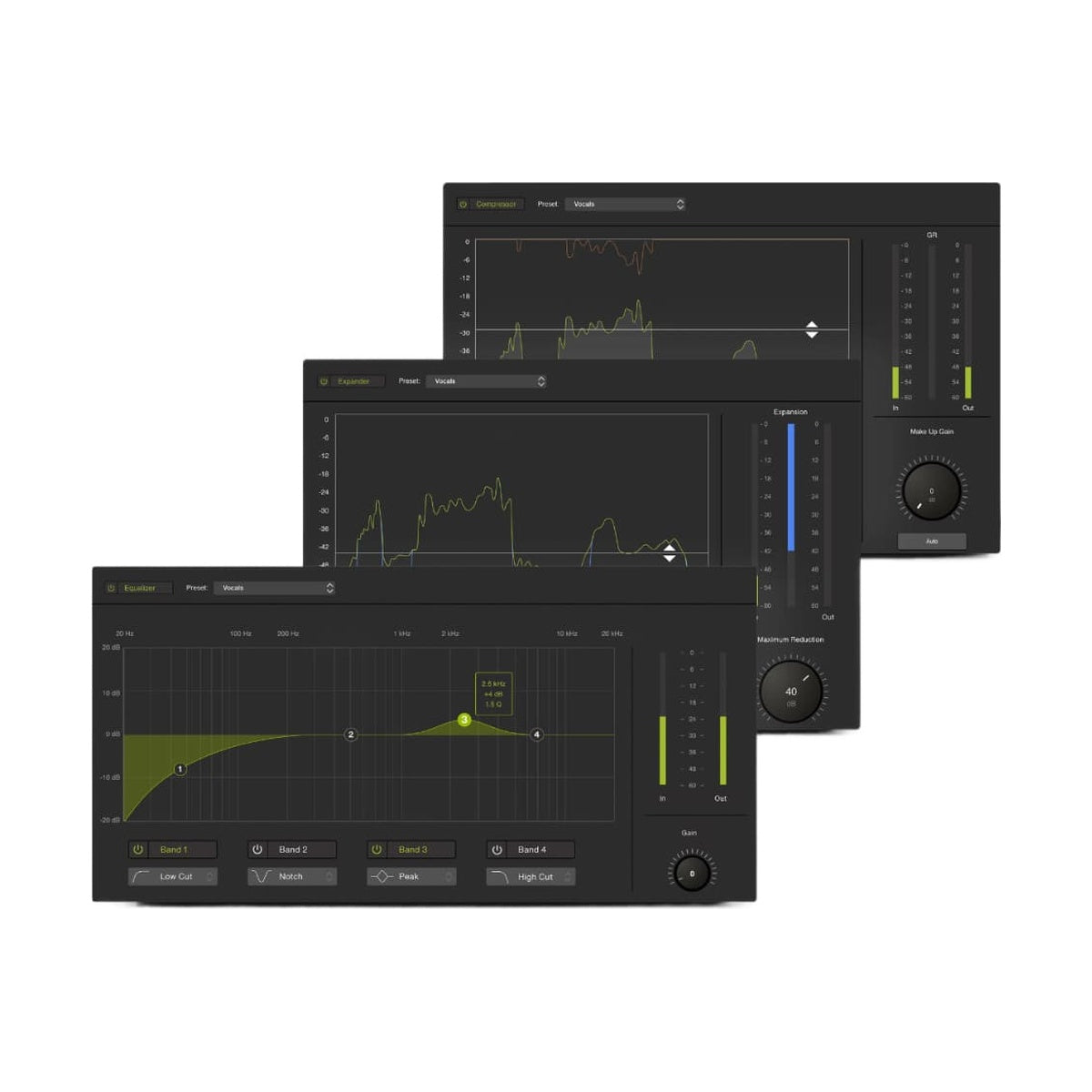

Two preamps with XLR/TRS combo jacks deliver 72 dB of gain and an EIN of –133 dBV – eliminating the need for external signal boosters even with low-output dynamic microphones. The hardware DSP processes the signal with zero-latency monitoring and no CPU load: expander, 4-band EQ, compressor, and Maximizer. Auto Setup automatically detects optimal gain and effect settings for the detected source. Two independent headphone outputs (3.5 mm and 6.35 mm) with separate level controls allow simultaneous monitoring of two different mixes. Power: USB bus power or an external USB-C PD 27 W charger (recommended when working with a mobile device simultaneously).
KEY FEATURES
- 2 studio-grade preamps: XLR/TRS combo, 72 dB gain, –133 dBV EIN
- Dual USB-C: computer (96 kHz/24-bit) + mobile device (48 kHz/24-bit)
- Apple MFi certified (iPhone/iPad) and Android USB Audio Class 1 support
- Hardware zero-latency DSP: expander, compressor, 4-band EQ, Maximizer
- Auto Setup – automatic gain and effect optimization for voice or instrument
- Two independent mixes (A and B) with loopback and DSP virtual channels
- 2 independent headphone outputs: 3.5 mm (HP1) and 6.35 mm (HP2)

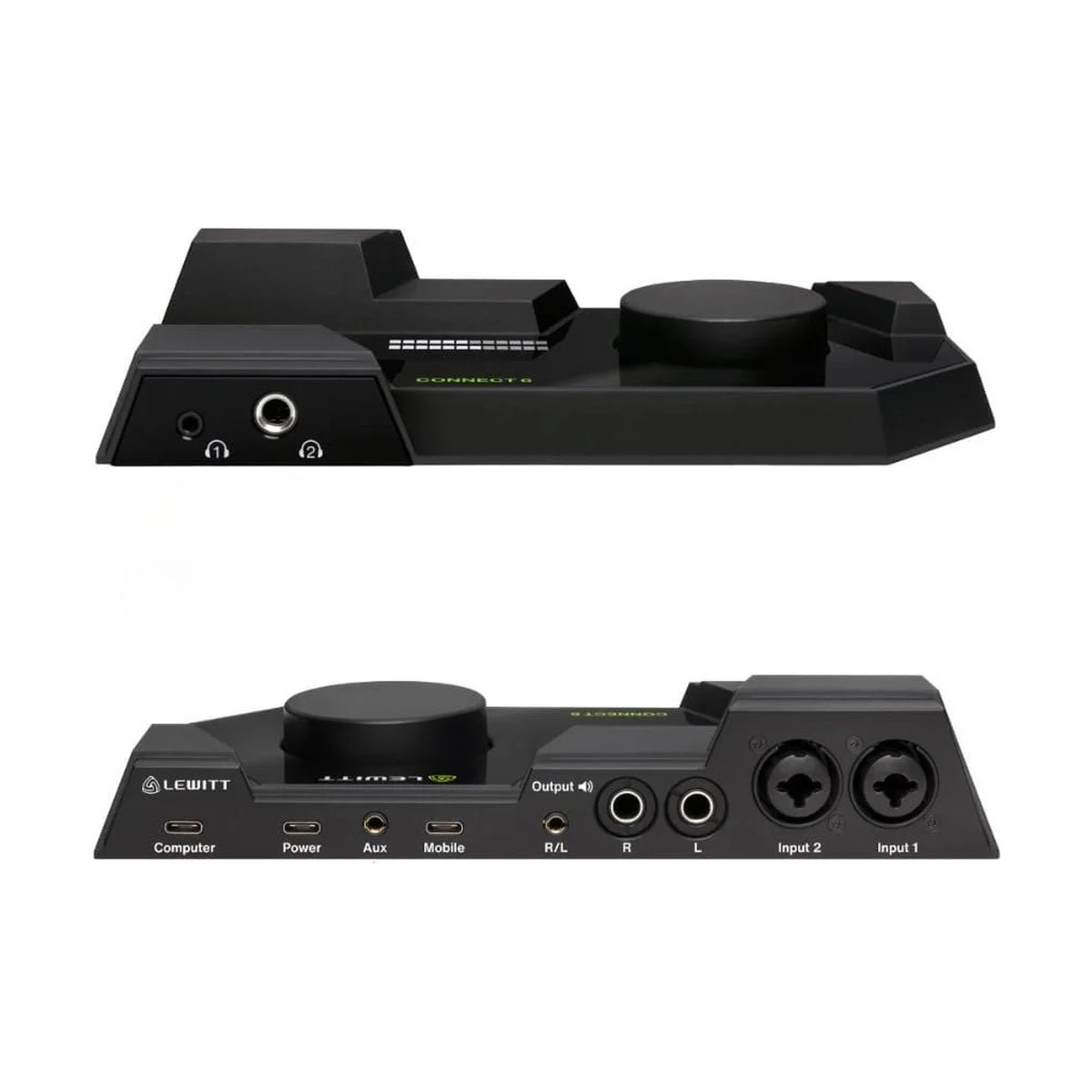

- Line output: 6.35 mm balanced TRS + 3.5 mm stereo (camera/monitor)
- 48V phantom power (switchable per channel)
- Bus powered (USB-C or USB-A) or external USB-C PD 27 W (recommended)
- ASIO driver, USB Audio Class 2 (macOS driverless)
- Includes: Cubase LE + Cubasis LE licenses
TECHNICAL SPECIFICATIONS
- Device type: USB-C audio interface, 6×6 I/O
- Resolution / sample rate: 24-bit / 44.1–96 kHz (computer); 24-bit / 44.1–48 kHz (mobile)
- Mic inputs: 2 × XLR / 6.35 mm TRS combo
- Gain range: –6 to +72 dB
- EIN: –133 dBV (A-weighted)
- THD+N: 0.002%
- Phantom power: 48V (switchable)
- Line output: 6.35 mm balanced TRS + 3.5 mm stereo; max output +13 dBV
- Headphone output 1: 3.5 mm stereo jack; max output +6 dBV
- Headphone output 2: 6.35 mm stereo jack; max output +6 dBV
- Computer USB port: USB-C, USB Audio Class 2, ASIO
- Mobile USB port: USB-C, USB Audio Class 1, device charging
- DSP: expander, compressor, 4-band EQ, Maximizer (zero-latency)
- Compatibility: macOS 10.15+, Windows 10 64-bit, iOS/iPadOS, Android 10–13
- Power: USB bus power (USB-C or USB-A) / external USB-C PD 27 W (recommended)
- Software: Control Center (macOS/Windows), Cubase LE + Cubasis LE licenses
