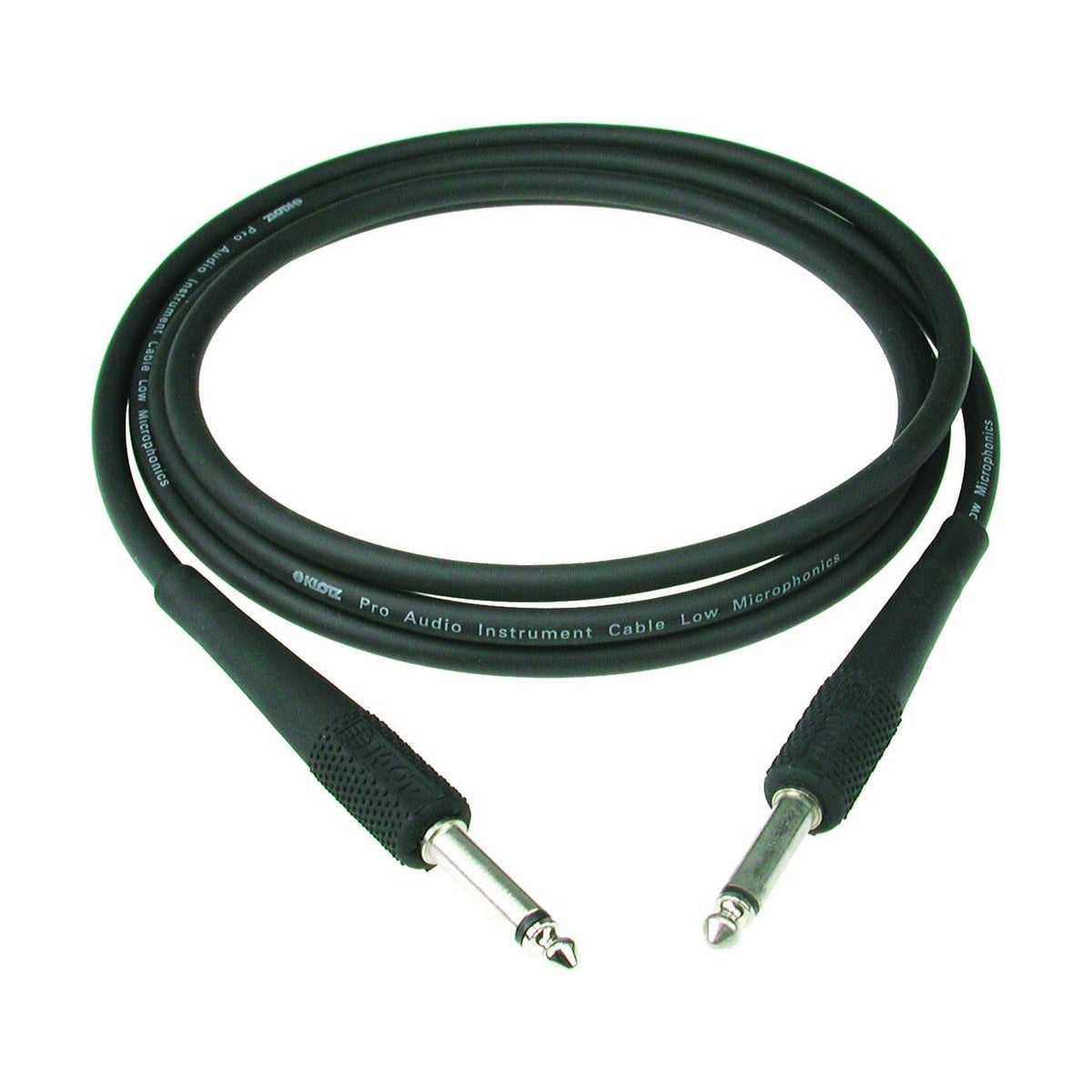

Klotz KIK3.0PPSW is a 3-metre instrument cable from the KIK series, terminated with two straight 6.35 mm TS jack plugs in black shells with flexible studded rubber sleeves. The KIK cable core — 6.1 mm diameter, 99.95% ETP oxygen-free copper — uses double shielding combining conductive plastic and a copper spiral shield, holding capacitance to 115 pF/m. The solid strain relief element withstands forces exceeding 200 N, protecting internal solder joints against mechanical stress from accidental cable pulls.
3 metres — instrument to amplifier or interface in a small room
Three metres covers the typical distances in a rehearsal room with the amplifier positioned a few steps from the player, in a home studio with the audio interface set apart from the playing position, and on a small stage with a monitor placed just behind the instrumentalist. At 115 pF/m, total capacitance for 3 m is 345 pF — a figure that with humbucker pickups and active pickup systems produces no audible tonal change, and with high-impedance single-coil pickups remains within the range where any frequency response shift is marginal and dependent on the guitar's tone control setting rather than the cable alone. The dual-layer shielding — conductive plastic inside, copper spiral outside — eliminates the influence of electromagnetic interference from effect power supplies, stage lighting, and wireless systems on the short signal path.
Flexible sleeve and 200 N strain relief — daily reliability under any conditions
The flexible studded rubber sleeve at the cable-to-plug junction replaces rigid heat-shrink and allows bending at a short radius without stressing the conductor at the solder point — relevant at jack sockets on the underside or side of guitars with unconventional body profiles and at tightly packed effect inputs on a pedalboard. Strain relief rated above 200 N protects internal connections against the mechanical stress of accidental cable treading or sudden pulls. The lead-free PVC jacket retains flexibility across a wide temperature range and does not stiffen with repeated coiling during tours and rehearsals.
KEY FEATURES
- Double shielding: conductive plastic + copper spiral shield — effective EMI rejection
- 115 pF/m capacitance — 345 pF total at 3 m, safe parameters for humbuckers and single-coils
- 99.95% ETP oxygen-free copper core — low resistance, high signal purity
- Strain relief rated above 200 N — protects internal solder joints from mechanical stress
- Flexible studded rubber sleeve — free bending at sockets of varying geometry
- Lead-free PVC outer jacket, 6.1 mm diameter — durable and flexible across a wide temperature range
- Straight-to-straight configuration — two TS jack 6.35 mm plugs with black shells
TECHNICAL SPECIFICATIONS
- Order code: KIK3.0PPSW
- Series: KIK
- Category: professional instrument
- Length: 3 m
- Cable color: black
- Cable type: KIK, diameter 6.1 mm, ETP oxygen-free copper 99.95%
- Shielding: double — conductive plastic + copper spiral shield
- Capacitance: 115 pF/m (35 pF/ft)
- Outer jacket: lead-free PVC
- Connector 1: jack 2p TS 6.35 mm, straight, black shell
- Connector 2: jack 2p TS 6.35 mm, straight, black shell
- Contacts: nickel-plated
- Sleeve: flexible studded rubber, short bending radius
- Strain relief: above 200 N
- Jack manufacturer: KLOTZ
