IK Multimédia TONEX Capture
IK Multimédia TONEX Capture
Warsaw Showroom
Nowogrodzka 6
102
00-513 Warszawa
Pologne
Configurer

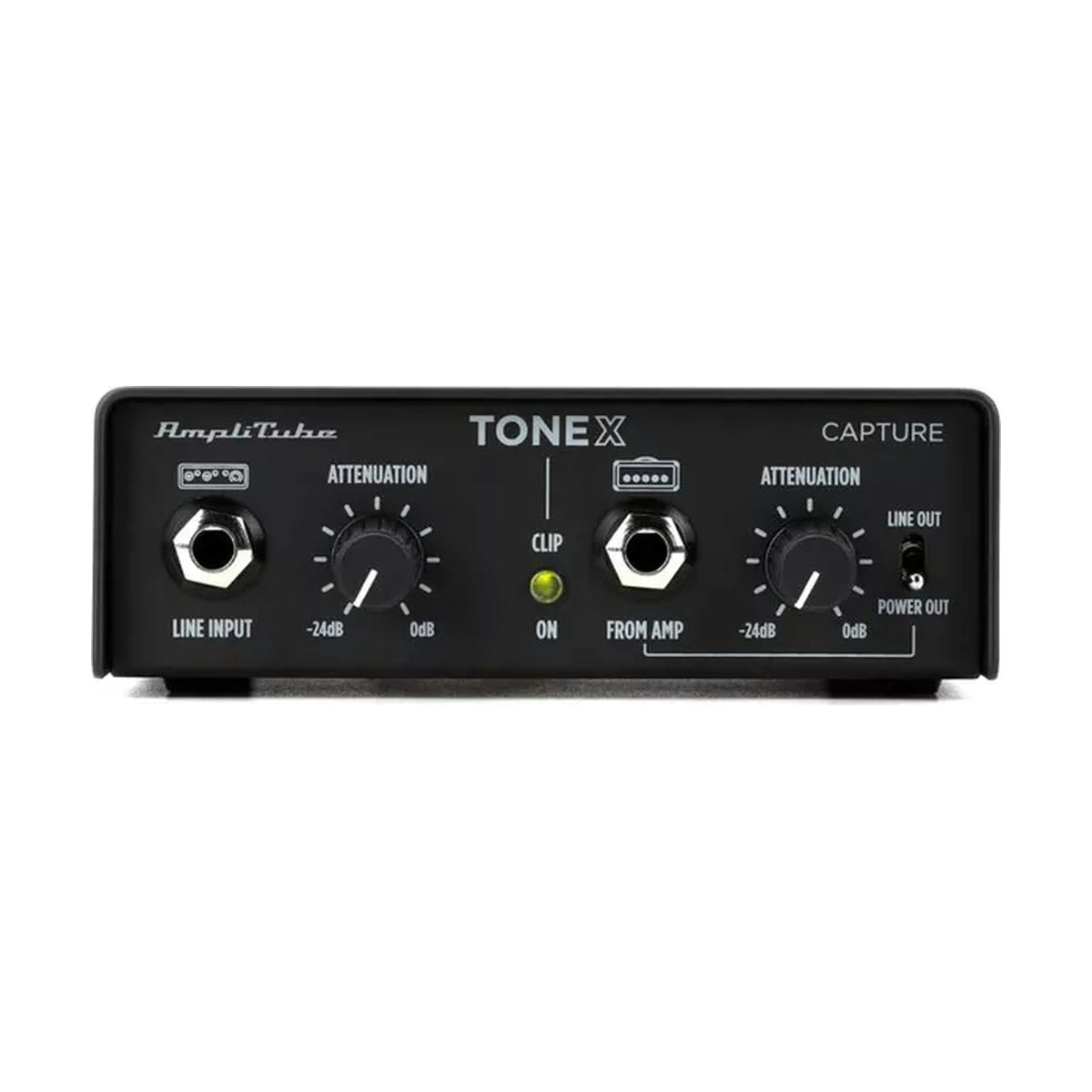

IK Multimedia TONEX Capture – versatile interface for amp/effect modeling, re-amp box, DI. Uses AI Machine Modeling to capture amp/cab/pedal tones without mics. Dual circuits (From Amp/To Amp) for re-amping/capturing. Includes TONEX SE with 200 models, AmpliTube 5 SE, ToneNET access. Compact aluminum enclosure (140 x 100 x 50 mm, 0.5 kg).
TONEX Capture offers 0-60 dB attenuation, load box for amps, stereo/mono I/O. Supports 24-bit/48 kHz, USB-C to DAW. MIDI I/O, Bluetooth for presets. 9V DC power, 9V battery (4h). Ideal for guitarists/producers.
As modeling tool, blends simplicity with precision, ready for recordings without compromise.
MAIN FEATURES
- AI Machine Modeling for amp/pedal capture
- Re-amp box with load box, 0-60 dB attenuation
- TONEX SE: 200 models, ToneNET access
- AmpliTube 5 SE included
- Stereo I/O, USB-C, MIDI, Bluetooth
- No mics needed, low latency
- Portable: 140 x 100 x 50 mm, 0.5 kg
- 5-year warranty
TECHNICAL SPECIFICATIONS
- Processing: 24-bit/48 kHz
- Attenuation: 0-60 dB (From Amp)
- Load Box: Up to 300 W @ 8/16 Ohm
- Connectors: 2x 1/4" in/out (stereo), USB-C, MIDI In/Out, headphone
- Power: 9V DC, 400 mA; 9V battery (4h)
- Dimensions (W × D × H): 140 x 100 x 50 mm
- Weight: 0.5 kg
- Included: TONEX Capture, TONEX SE, AmpliTube 5 SE
- Product Code: IK-TONEX-CAPTURE
