Heritage Audio FRAME 8

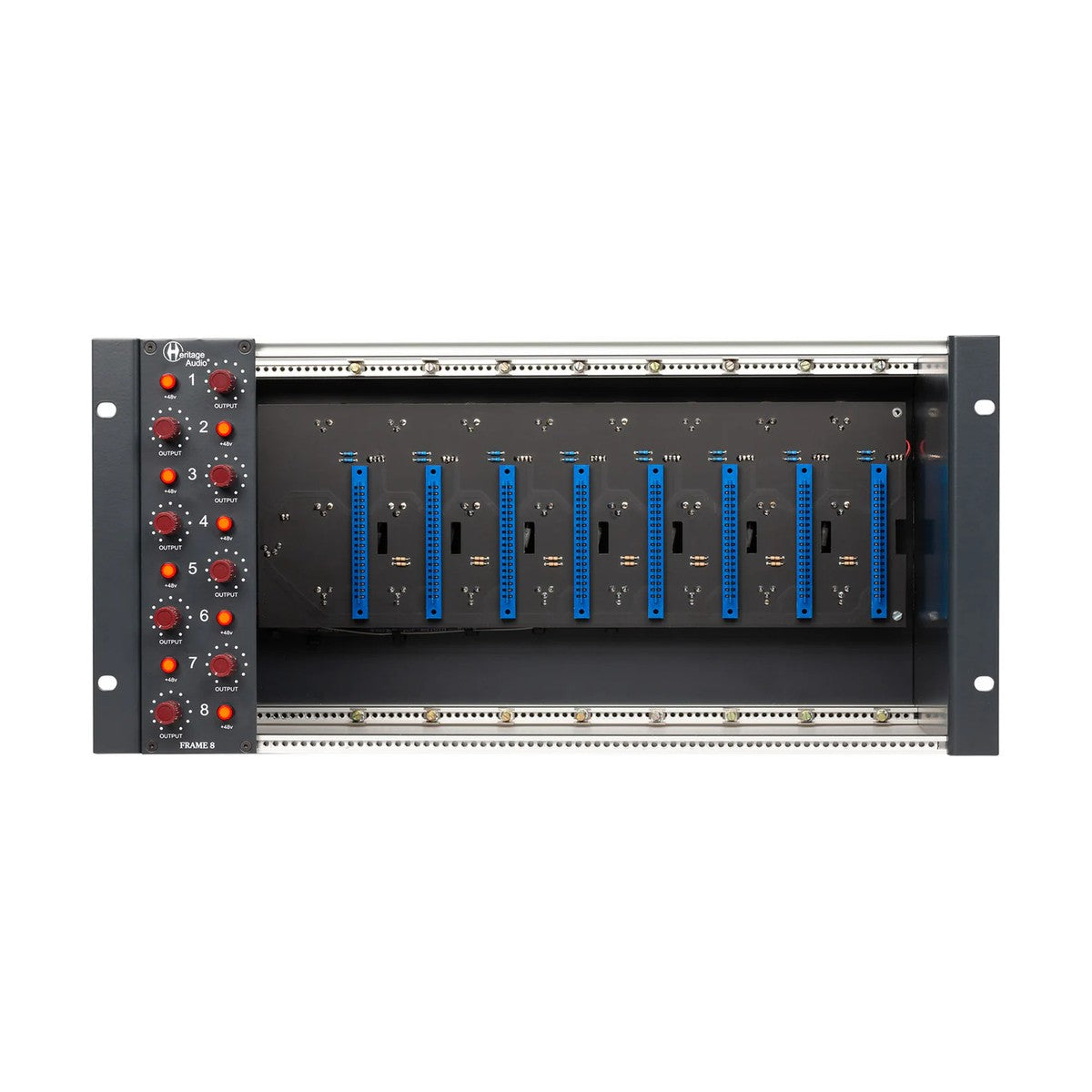

Heritage Audio FRAME 8 is a chassis for 80 Series Modules with 8 empty slots, individual output controls, illuminated phantom power buttons, and 2 built-in compressor link buses. The power supply is included.
FRAME 8 is manufactured using the same ISEP mechanical components used in the Series 80 consoles with aluminum rails, guides, etc. This ensures compatibility with both modern and original vintage modules.
Each channel of the device is equipped with an individual gain control to attenuate overly strong signals before the output transformer. For convenience when working with condenser microphones, there is also an illuminated +48V phantom power switch.

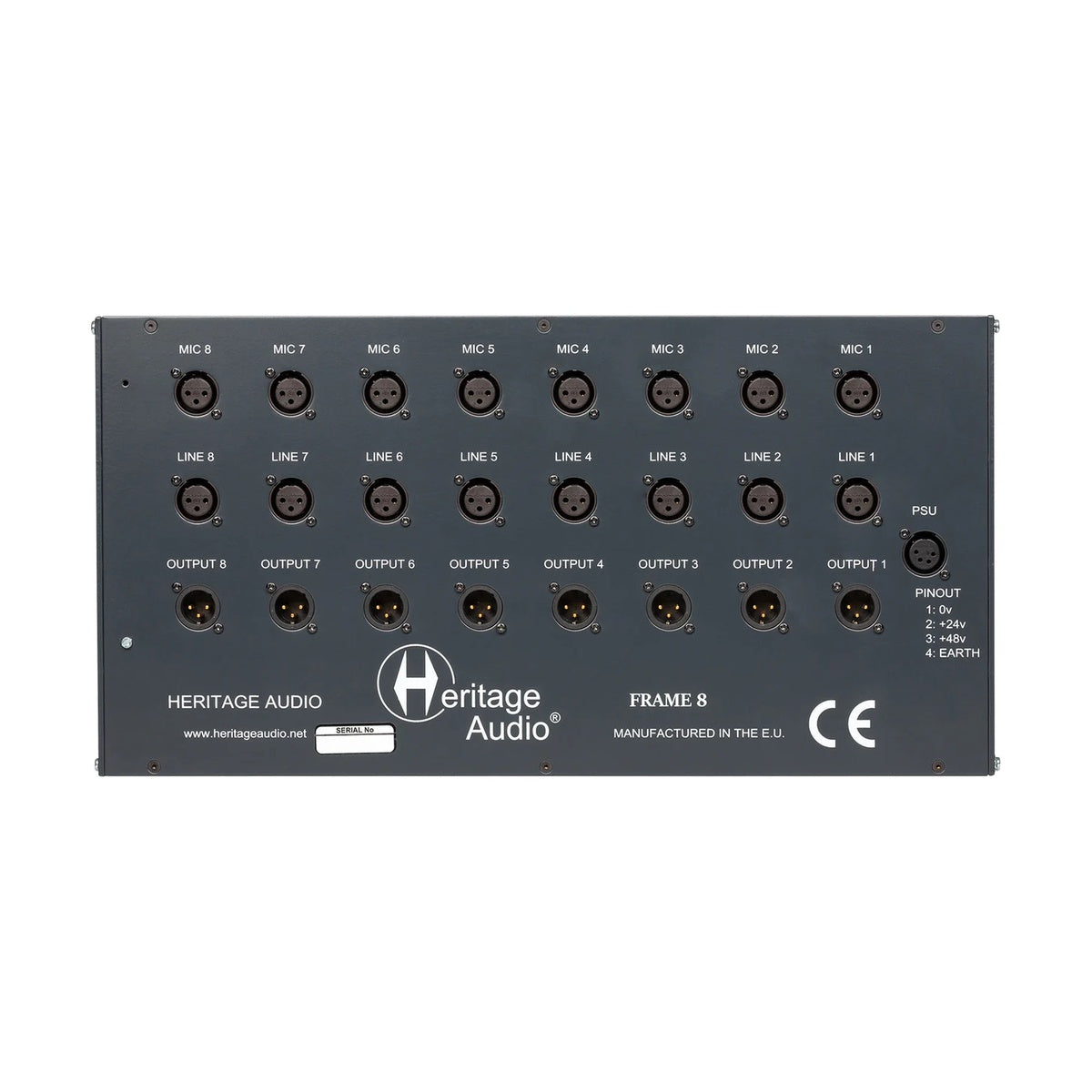

The rear panel houses gold-plated Neutrik XLR connectors for MIC and LINE inputs, as well as LINE outputs for connecting equipment.
The external power supply has a voltage selector switch for 100V or 220-240V for operation in all regions, connected via a gold-plated 4-pin Neutrik XLR.
FRAME 8 Key Features
- 8 channels for Neve "80" Series Module design
- The possibility to install up to eight 2264E compressors (legacy product)
- Neutrik gold-plated XLR Inputs and Outputs by Neutrik
- Individual output controls
- Built-in compressor link buses A and B
- Genuine ISEP mechanical construction
- External oversized PSU
- PSU cable included.
FRAME 8 Specs
- Handcrafted in the EU employing the same mechanical components used in vintage Series 80 consoles
- Neutrik gold-plated XLRs for Mic and Line inputs
- Neutrik gold-plated XLRs outputs
- Illuminated red pushbuttons for +48V phantom power (less than 260 mA @ 48V DC)
- Prepared for Compression Linking of buses A and B
- Separate output controls per slot
- Dimensions (W x H x L): 315 mm x 222 mm (5U) x 482 mm.
