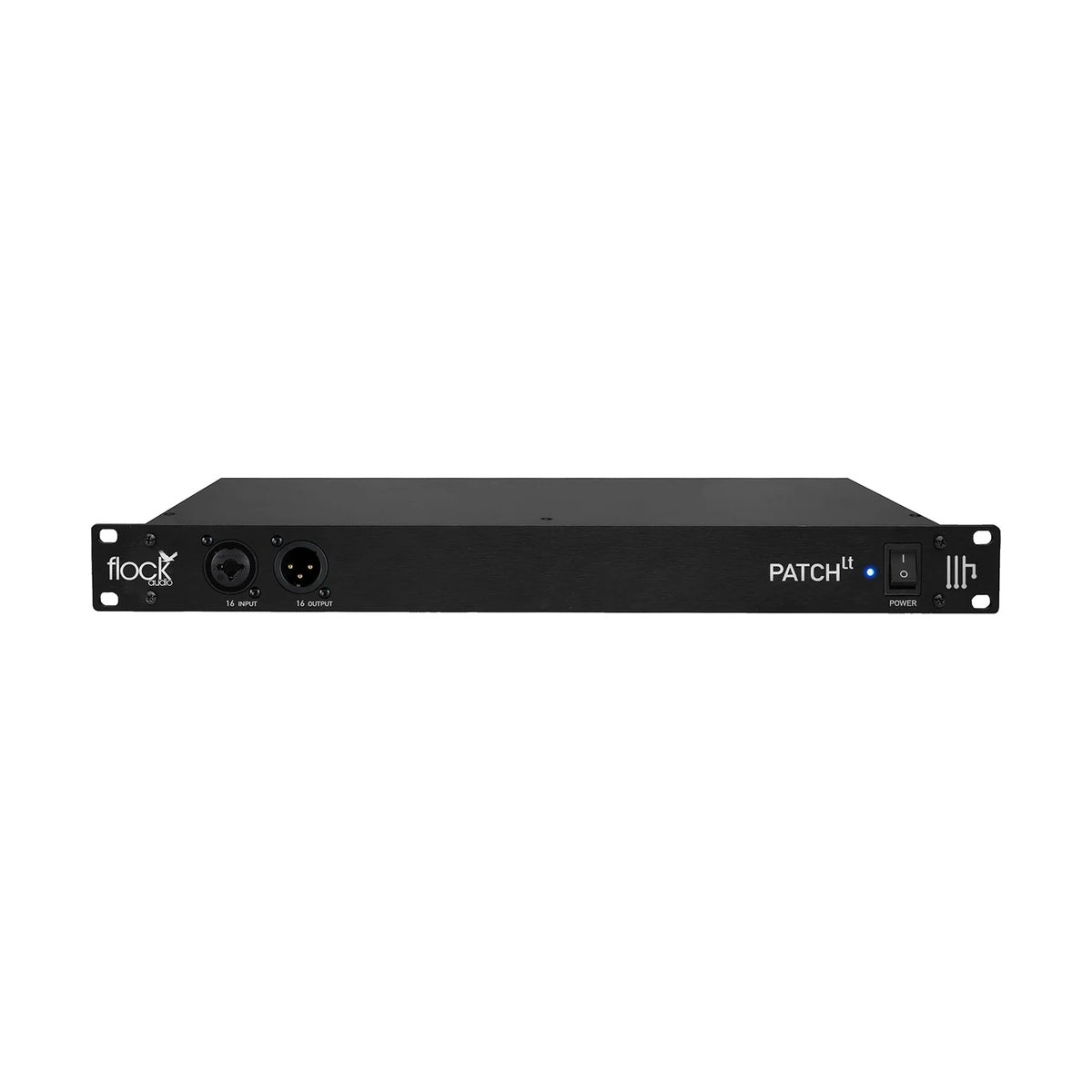

Flock Audio PATCH LT

Flock Audio PATCH LT – digitally controlled analog patchbay with 32 points (16 in/out), designed for signal routing in recording studios. Uses patented matrix technology for flexible switching without patch cables, 100% analog signal path. Ideal for hybrid setups, multing, recall routing. 1U enclosure (44 x 483 x 203 mm, 3.6 kg) with DB-25 Tascam connectors.

PATCH LT features 16 channels 48V phantom power, front panel: 1 combo TRS/XLR input, 1 XLR output. PATCH APP (OSX/Windows) for creating, storing, recalling routings. USB 2.0 to host, Ethernet for remote control. No AD/DA, low latency. Expandable with other PATCH models.

As compact model, blends analog purity with digital convenience, ready for pro sessions without compromise.

MAIN FEATURES

• 32 points (16 in/out) with DB-25 Tascam pinout
• 16 channels 48V phantom power (assignable)
• Front panel: 1 combo TRS/XLR in, 1 XLR out
• PATCH APP: routing, multing, recall in seconds
• USB 2.0/Ethernet control, no AD/DA
• 100% analog path, no impedance issues
• Expandable with PATCH/LT/XT
• Portable: 1U rack, 3.6 kg

TECHNICAL SPECIFICATIONS

• Points: 32 (16 in/out)
• Connectors: DB-25 Tascam, front combo TRS/XLR, XLR out
• Phantom Power: 16 channels 48V
• Control: USB 2.0, Ethernet (CAT5), PATCH APP
• Frequency Response: 20 Hz–20 kHz
• THD + N: < 0.01% @ 1 kHz
• Power Supply: Internal IEC, 100-240 V AC
• Dimensions (H × W × D): 44 x 483 x 203 mm (1U)
• Weight: 3.6 kg
• Included: PATCH LT, power supply, USB cable
• Product Code: FLO-PATCH-LT
