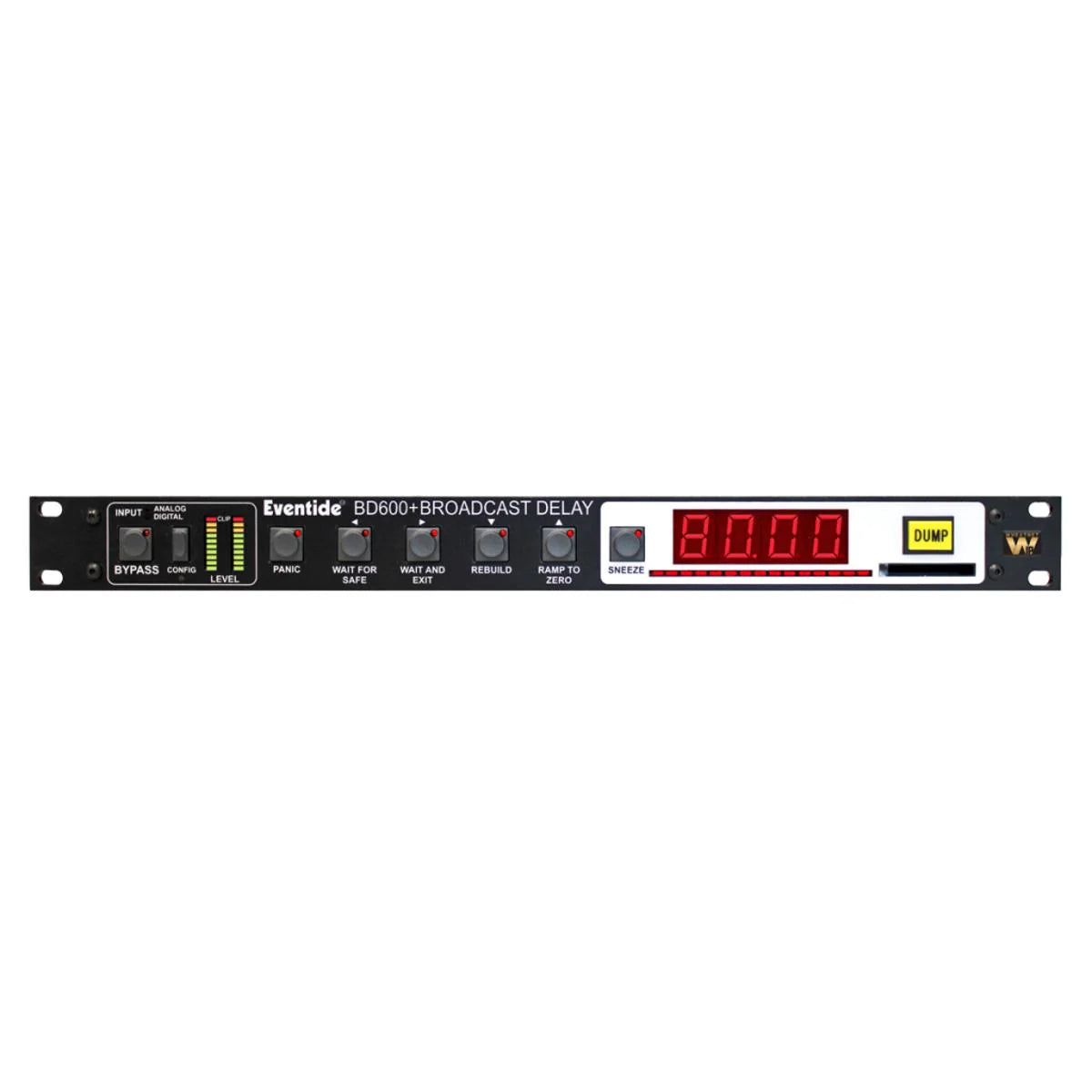

Eventide BD600W+

The Eventide BD600W+ is an advanced device offering up to 80 seconds of delay, providing the highest level of broadcast protection and licensing security—twice as much as competing solutions. With full integration into the WheatNet-IP system and AES67 standard support, the Eventide BD600W+ is an ideal choice for modern audio-over-IP networks.

Equipped with MicroPrecision Delay™ technology, it ensures precise synchronization of analog and digital signals. Delivering 24-bit audio quality, extensive remote control functionality, and an intuitive interface, the Eventide BD600W+ is an essential tool for broadcast professionals.

Key Features of the Eventide BD600W+

• 80 Seconds of Delay Protection – Adjustable in segments from 4 to 10 seconds.
• MicroPrecision Delay™ – Precision adjustment in 100-nanosecond increments.
• Sneeze Button – Temporarily mute audio without interrupting the broadcast.
• Panic Function – Plays WAV files during buffer rebuilds.
• WheatNet-IP Support – Seamless integration with AoIP networks.
• Digital and Analog I/O – 24-bit XLR and AES/EBU with optional Word Clock synchronization.
• 16 Programmable Remote Inputs/Outputs – Fully compatible with WheatNet-IP GPIO.
• Intuitive User Interface – Digital delay time readout and quick-read safety indicators.

Technical Specifications of the Eventide BD600W+

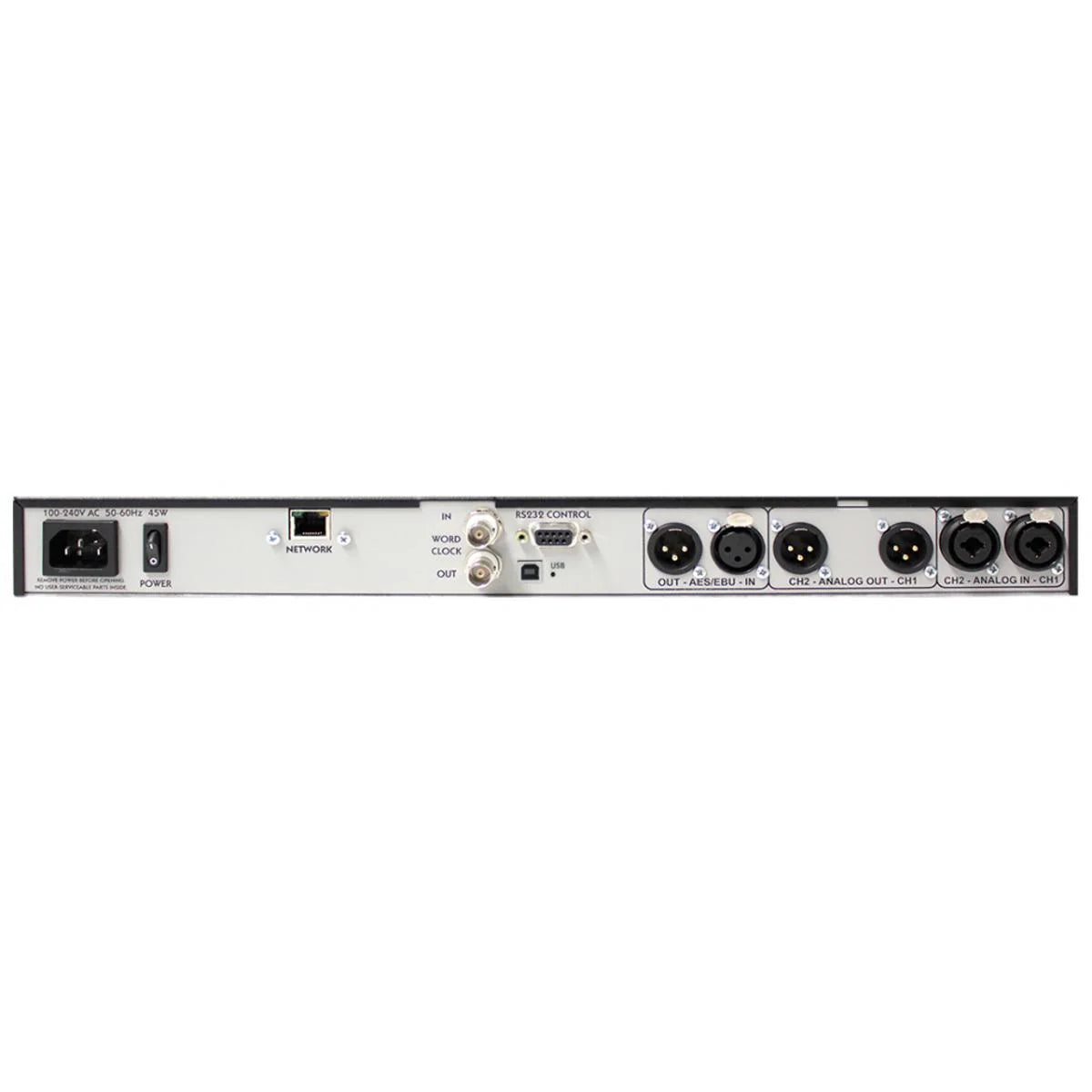

Analog Inputs/Outputs

• Input Connectors: XLR, balanced, pin 2 hot, impedance 20 kΩ.
• Output Connectors: XLR, balanced, pin 2 hot, impedance 20 kΩ.
• THD+N: <0.003% at 1 kHz, -3 dBFS.
• Dynamic Range: >104 dB.

Digital Inputs/Outputs

• AES/EBU: 24-bit, supports 44.1/48 kHz sampling rates.
• Compact Flash Support: For WAV playback and firmware updates.

Dimensions and Weight

• Dimensions (H x W x D): 4.5 x 48.3 x 26.7 cm (1.75 x 19 x 10.5 inches).
• Weight: 4.1 kg; shipping weight: 6.5 kg.

Power

• Consumption: 40 W.
• Voltage: 100-240 V AC, 50/60 Hz.
