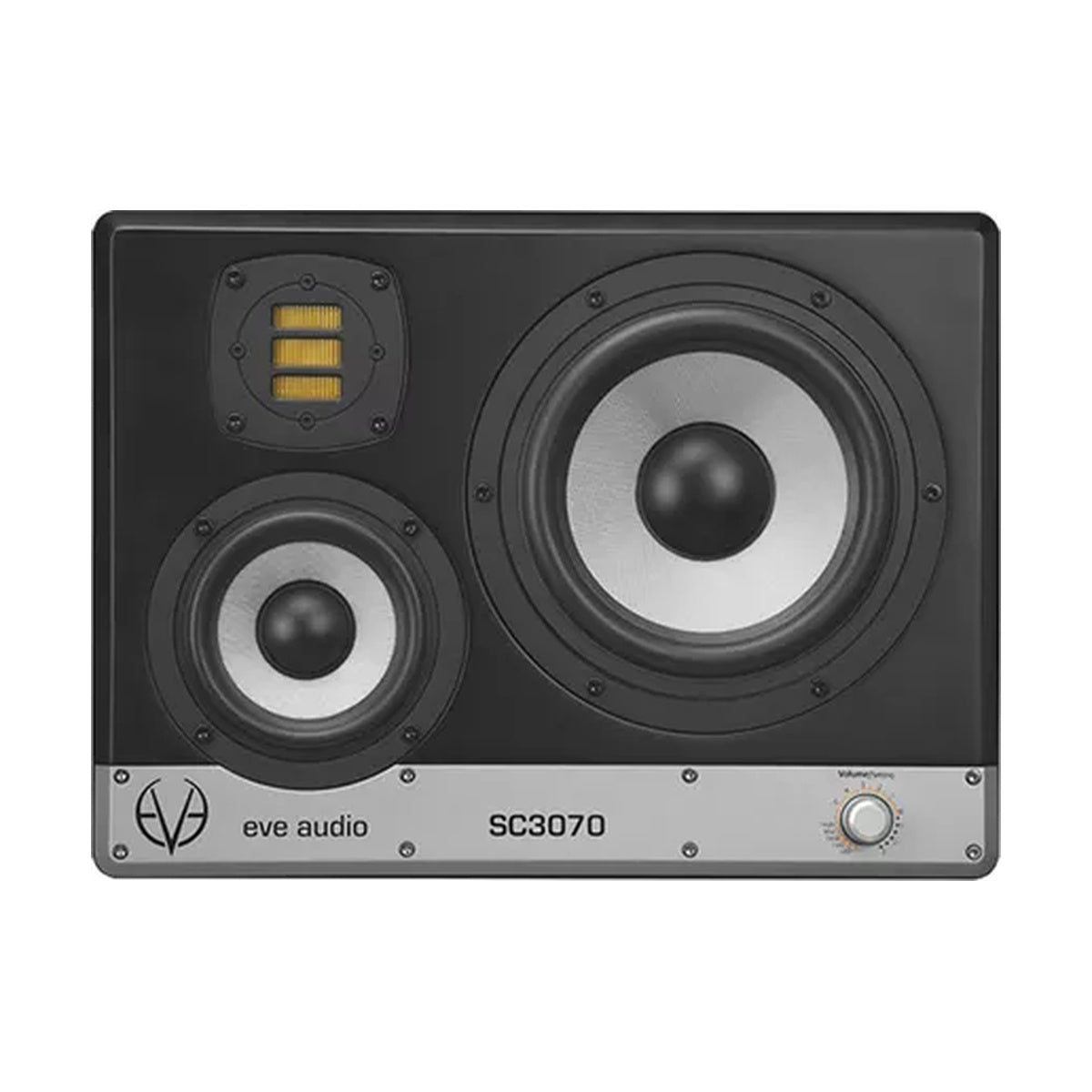

Eve Audio SC3070 right - 3-Way Studio Monitor
Configurer
The EVE Audio SC3070 Right is a high-resolution, tri-amplified three-way active studio monitor (right-channel version) designed explicitly for recording, mastering, and high-end home studios. It sets a new benchmark in the compact mid/near-field category by combining the outstanding mid-range precision of EVE’s flagship SC4070 monitor with an ultra-compact, space-saving footprint. Engineered for absolute critical listening, this monitor delivers an exceptionally balanced and dynamic sound image, making it perfect for engineers who require the complete skill set and accuracy of a fully-fledged 3-way system but are working in rooms where space is at a premium.
The acoustic superiority of the SC3070 Right stems from its sophisticated three-driver configuration. The low-end is powerfully driven by a 6.5-inch woofer, while the critical vocal and instrumental frequencies are handled by a dedicated 4-inch midrange driver. Both feature EVE's custom SilverCone design, utilizing a fiberglass-coated honeycomb membrane and low-distortion copper-cap magnets. Topping off the frequency spectrum is EVE’s world-renowned Air Motion Transformer (AMT RS3.1) tweeter. This hand-folded driver moves air four times more efficiently than a traditional dome tweeter, delivering pristine, high-resolution highs without ever causing listening fatigue during marathon sessions.
At the brain of the SC3070 is a sophisticated, high-resolution DSP engine. Analog signals via XLR or RCA are flawlessly converted by a premium Burr-Brown A/D converter (24-bit/192 kHz). The DSP ensures latency-free filtering, manages the highly accurate crossover points (320 Hz and 2800 Hz), and protects the entire system from dangerous overloads. The user interface is elegantly simple: a front-panel SMART-knob adorned with an LED ring grants immediate access to volume control and room-adaptation acoustic filters (High-Shelf, Mid EQ, and Desk filter), allowing you to perfectly tune the monitor to your specific acoustic environment.
KEY FEATURES
- High-resolution, tri-amplified 3-way active studio monitor (Right channel placement)
- Ultra-compact cabinet design delivering the performance of a large main studio monitor
- Dedicated 4-inch midrange driver for highly accurate vocal and instrument reproduction
- 6.5-inch SilverCone woofer with a rigid honeycomb structure for tight, dynamic bass
- Proprietary AMT RS3.1 tweeter offers crystal-clear, detailed highs with zero ear fatigue
- Three highly efficient Class-D amplifiers providing a massive 335W of total power per speaker
- Advanced DSP engine with Burr-Brown 24-bit/192 kHz A/D conversion for pristine signal handling
- Front-panel SMART-knob for quick, intuitive control of volume and acoustic room filtering
- Rear-firing bass-reflex port optimized for deep, accurate low-frequency extension down to 35 Hz
TECHNICAL SPECIFICATIONS
- Monitor Type: Three-way active studio monitor (Right version)
- Frequency Range (-3 dB): 35 Hz – 25 kHz
- Tweeter: AMT RS3.1 (Air Motion Transformer)
- Midrange Driver: 100 mm (4 inches)
- Woofer: 165 mm (6.5 inches)
- Crossover Frequencies: 320 Hz and 2800 Hz
- Maximum SPL (per pair): 120 dB
- Output Power (per speaker): 335 W (185W Woofer + 100W Mid + 50W Tweeter)

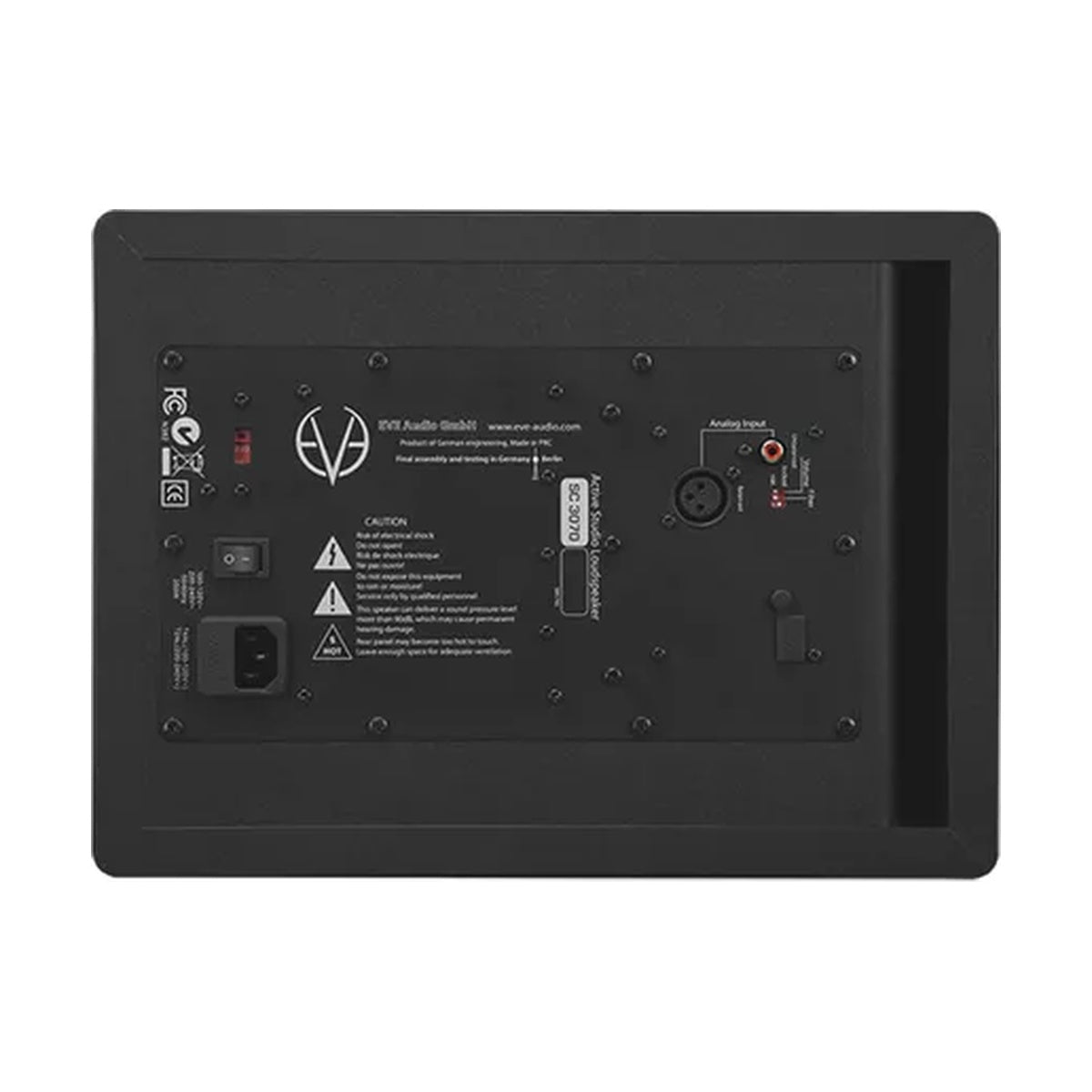

- Input Connectors: 1x Balanced XLR (10k Ohms), 1x Unbalanced RCA (10k Ohms)
- DSP Settings: High-shelf (> 3kHz), Mid EQ (1kHz), Desk filter boost (80Hz)
- Protection: Built-in overload protection limiter
