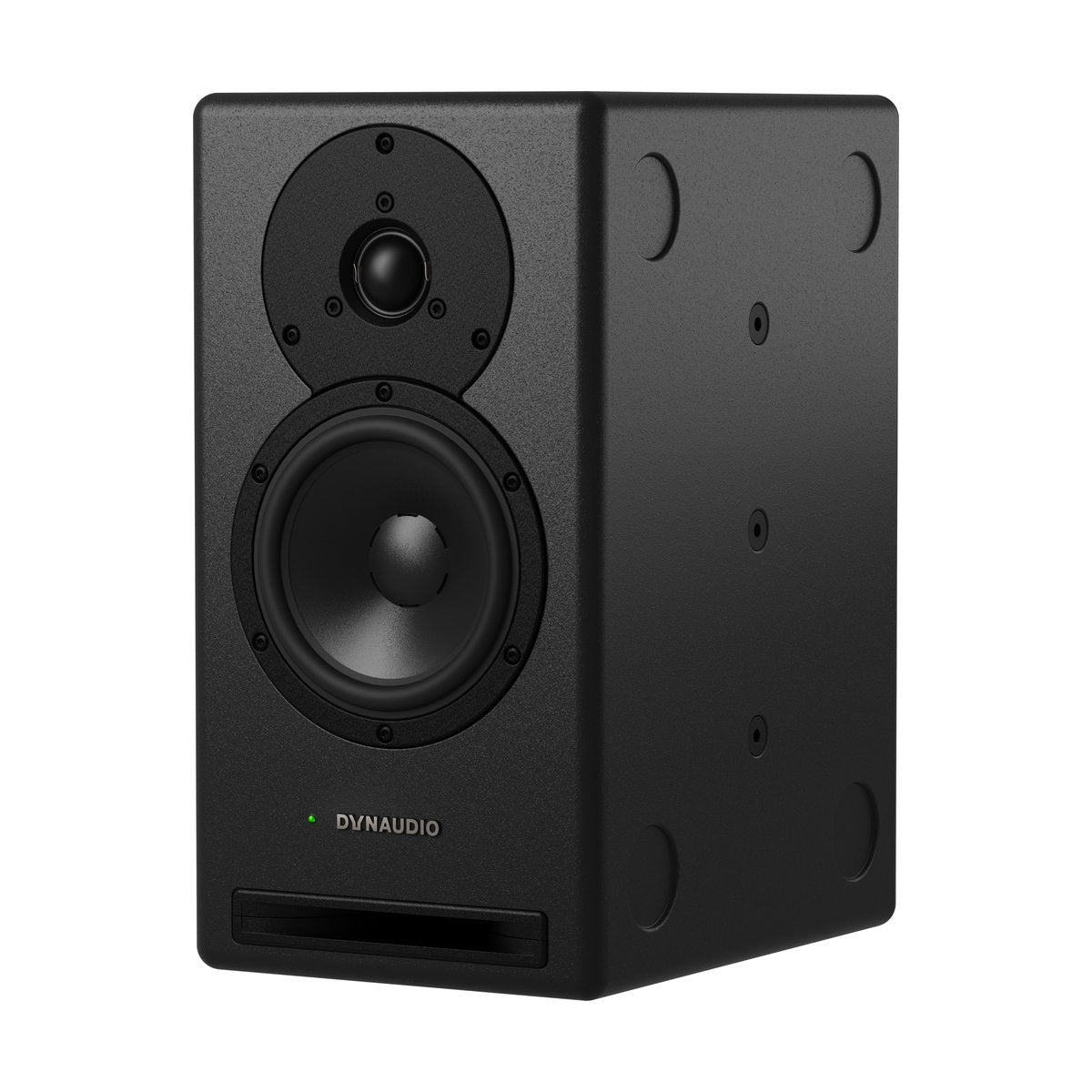

DYNAUDIO CORE 5 is a compact 5" active studio monitor with MSP+ woofer, 500W Class-D amplification, and advanced DSP — ideal for nearfield monitoring in small studios, broadcast, and immersive audio setups requiring precise, transparent sound reproduction.
This handcrafted Danish monitor features a 1" soft-dome tweeter and 5.25" MSP+ woofer for exceptional clarity and low distortion, with room compensation DSP, digital AES3 input, and flexible mounting options. Delivers powerful dynamics in a small footprint, perfect for 5.1 or larger immersive systems.
KEY FEATURES
- 5.25" MSP+ woofer and 1" ESOTEC soft-dome tweeter
- Pascal Class-D amplification: 500W total (400W LF + 100W HF)
- Advanced DSP for room tuning and driver protection
- Frequency response: 50 Hz - 28 kHz (±3 dB)
- Maximum SPL: 112 dB SPL (1m anechoic)
- Balanced analog XLR/TRS inputs, digital AES3 input
- VESA mount compatible, low-latency digital path
- Handcrafted in Denmark with individual calibration
TECHNICAL SPECIFICATIONS
- Drivers: 1 x 5.25" MSP+ woofer, 1 x 1" ESOTEC tweeter
- Amplification: Pascal Class-D, 500W (400W LF + 100W HF)
- Frequency Response: 50 Hz - 28 kHz (±3 dB)
- Maximum SPL: 112 dB SPL (1m anechoic)
- Converter: 24-bit / 192 kHz
- Inputs: 1 x XLR/TRS balanced analog, 1 x XLR AES3 digital
- Outputs: 1 x XLR AES3 digital thru
- DSP: Room compensation filters (meter bridge, stand, bracket, free space, soffit)
- Power: IEC mains (100-240V)
- Dimensions (H x W x D): 299 x 192 x 256 mm
- Weight: 7.8 kg
